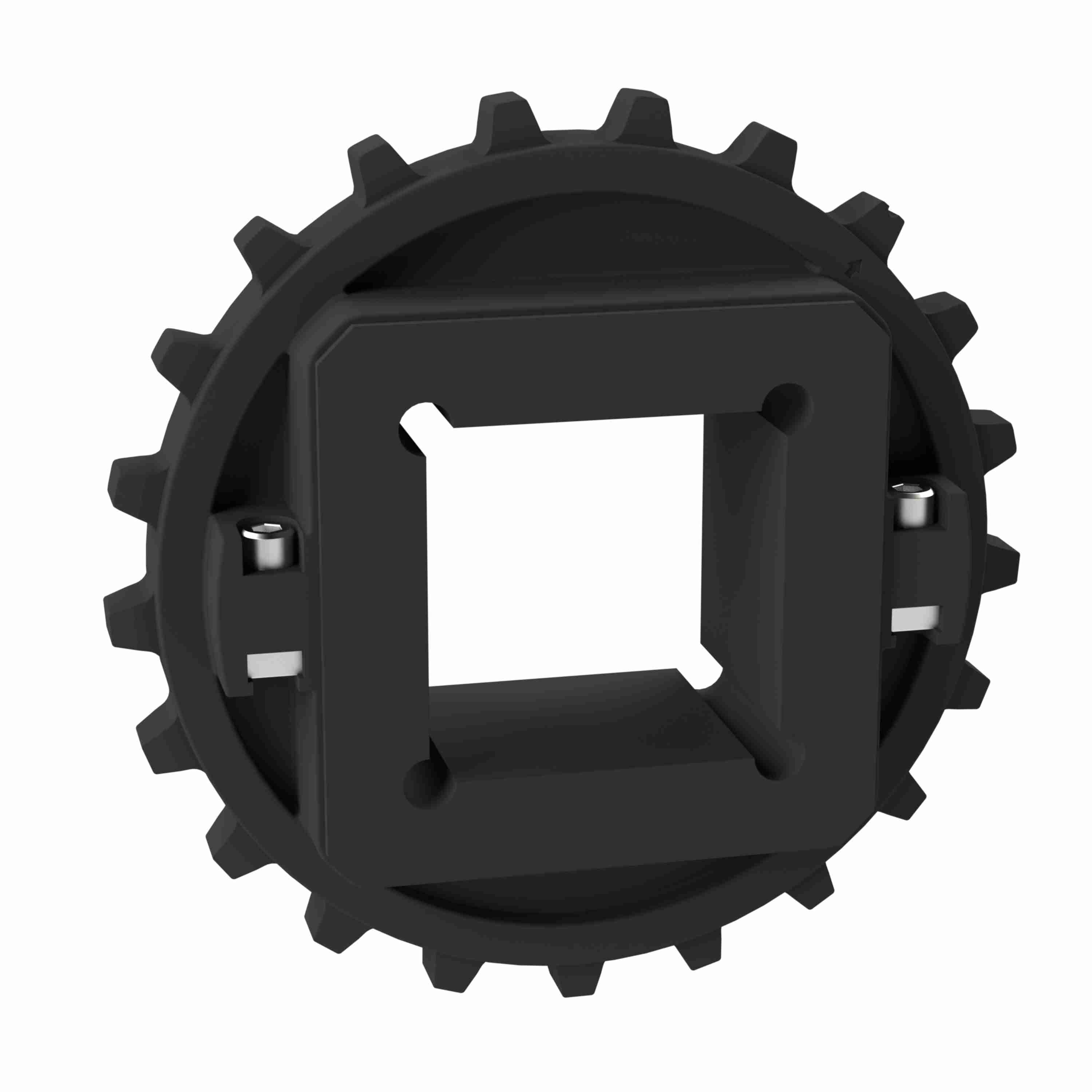

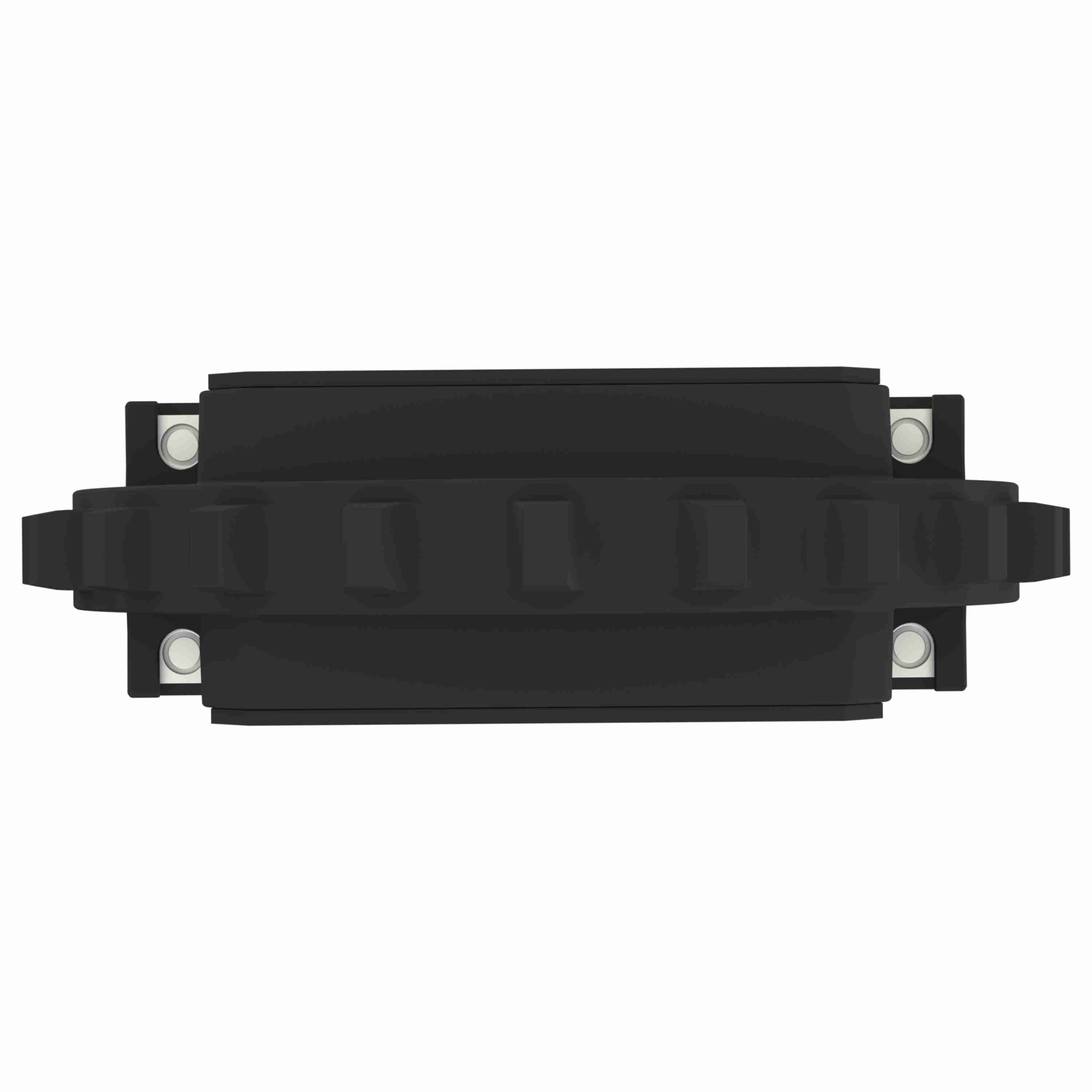

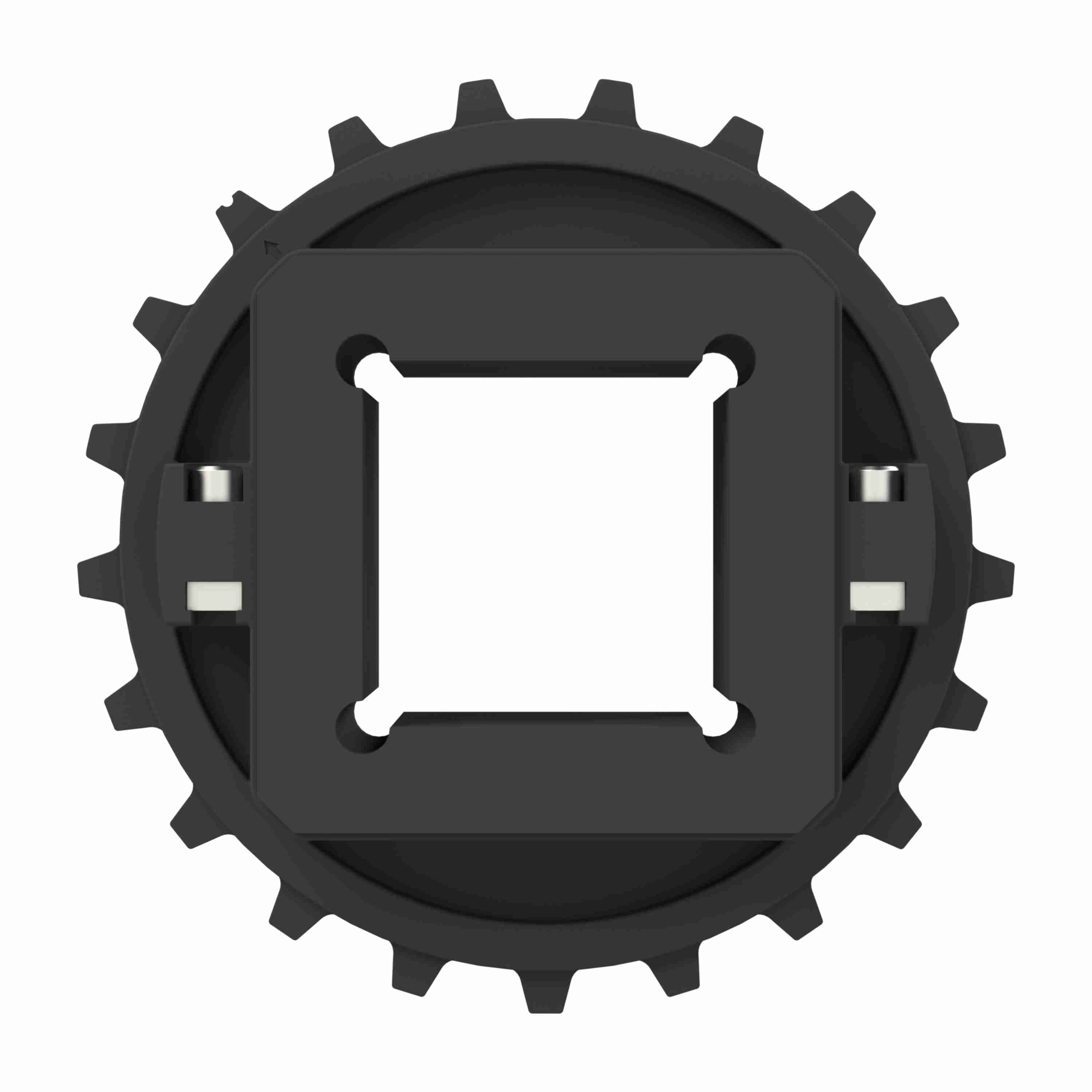

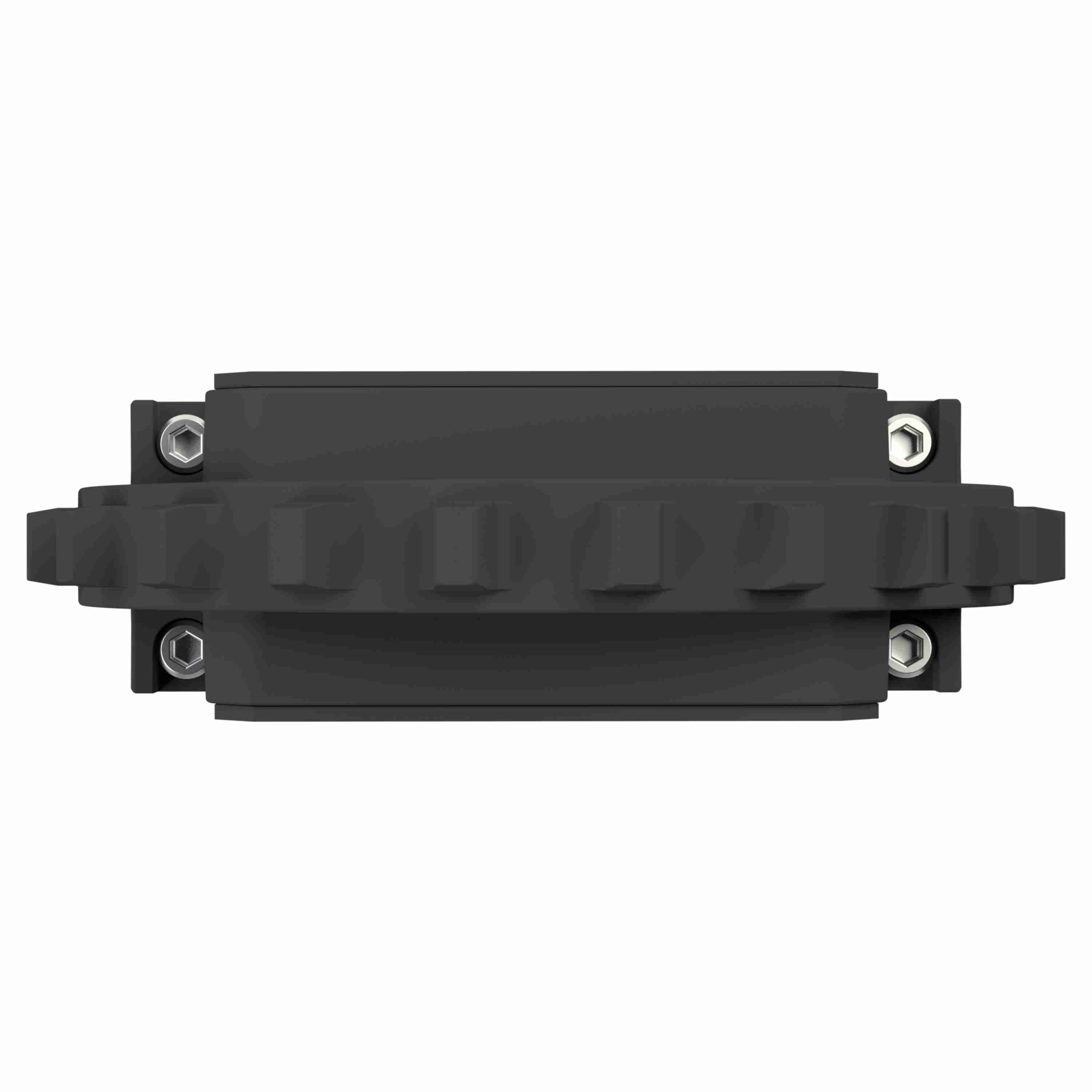

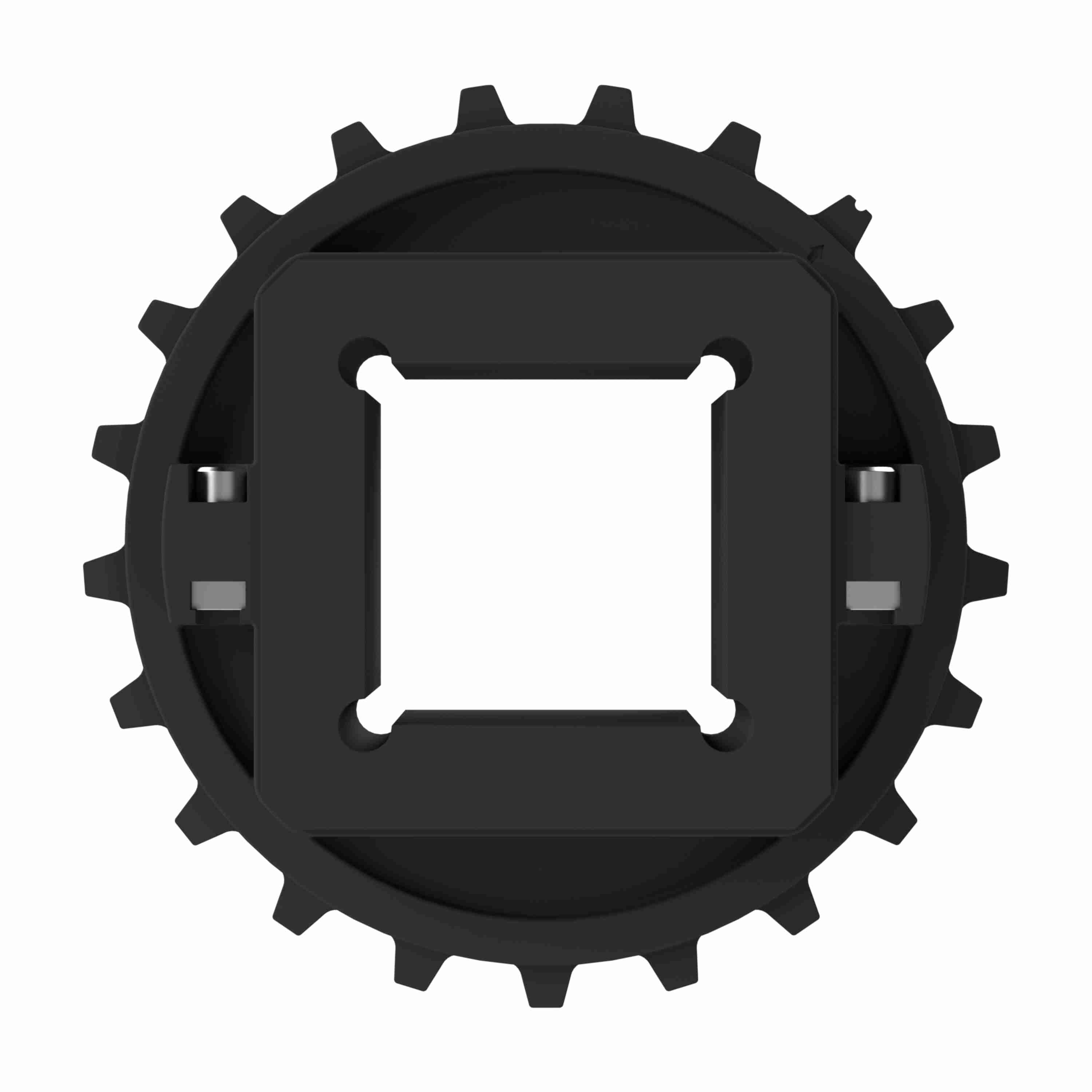

Rexnord 7700 Series Split Molded Nylon Sprocket with 21 Teeth and a 2-1/2in Square Bore - 614-126-3
Part #:10028593
Catalog #:614-126-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Chain and Belt Sprockets | Material: | Nylon |
| Sprocket Series: | 7700 | Number of Keyways: | 0 |
| Bore Shape: | Square | Body Style: | Block |
| Pitch Diameter (in): | 6.71 | Number of Teeth: | 21 |
| Product Group: | MatTop® | Number of Set Screws: | None |
| Sprocket Construction: | Molded Split Sprocket | Pitch Diameter (mm): | 170.42 |
| Bore Diameter (in): | 2-1/2 in | Chain Number: | 7700 |
| Bore Type: | Shaft-Ready |
General Specifications
| UPC: | 793699406986 | Weight: | 0.97 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
