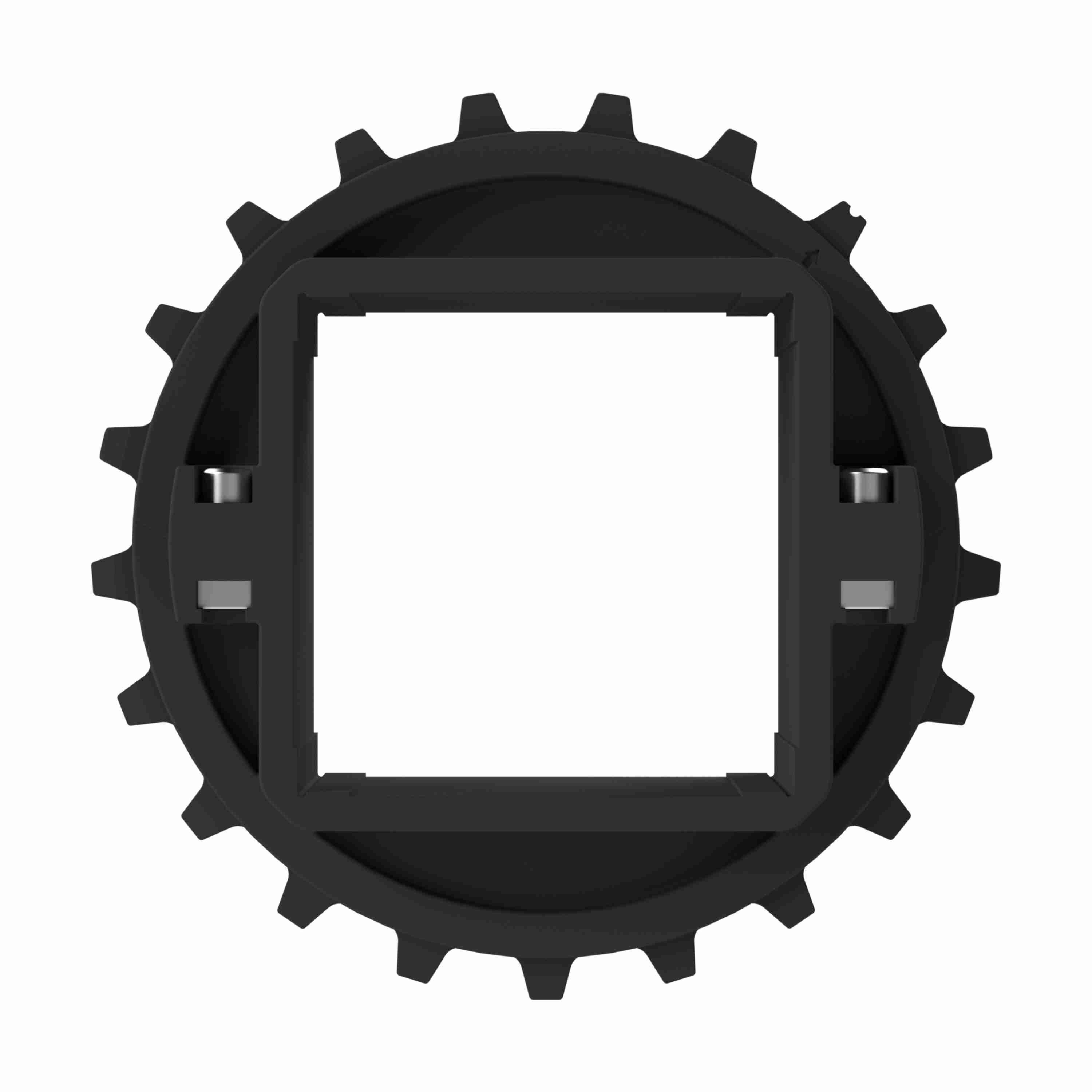

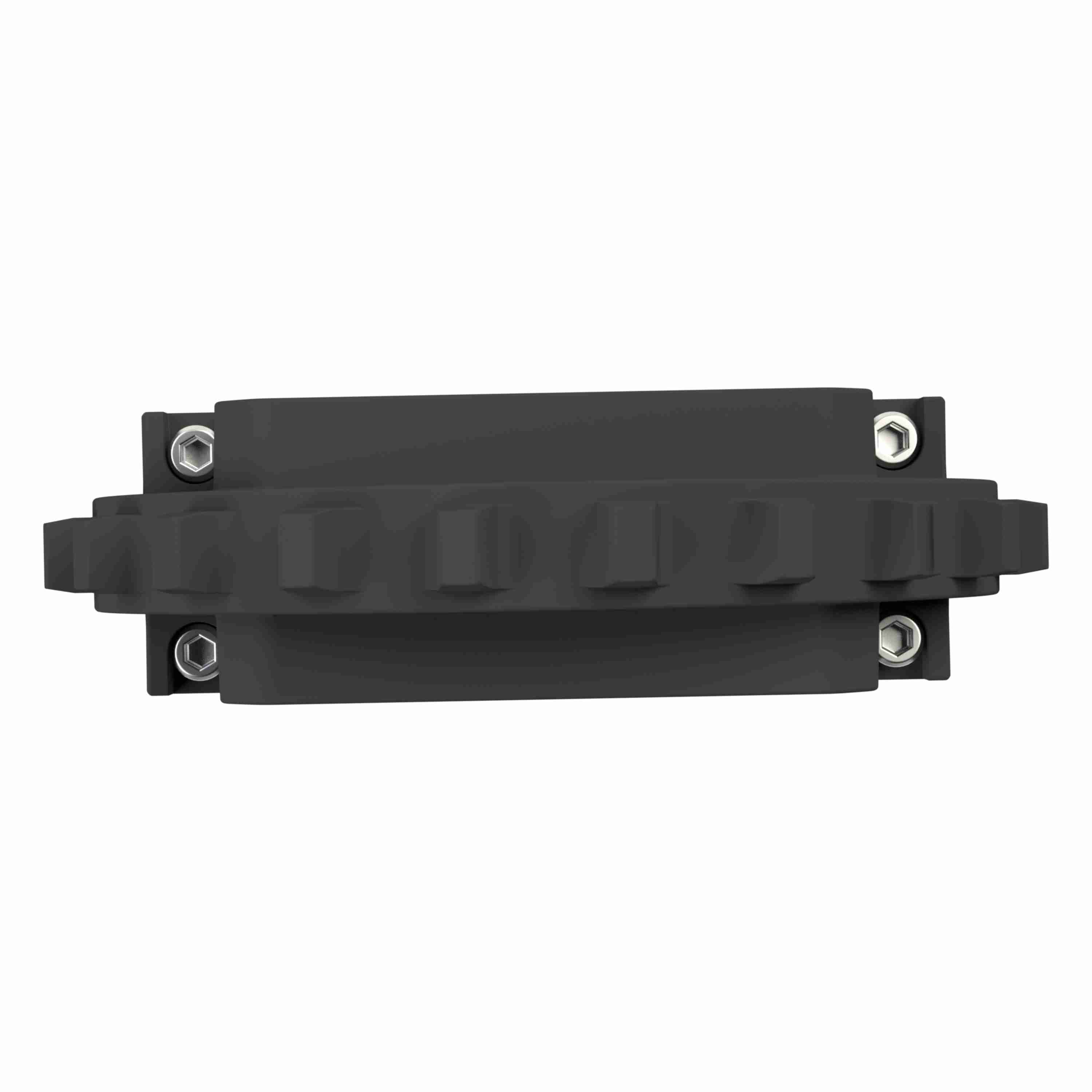

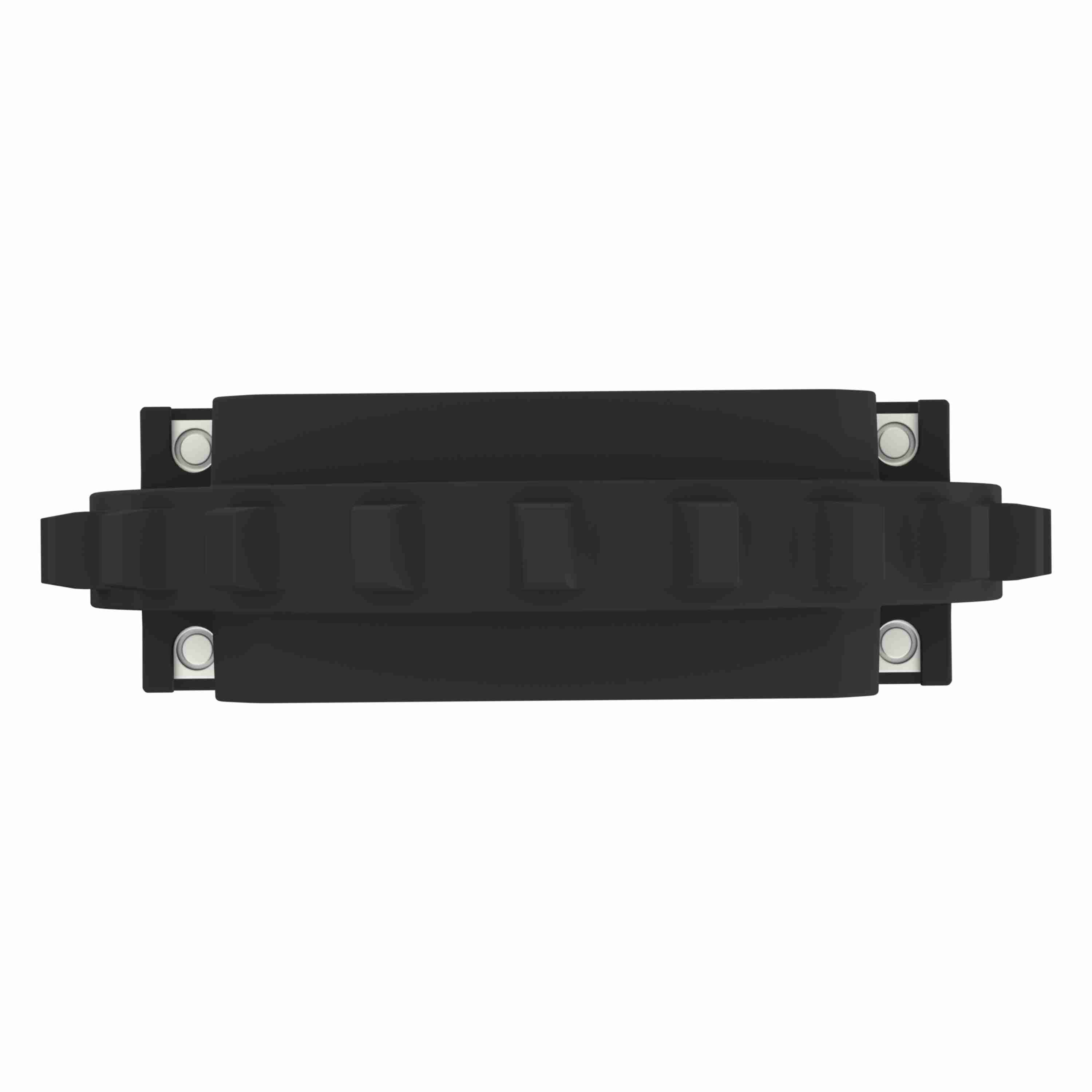

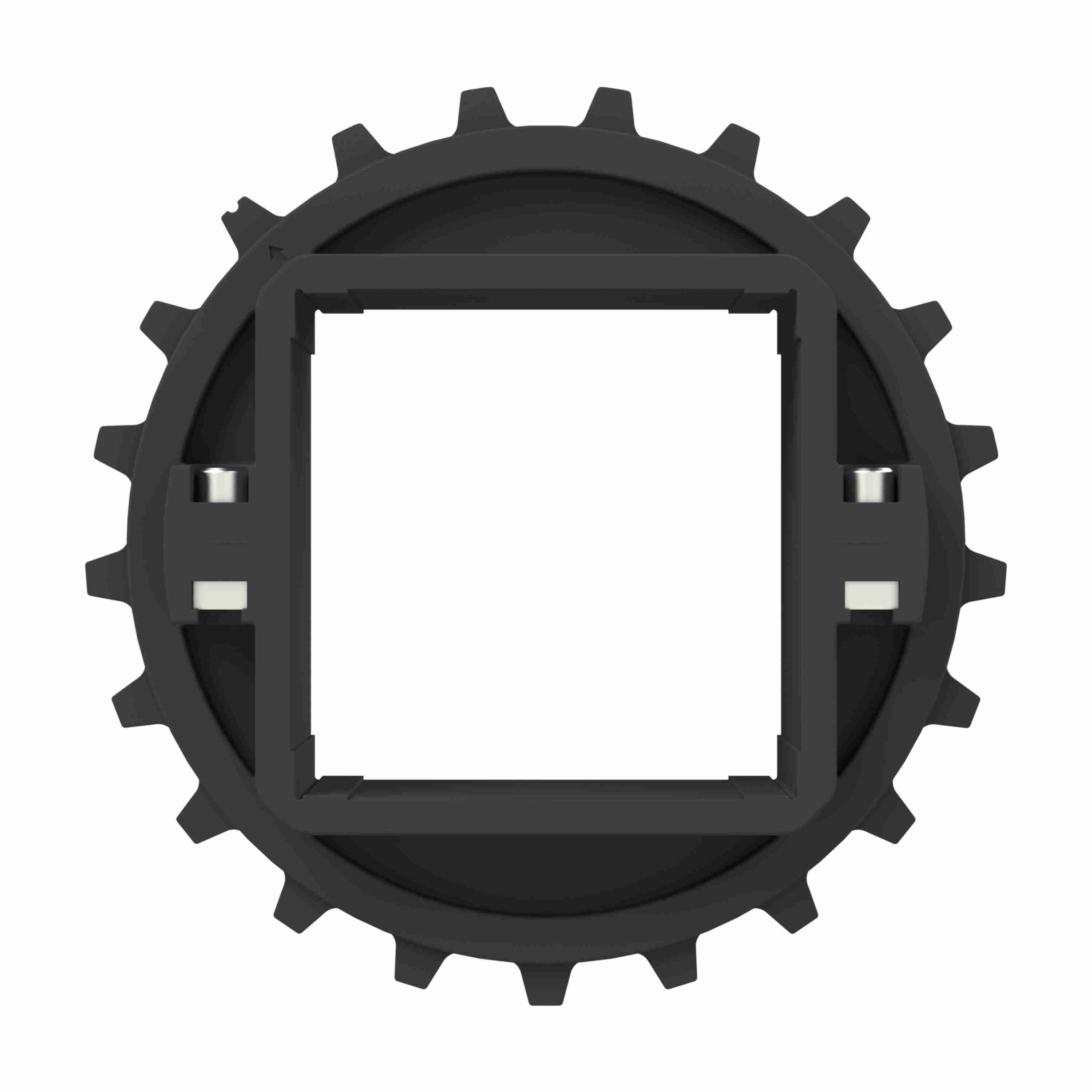

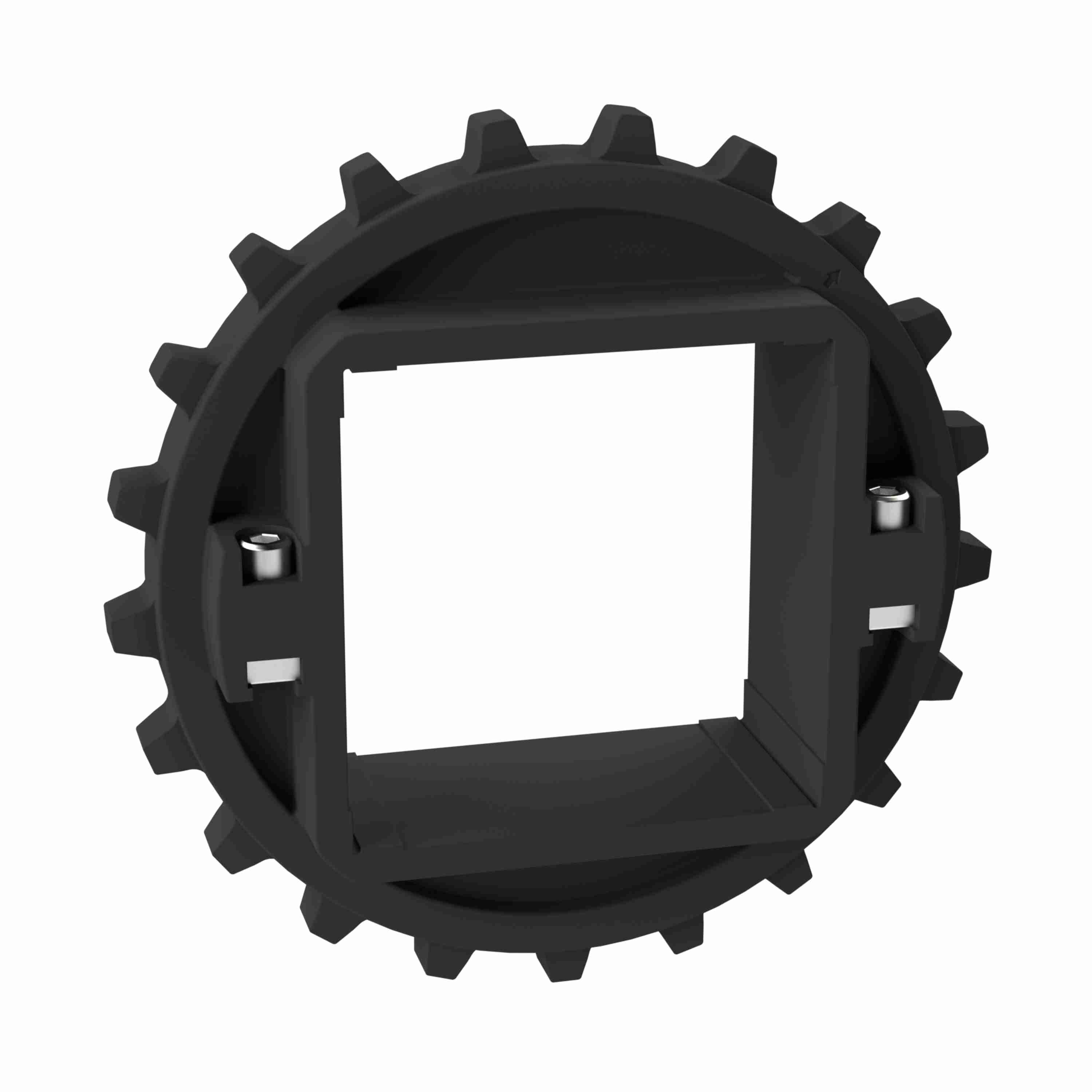

Rexnord 7700 Series Split Molded Nylon Sprocket with 21 Teeth and a 3-1/2in Square Bore - 614-119-1
Part #:10015500
Catalog #:614-119-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 21 | Product Group: | MatTop® |
| Number of Set Screws: | None | Pitch Diameter (in): | 6.71 |
| Chain Number: | 7700 | Number of Keyways: | 0 |
| Product Line: | Chain and Belt Sprockets | Bore Type: | Shaft-Ready |
| Sprocket Construction: | Molded Split Sprocket | Bore Diameter (in): | 3-1/2 in |
| Body Style: | Block | Material: | Nylon |
| Sprocket Series: | 7700 | Bore Shape: | Square |
| Pitch Diameter (mm): | 170.42 |
General Specifications
| UPC: | 793699407037 | Weight: | 0.97 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
