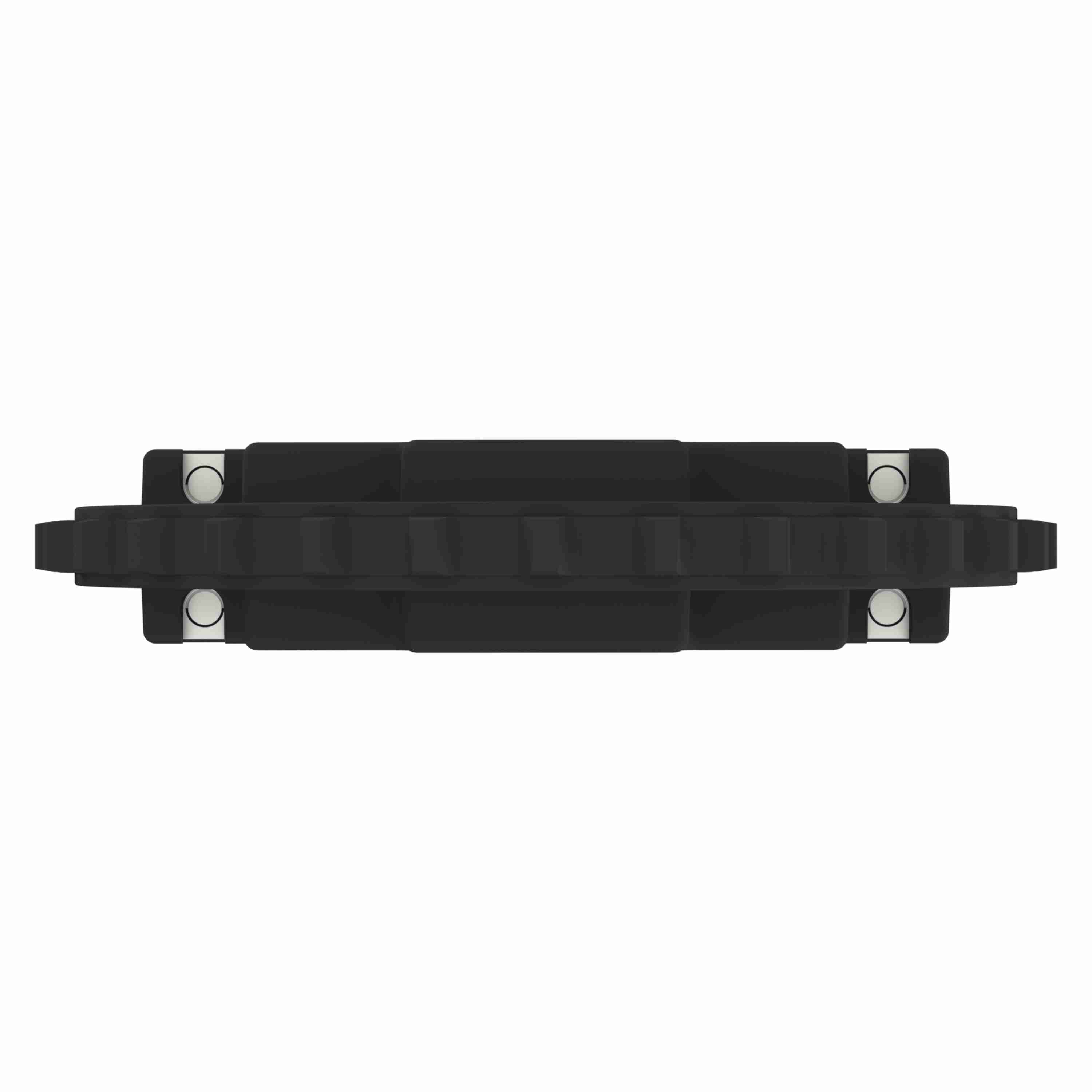

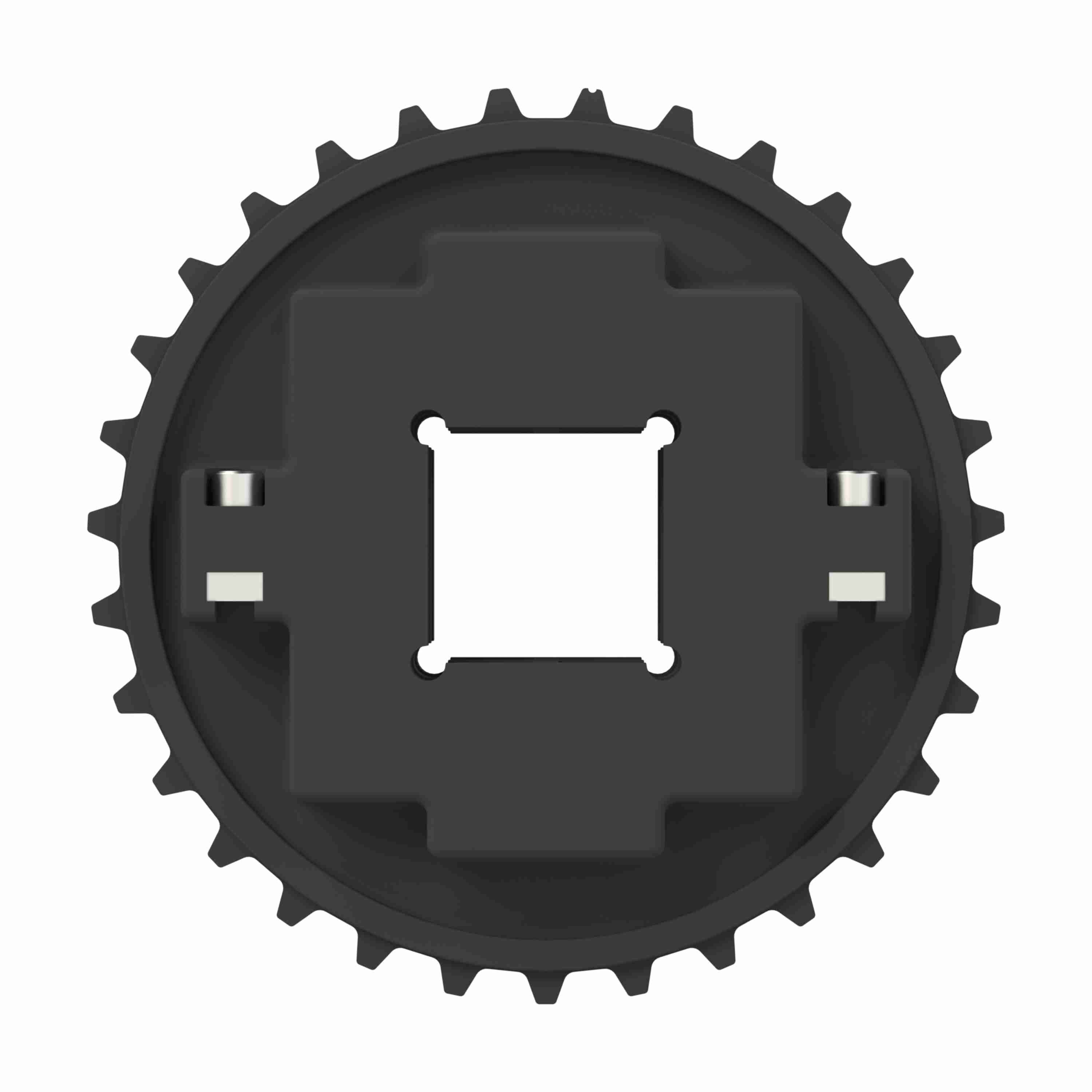

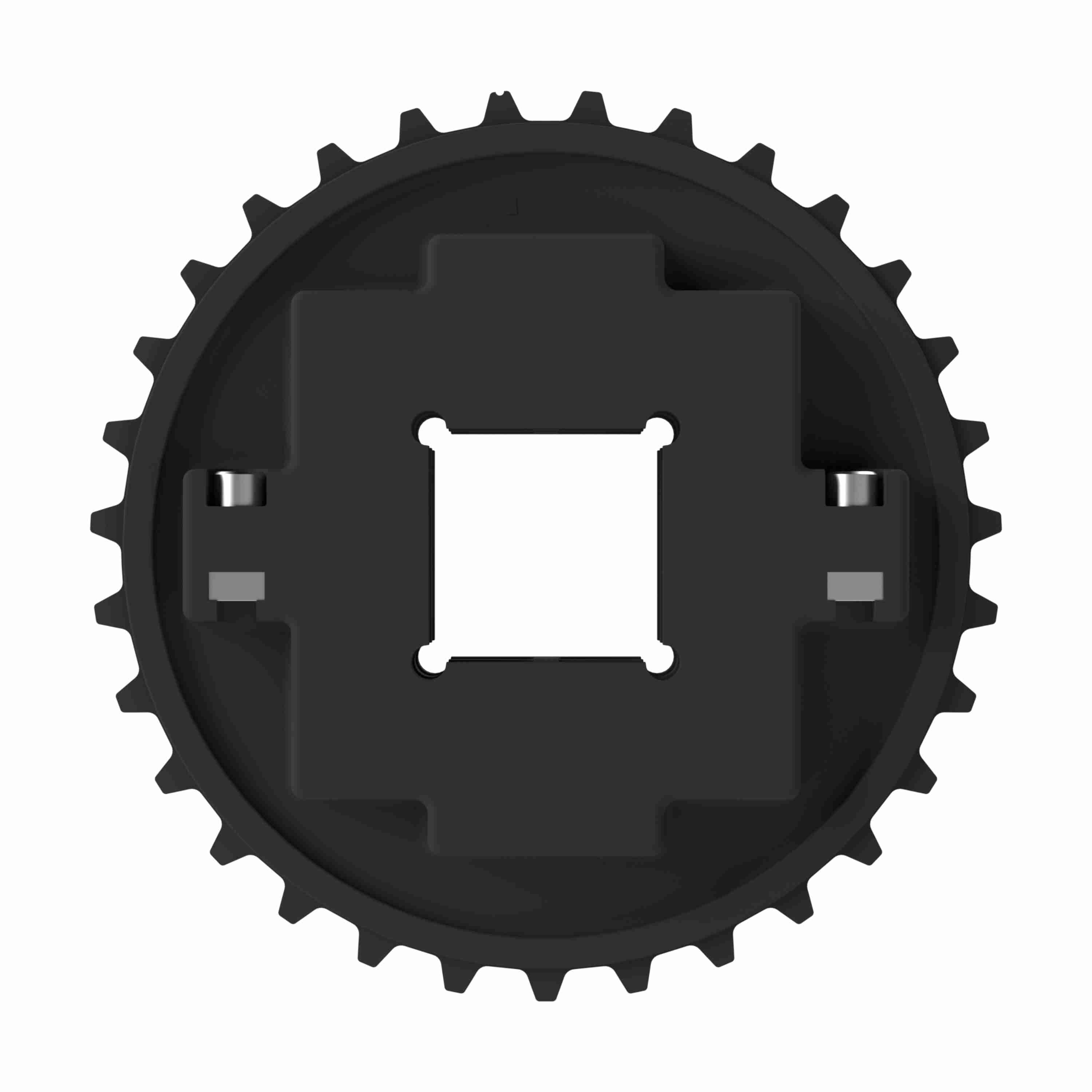

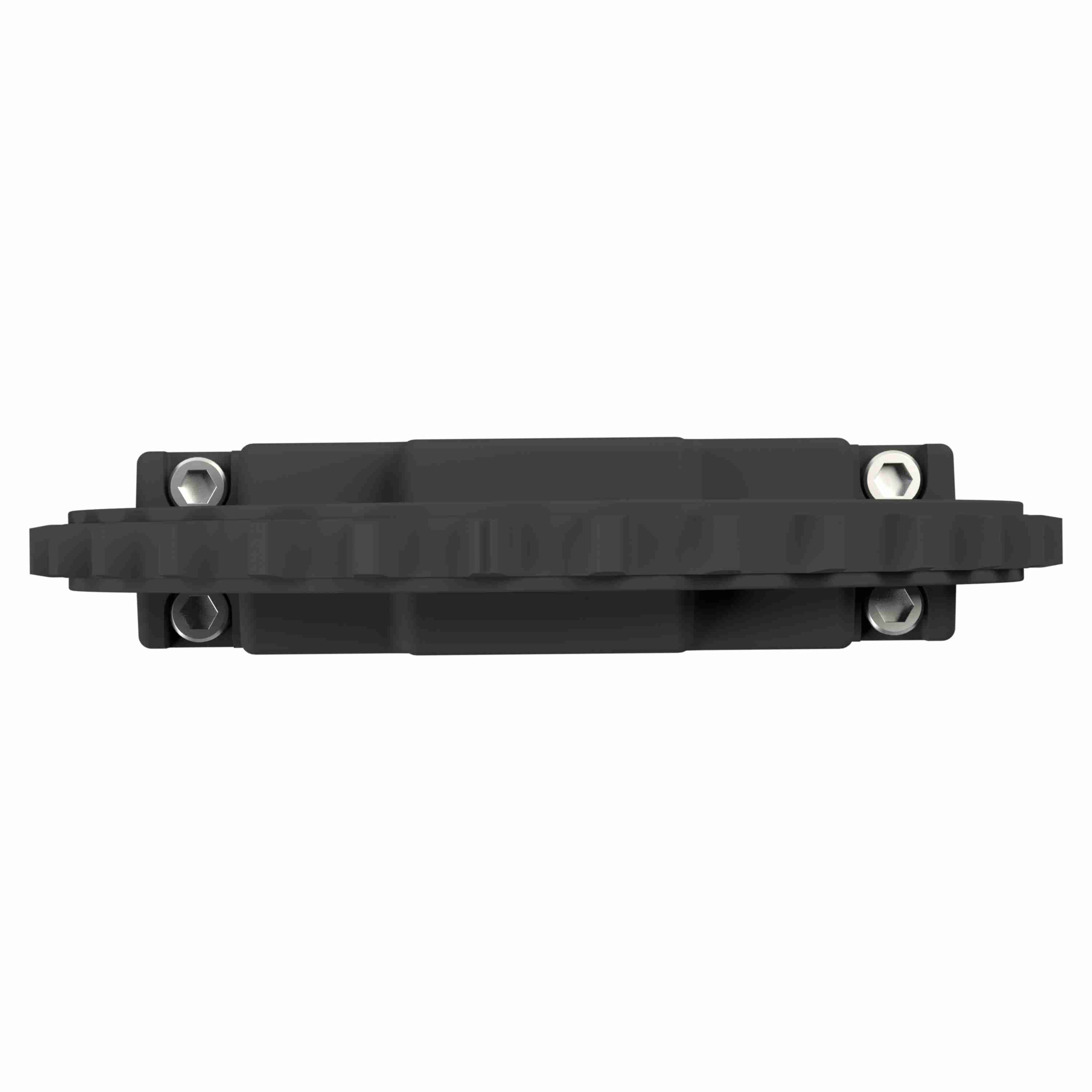

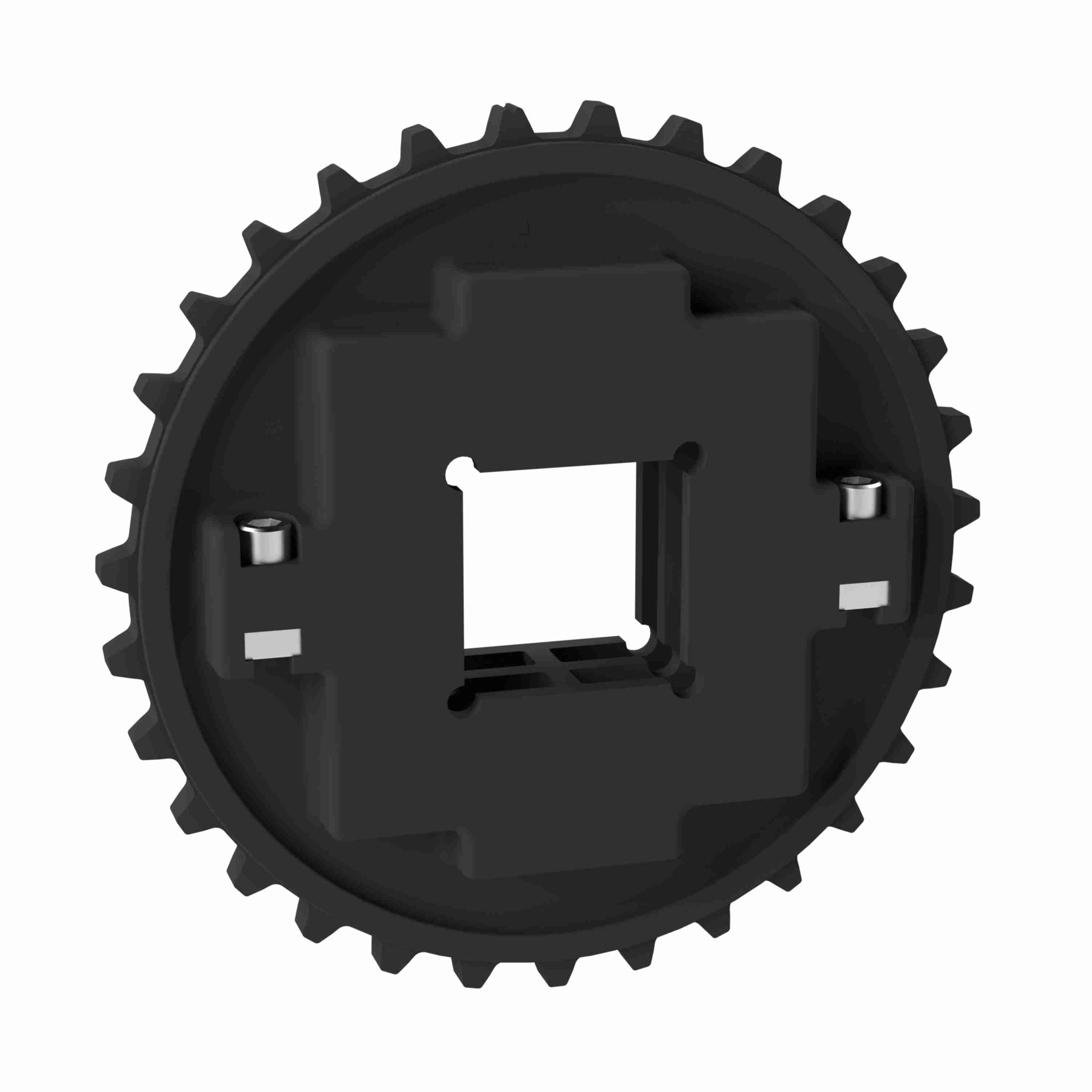

Rexnord 7700 Series Split Molded Nylon Sprocket with 31 Teeth and a 2-1/2in Square Bore - 614-414-2
Part #:10028596
Catalog #:614-414-2
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Keyways: | 0 | Body Style: | Block |
| Product Line: | Chain and Belt Sprockets | Pitch Diameter (mm): | 251.07 |
| Bore Type: | Shaft-Ready | Chain Number: | 7700 |
| Bore Shape: | Square | Material: | Nylon |
| Number of Set Screws: | None | Product Group: | MatTop® |
| Number of Teeth: | 31 | Bore Diameter (in): | 2-1/2 in |
| Sprocket Series: | 7700 | Sprocket Construction: | Molded Split Sprocket |
| Pitch Diameter (in): | 9.885 |
General Specifications
| UPC: | 793699464634 | Weight: | 3.72 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 12.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
