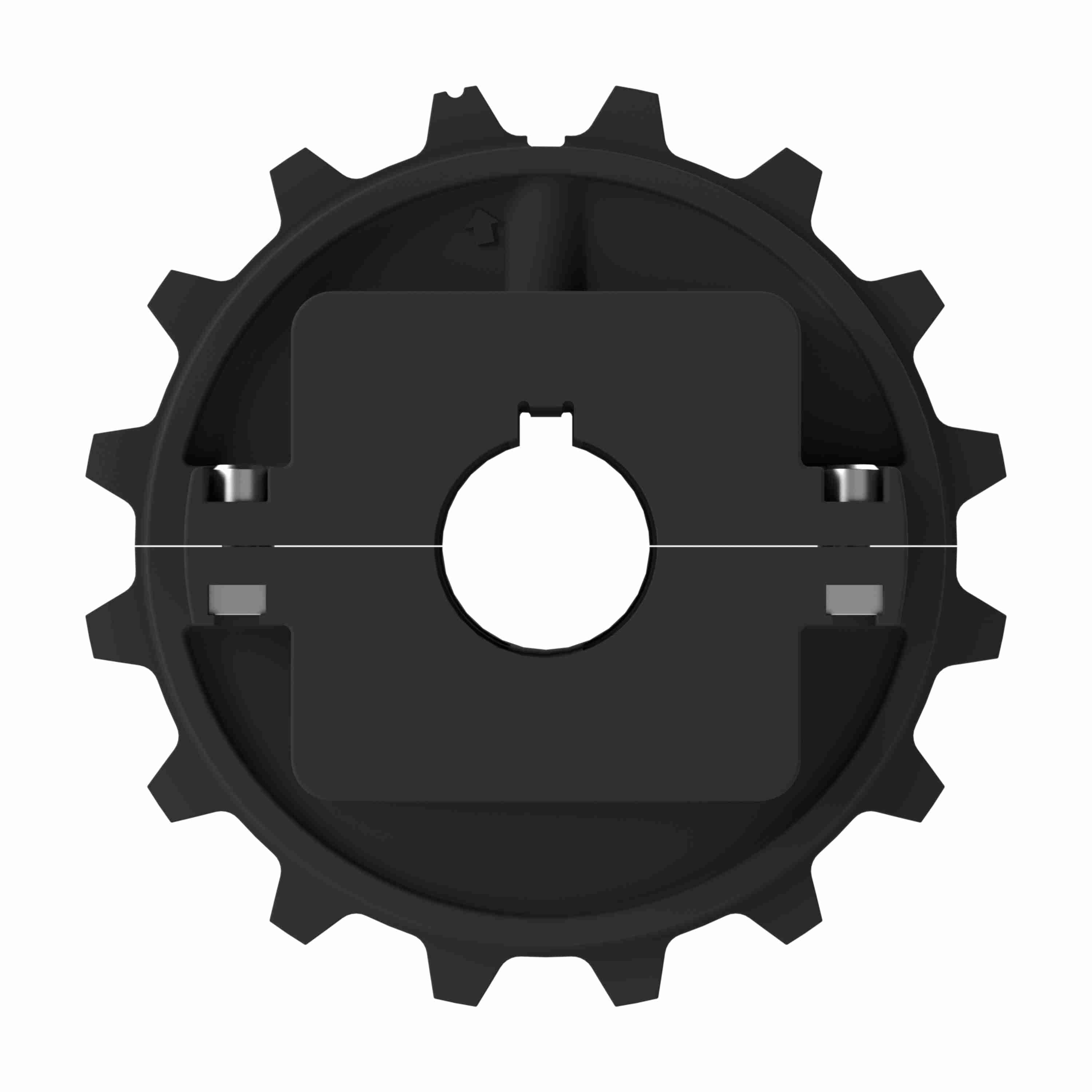

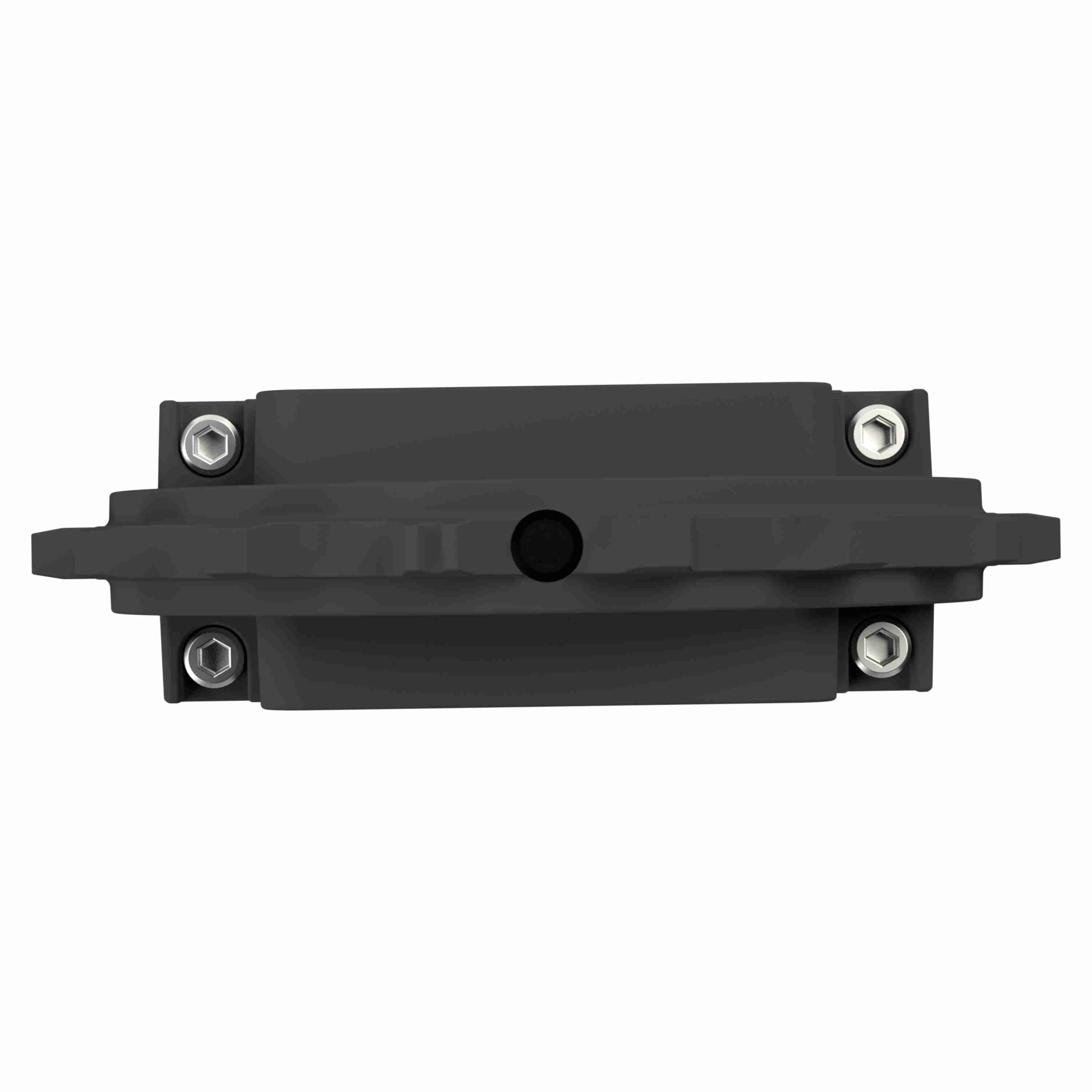

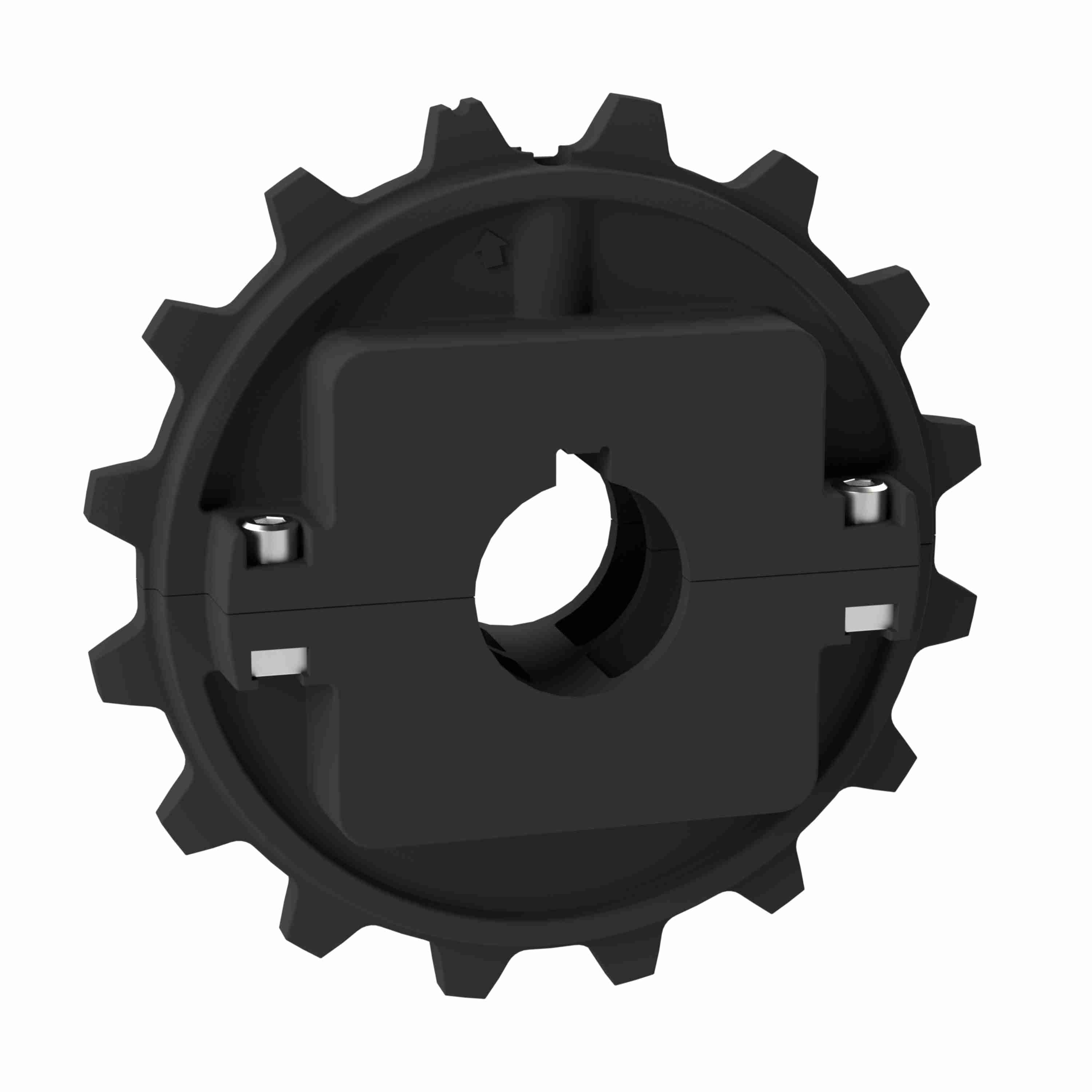

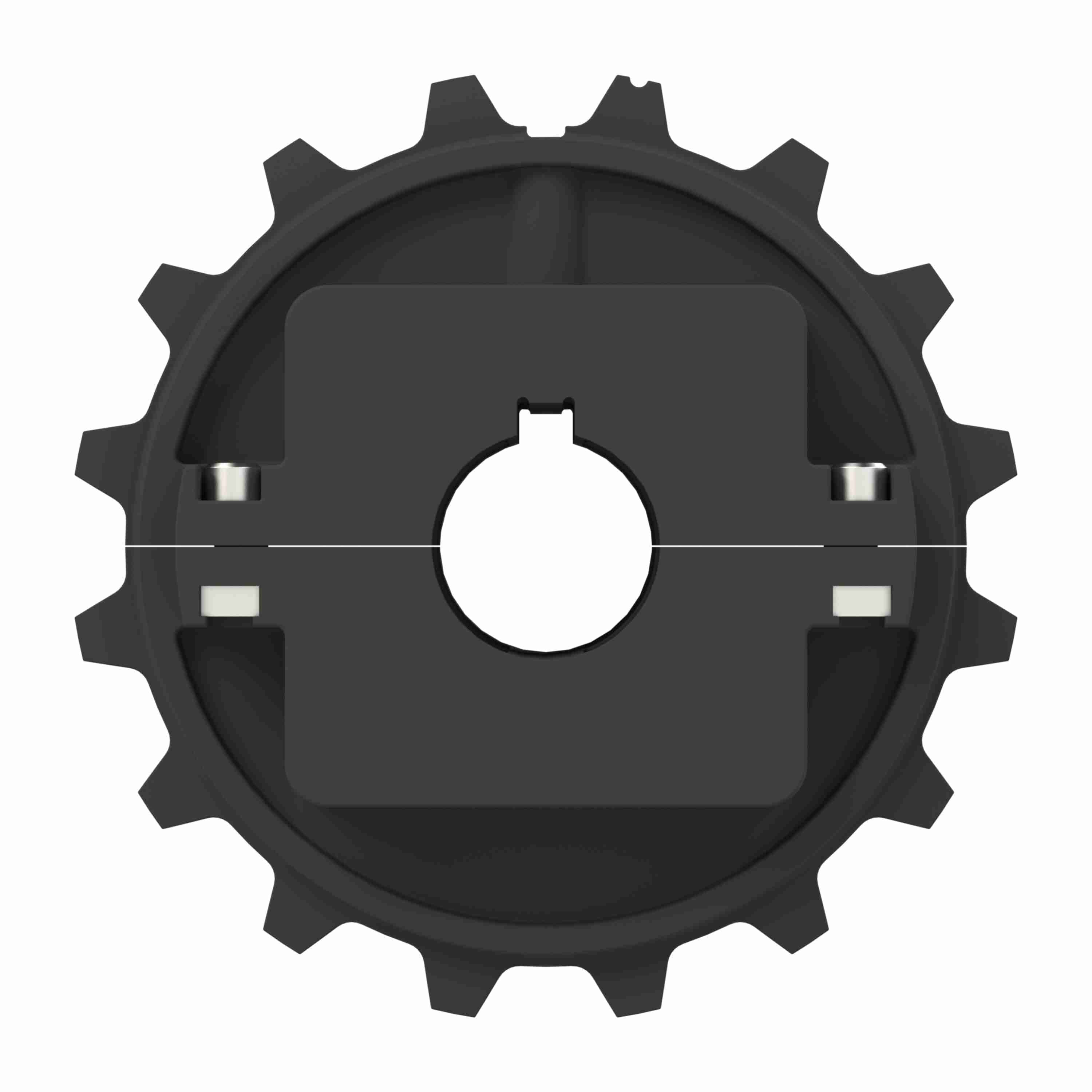

Rexnord 7950 Series Split Molded Nylon Sprocket and a 16 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-167-1
Part #:10019764
Catalog #:614-167-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Type: | Shaft-Ready | Pitch Diameter (mm): | 162.75 |
| Sprocket Construction: | Molded Split Sprocket | Body Style: | Block |
| Bore Diameter (in): | 1-1/4 in | Chain Number: | 7950 |
| Sprocket Series: | 7950 | Pitch Diameter (in): | 6.407 |
| Number of Set Screws: | 1 Setscrew | Number of Teeth: | 16 |
| Product Group: | MatTop® | Product Line: | Chain and Belt Sprockets |
| Bore Shape: | Round | Number of Keyways: | 1 |
| Material: | Nylon |
General Specifications
| UPC: | 793699408560 | Weight: | 0.87 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
