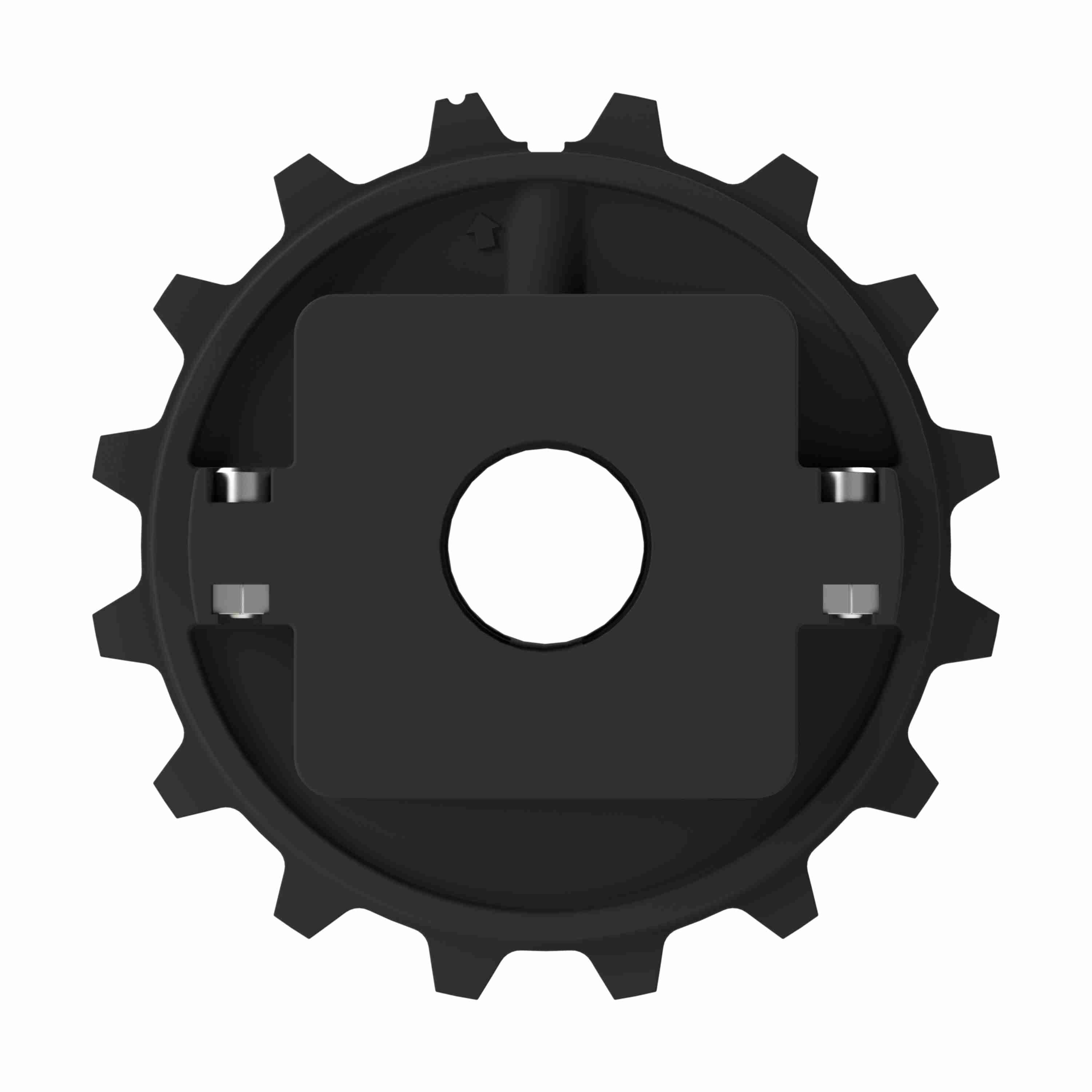

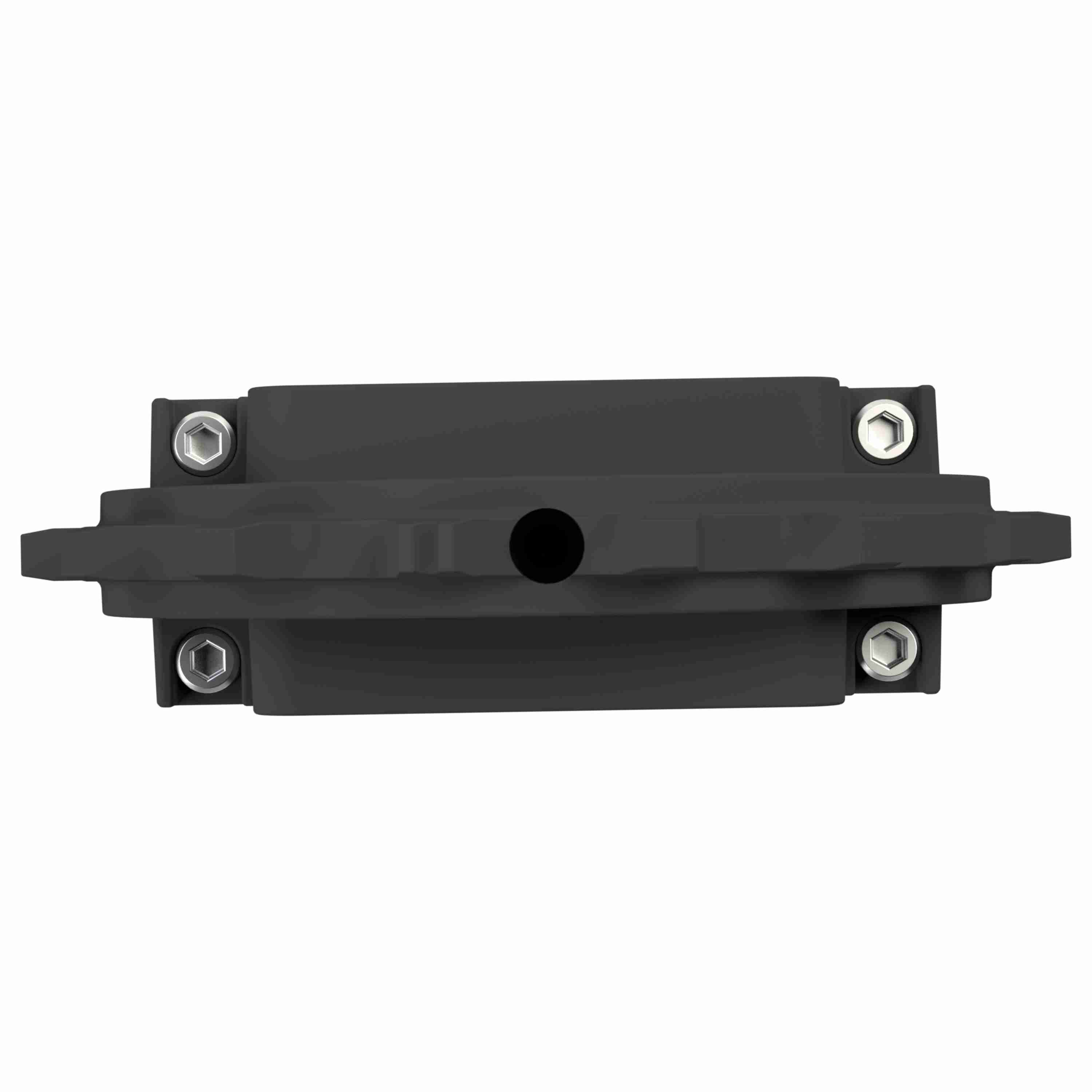

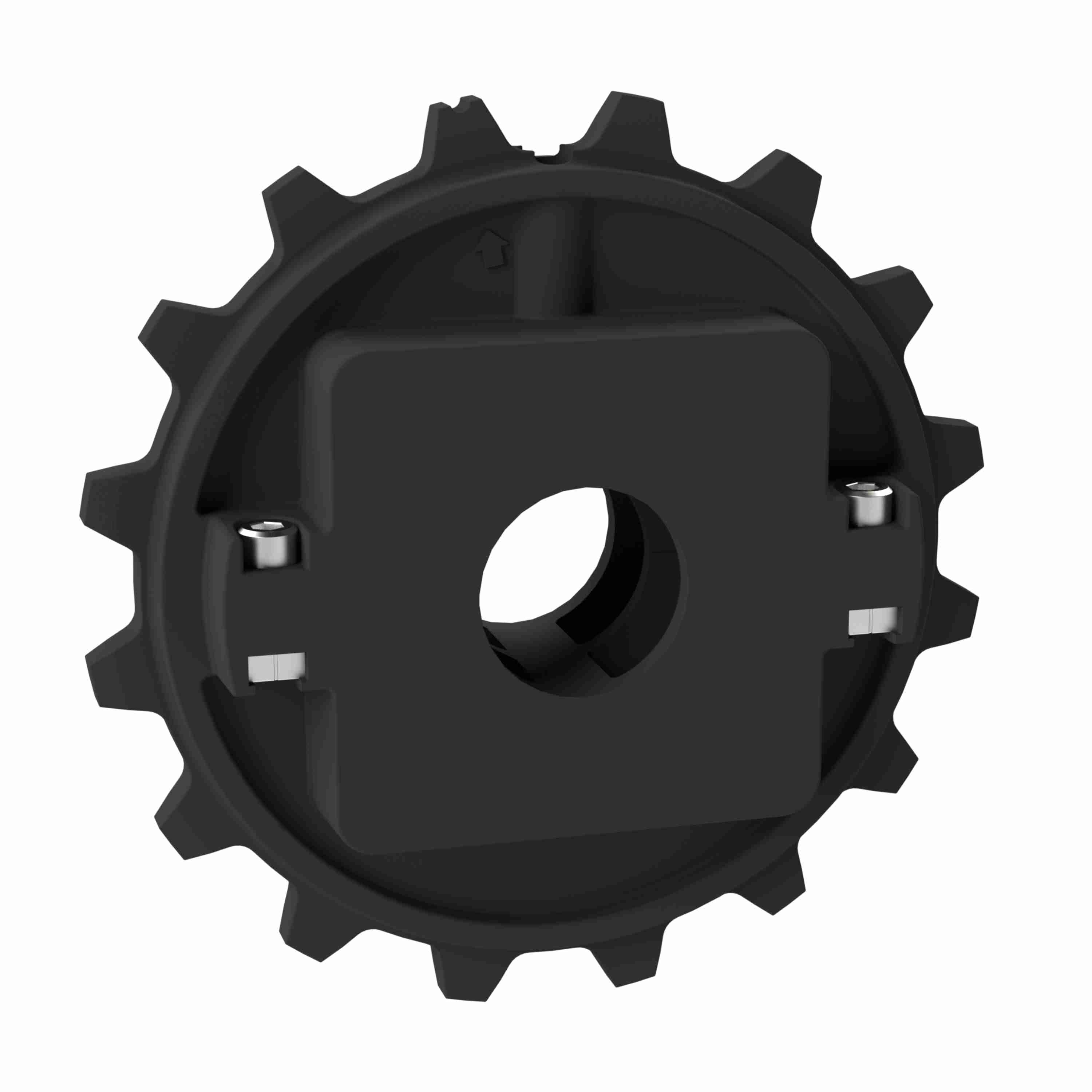

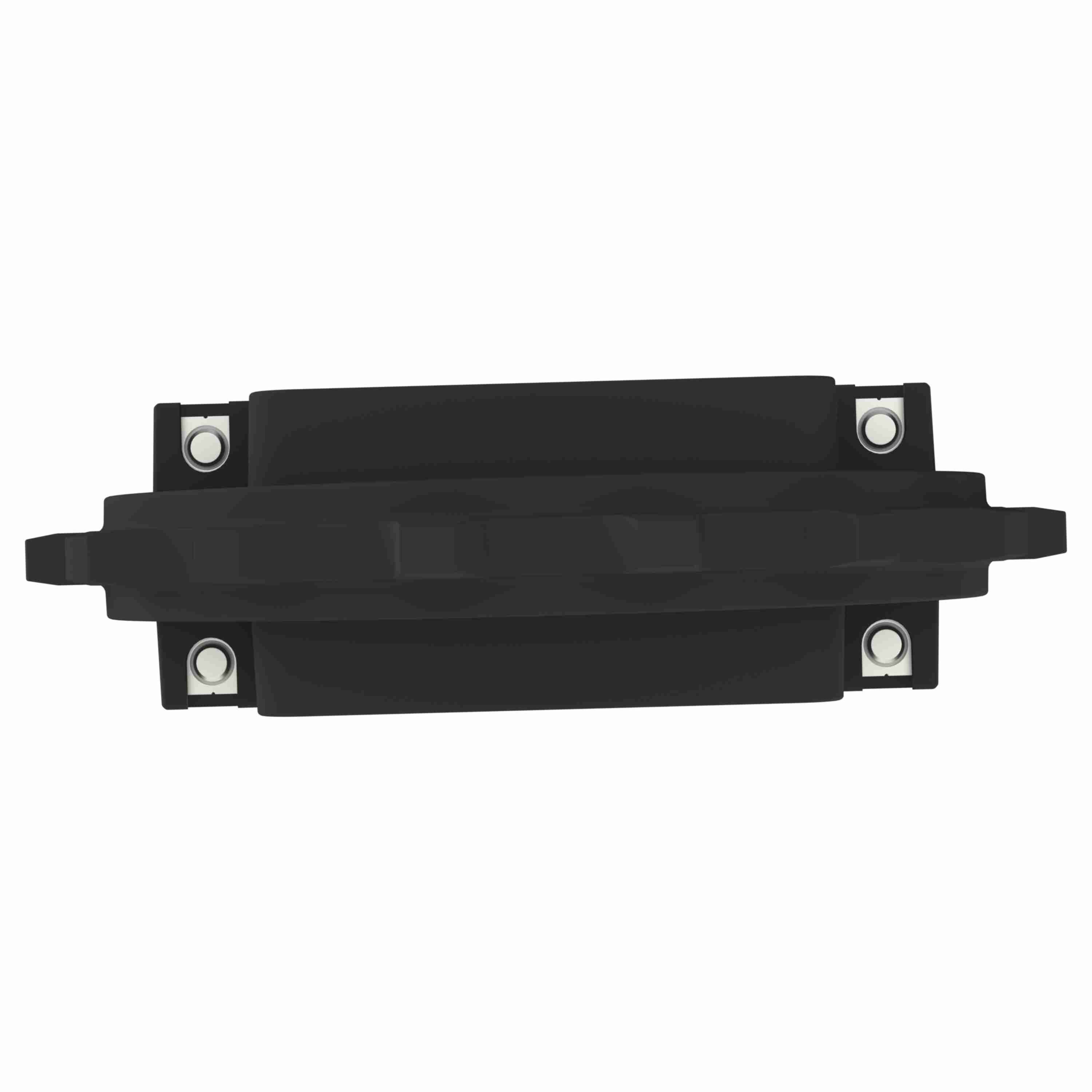

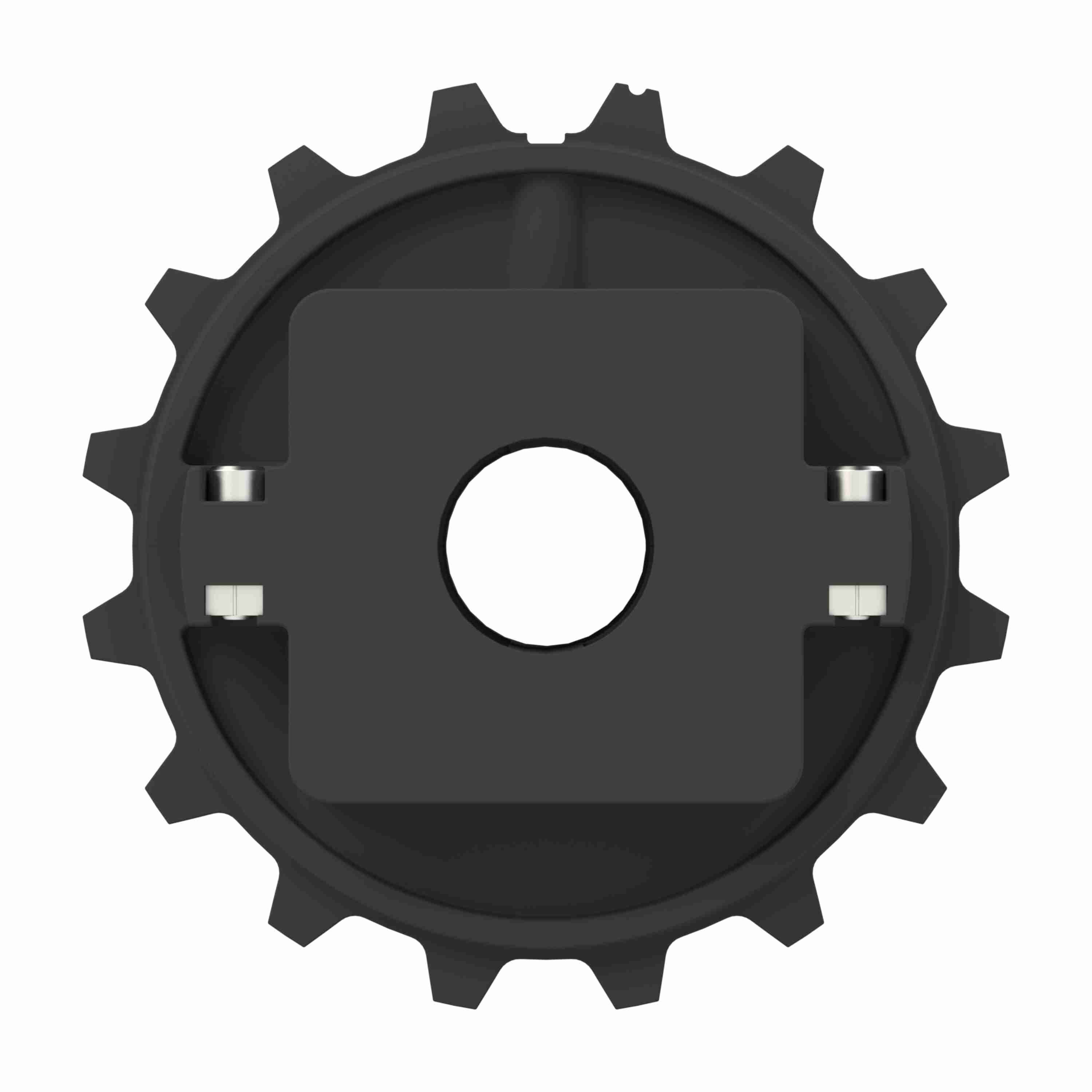

Rexnord 7950 Series Split Molded Nylon Sprocket with 16 Teeth and 1-7/16in Round Idler Bore - 614-167-13
Part #:10028602
Catalog #:614-167-13
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Type: | Idler | Product Group: | MatTop® |
| Number of Keyways: | 0 | Number of Set Screws: | None |
| Number of Teeth: | 16 | Pitch Diameter (mm): | 162.75 |
| Bore Shape: | Round | Pitch Diameter (in): | 6.407 |
| Body Style: | Block | Hub Type: | C-HUB |
| Sprocket Series: | 7950 | Bore Diameter (in): | 1-7/16 in |
| Chain Number: | 7950 | Product Line: | Chain and Belt Sprockets |
| Material: | Nylon | Sprocket Construction: | Molded Split Sprocket |
General Specifications
| UPC: | 793699408607 | Weight: | 0.50 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
