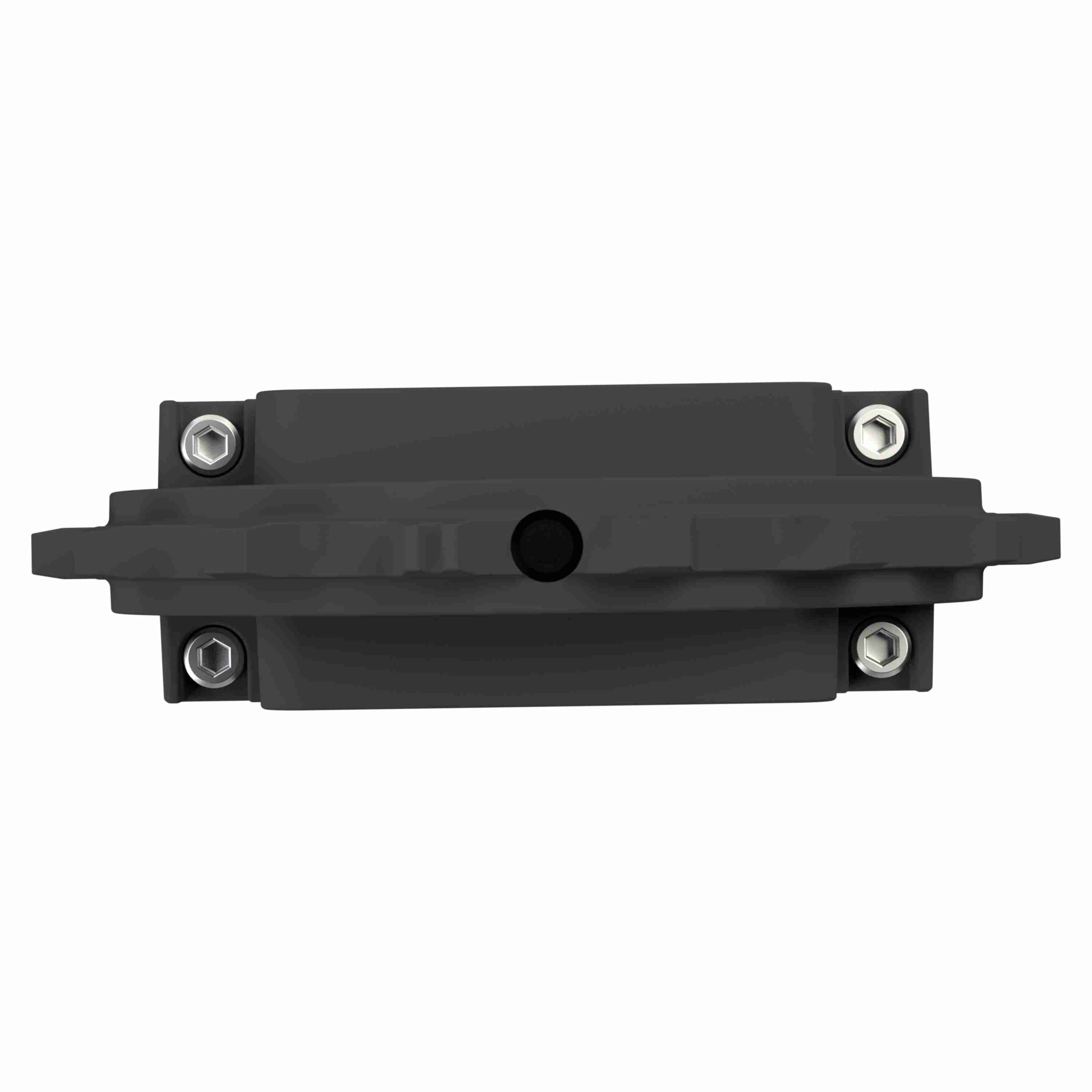

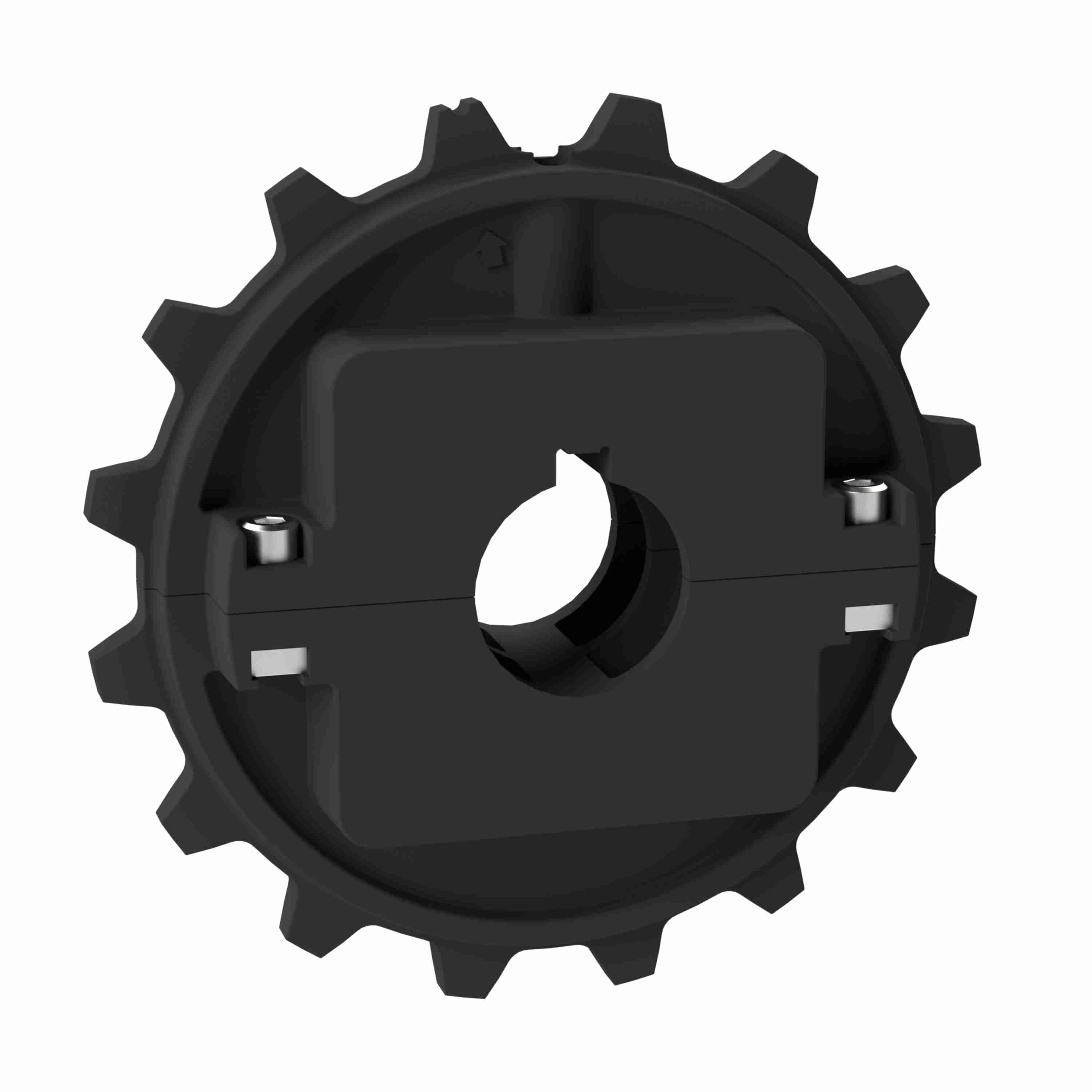

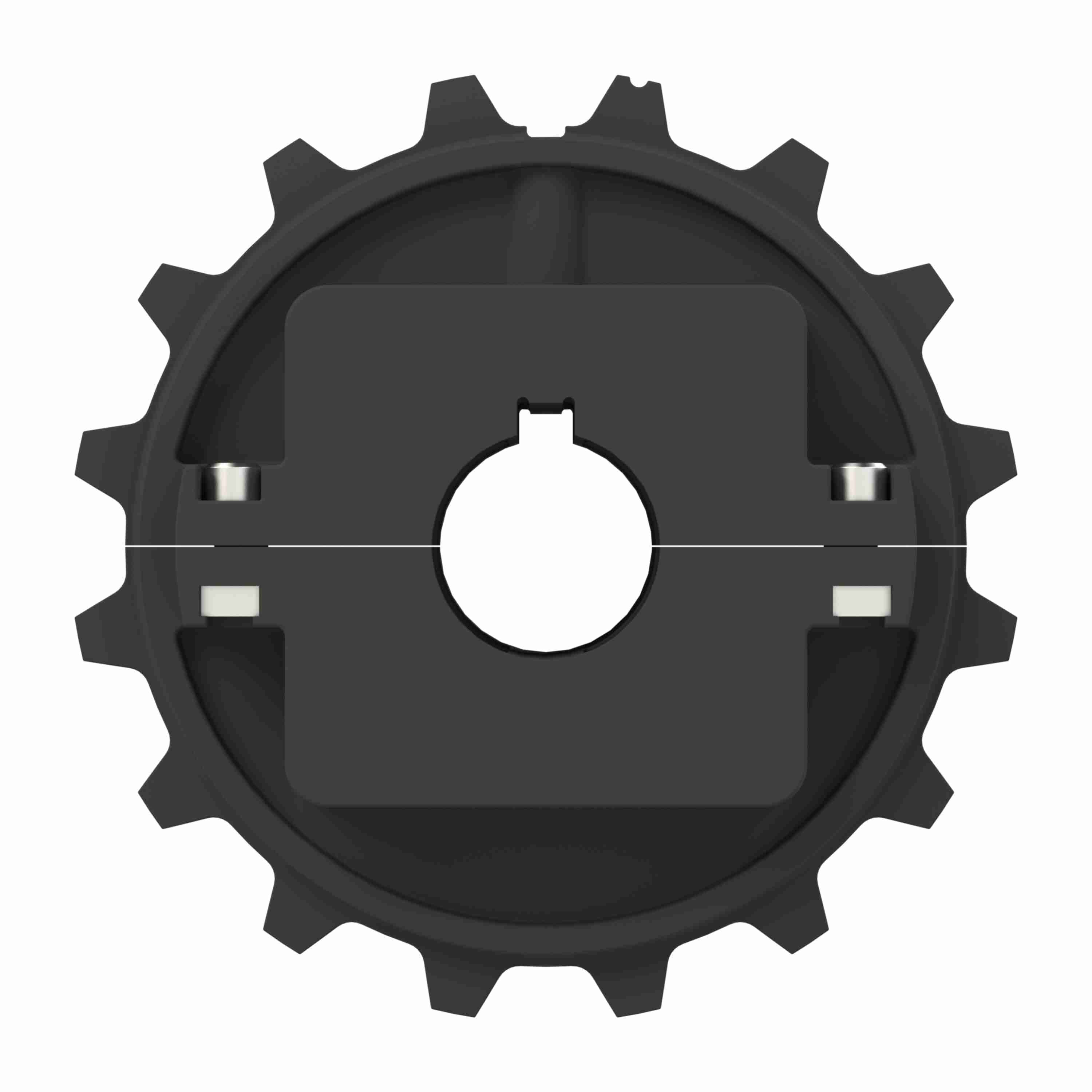

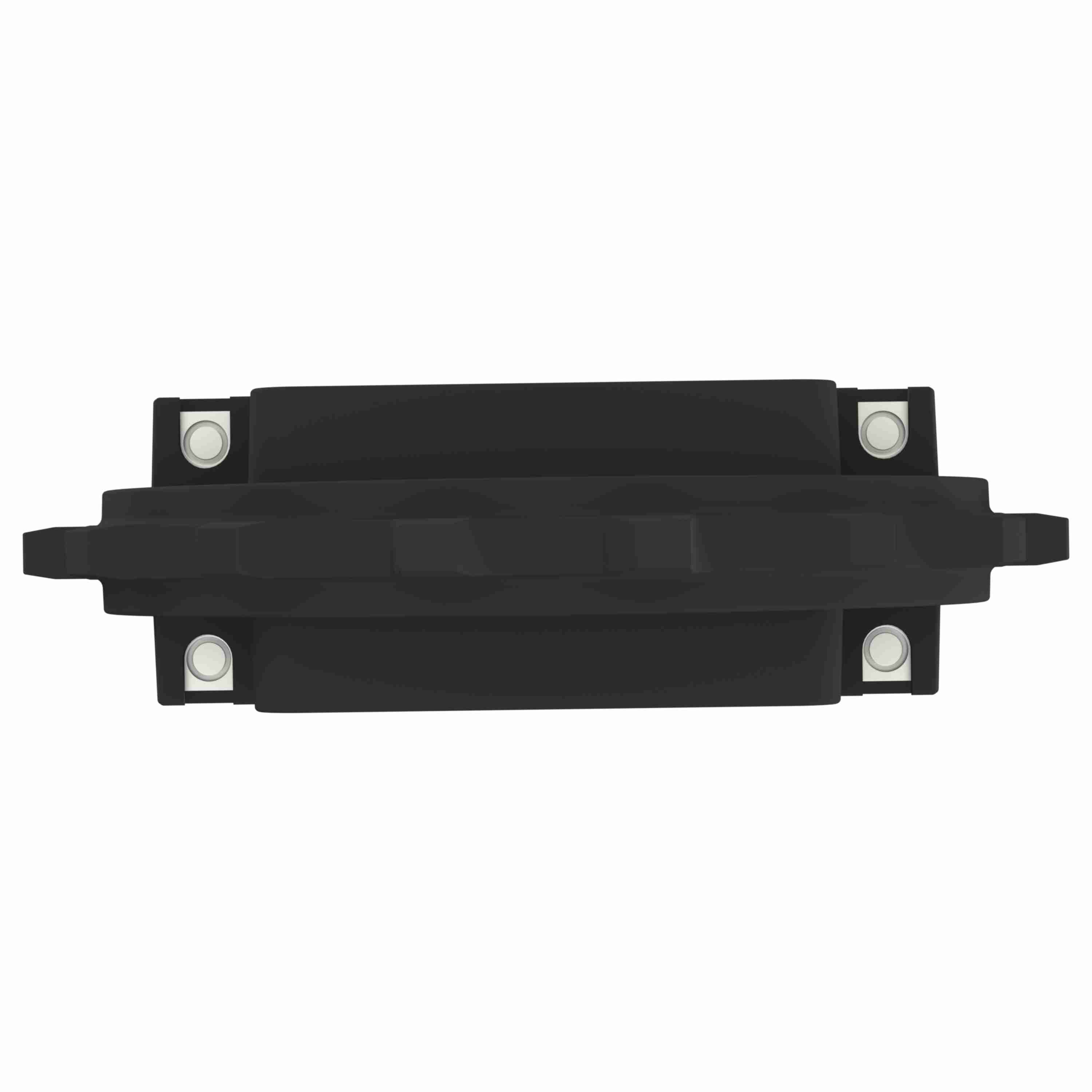

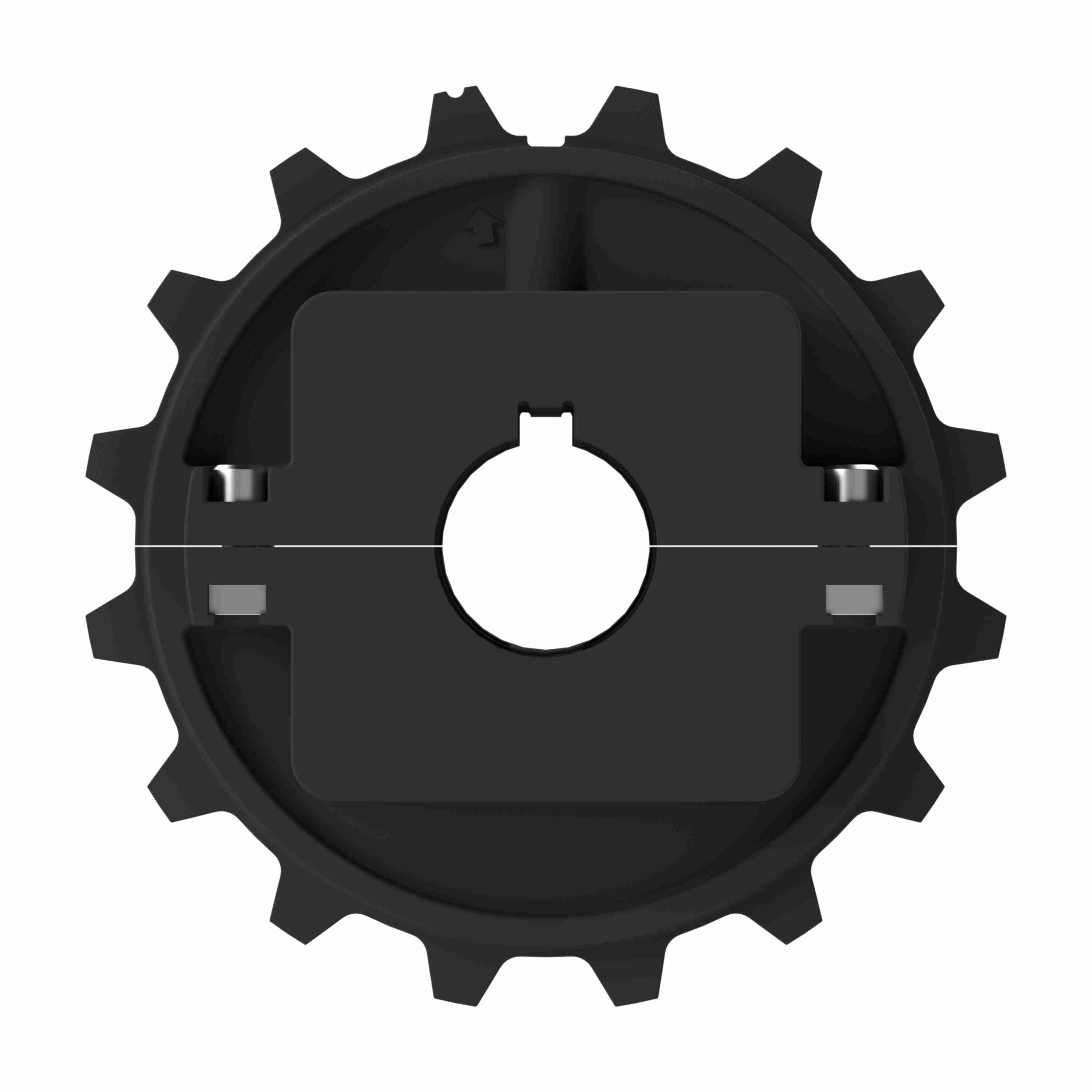

Rexnord 7950 Series Split Molded Nylon Sprocket with 16 Teeth and 35mm Round Shaft-Ready Bore with Keyway - 614-169-3
Part #:10334116
Catalog #:614-169-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 7950 | Bore Diameter (mm): | 35 mm |
| Pitch Diameter (mm): | 162.75 | Bore Type: | Shaft-Ready |
| Hub Type: | C-HUB | Body Style: | Block |
| Number of Keyways: | 1 | Product Group: | MatTop® |
| Material: | Nylon | Sprocket Construction: | Molded Split Sprocket |
| Number of Teeth: | 16 | Bore Shape: | Round |
| Sprocket Series: | 7950 | Product Line: | Chain and Belt Sprockets |
| Pitch Diameter (in): | 6.407 | Number of Set Screws: | None |
General Specifications
| UPC: | 782934817328 | Weight: | 0.23 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
