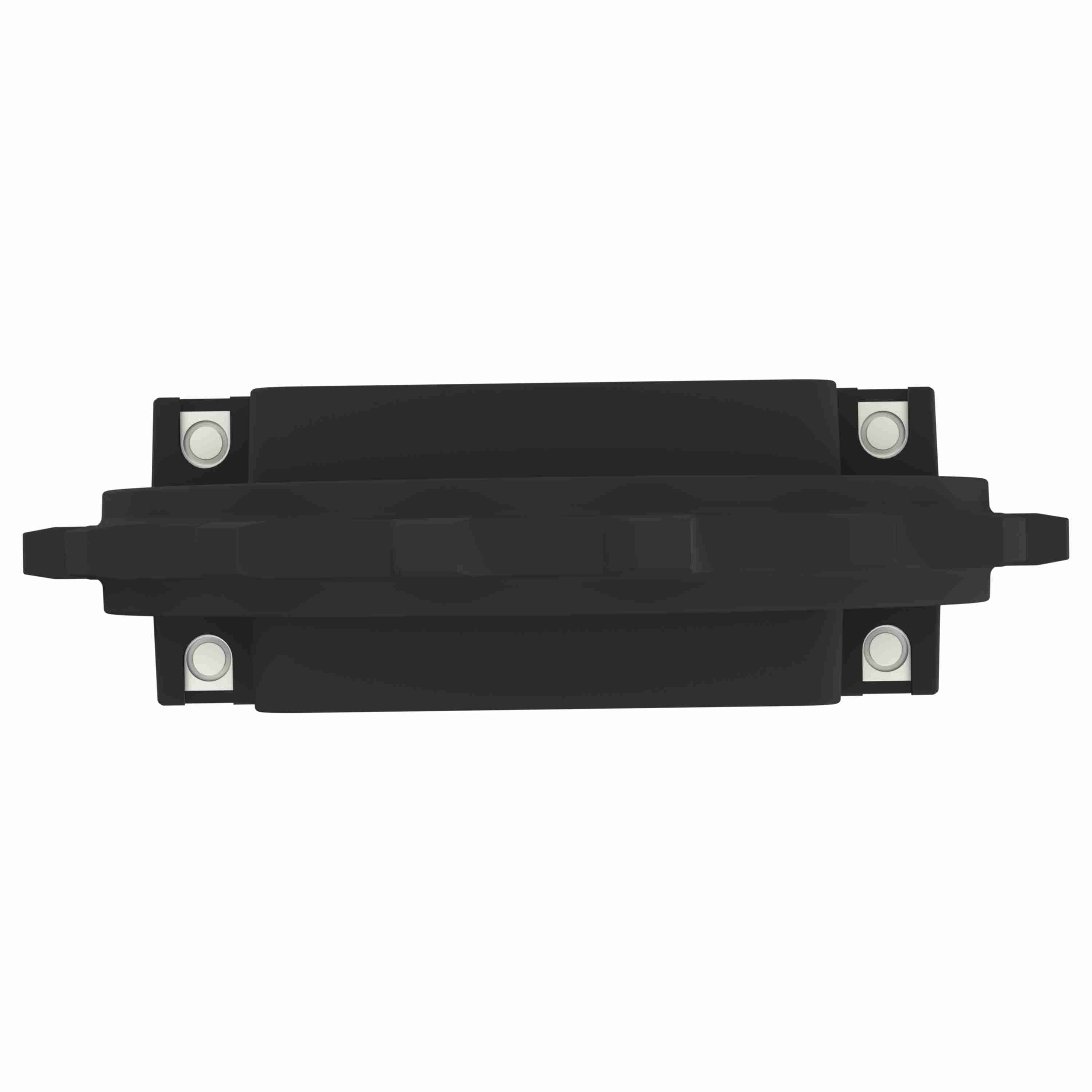

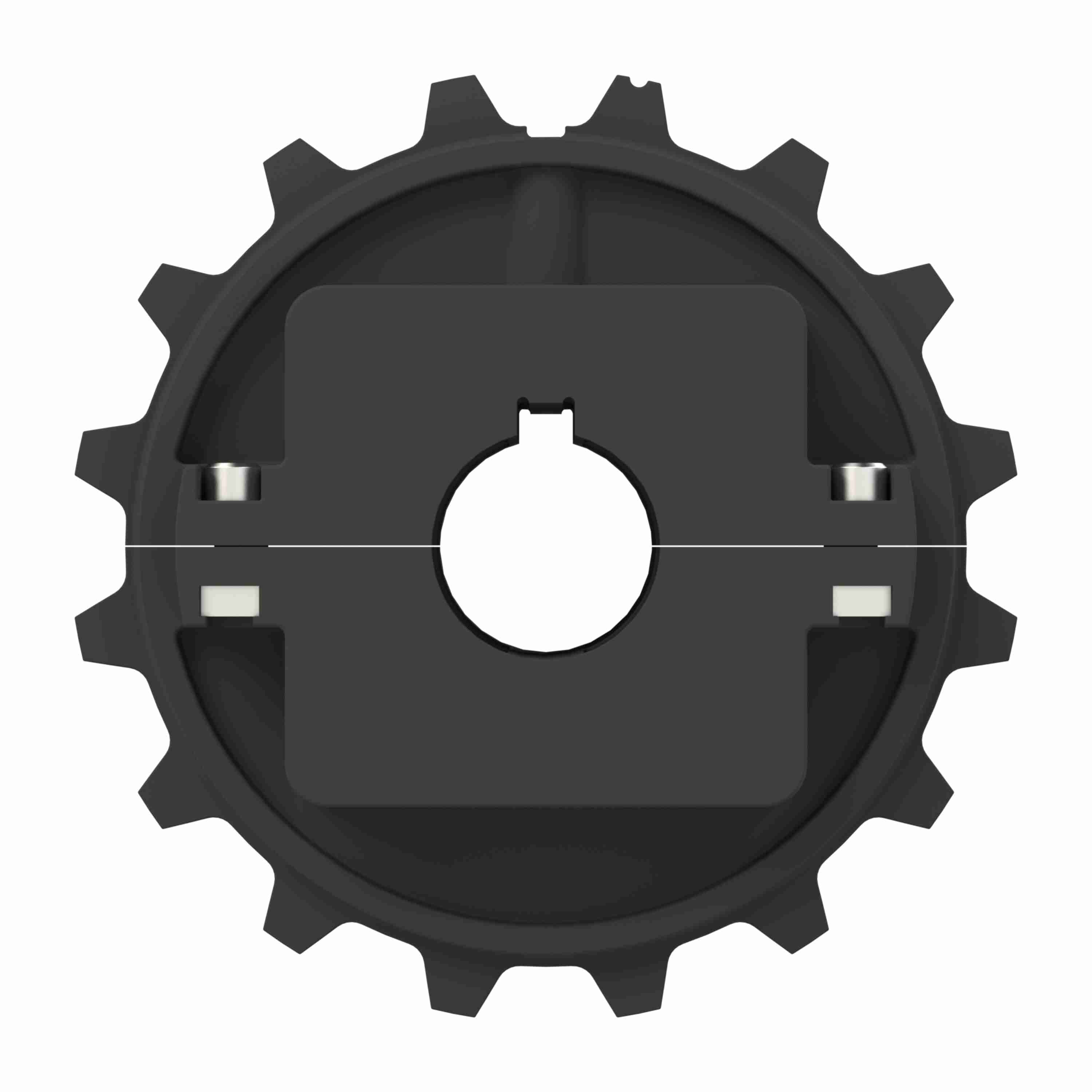

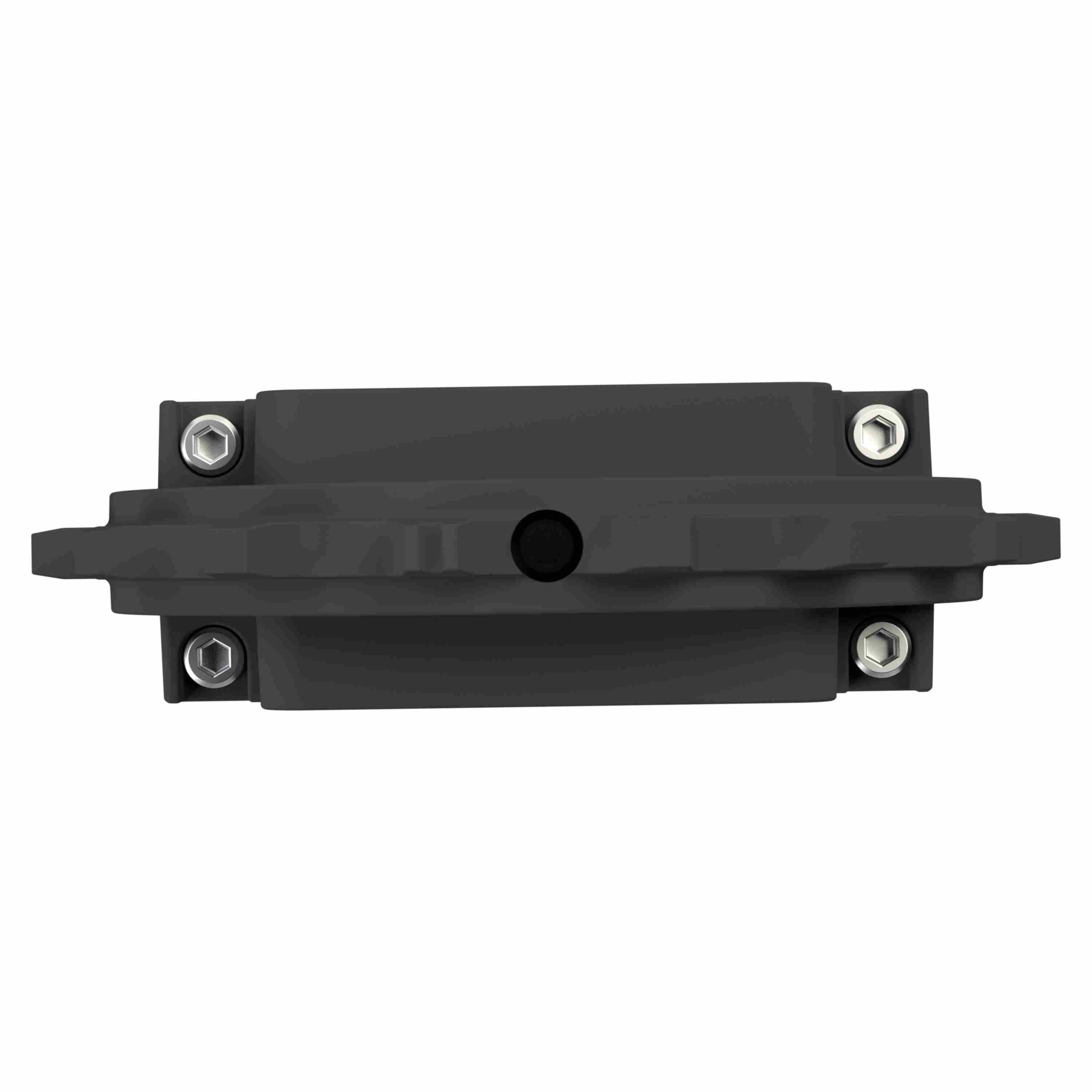

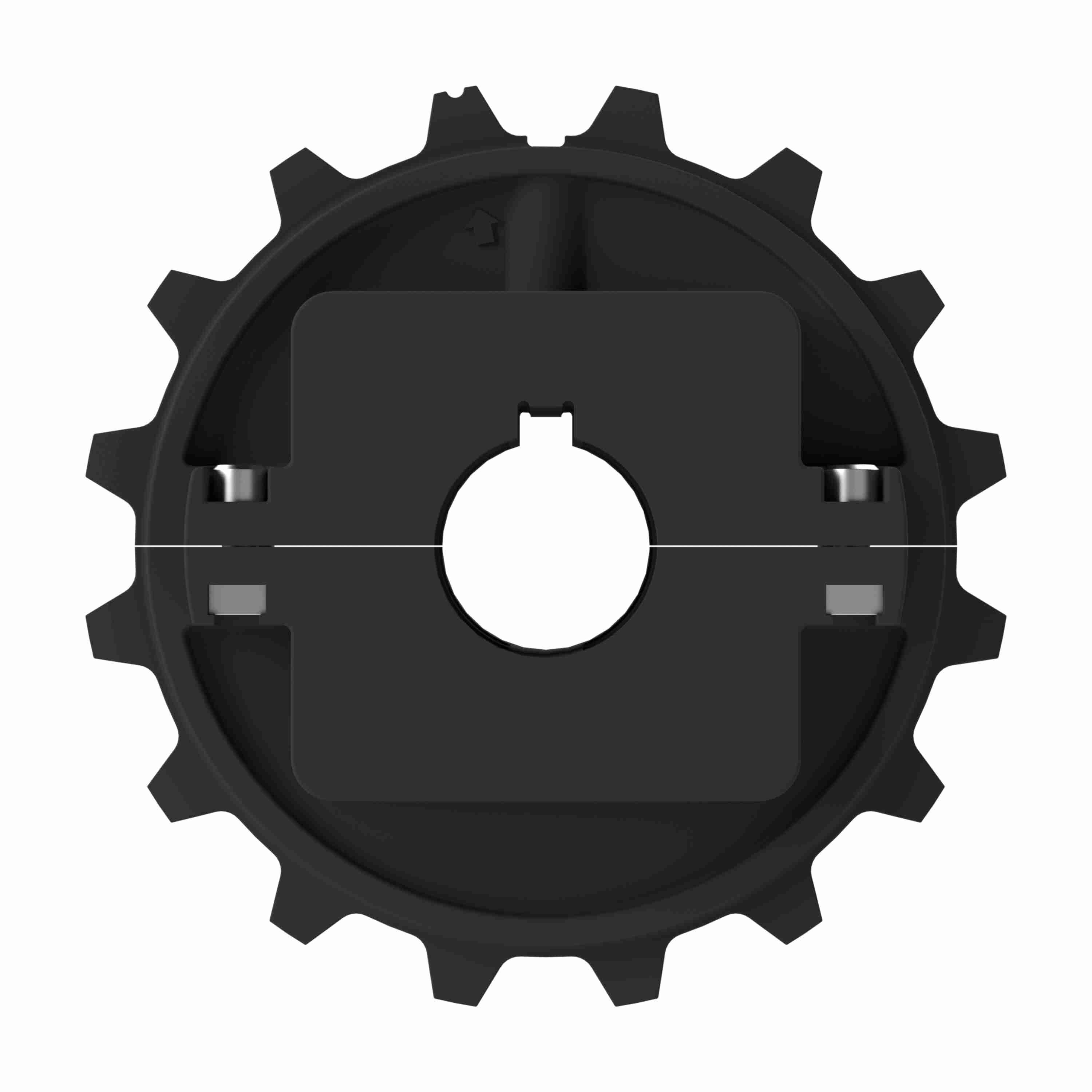

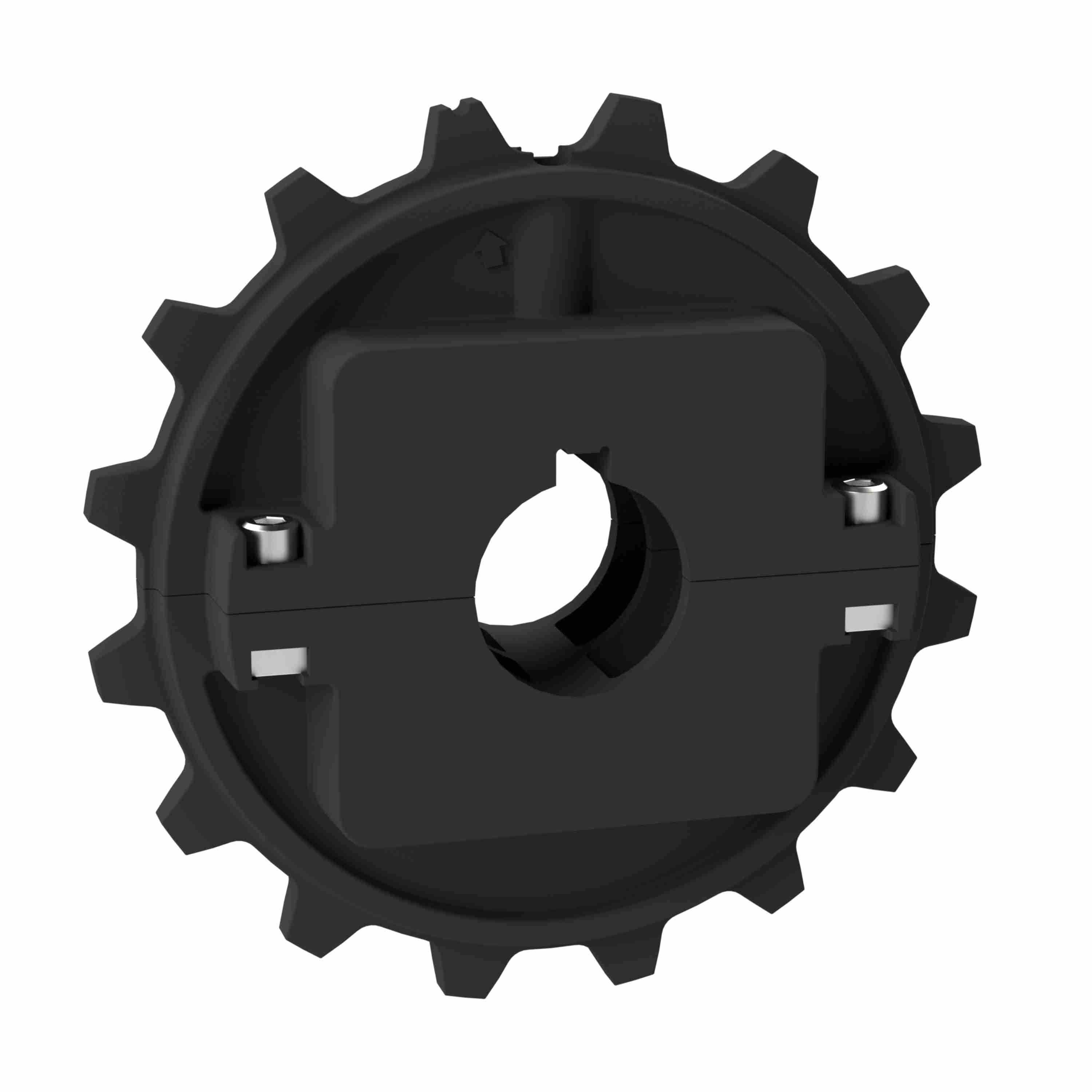

Rexnord 7950 Series Split Molded Nylon Sprocket with 16 Teeth and 40mm Round Shaft-Ready Bore with Keyway - 614-169-5
Part #:10334117
Catalog #:614-169-5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Shape: | Round | Number of Keyways: | 1 |
| Material: | Nylon | Sprocket Construction: | Molded Split Sprocket |
| Sprocket Series: | 7950 | Pitch Diameter (mm): | 162.75 |
| Product Group: | MatTop® | Number of Teeth: | 16 |
| Hub Type: | C-HUB | Body Style: | Block |
| Pitch Diameter (in): | 6.407 | Bore Diameter (mm): | 40 mm |
| Chain Number: | 7950 | Number of Set Screws: | None |
| Bore Type: | Shaft-Ready | Product Line: | Chain and Belt Sprockets |
General Specifications
| UPC: | 782934817335 | Weight: | 0.23 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
