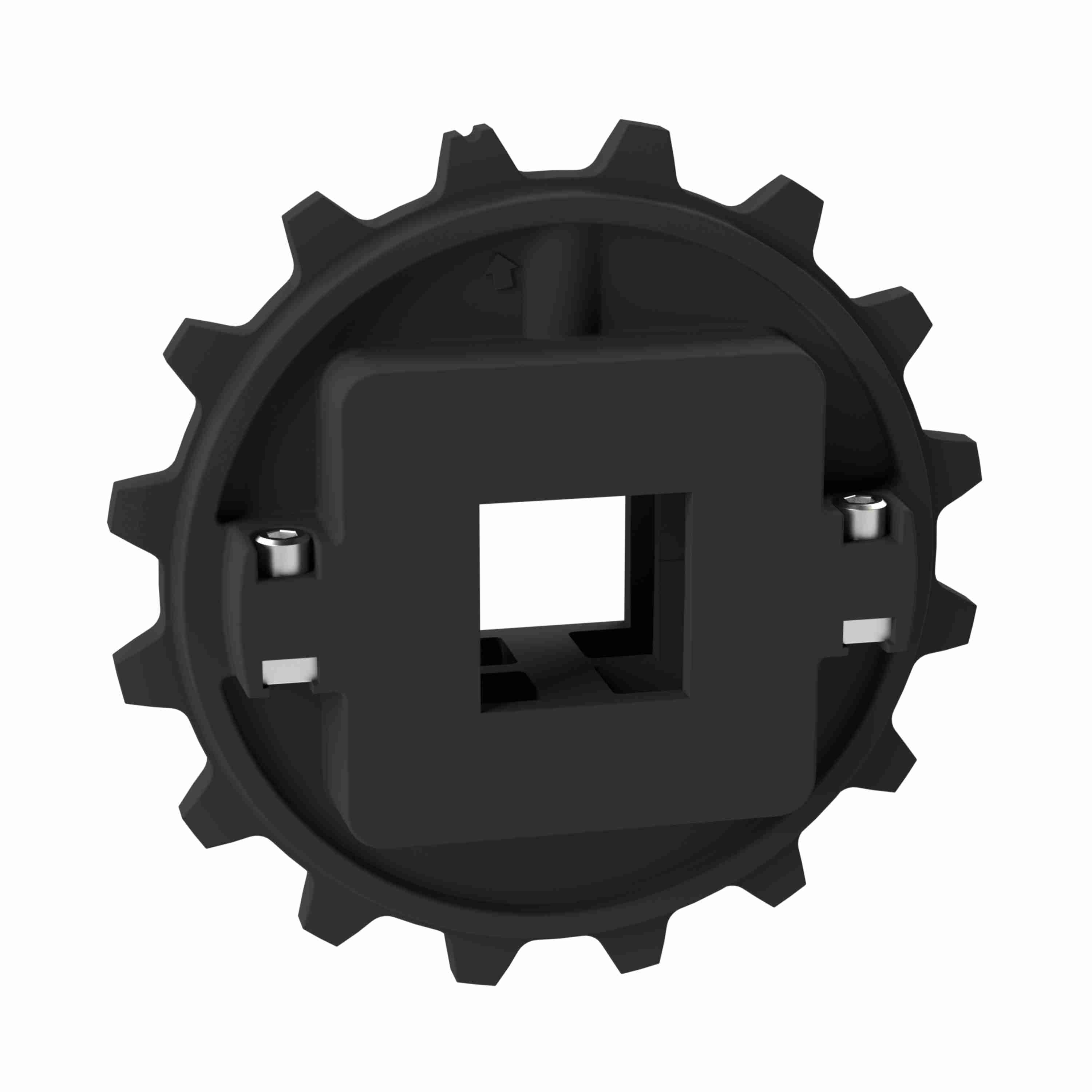

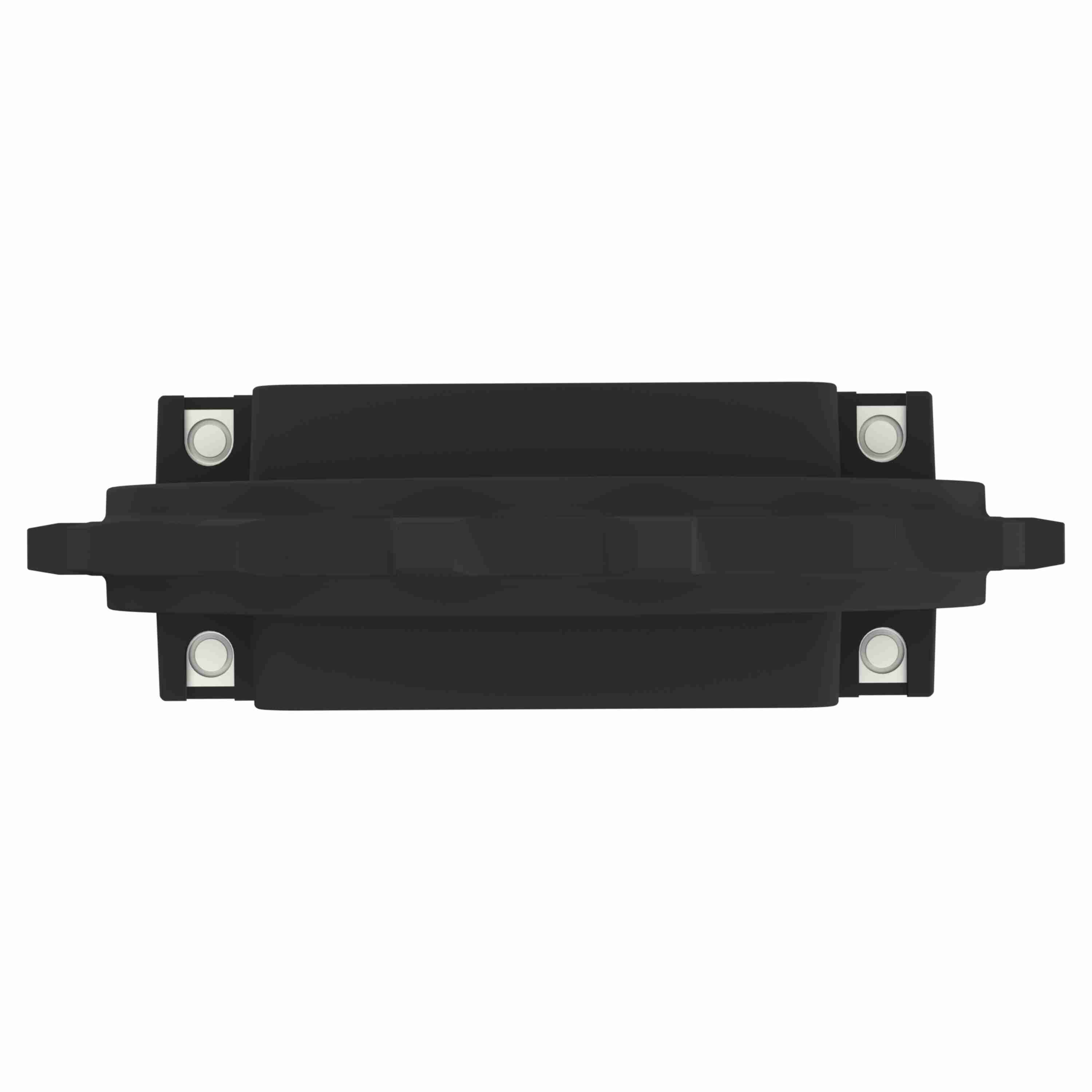

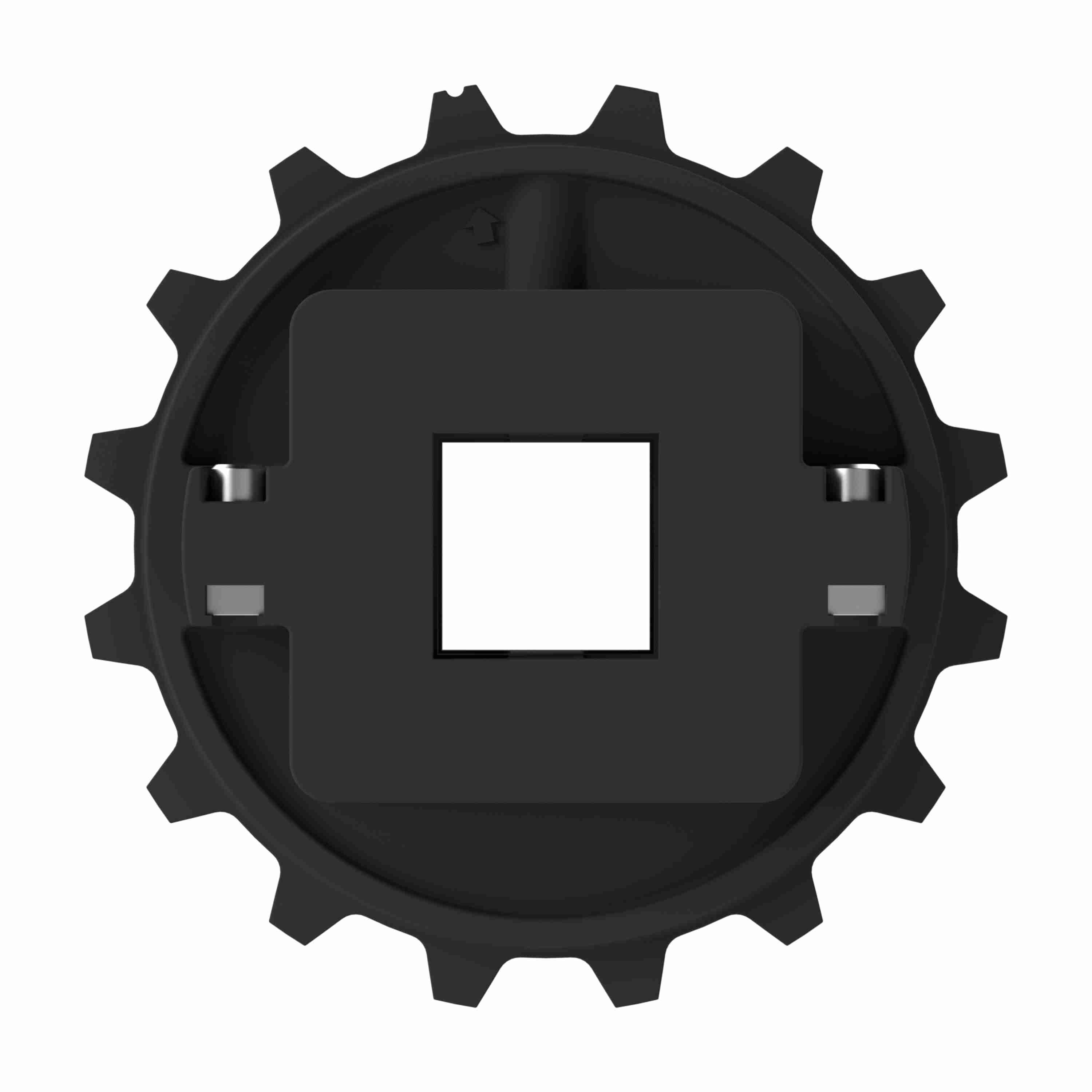

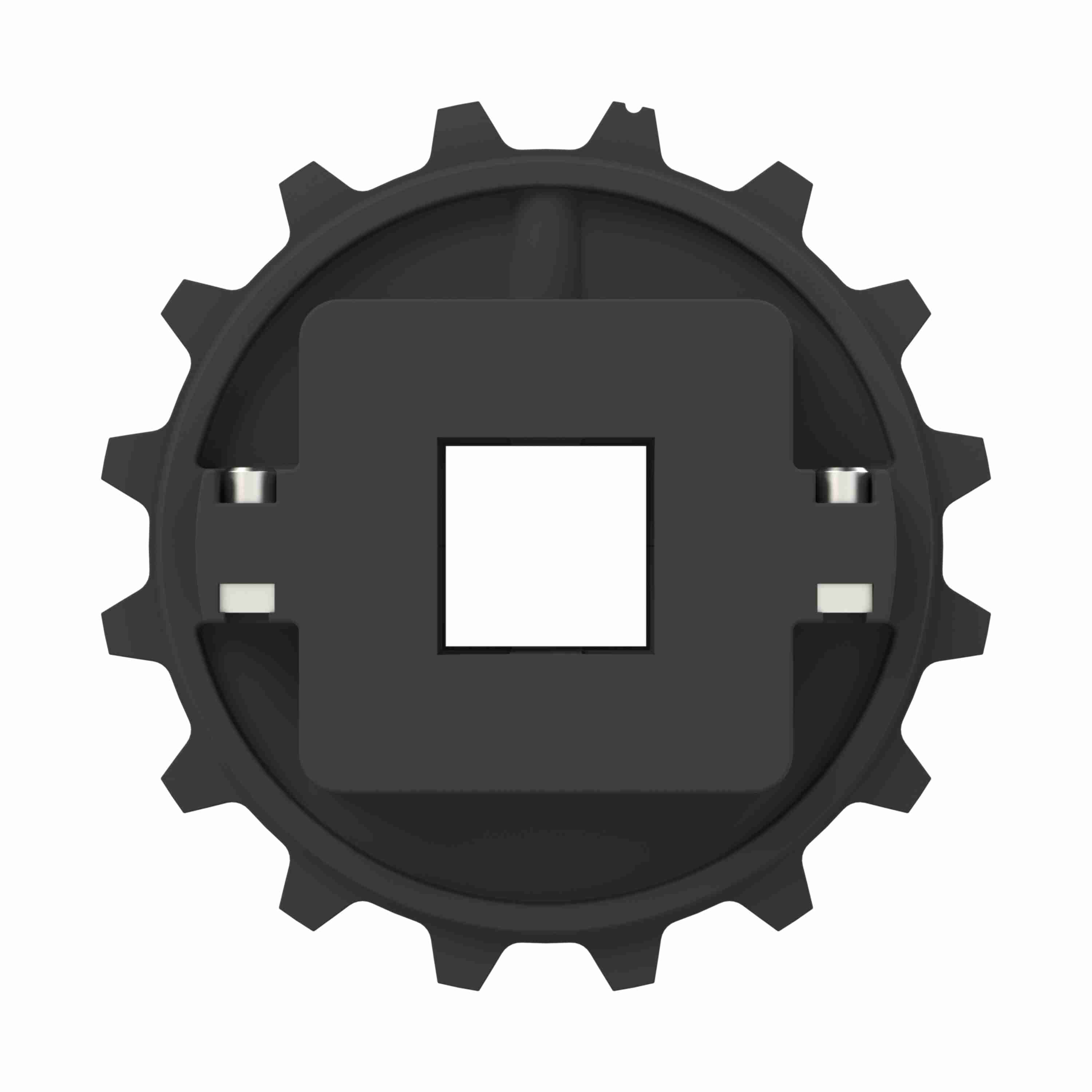

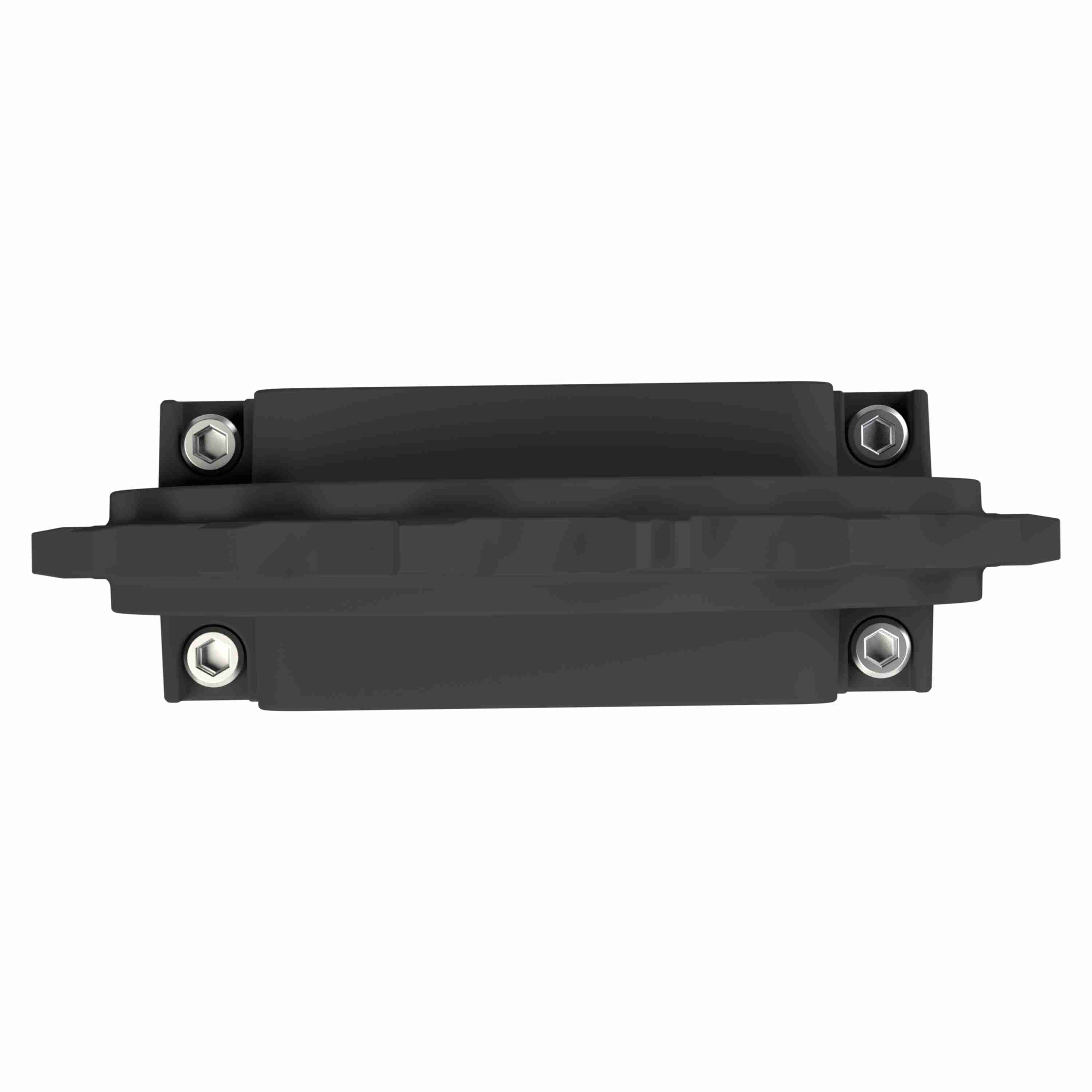

Rexnord 7950 Series Split Molded Nylon Sprocket with 16 Teeth and a 1-1/2in Square Bore - 614-168-1
Part #:10028600
Catalog #:614-168-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Construction: | Molded Split Sprocket | Bore Diameter (in): | 1-1/2 in |
| Sprocket Series: | 7950 | Number of Keyways: | 0 |
| Product Line: | Chain and Belt Sprockets | Product Group: | MatTop® |
| Bore Type: | Shaft-Ready | Number of Teeth: | 16 |
| Body Style: | Block | Pitch Diameter (in): | 6.407 |
| Chain Number: | 7950 | Number of Set Screws: | None |
| Pitch Diameter (mm): | 162.75 | Bore Shape: | Square |
| Material: | Nylon |
General Specifications
| UPC: | 793699408706 | Weight: | 0.68 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
