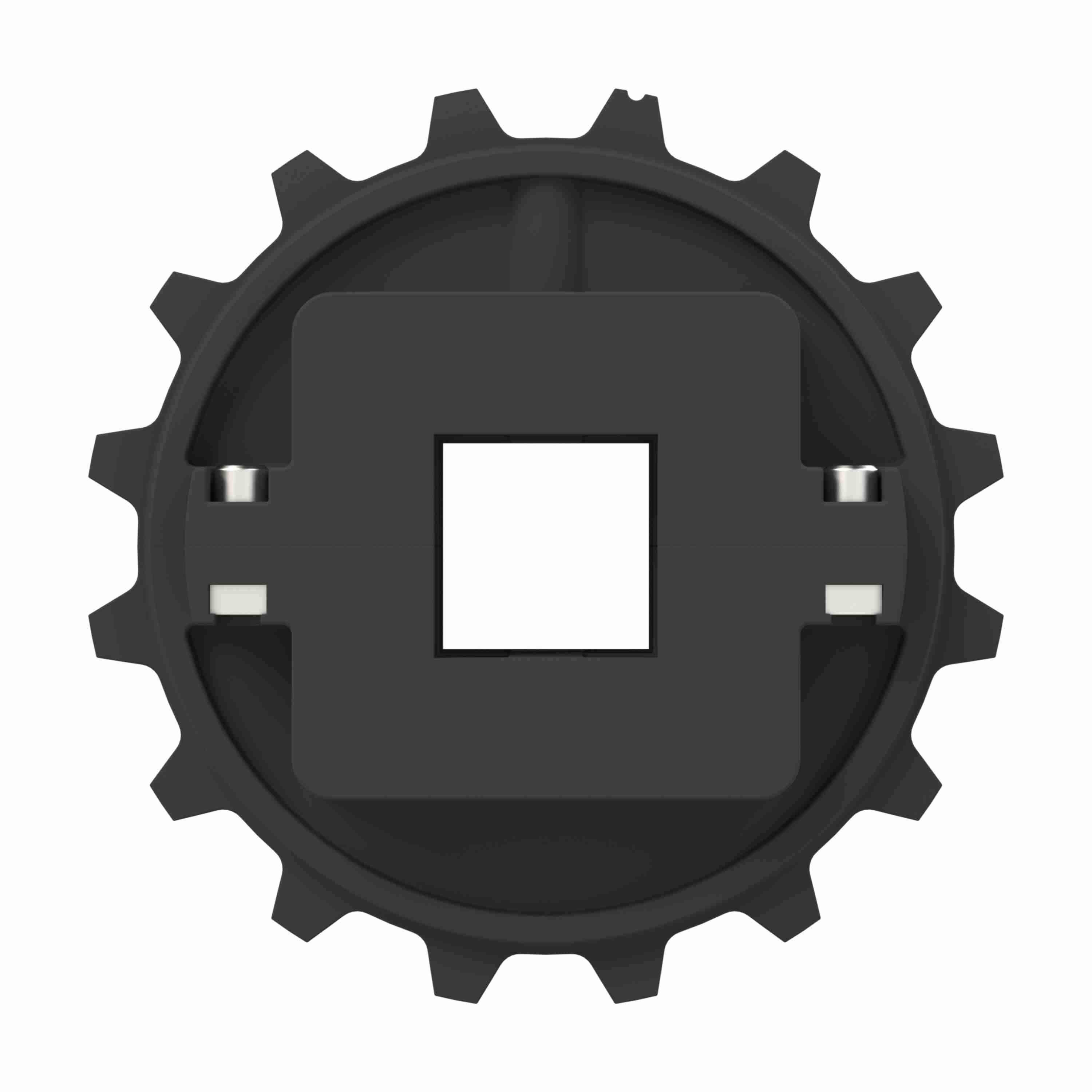

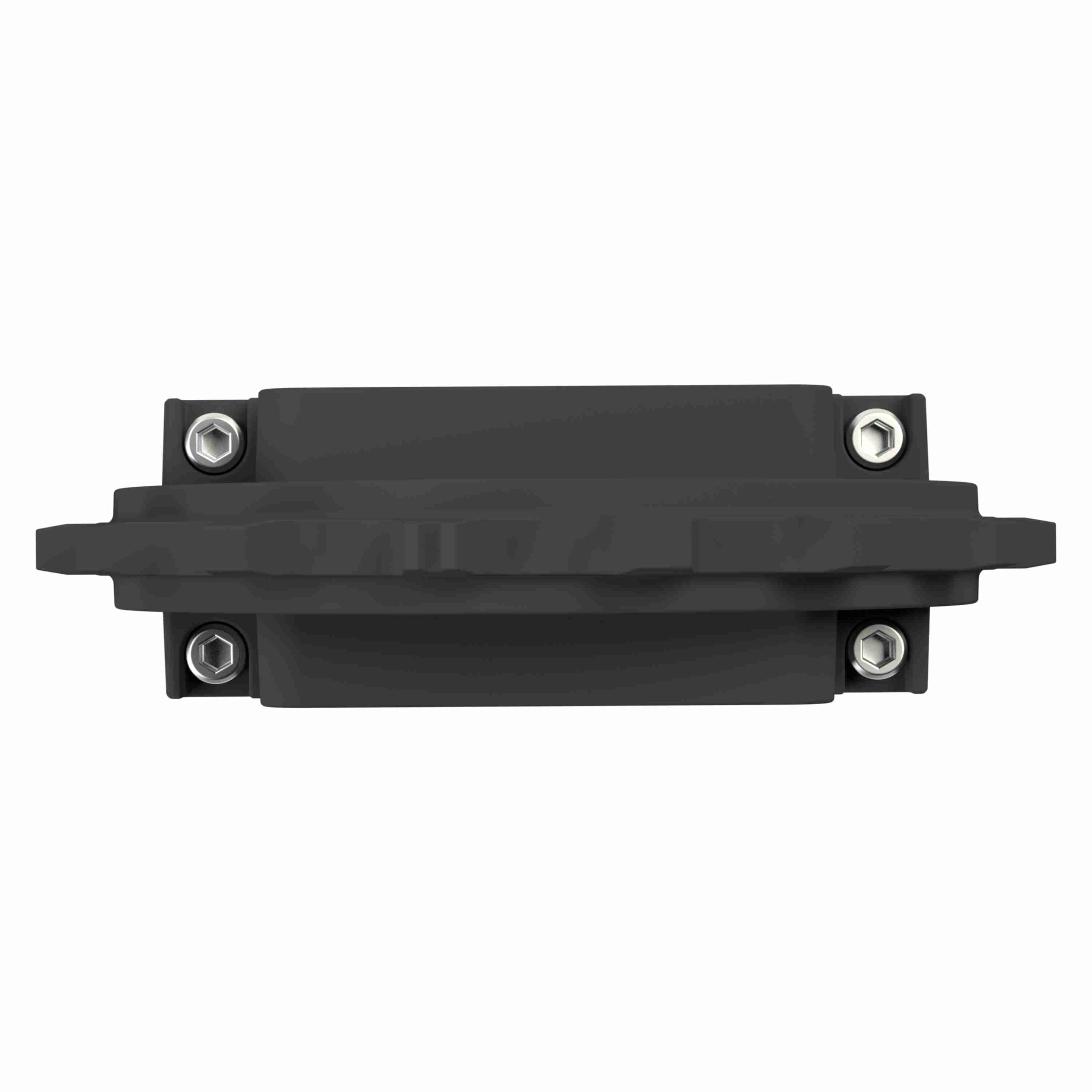

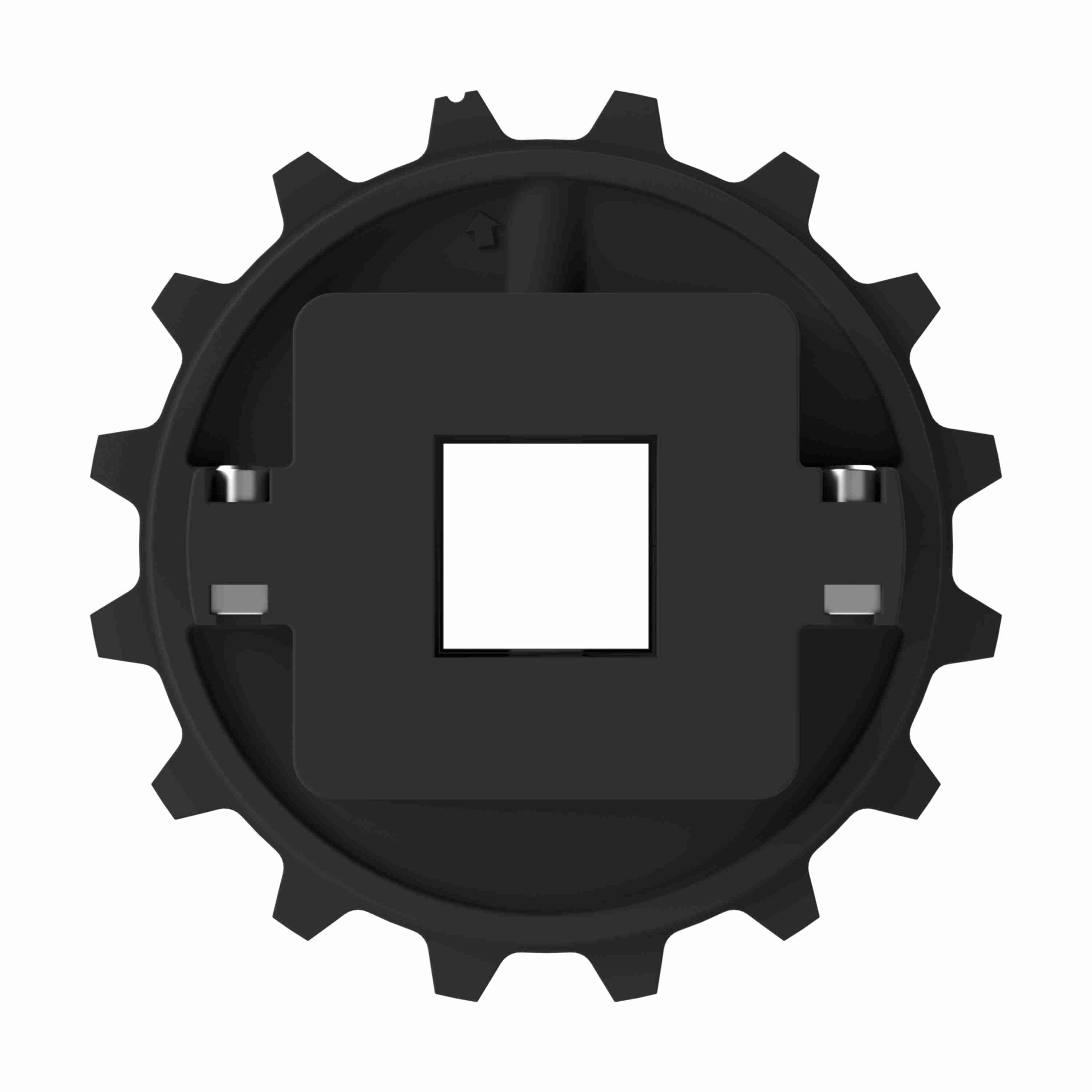

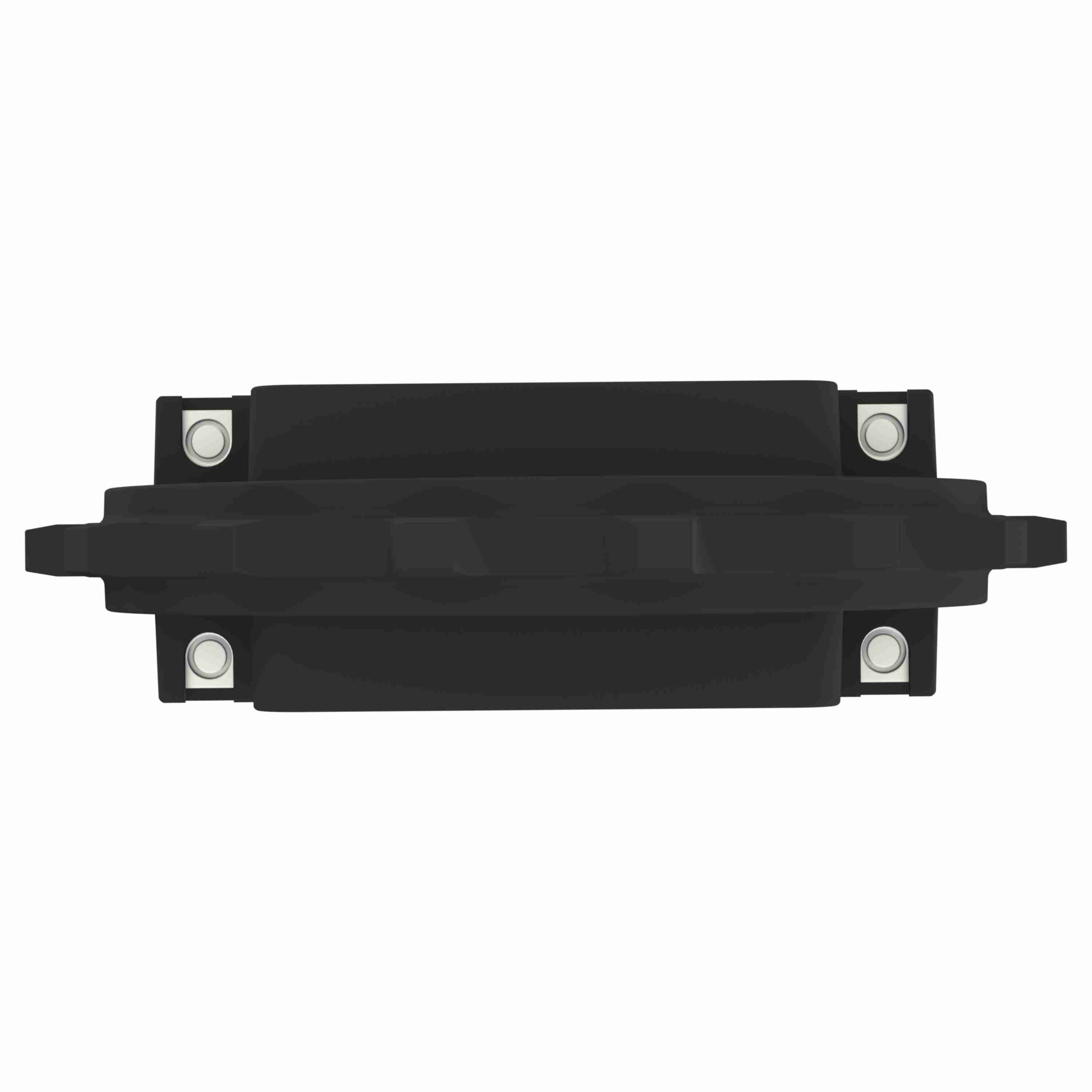

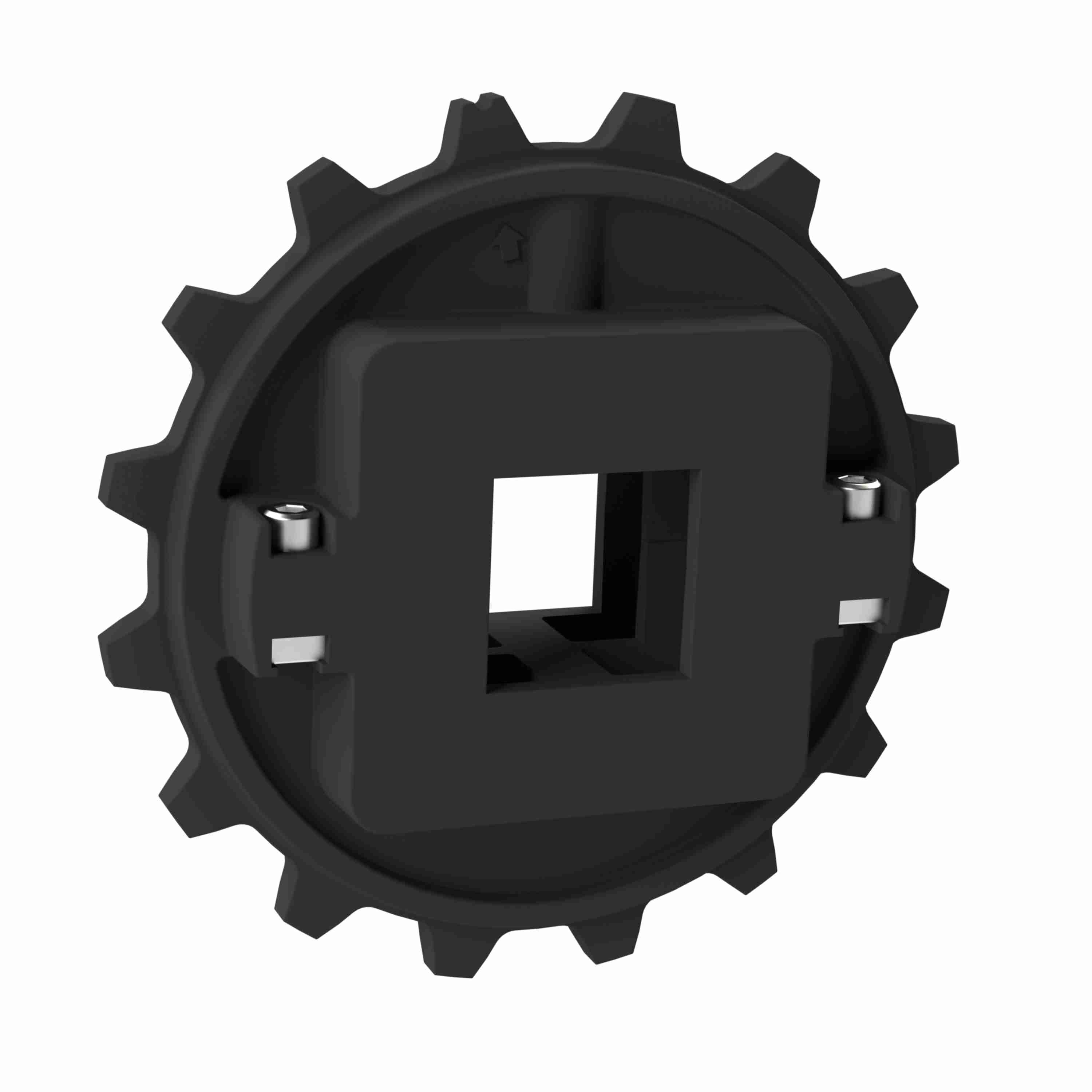

Rexnord 7950 Series Split Molded Nylon Sprocket with 16 Teeth and a 40mm Square Bore - 614-170-3
Part #:10333885
Catalog #:614-170-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Type: | Shaft-Ready | Body Style: | Block |
| Number of Set Screws: | None | Chain Number: | 7950 |
| Sprocket Construction: | Molded Split Sprocket | Pitch Diameter (in): | 6.407 |
| Material: | Nylon | Sprocket Series: | 7950 |
| Bore Diameter (mm): | 40 mm | Bore Shape: | Square |
| Hub Type: | C-HUB | Pitch Diameter (mm): | 162.75 |
| Number of Teeth: | 16 | Number of Keyways: | 0 |
| Product Line: | Chain and Belt Sprockets | Product Group: | MatTop® |
General Specifications
| UPC: | 782934824241 | Weight: | 0.23 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
