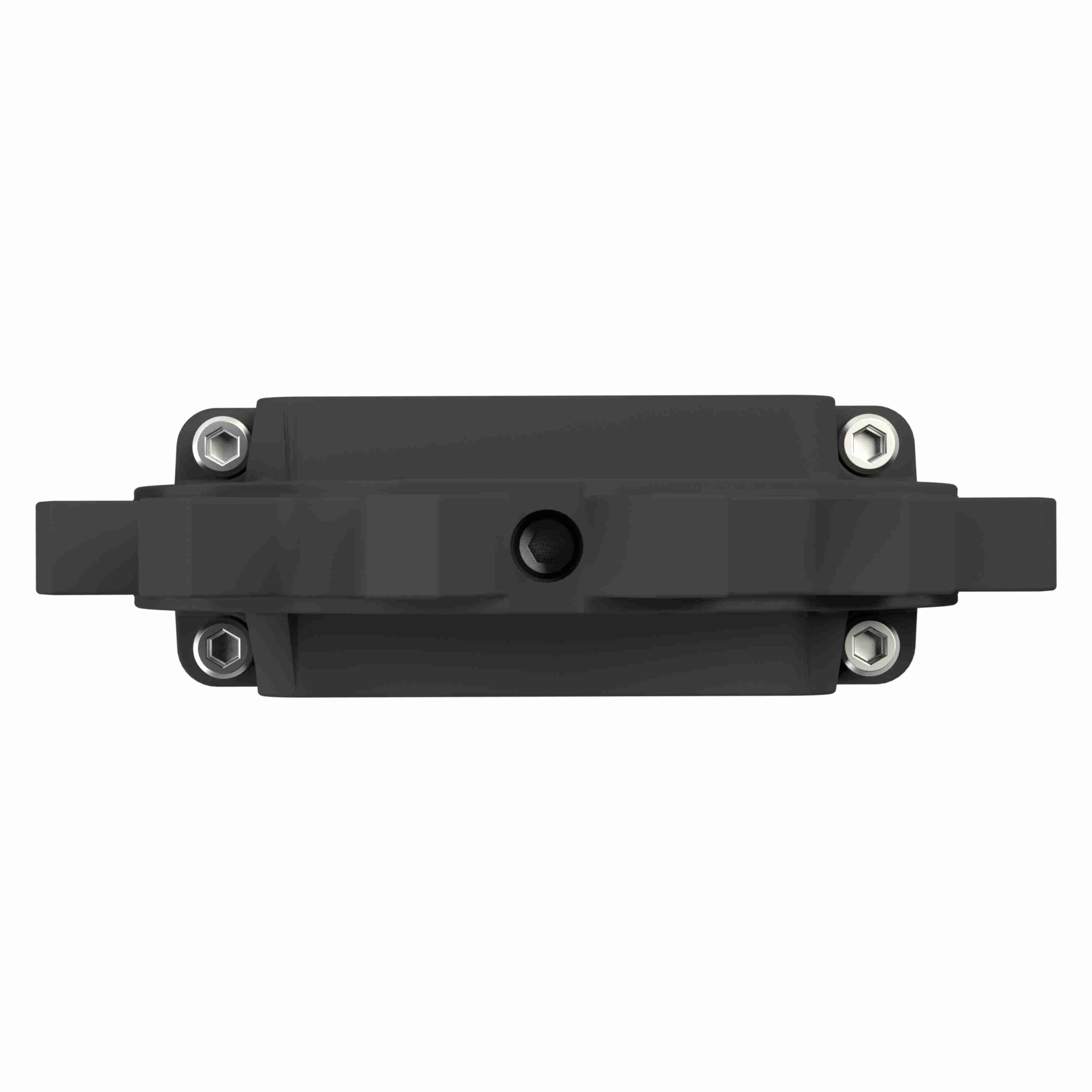

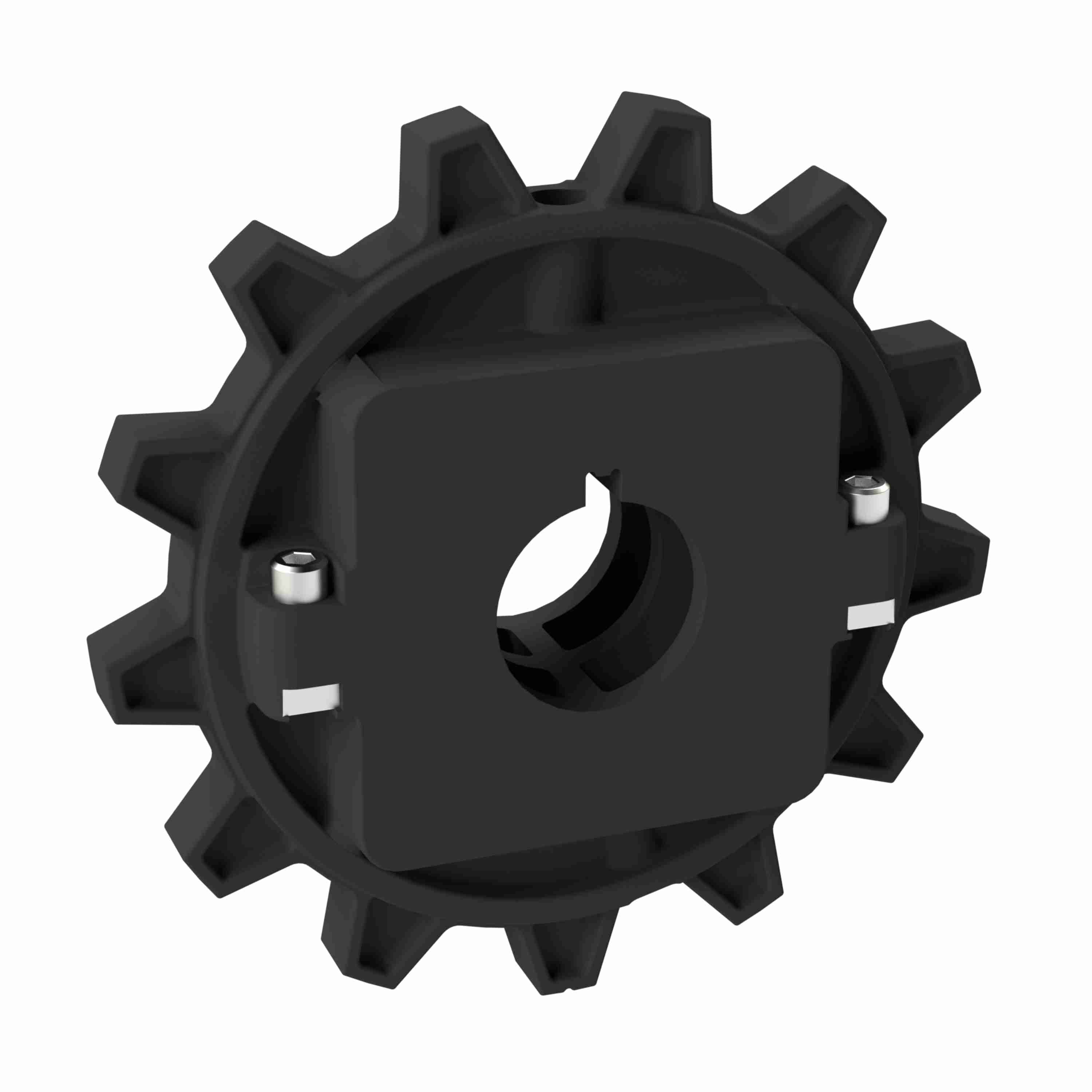

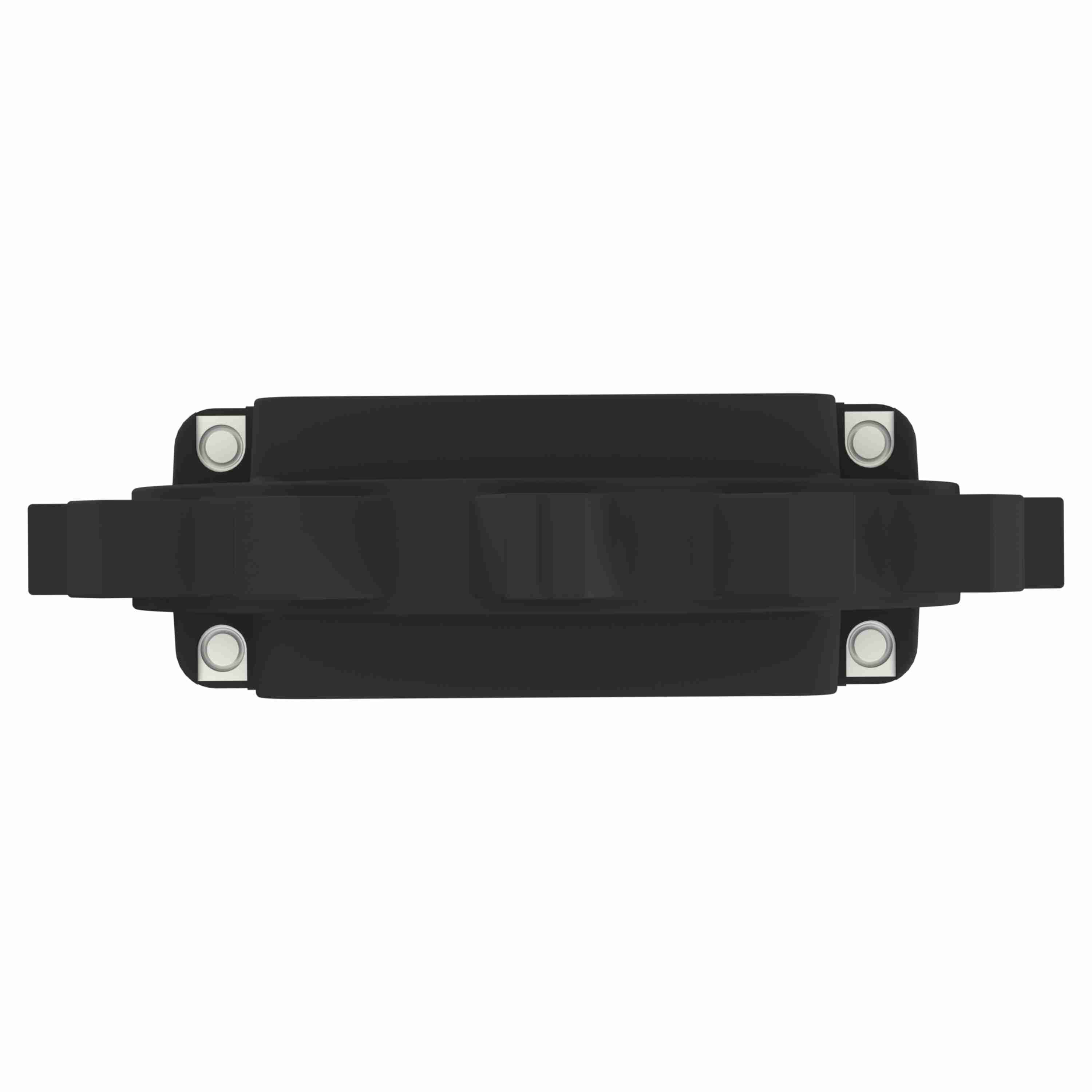

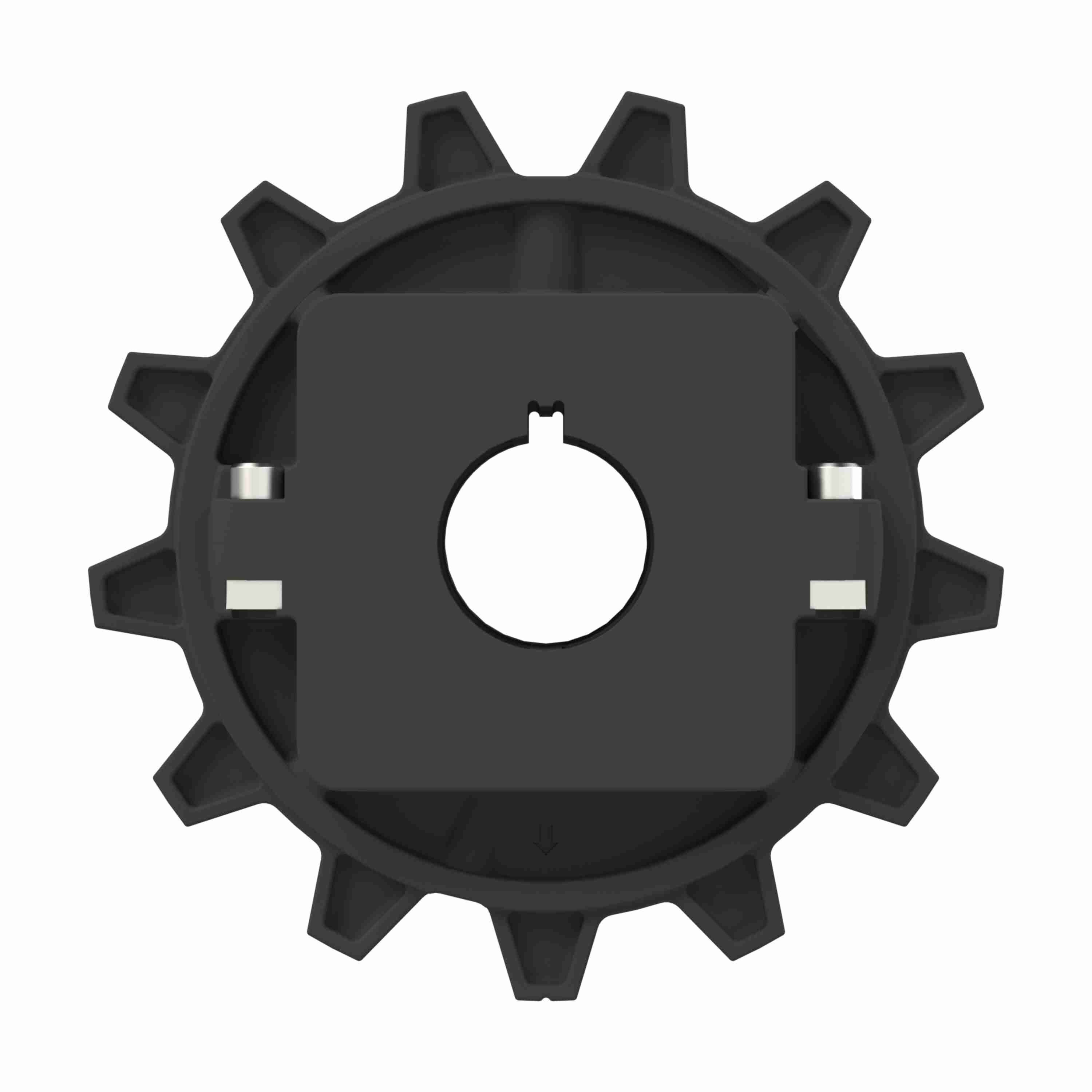

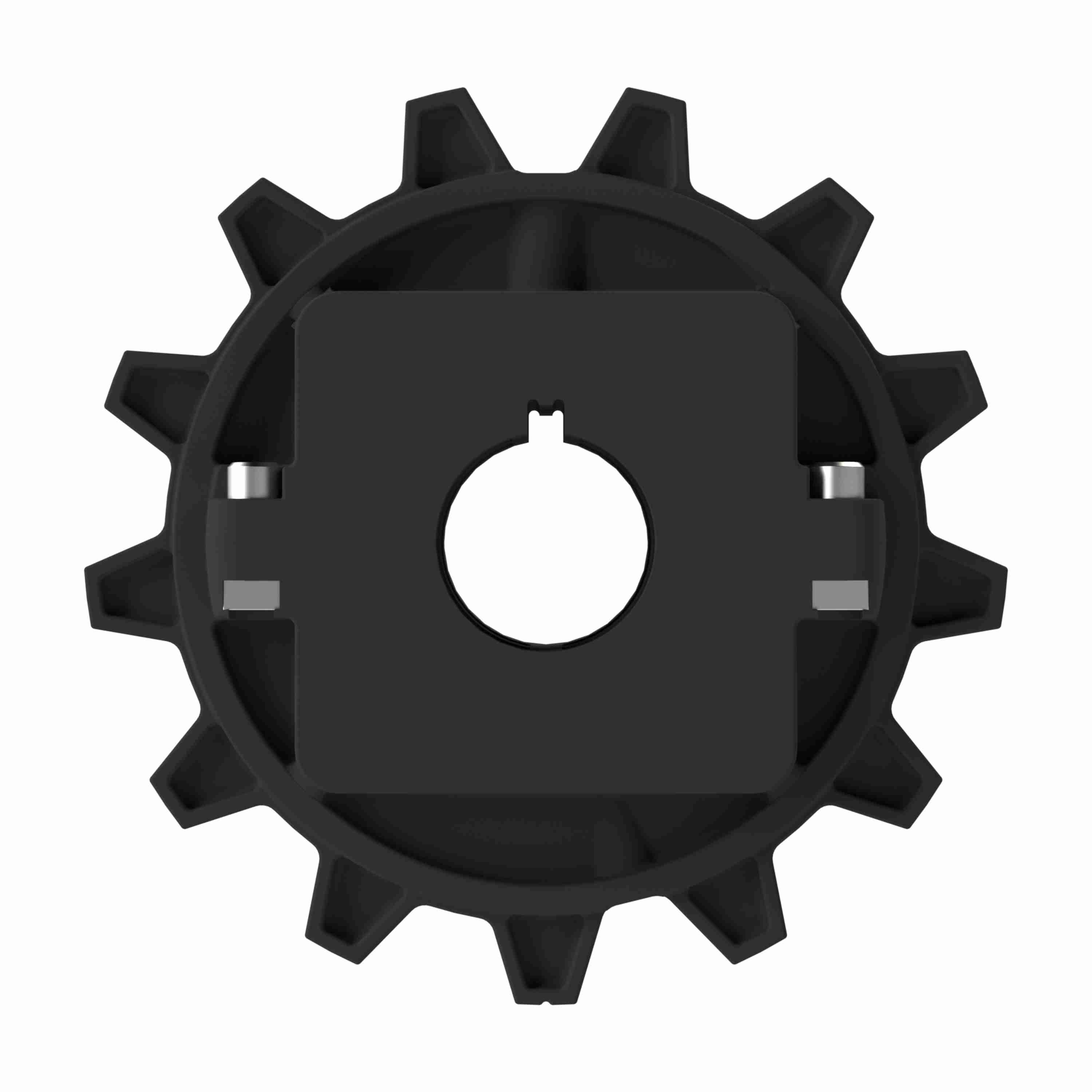

Rexnord 7960 Series Split Molded Nylon Sprocket and a 13 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-831-8
Part #:10131935
Catalog #:614-831-8
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Pitch Diameter (in): | 6.268 | Pitch Diameter (mm): | 159.2 |
| Bore Diameter (in): | 1-1/4 in | Number of Teeth: | 13 |
| Material: | Nylon | Bore Type: | Shaft-Ready |
| Bore Shape: | Round | Sprocket Construction: | Molded Split Sprocket |
| Product Line: | Chain and Belt Sprockets | Product Group: | MatTop® |
| Sprocket Series: | 7960 | Body Style: | Block |
| Chain Number: | 7960 | Number of Set Screws: | 1 Setscrew |
| Number of Keyways: | 1 |
General Specifications
| UPC: | 662864390538 | Weight: | 1.08 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
