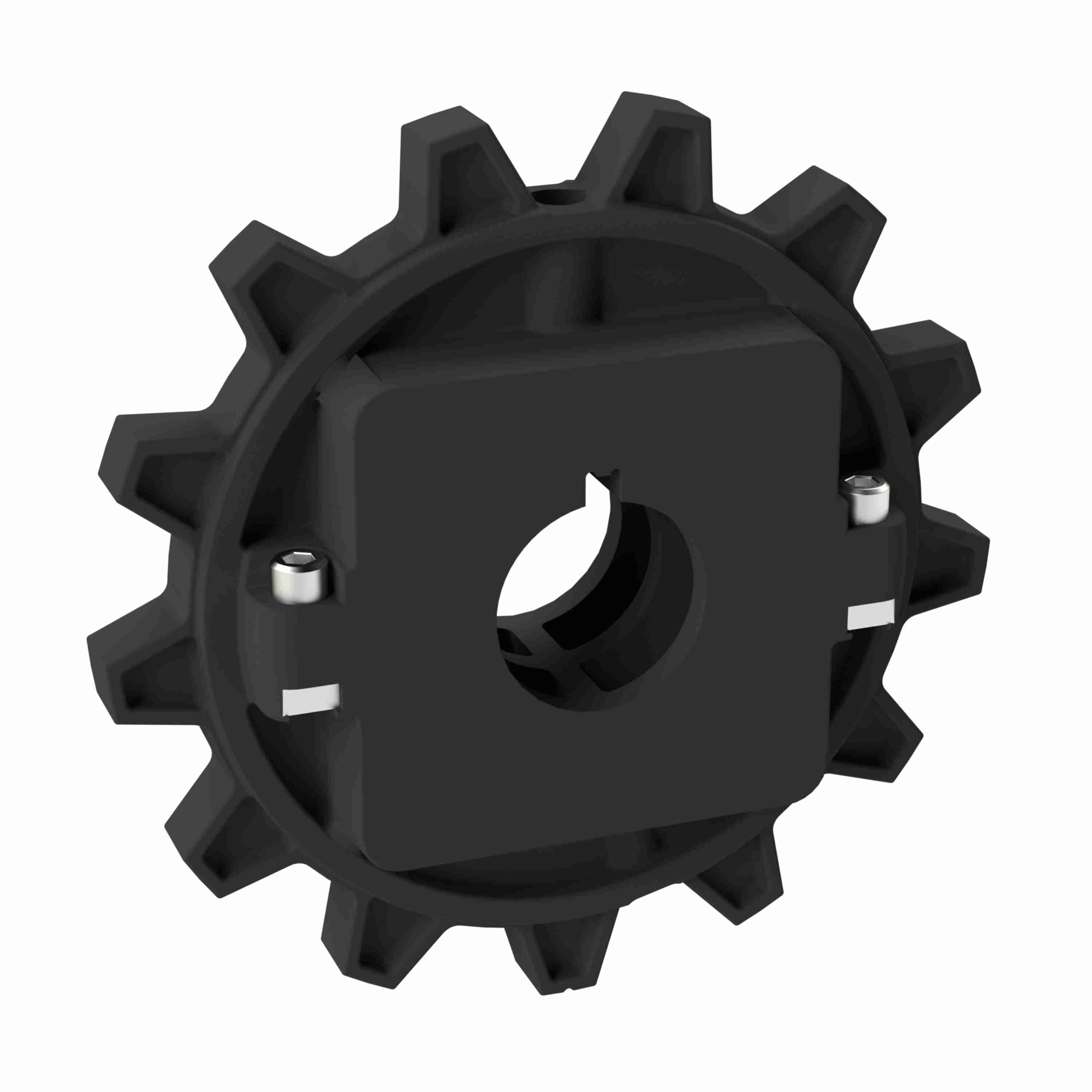

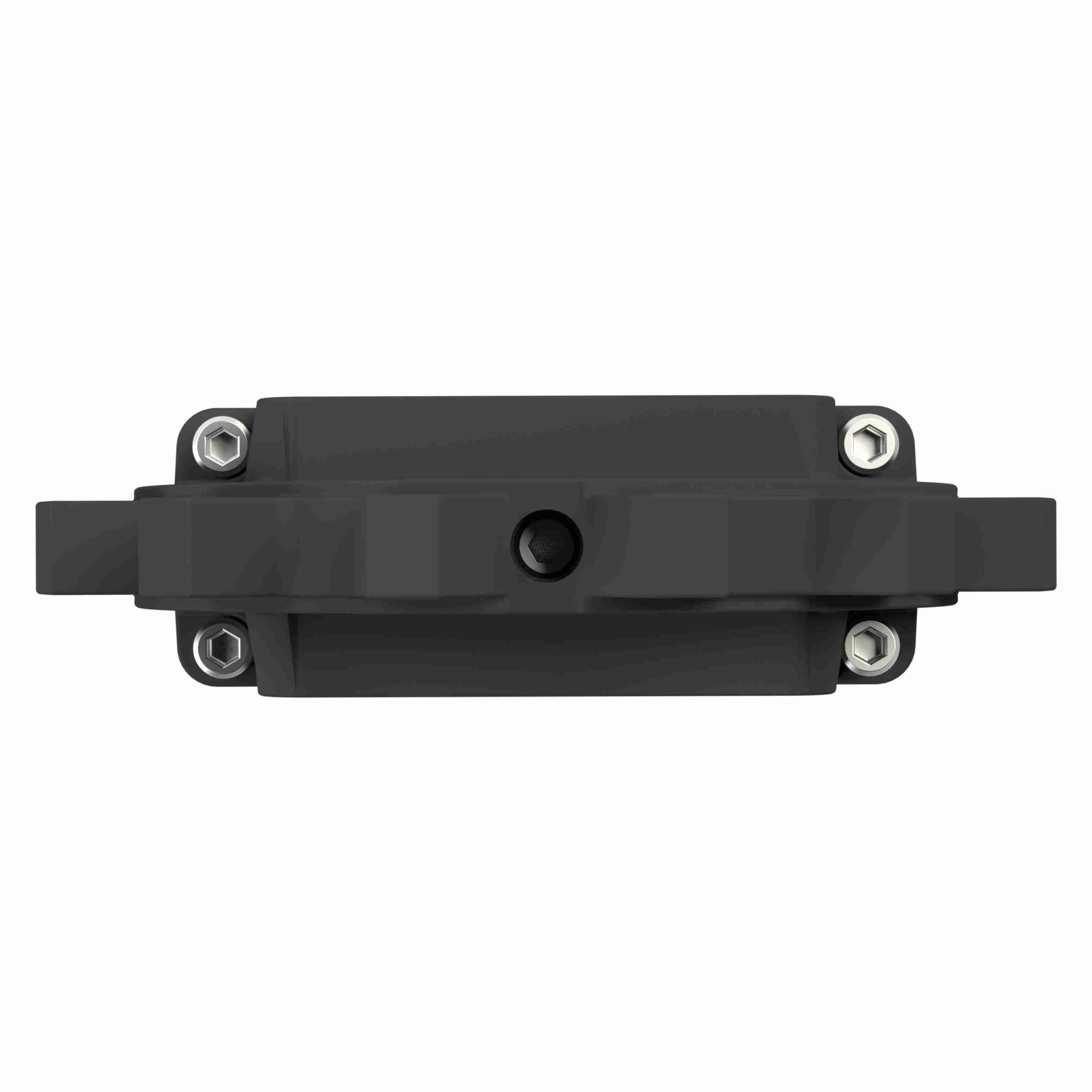

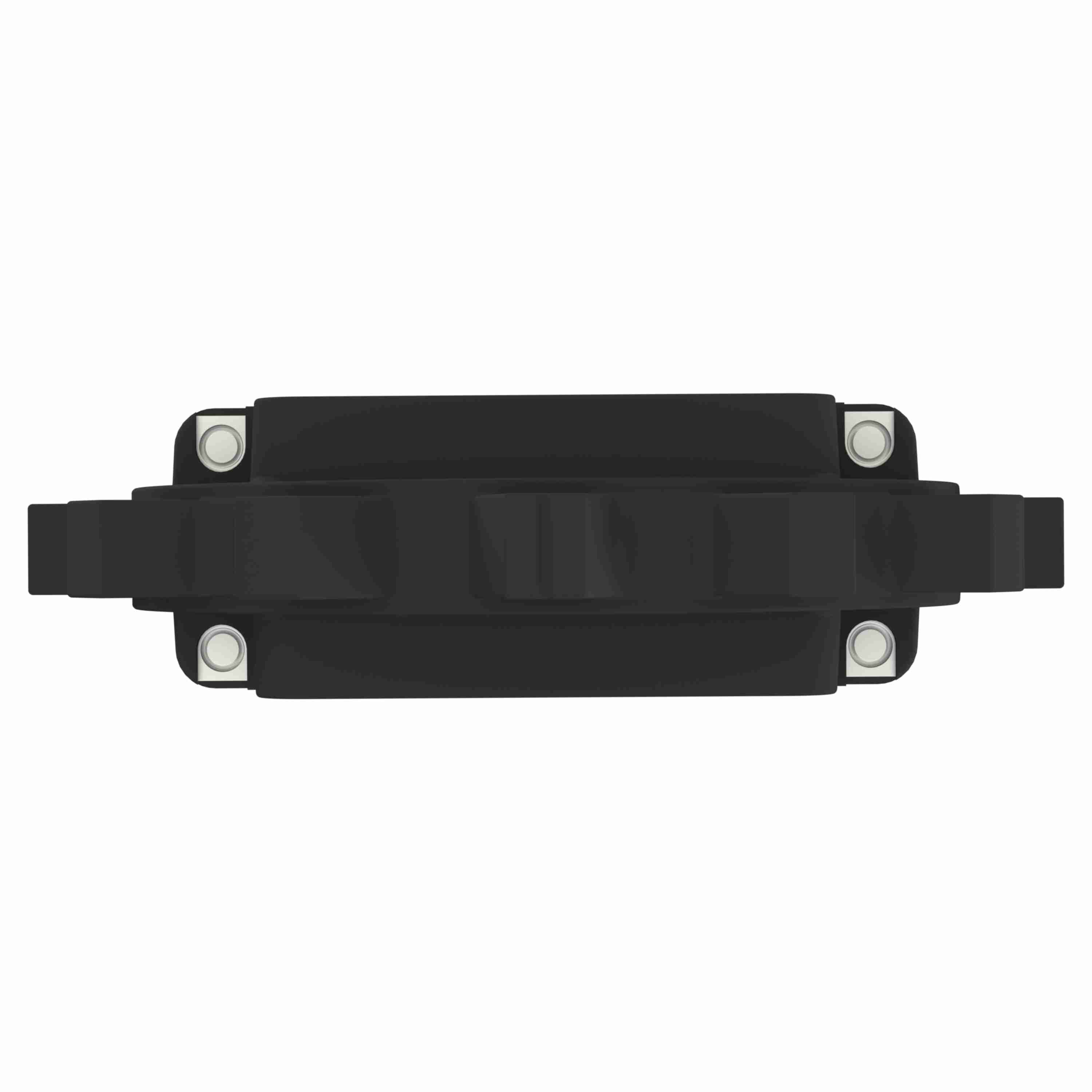

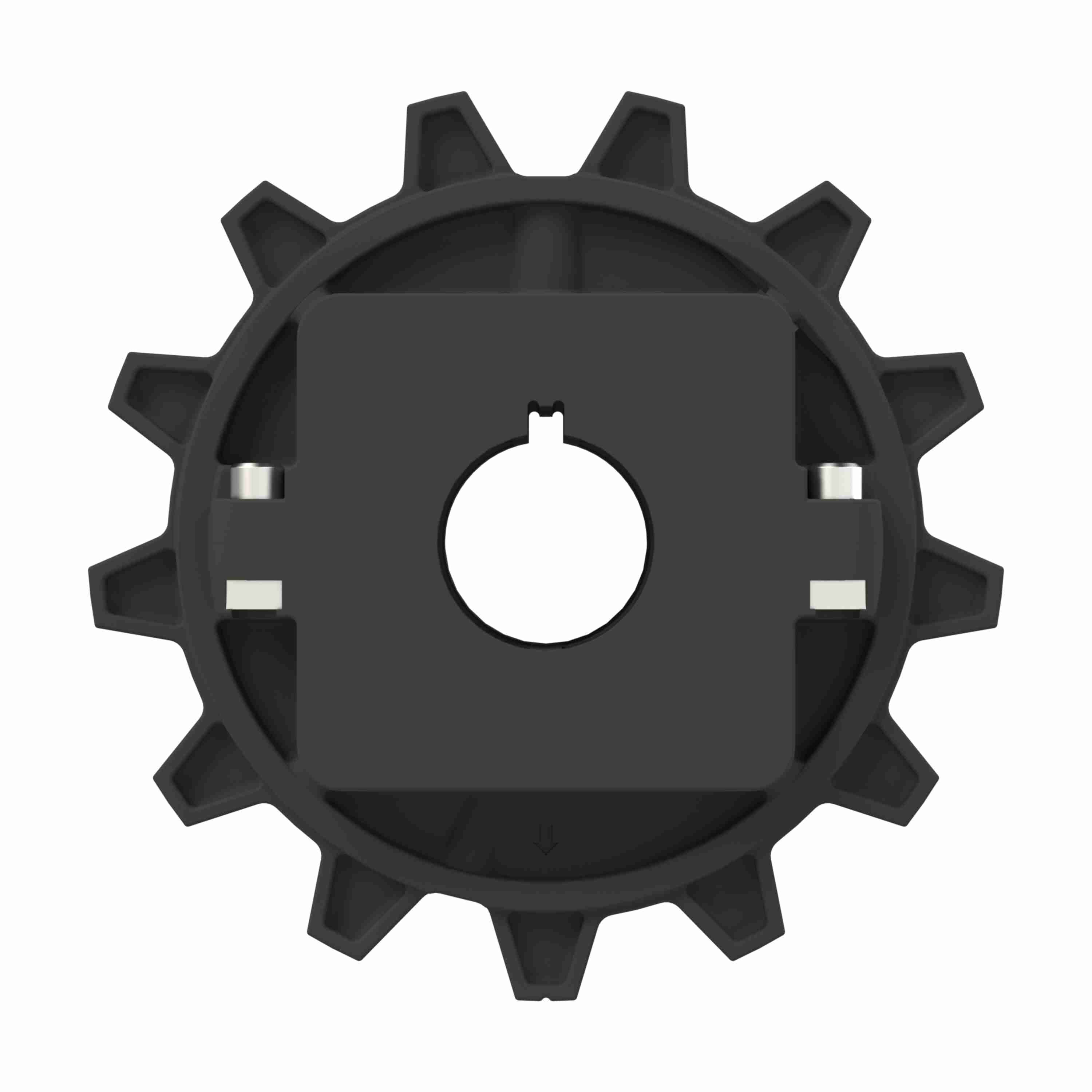

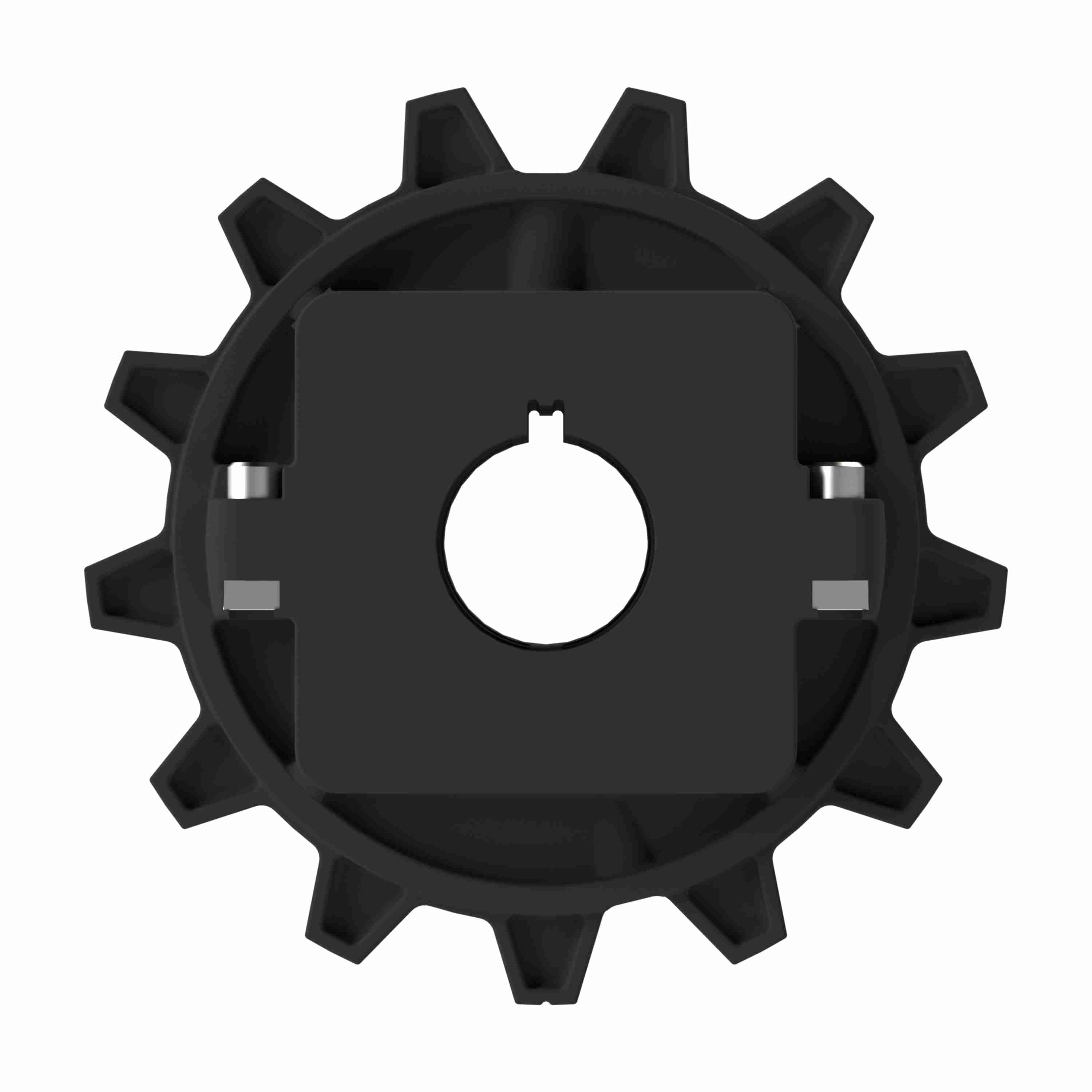

Rexnord 7960 Series Split Molded Nylon Sprocket and a 13 Teeth with 1-7/16in Round Shaft-Ready Bore with Keyway & Setscrew - 614-831-10
Part #:10322778
Catalog #:614-831-10
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Type: | Shaft-Ready | Hub Type: | C-HUB |
| Sprocket Construction: | Molded Split Sprocket | Product Group: | MatTop® |
| Number of Teeth: | 13 | Bore Shape: | Round |
| Pitch Diameter (in): | 6.268 | Number of Set Screws: | 1 Setscrew |
| Body Style: | Block | Sprocket Series: | 7960 |
| Bore Diameter (in): | 1-7/16 in | Number of Keyways: | 1 |
| Chain Number: | 7960 | Pitch Diameter (mm): | 159.2 |
| Product Line: | Chain and Belt Sprockets | Material: | Nylon |
General Specifications
| UPC: | 782934790225 | Weight: | 1.08 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
