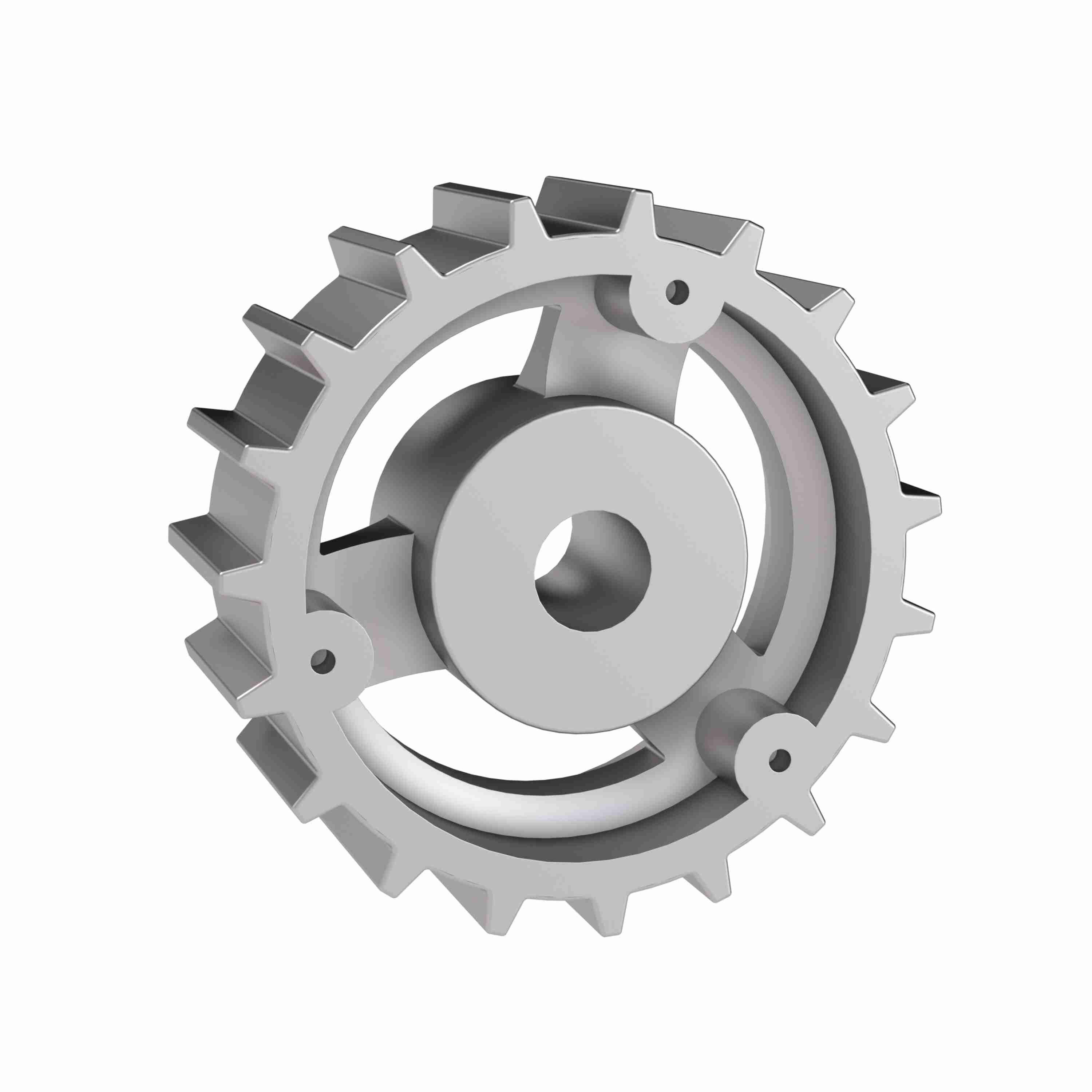

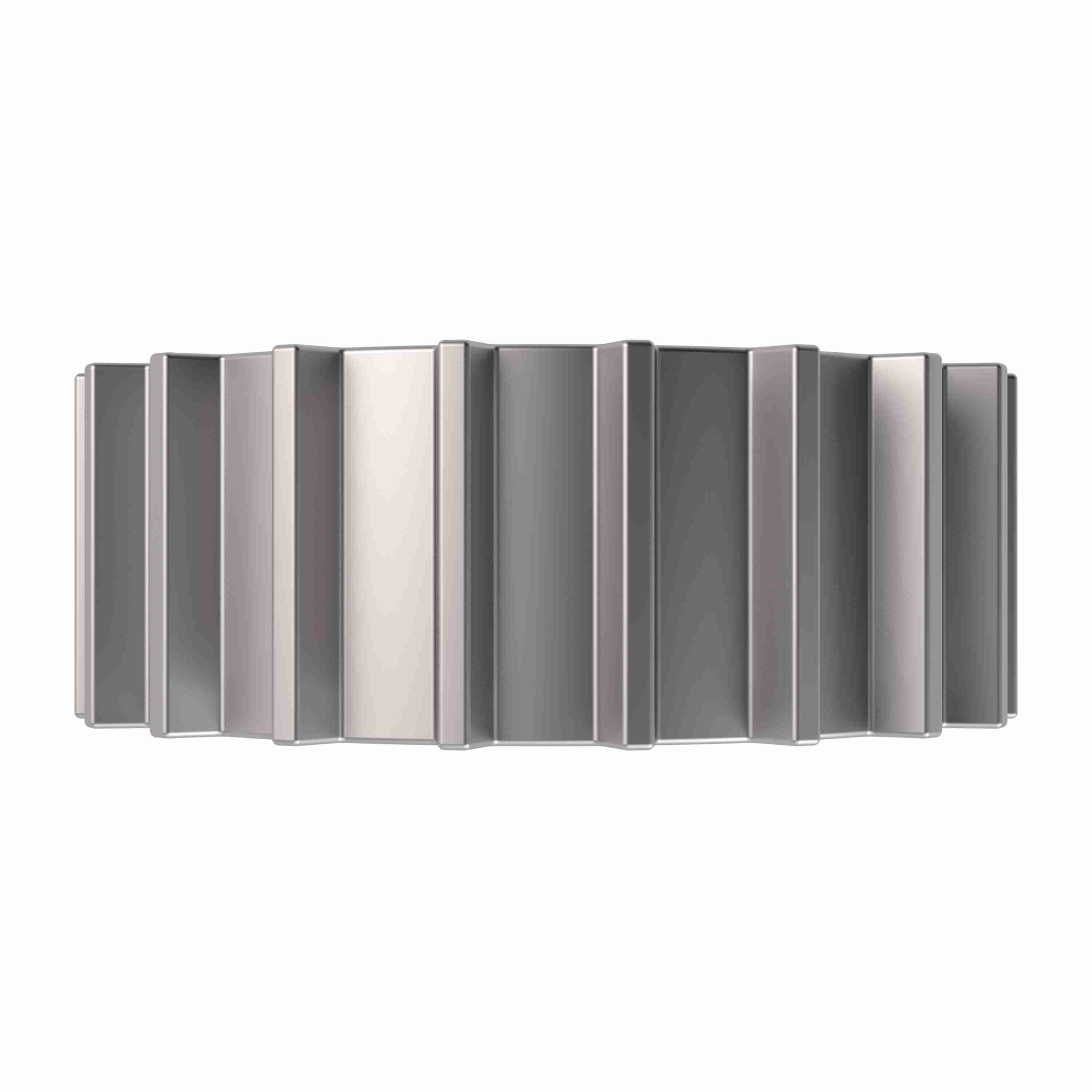

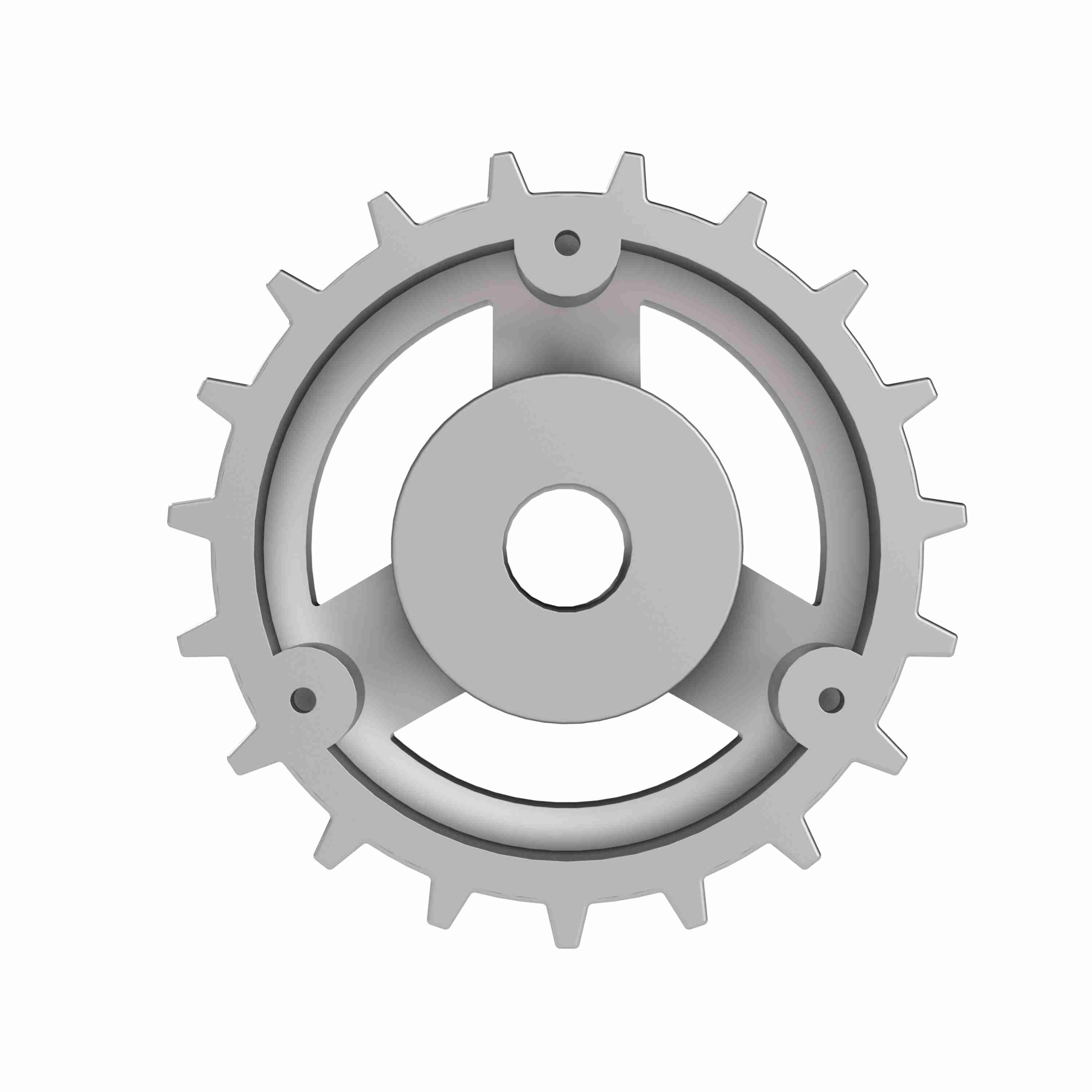

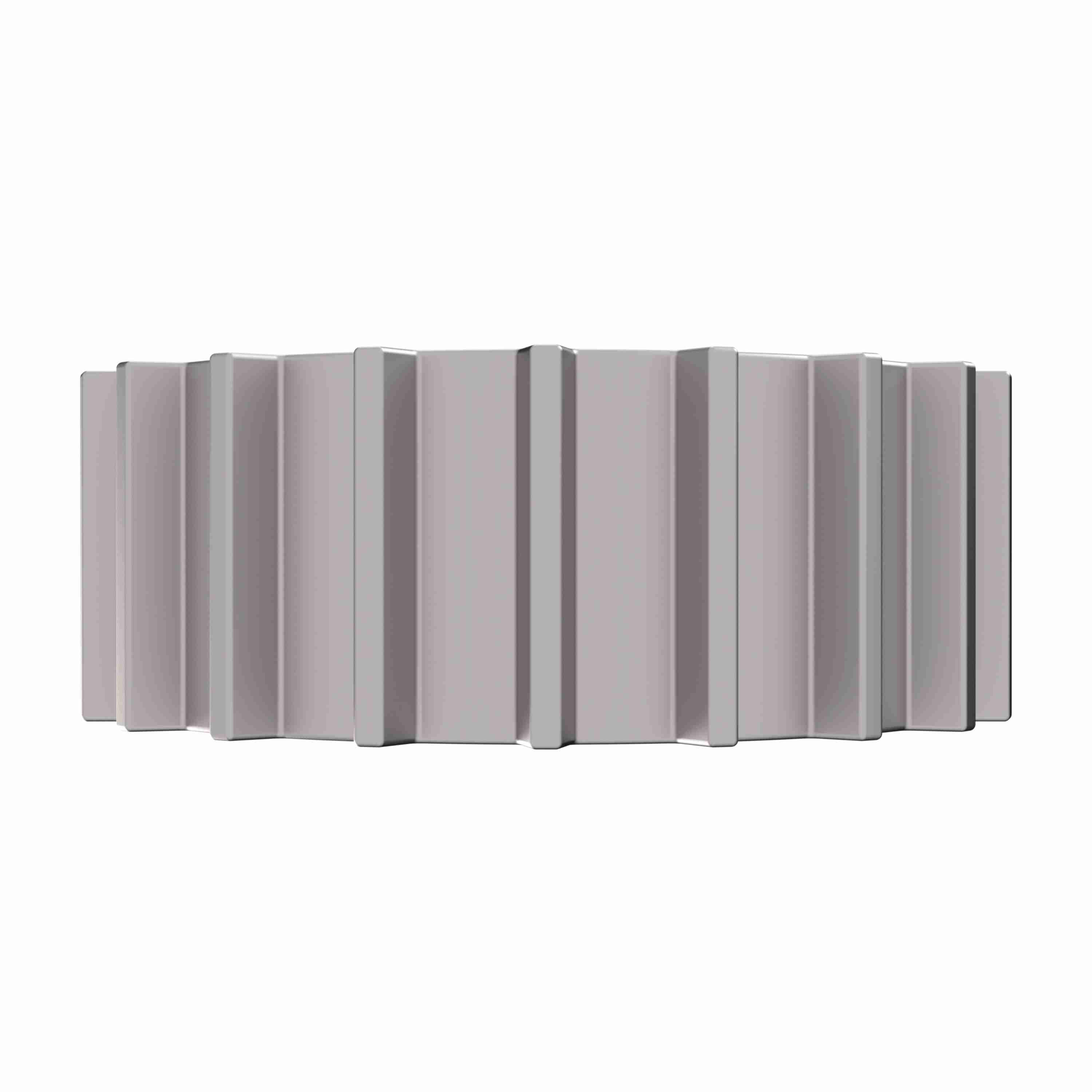

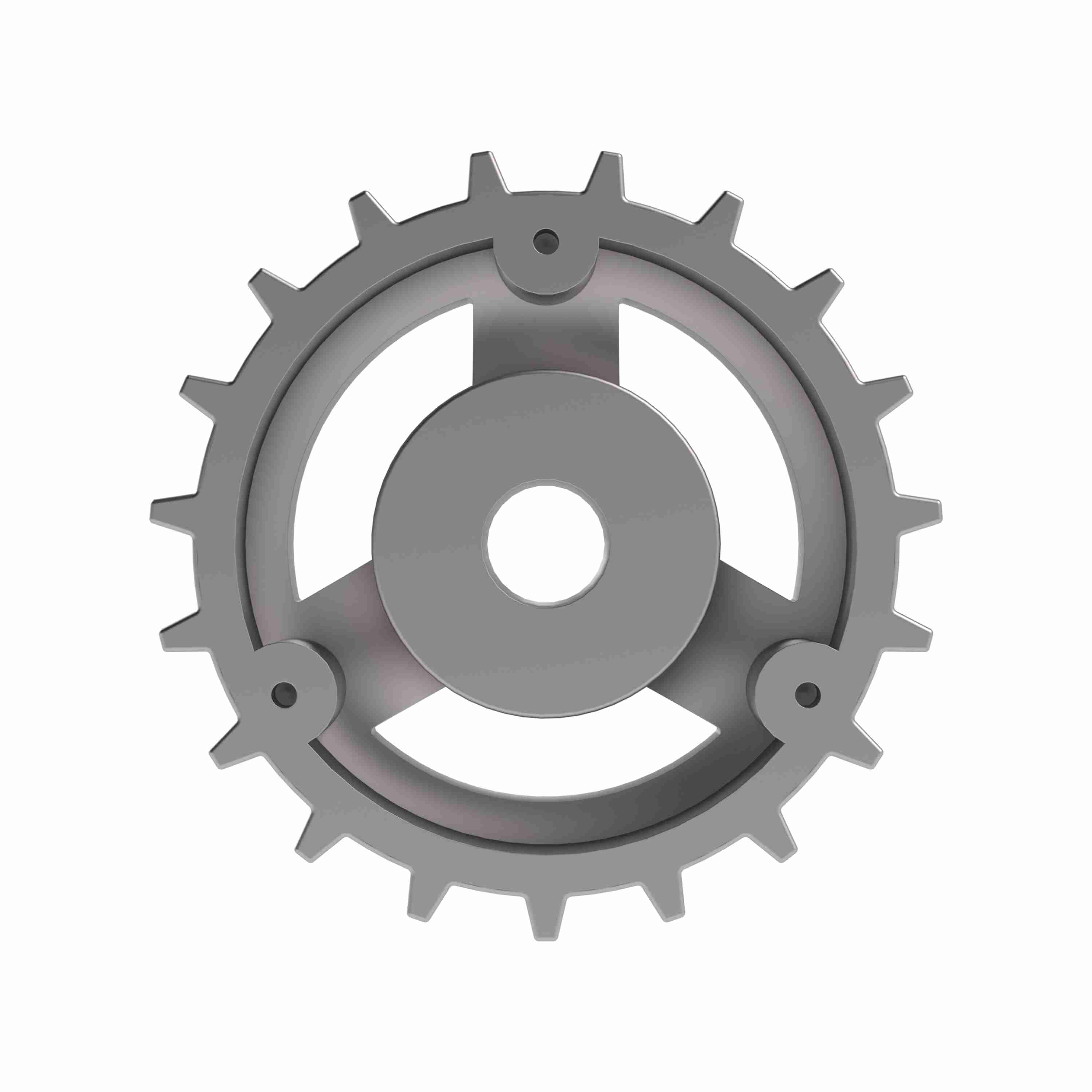

Rexnord 815 Series Solid One Piece Cast Iron Sprocket with 19 Teeth and a 3/4in Round Rough Stock Bore (RSB) - 401-154-8
Part #:10024794
Catalog #:401-154-8
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | TableTop® | Bore Shape: | Round |
| Number of Teeth: | 19 | Bore Type: | Rough Stock Bore (RSB) |
| Body Style: | Arm | Pitch Diameter (in): | 4.557 |
| Material: | Cast Iron | Pitch Diameter (mm): | 115.74 |
| Bore Diameter (in): | 3/4 in | Sprocket Construction: | Cast-Iron Non-Split Sprocket |
| Number of Keyways: | 0 | Number of Set Screws: | None |
| Product Line: | Chain and Belt Sprockets | Chain Number: | 815 |
| Sprocket Series: | 815 | Hub Type: | A-No Hub |
General Specifications
| UPC: | 793699634976 | Weight: | 0.01 LB |
| Packaged Length: | 4.75 IN | Packaged Width: | 4.75 IN |
| Packaged Height: | 1.50 IN | HTC: | 8483408000 |
| Country of Origin: | United States of America |
