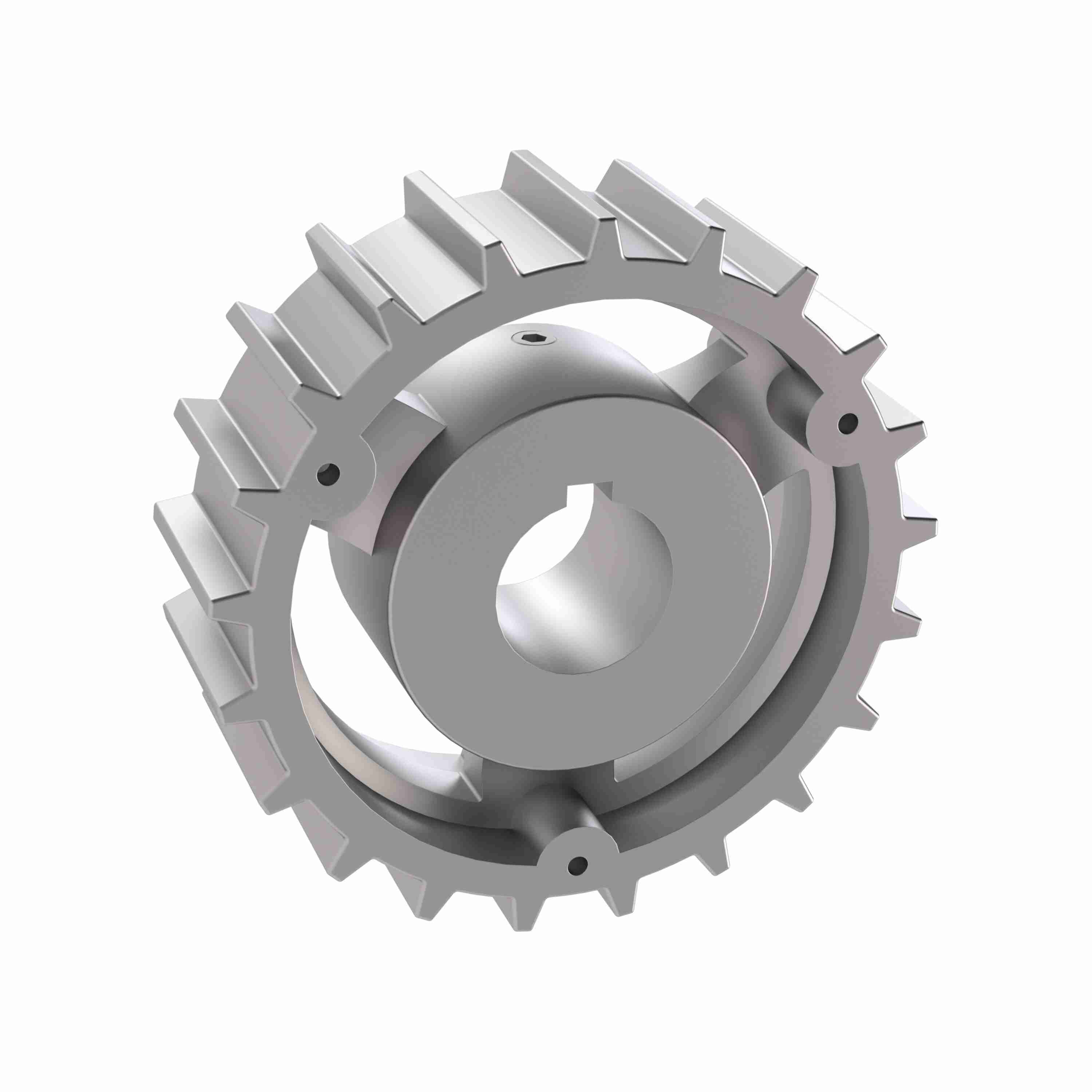

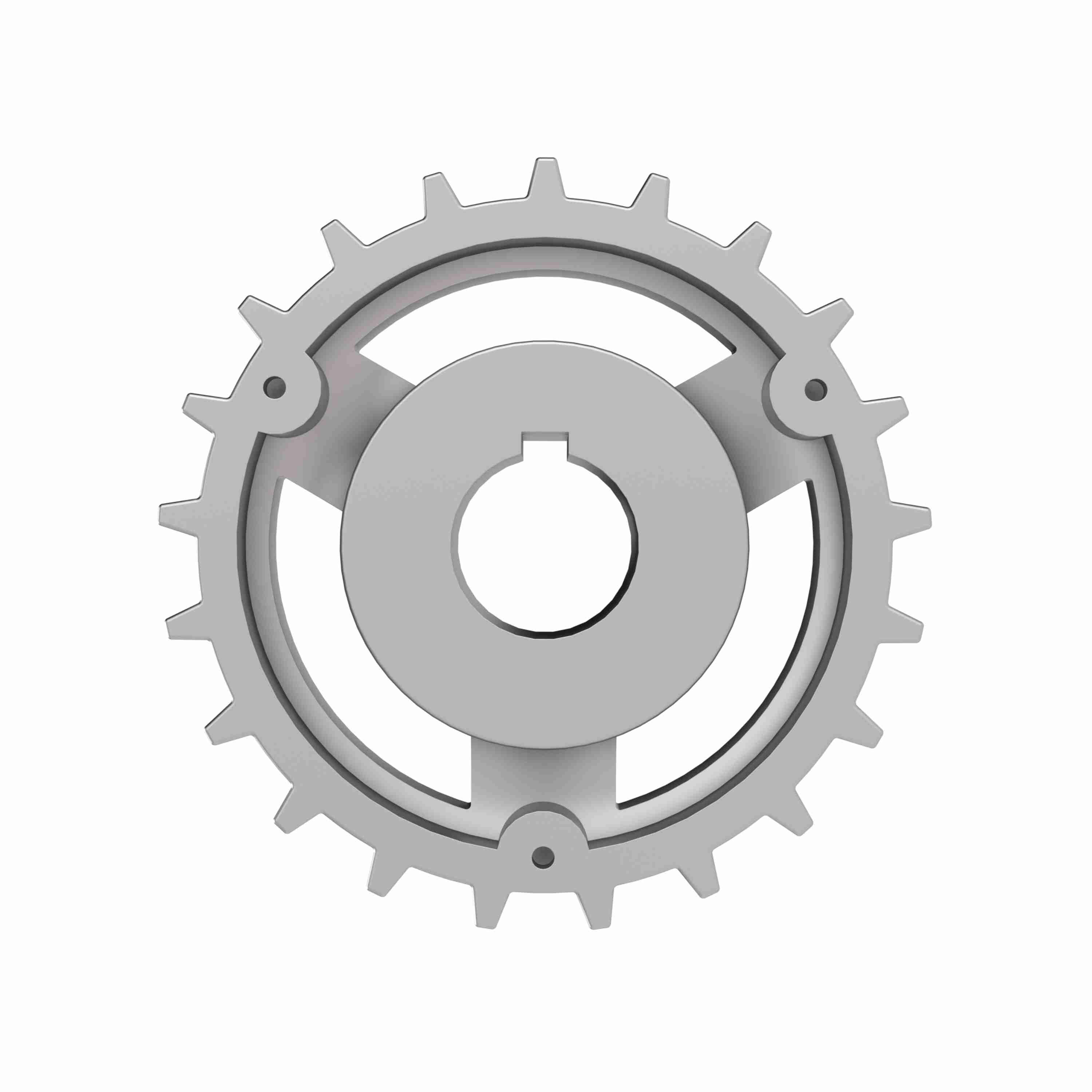

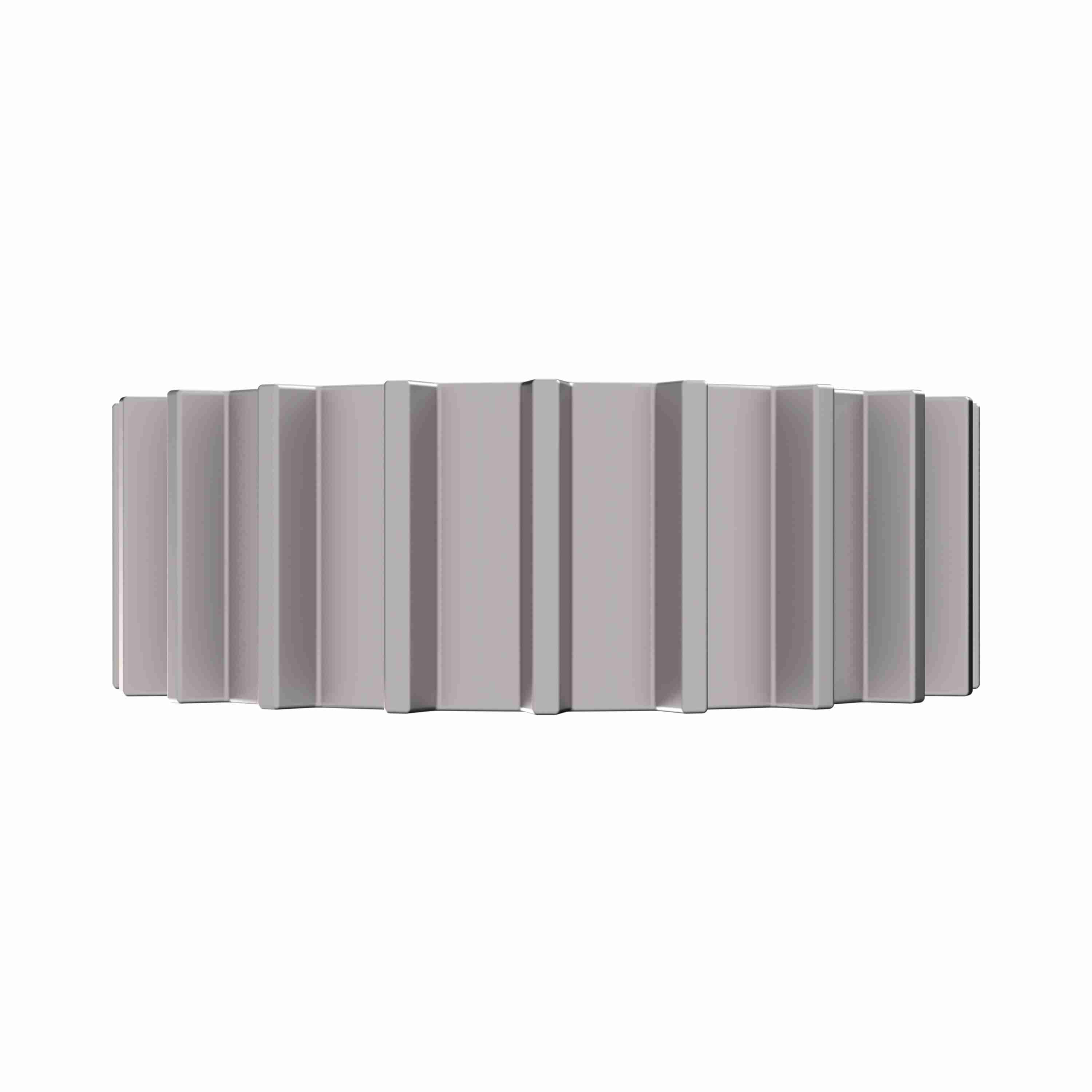

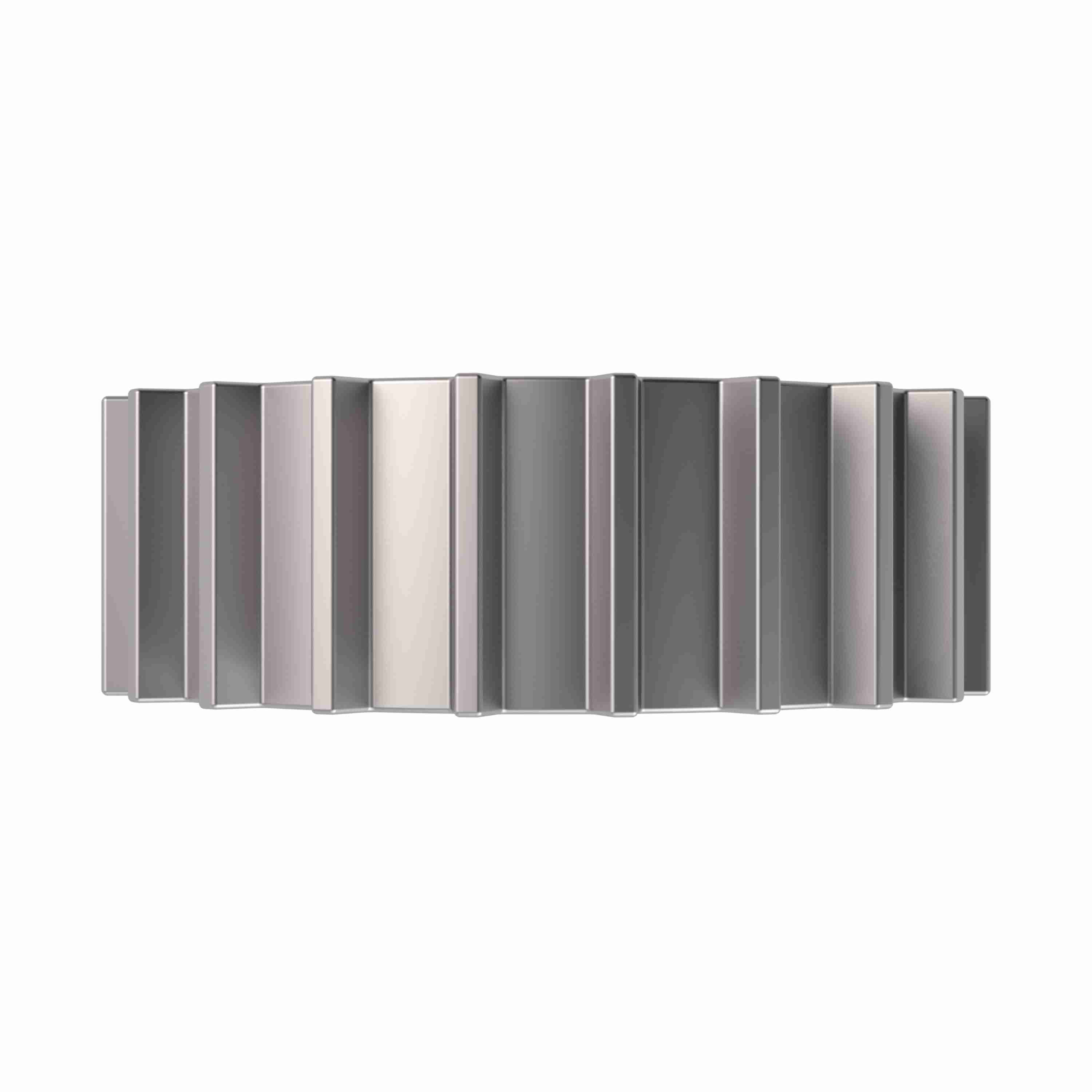

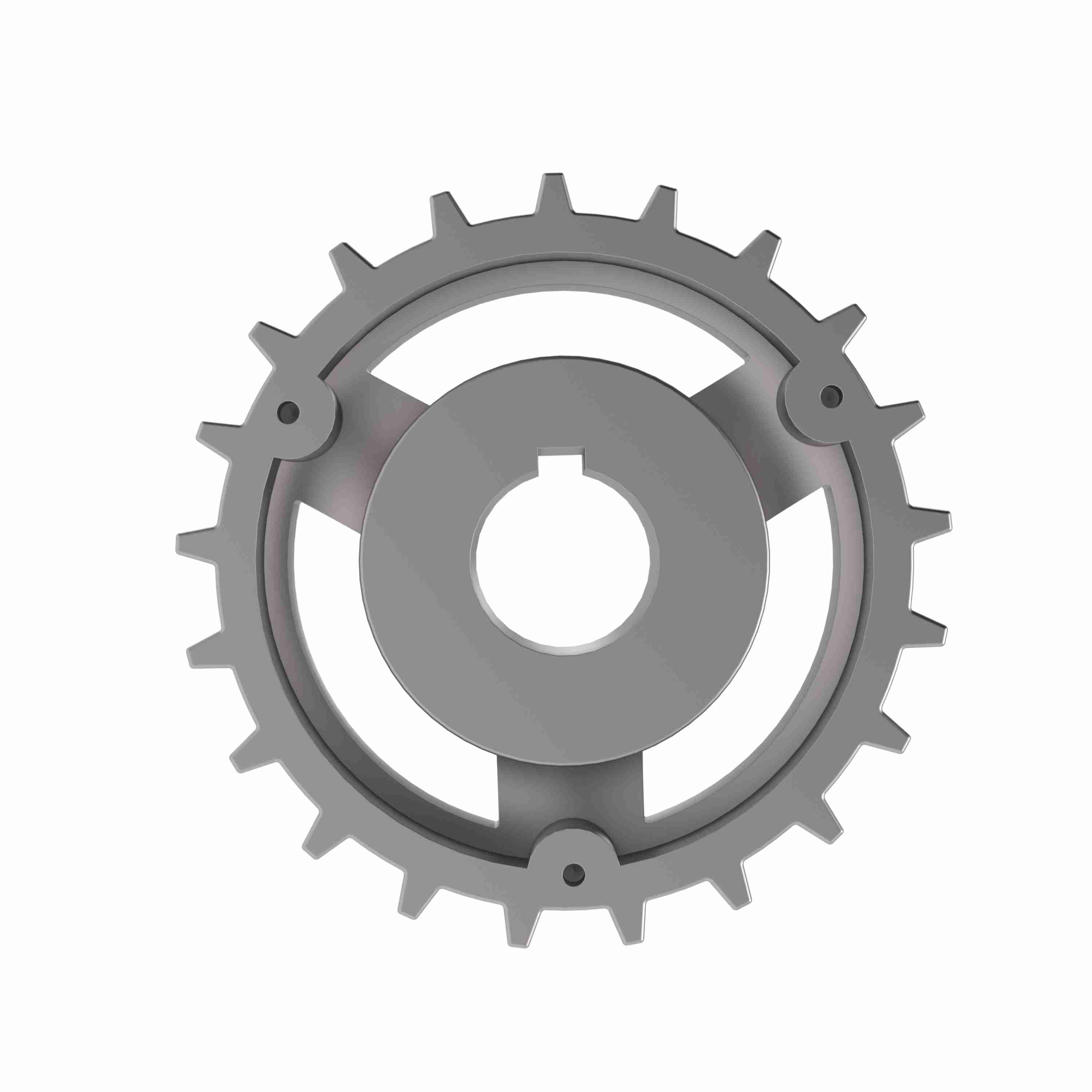

Rexnord 815 Series Solid One Piece Cast Iron Sprocket with 21 Teeth and a 1in Round Shaft-Ready Bore with Keyway & Setscrew - 401-160-17
Part #:10028778
Catalog #:401-160-17
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Pitch Diameter (in): | 5.032 | Chain Number: | 815 |
| Number of Set Screws: | 1 Setscrew | Sprocket Series: | 815 |
| Number of Teeth: | 21 | Product Group: | TableTop® |
| Bore Type: | Shaft-Ready | Pitch Diameter (mm): | 127.82 |
| Hub Type: | A-No Hub | Product Line: | Chain and Belt Sprockets |
| Bore Shape: | Round | Bore Diameter (in): | 1 in |
| Number of Keyways: | 1 | Material: | Cast Iron |
| Sprocket Construction: | Cast-Iron Non-Split Sprocket | Body Style: | Arm |
General Specifications
| UPC: | 662864691819 | Weight: | 4.63 LB |
| Packaged Length: | 5.25 IN | Packaged Width: | 5.25 IN |
| Packaged Height: | 1.75 IN | HTC: | 8483901050 |
| Country of Origin: | United States of America |
