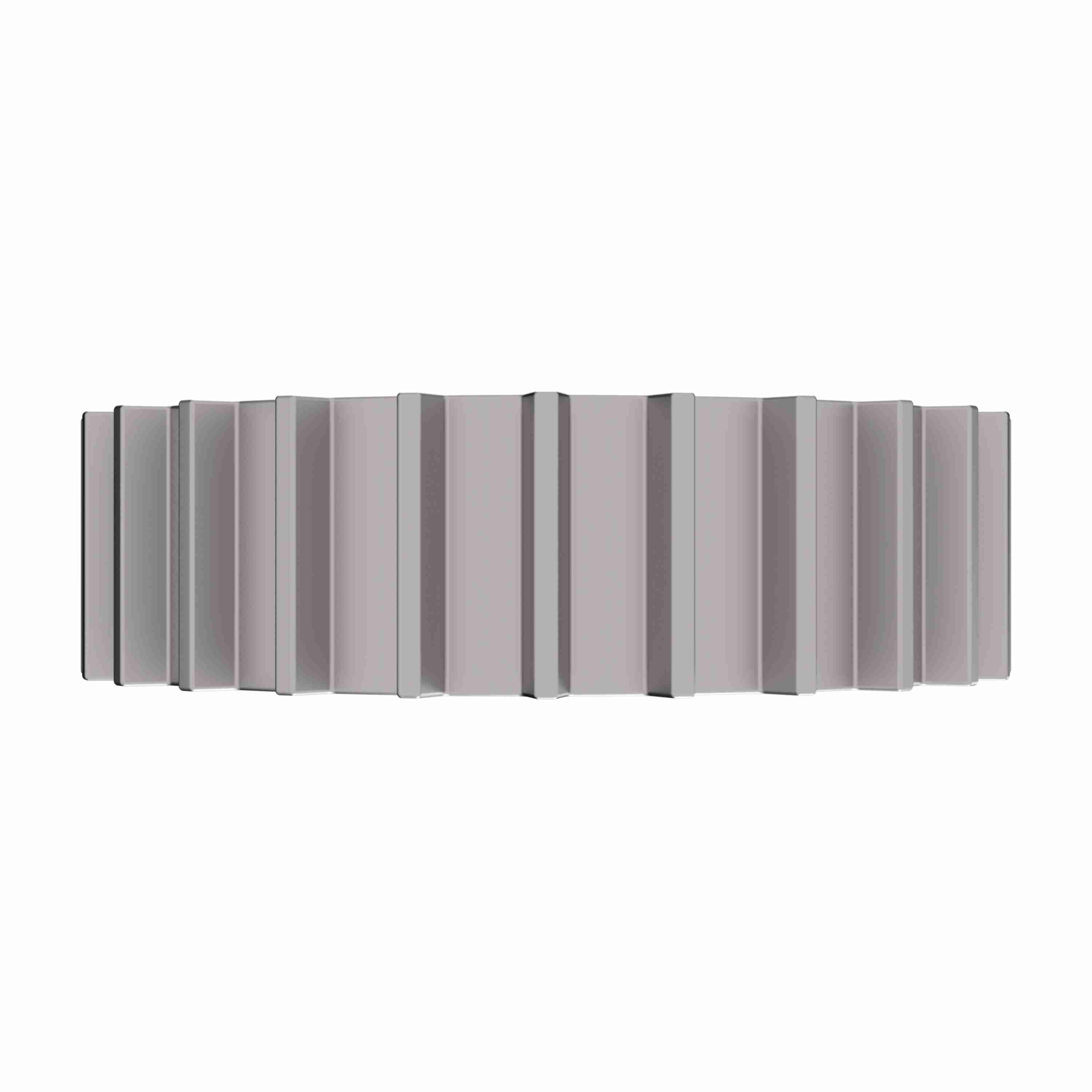

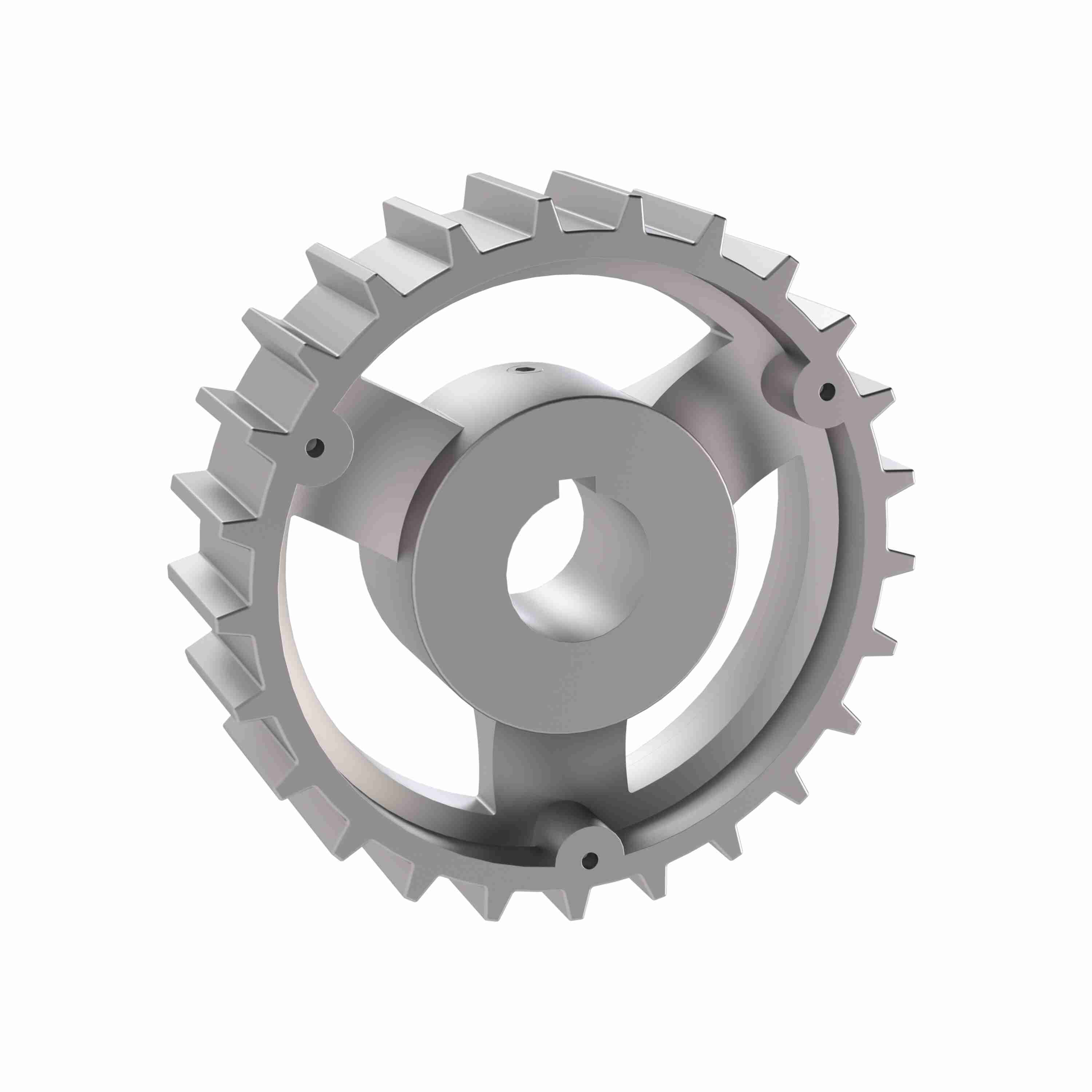

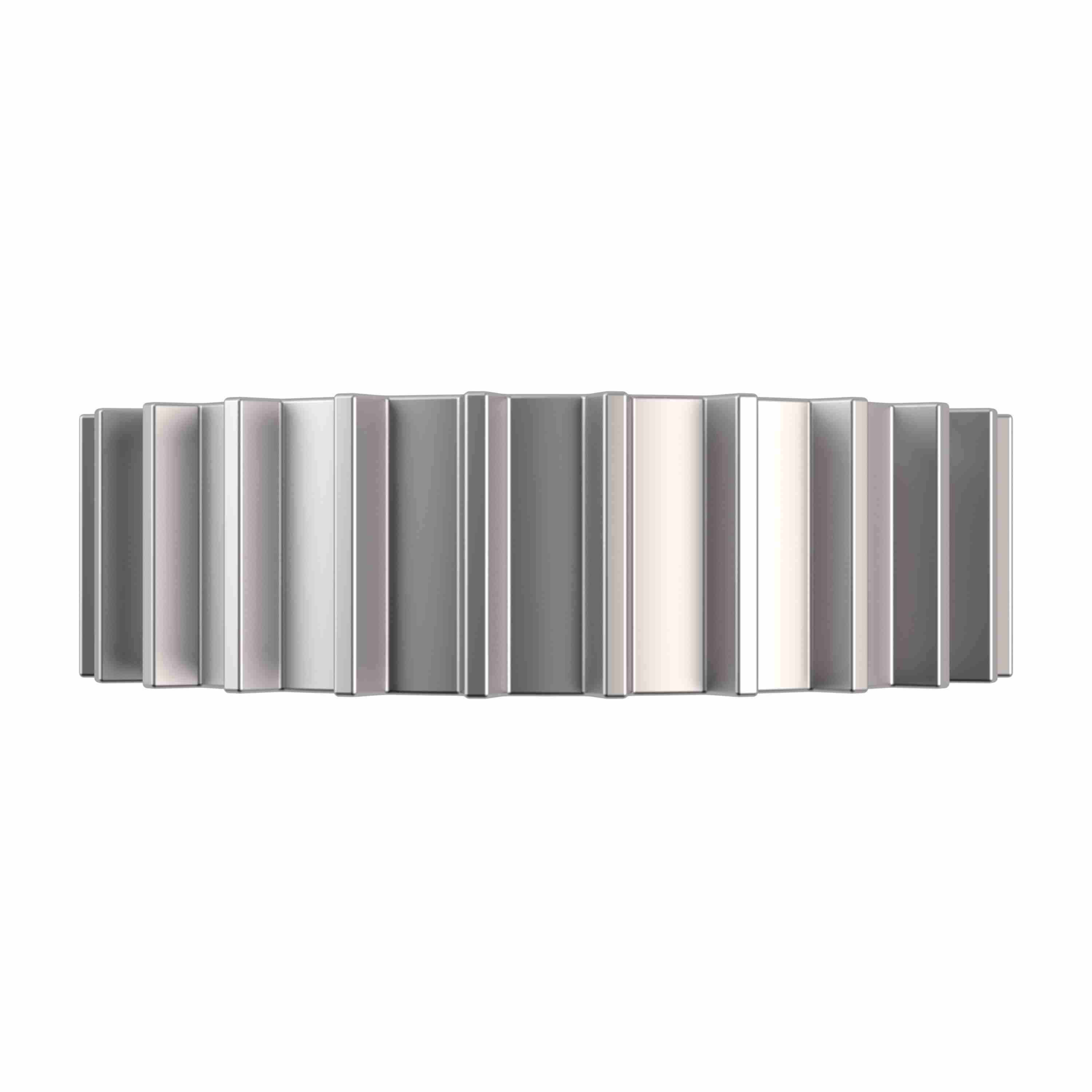

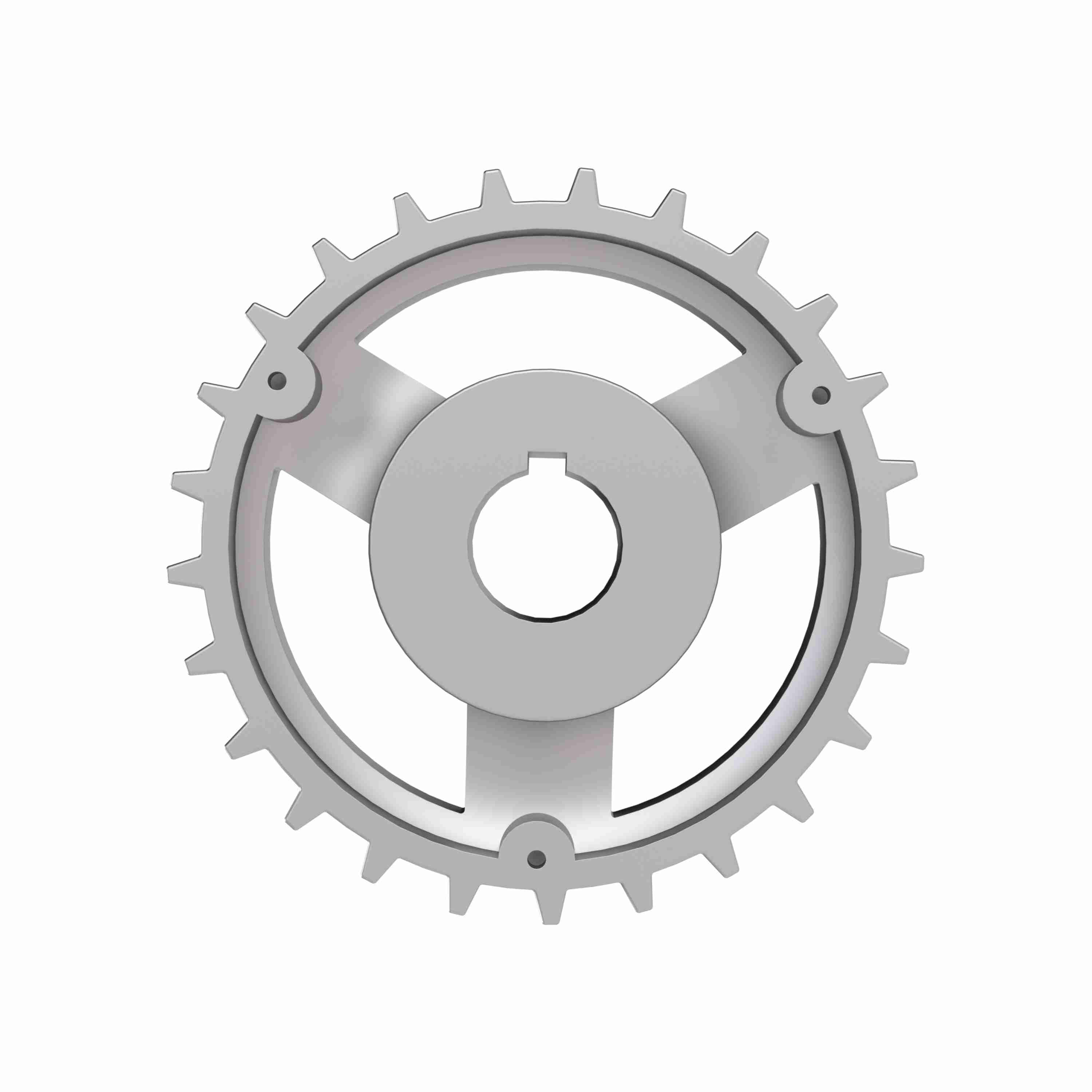

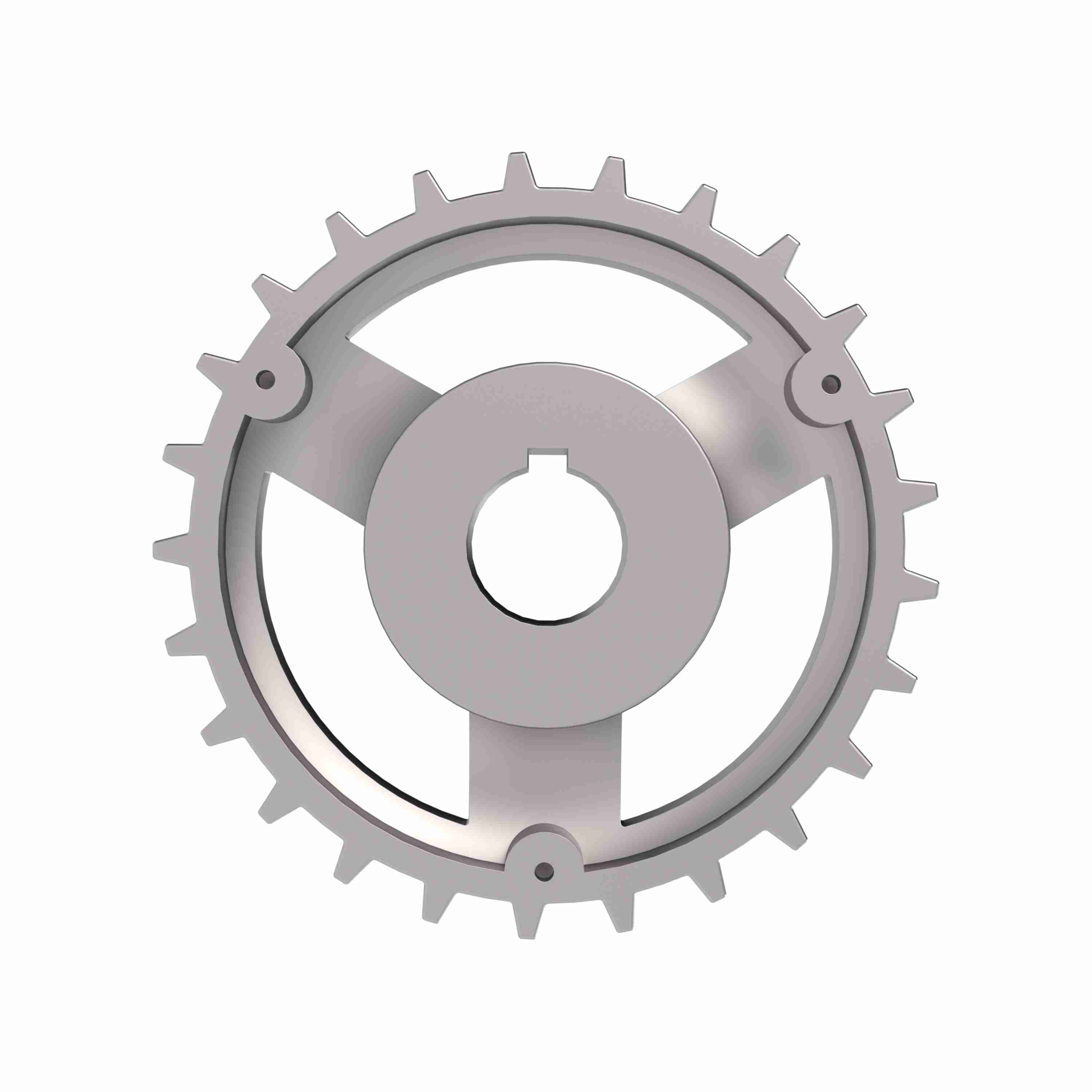

Rexnord 815 Series Solid One Piece Cast Iron Sprocket with 25 Teeth and a 1in Round Shaft-Ready Bore with Keyway & Setscrew - 401-162-25
Part #:10028785
Catalog #:401-162-25
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Hub Type: | A-No Hub | Pitch Diameter (in): | 5.984 |
| Chain Number: | 815 | Body Style: | Arm |
| Pitch Diameter (mm): | 151.99 | Number of Set Screws: | 1 Setscrew |
| Number of Keyways: | 1 | Material: | Cast Iron |
| Number of Teeth: | 25 | Product Line: | Chain and Belt Sprockets |
| Sprocket Construction: | Cast-Iron Non-Split Sprocket | Bore Diameter (in): | 1 in |
| Sprocket Series: | 815 | Bore Type: | Shaft-Ready |
| Product Group: | TableTop® | Bore Shape: | Round |
General Specifications
| UPC: | 662864684729 | Weight: | 5.50 LB |
| Packaged Length: | 6.25 IN | Packaged Width: | 6.25 IN |
| Packaged Height: | 1.75 IN | HTC: | 8483901050 |
| Country of Origin: | United States of America |
