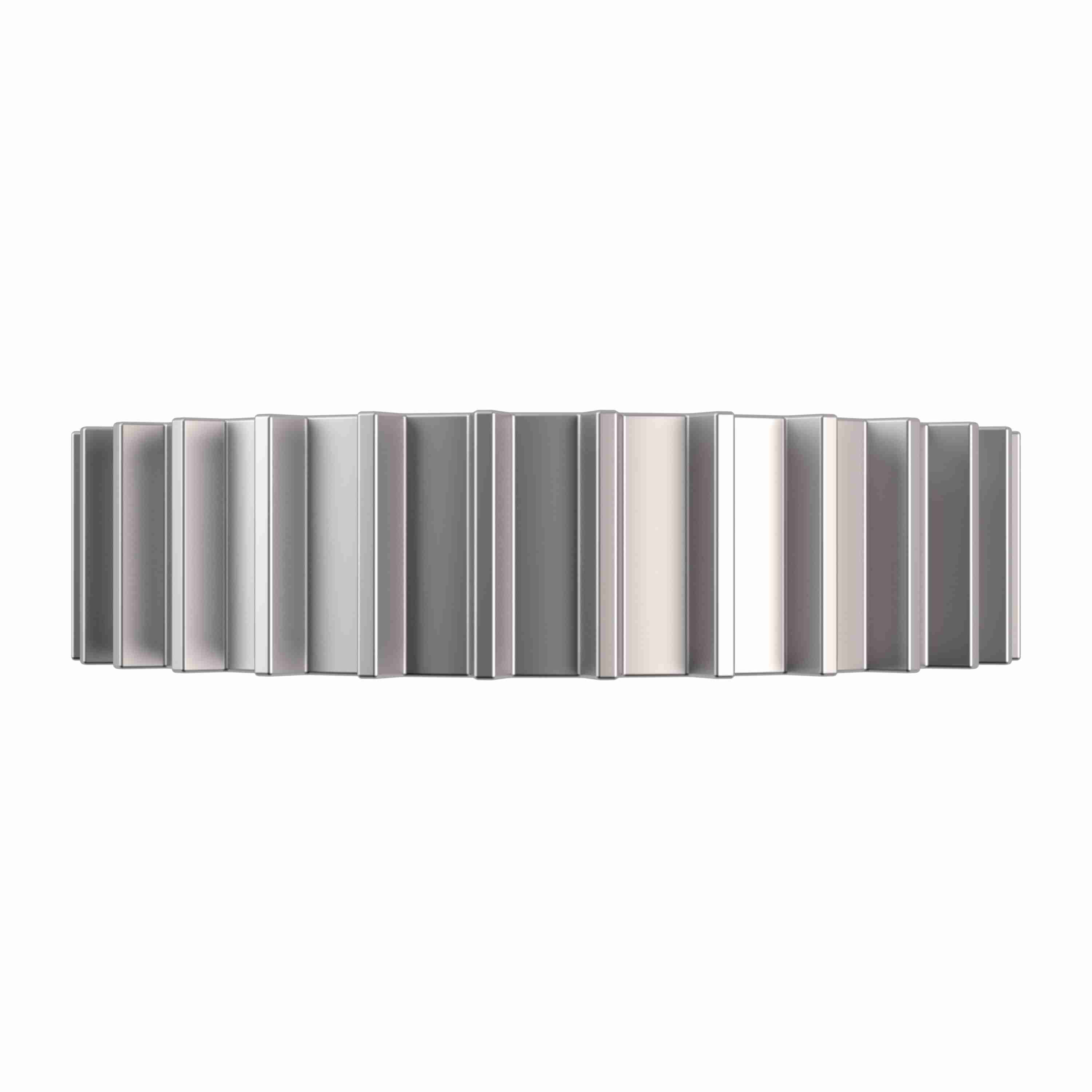

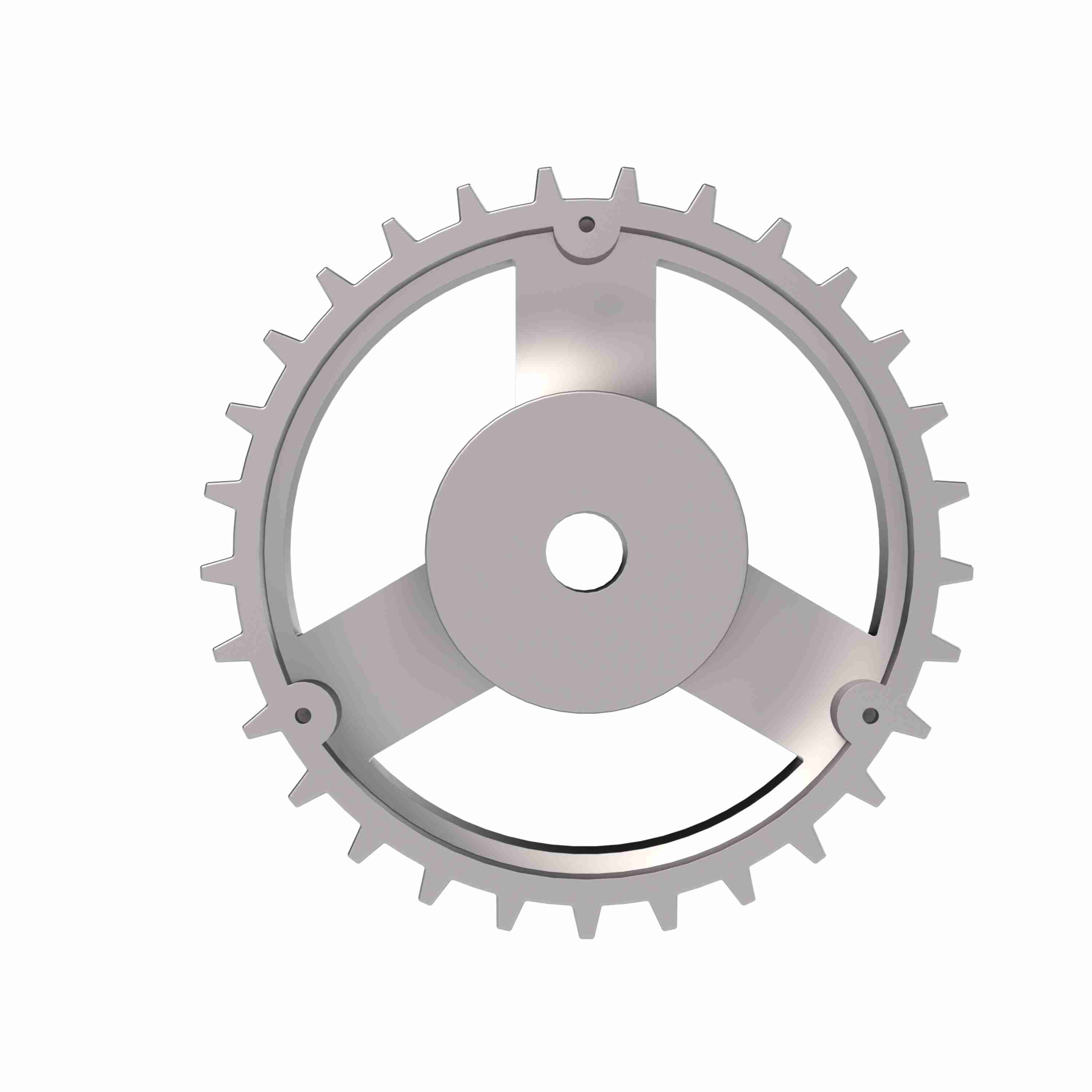

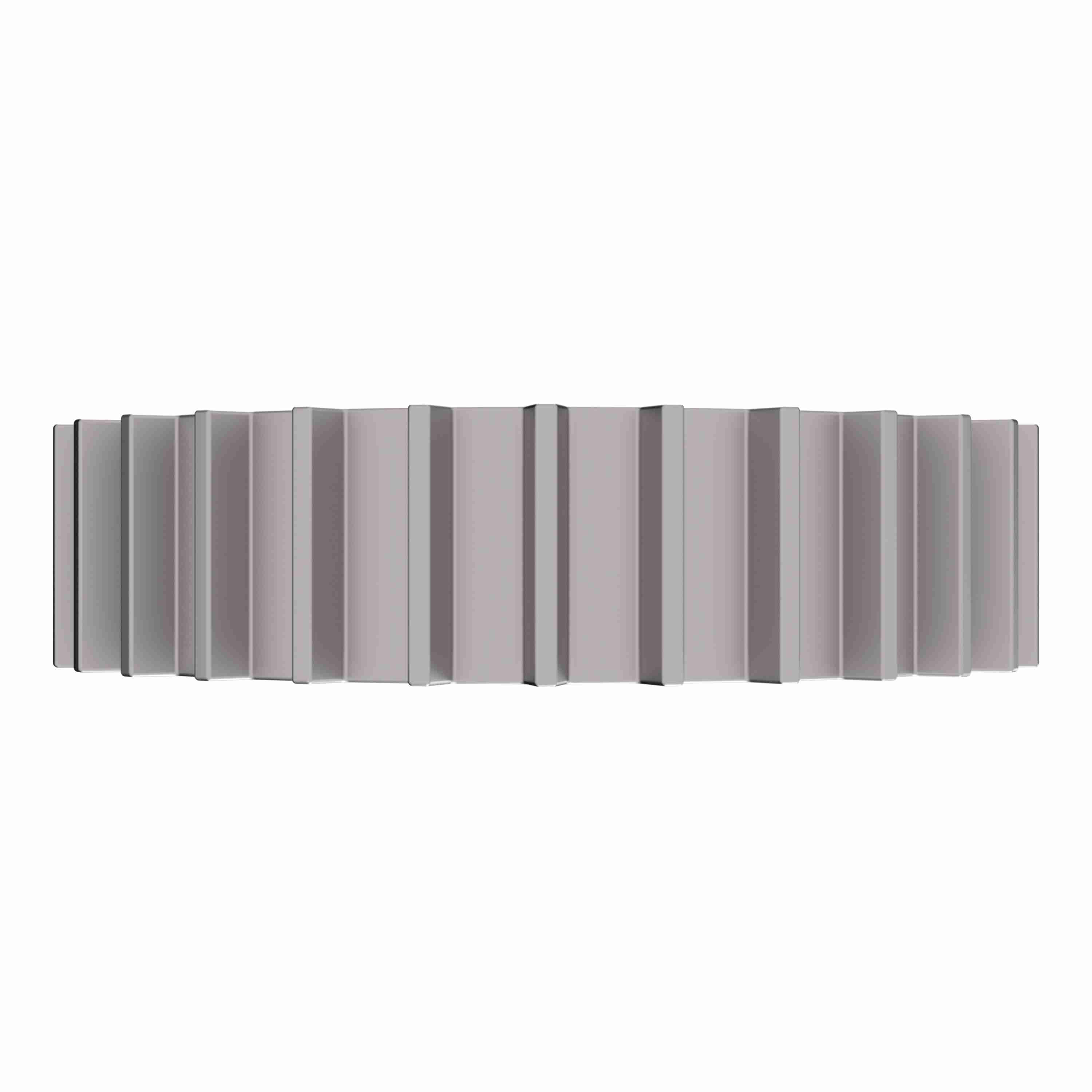

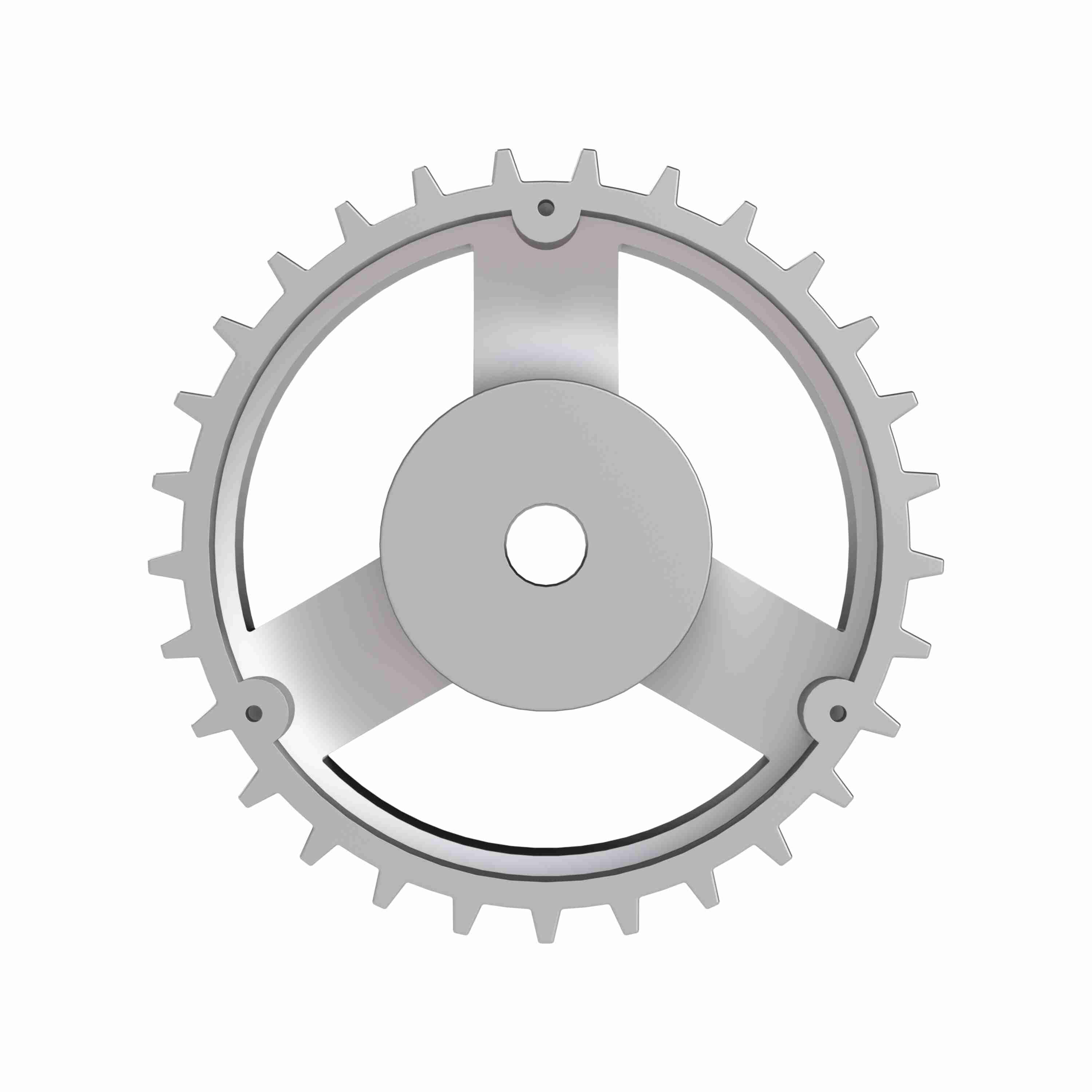

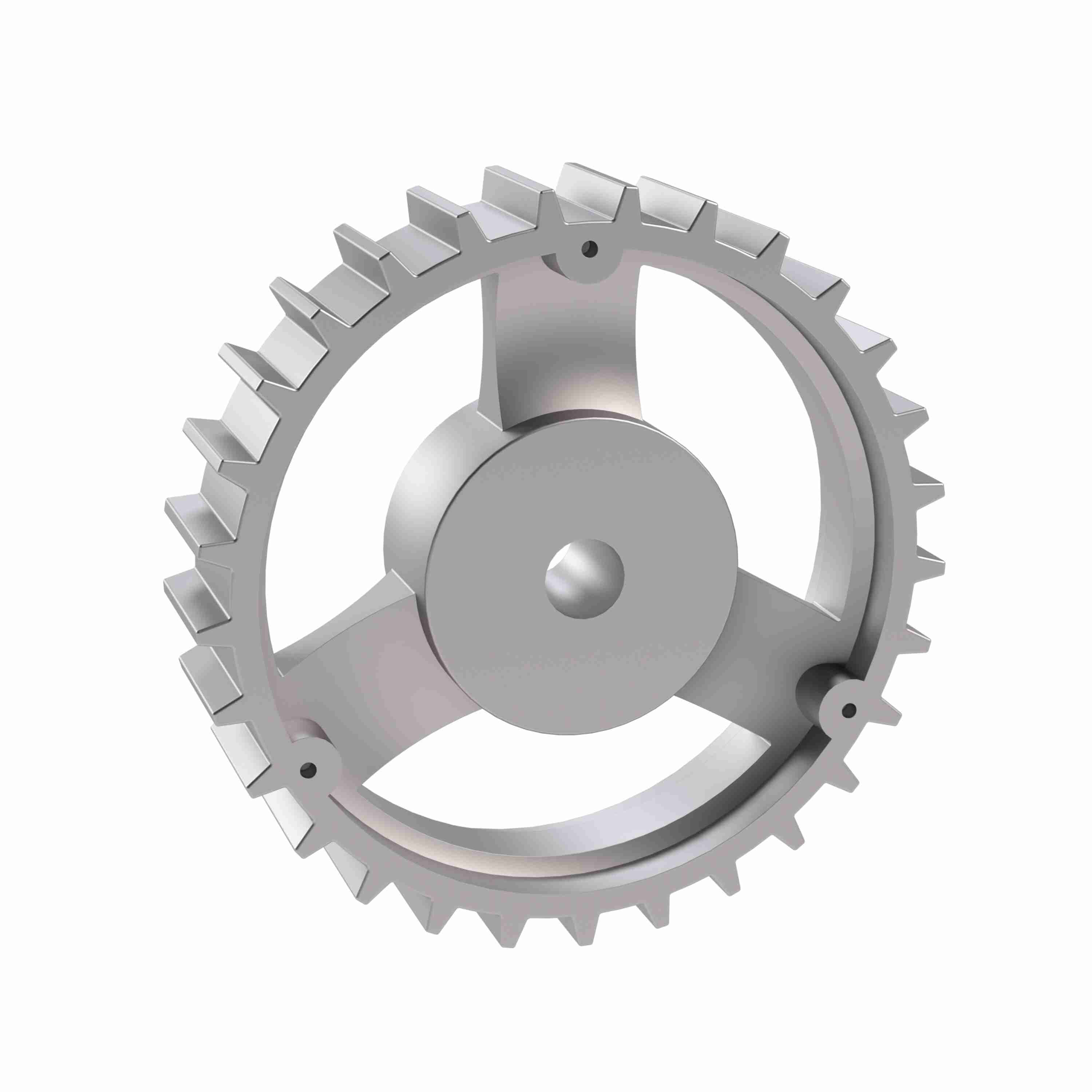

Rexnord 815 Series Solid One Piece Cast Iron Sprocket with 29 Teeth and a 3/4in Round Rough Stock Bore (RSB) - 401-164-3
Part #:10027409
Catalog #:401-164-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Series: | 815 | Bore Shape: | Round |
| Bore Diameter (in): | 3/4 in | Number of Teeth: | 29 |
| Bore Type: | Rough Stock Bore (RSB) | Body Style: | Arm |
| Material: | Cast Iron | Pitch Diameter (in): | 6.937 |
| Pitch Diameter (mm): | 176.19 | Product Line: | Chain and Belt Sprockets |
| Number of Set Screws: | None | Chain Number: | 815 |
| Product Group: | TableTop® | Number of Keyways: | 0 |
| Sprocket Construction: | Cast-Iron Non-Split Sprocket |
General Specifications
| UPC: | 698210122386 | Weight: | 3.30 LB |
| Packaged Length: | 7.25 IN | Packaged Width: | 7.25 IN |
| Packaged Height: | 1.50 IN | HTC: | 8483901050 |
| Country of Origin: | United States of America |
