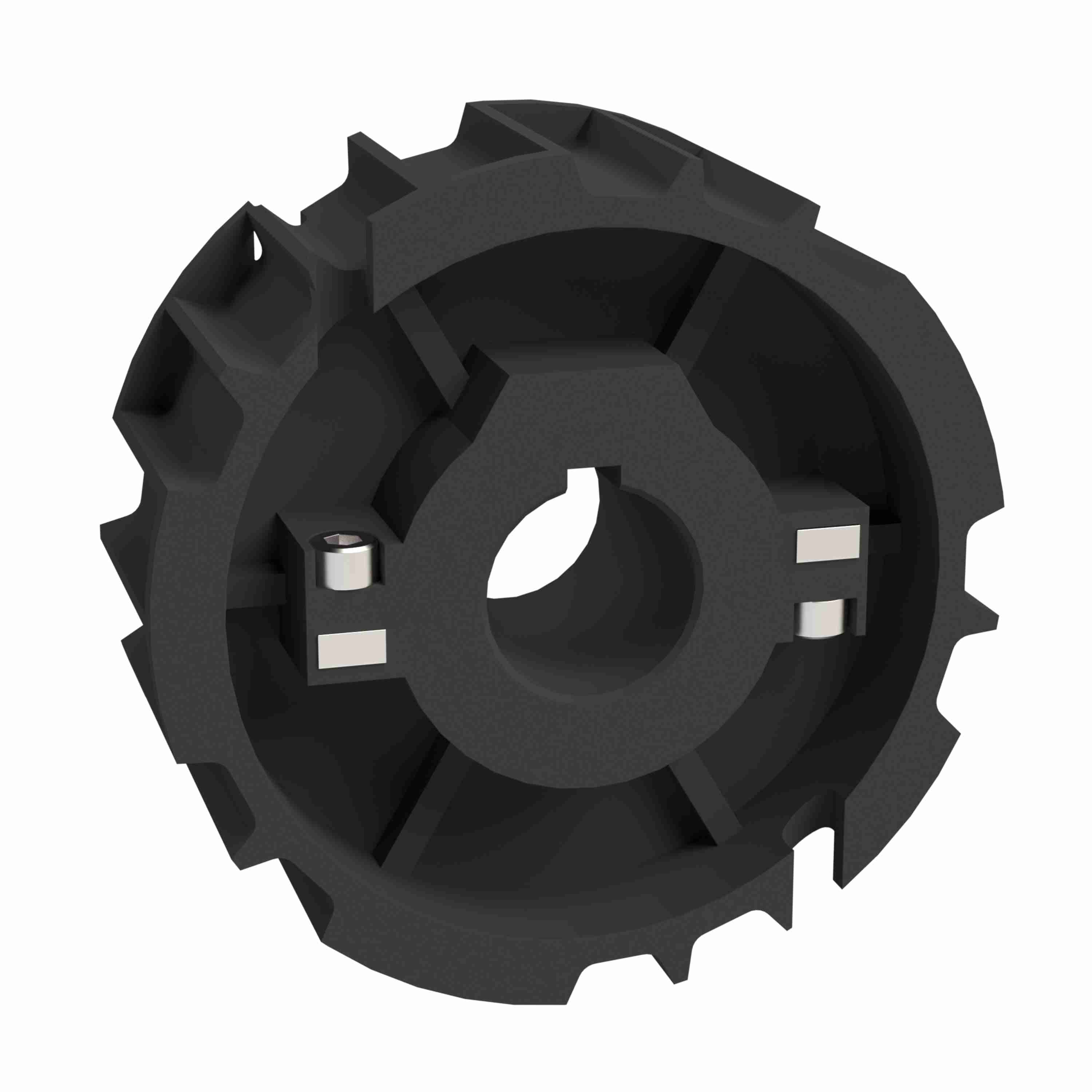

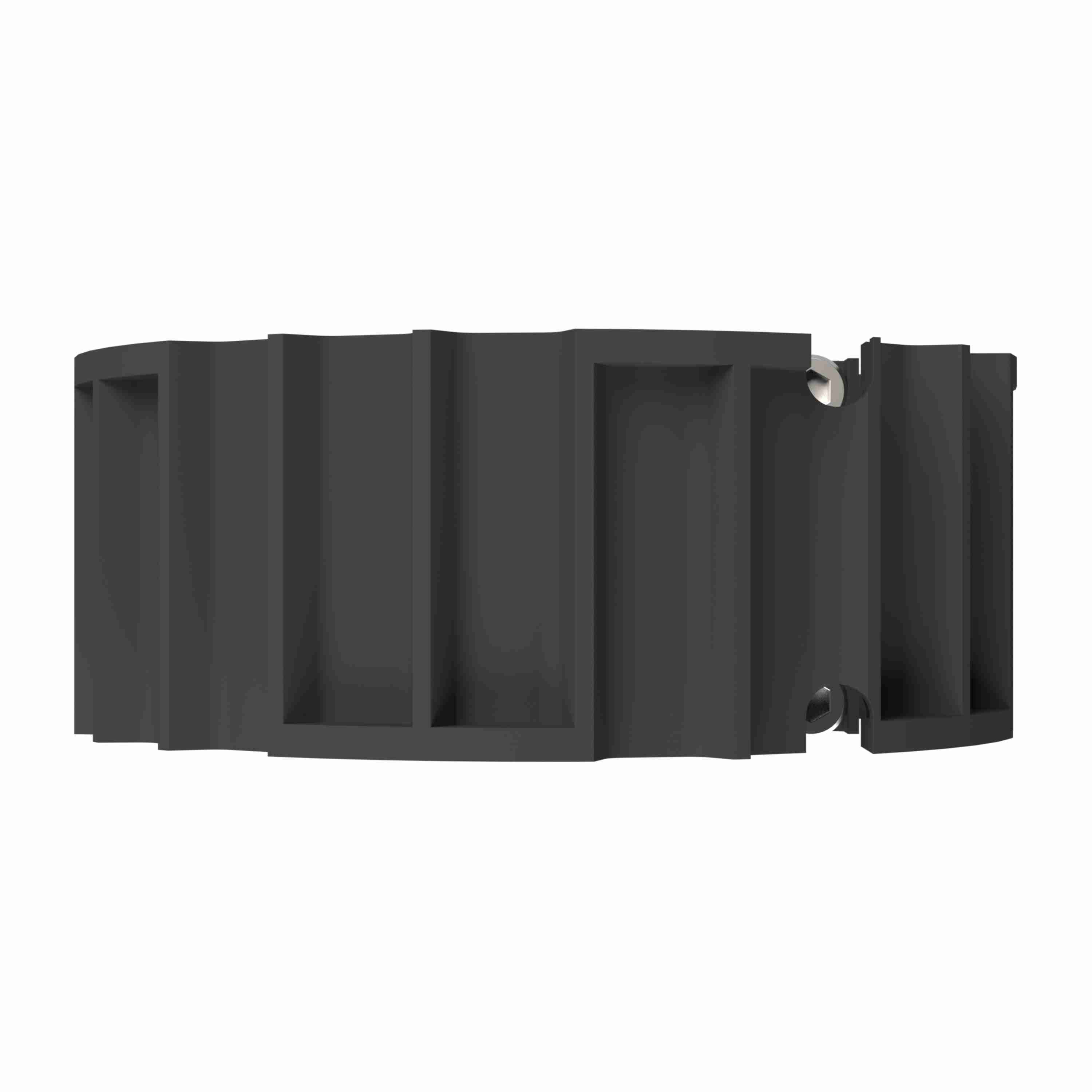

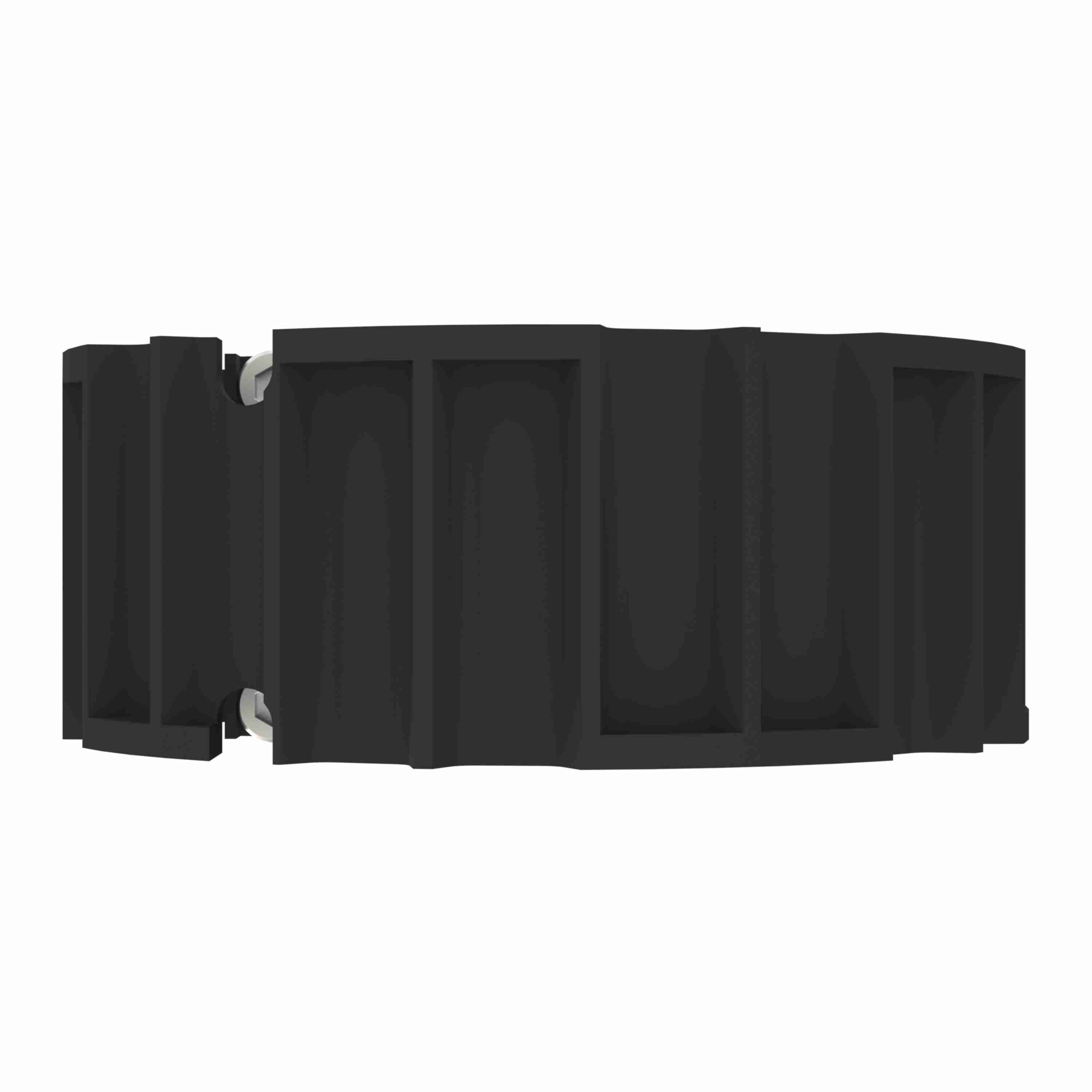

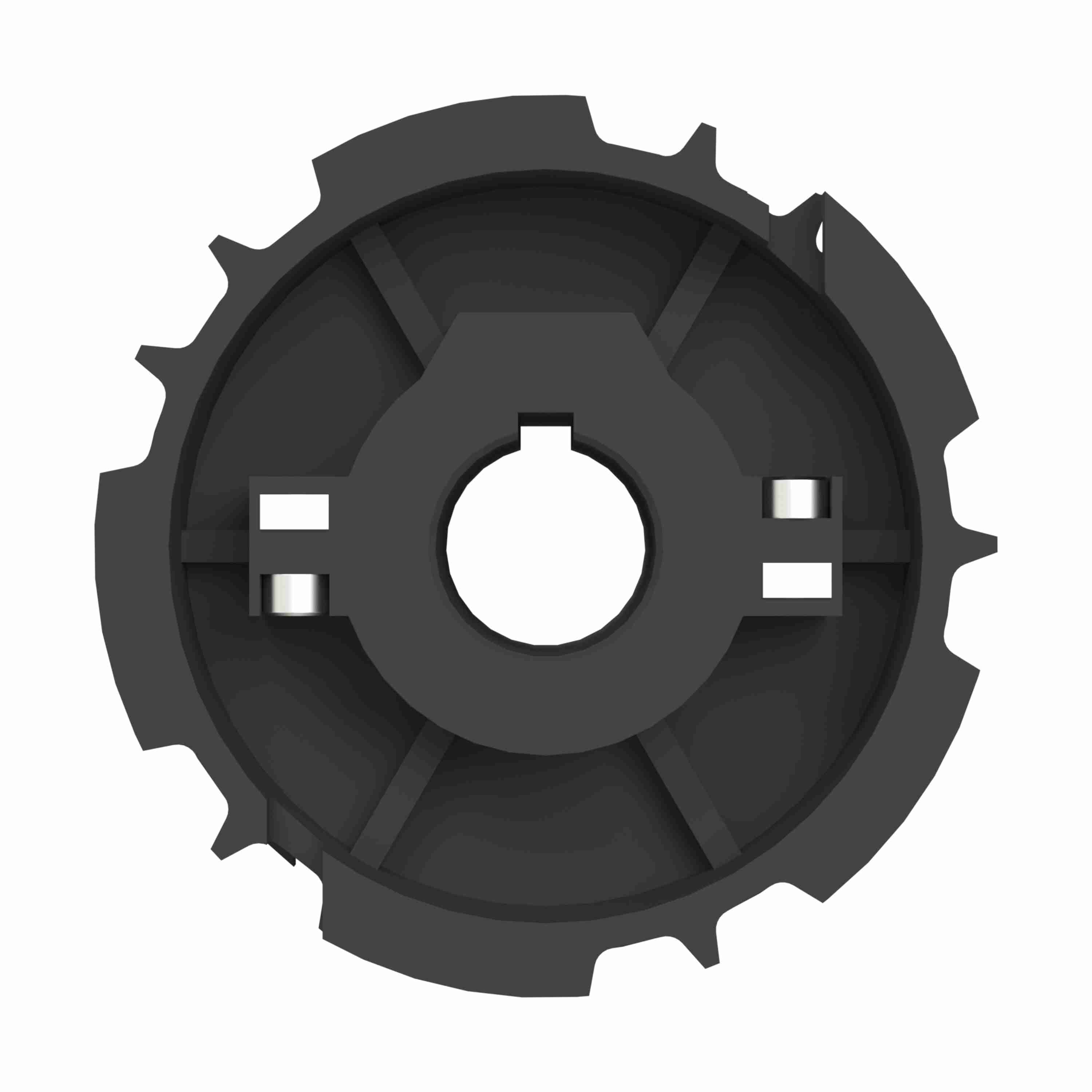

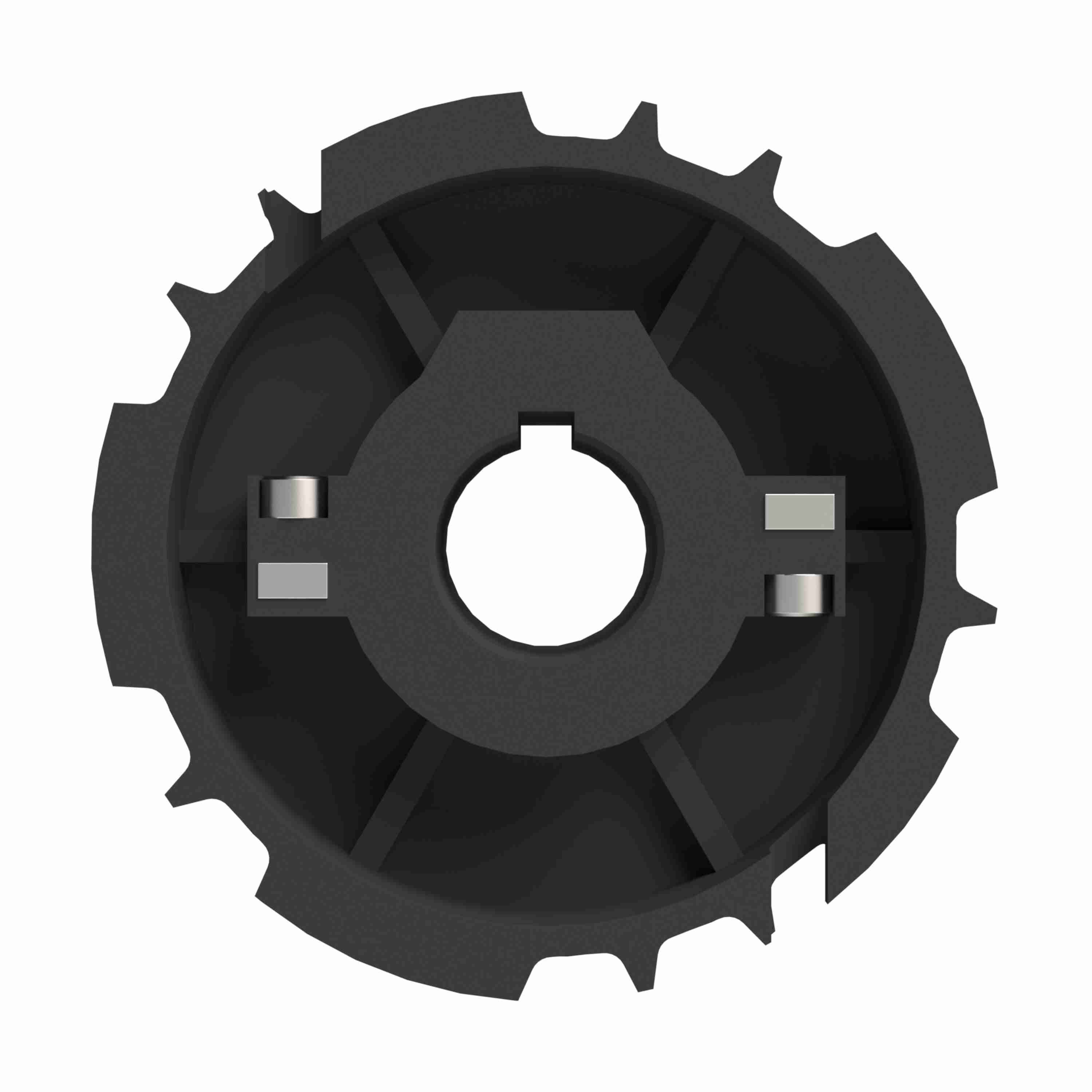

Rexnord 815 Series Split Molded Nylon Sprocket and a 21 Teeth with 1-7/16in Round Shaft-Ready Bore with Keyway & Setscrew - 614-28-4
Part #:10028607
Catalog #:614-28-4
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Chain and Belt Sprockets | Sprocket Construction: | Molded Split Sprocket |
| Number of Set Screws: | 1 Setscrew | Material: | Nylon |
| Sprocket Series: | 815 | Bore Shape: | Round |
| Product Group: | TableTop® | Chain Number: | 815 |
| Pitch Diameter (in): | 5.032 | Bore Diameter (in): | 1-7/16 in |
| Number of Teeth: | 21 | Pitch Diameter (mm): | 127.82 |
| Number of Keyways: | 1 | Body Style: | Block |
| Bore Type: | Shaft-Ready |
General Specifications
| UPC: | 698210864910 | Weight: | 0.90 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
