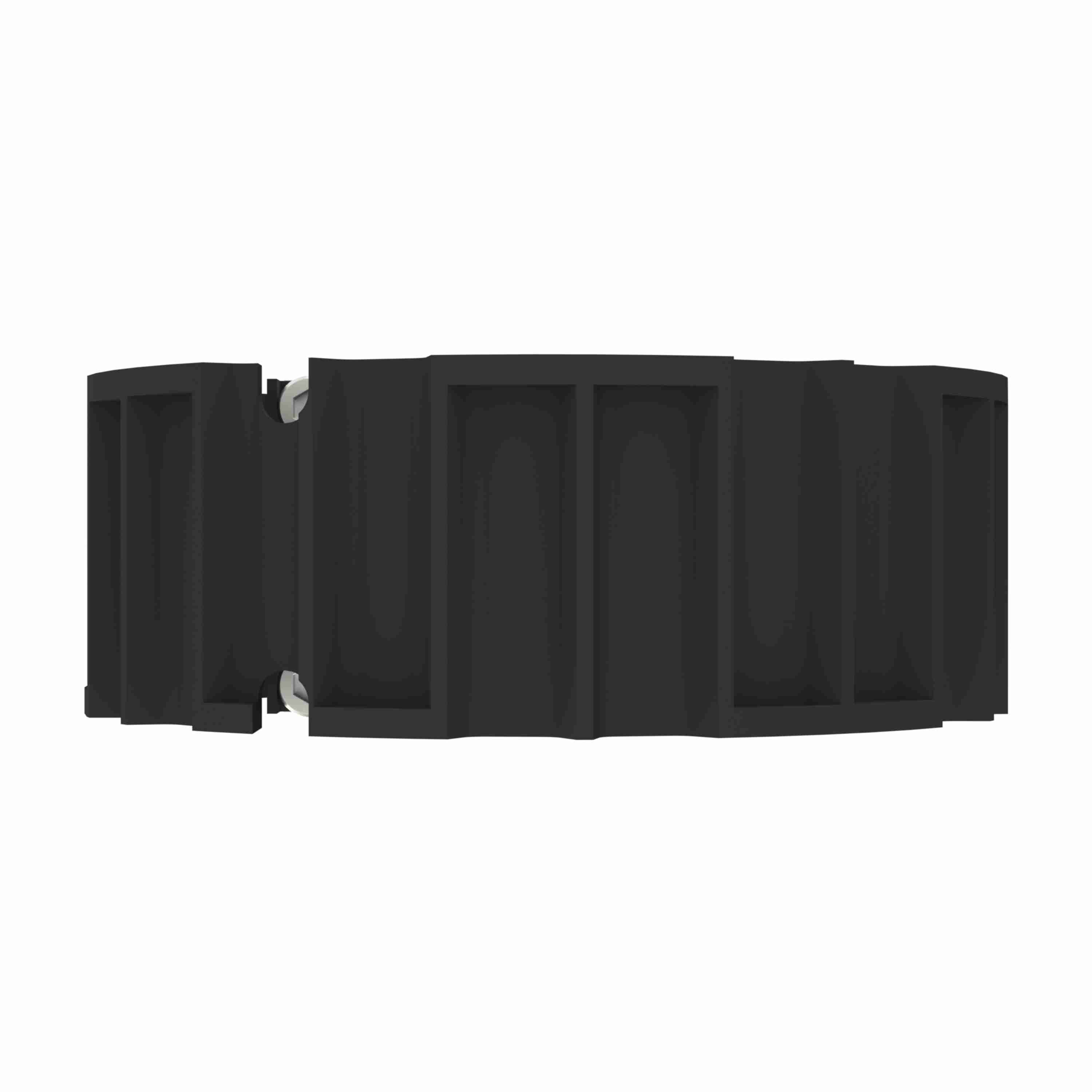

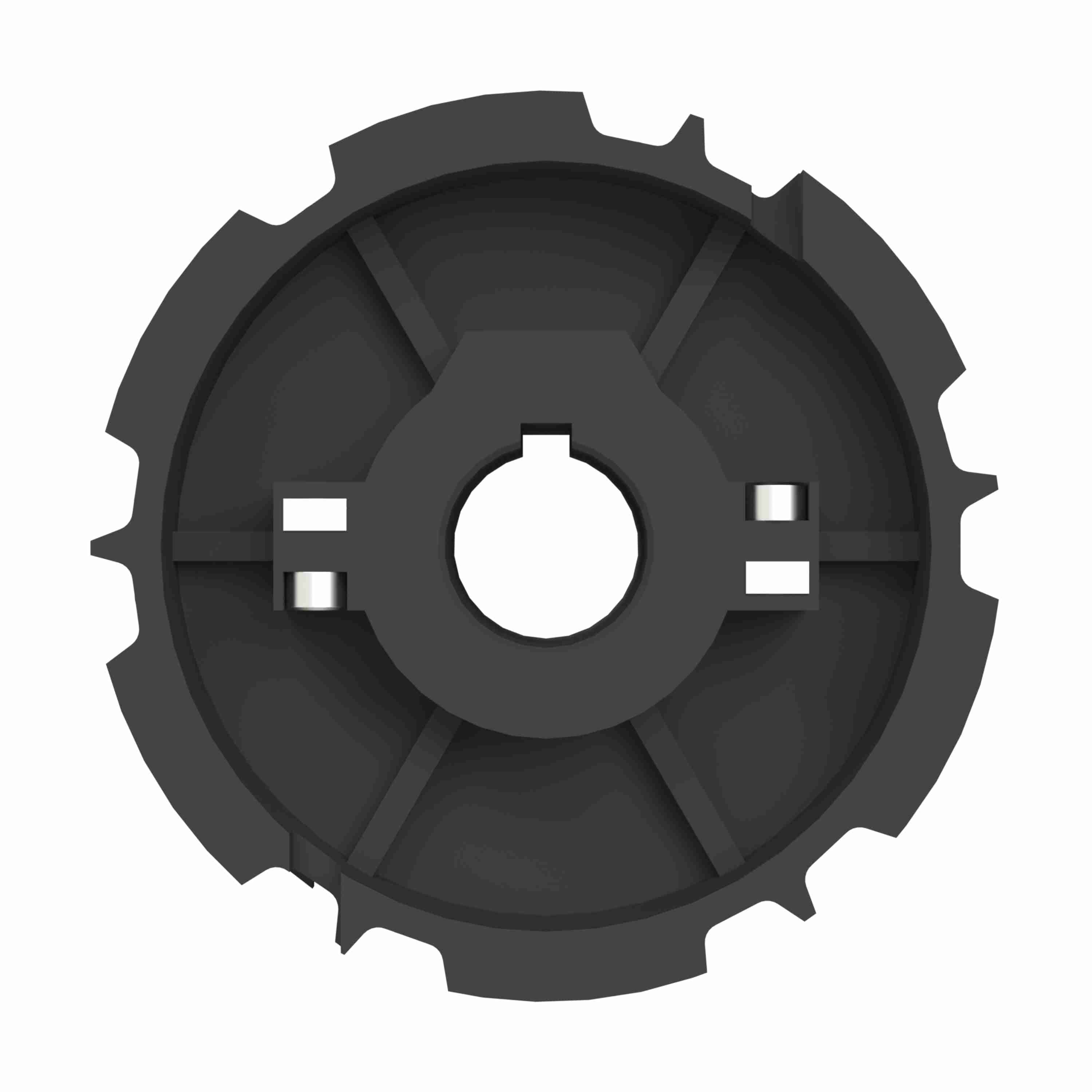

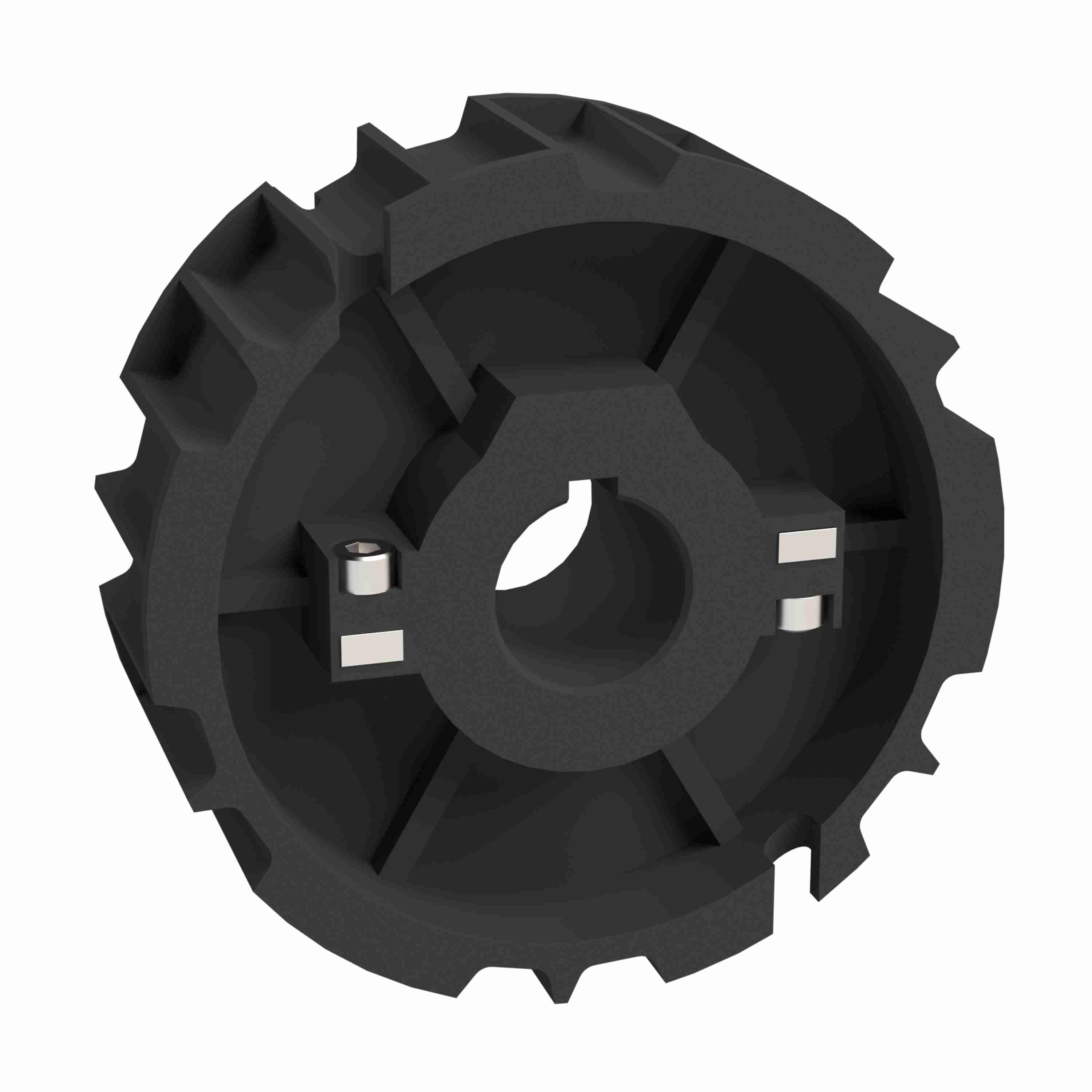

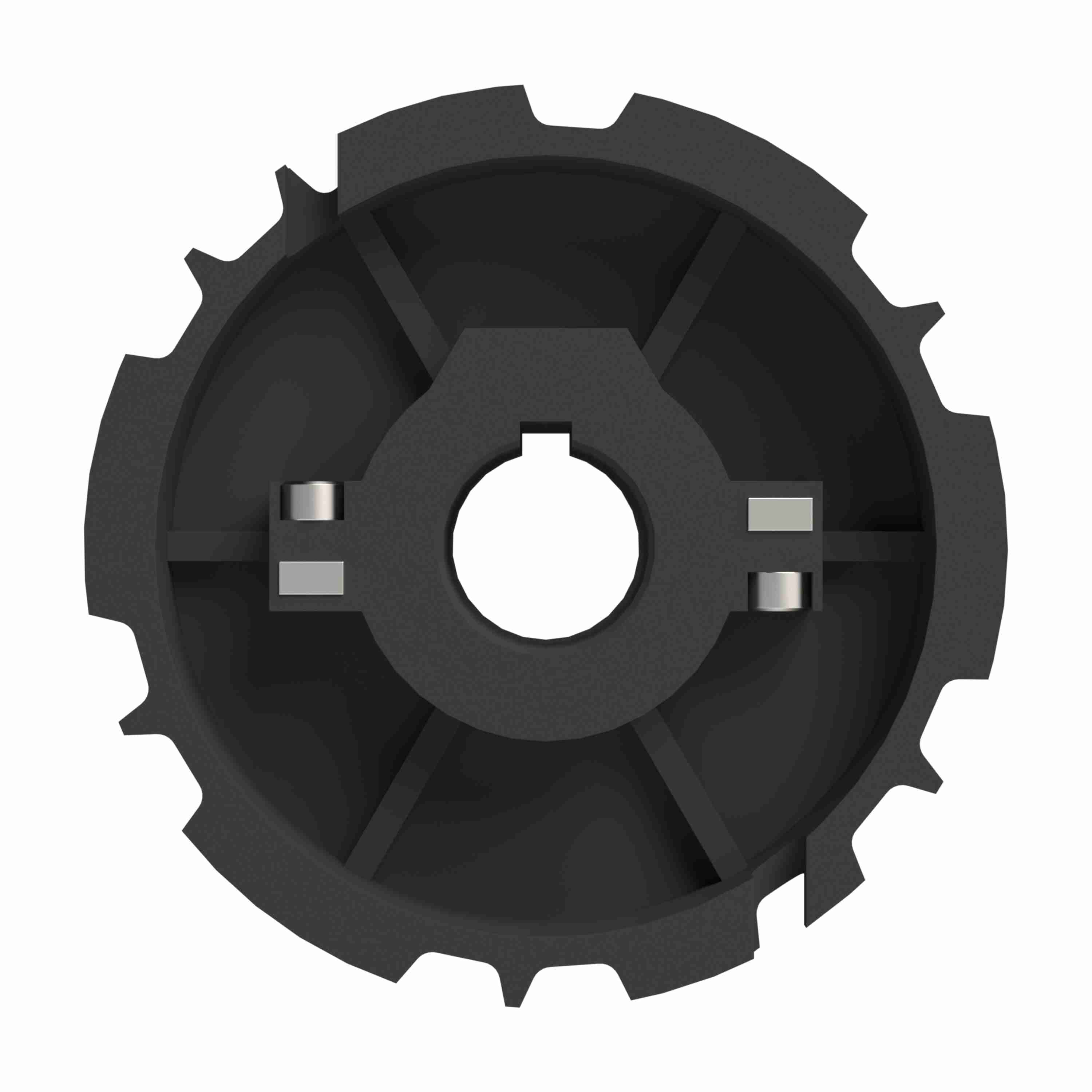

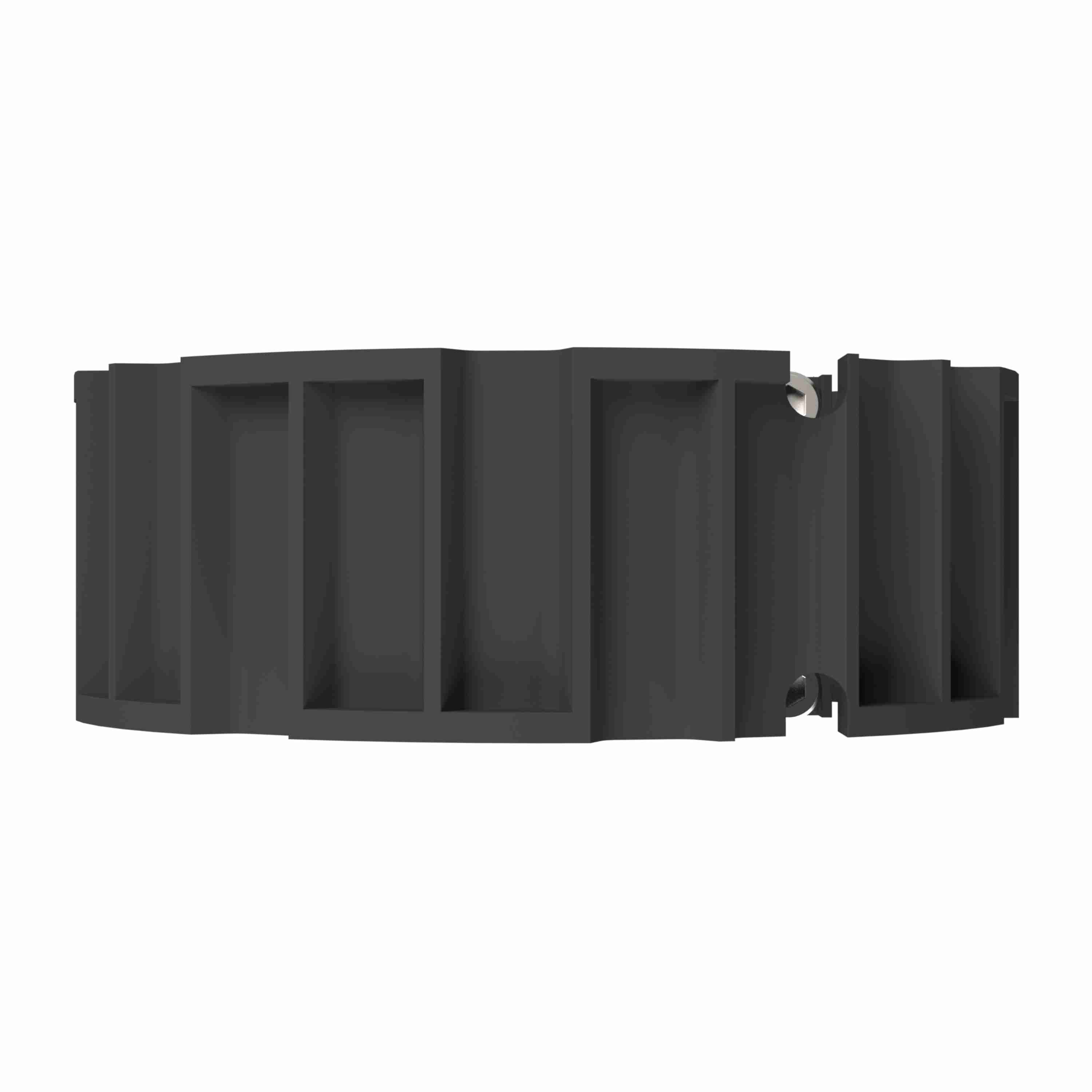

Rexnord 815 Series Split Molded Nylon Sprocket and a 23 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-30-3
Part #:10028611
Catalog #:614-30-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Type: | Shaft-Ready | Sprocket Construction: | Molded Split Sprocket |
| Product Group: | TableTop® | Product Line: | Chain and Belt Sprockets |
| Material: | Nylon | Chain Number: | 815 |
| Pitch Diameter (mm): | 139.9 | Number of Set Screws: | 1 Setscrew |
| Pitch Diameter (in): | 5.508 | Body Style: | Block |
| Sprocket Series: | 815 | Number of Keyways: | 1 |
| Bore Diameter (in): | 1-1/4 in | Number of Teeth: | 23 |
| Bore Shape: | Round |
General Specifications
| UPC: | 698210857387 | Weight: | 1.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
