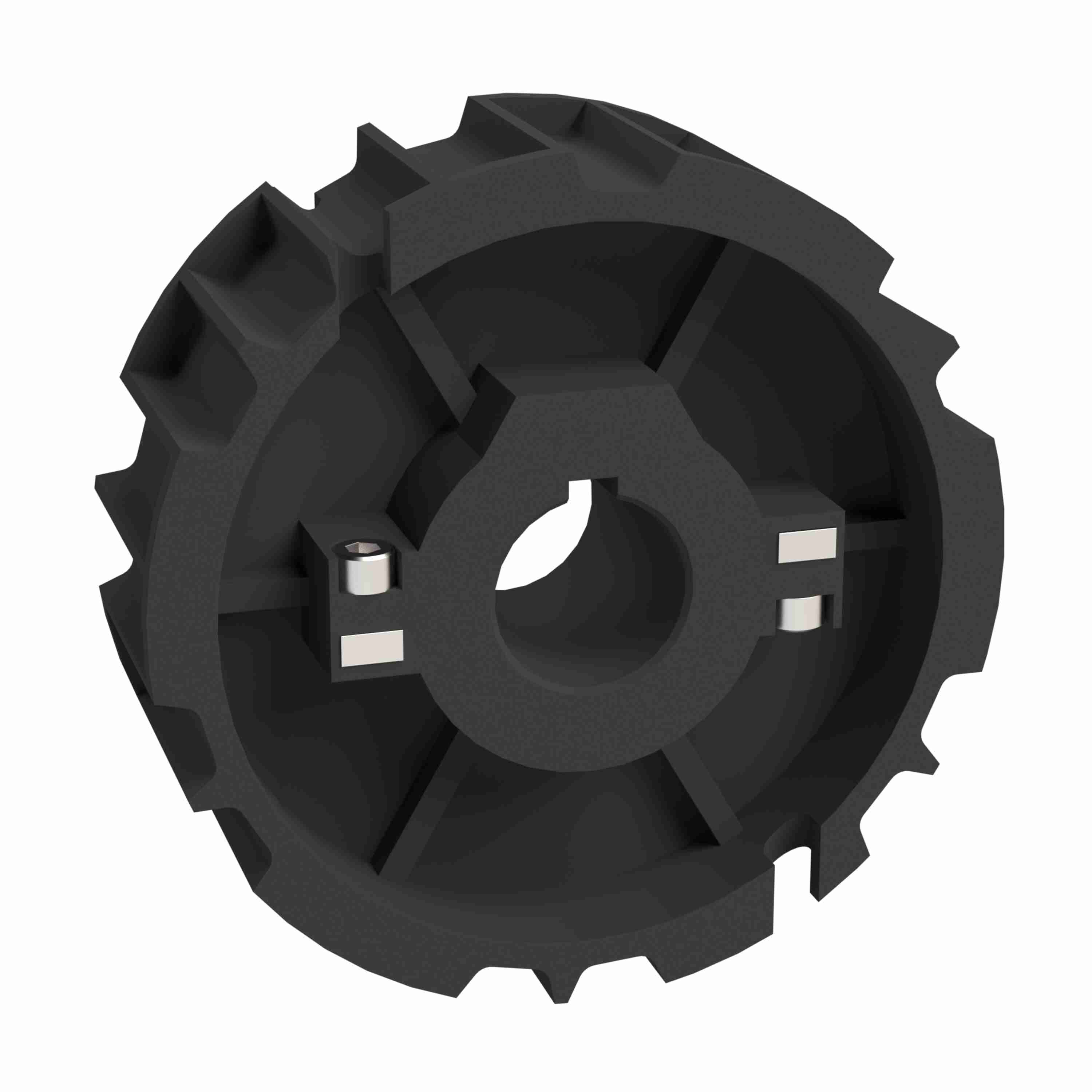

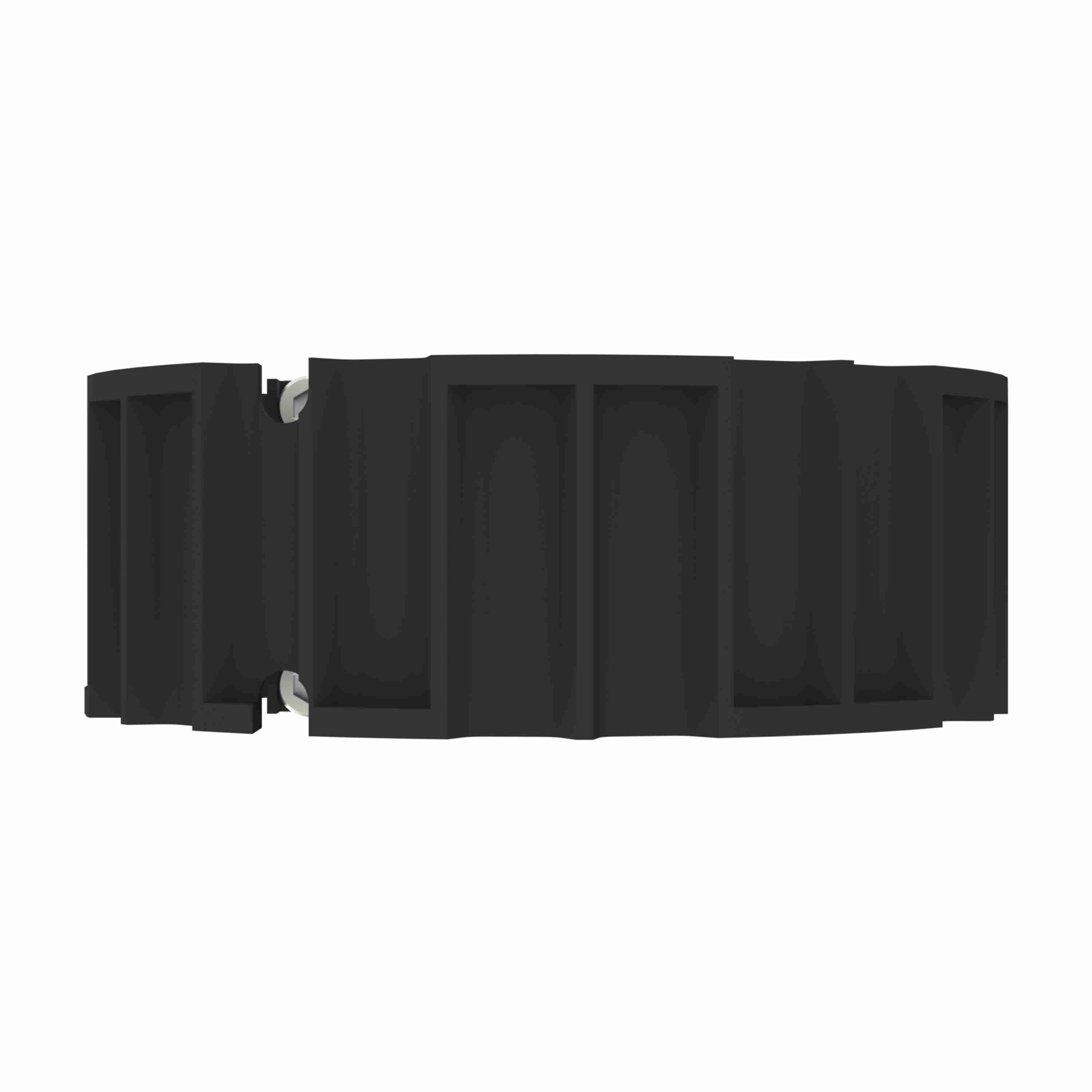

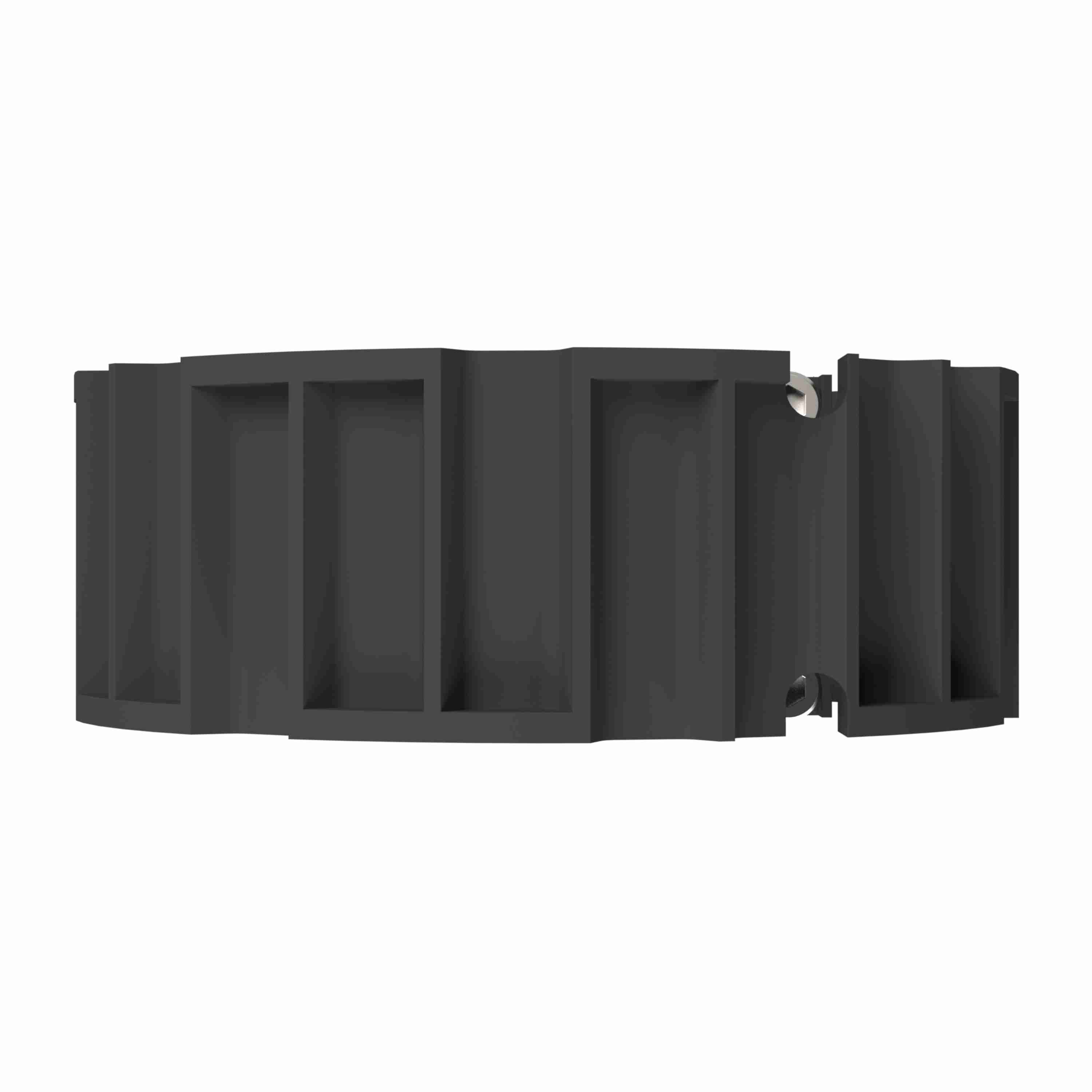

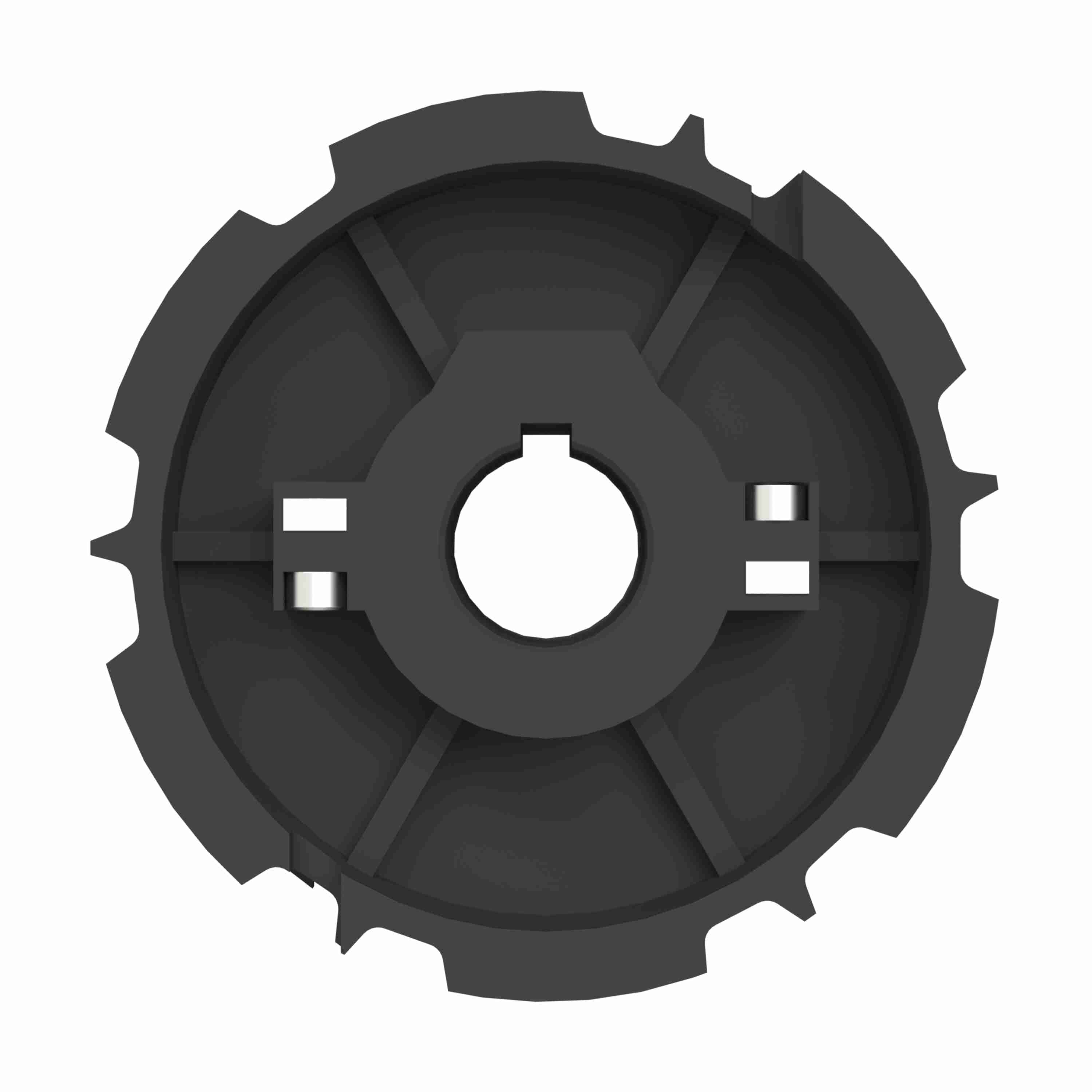

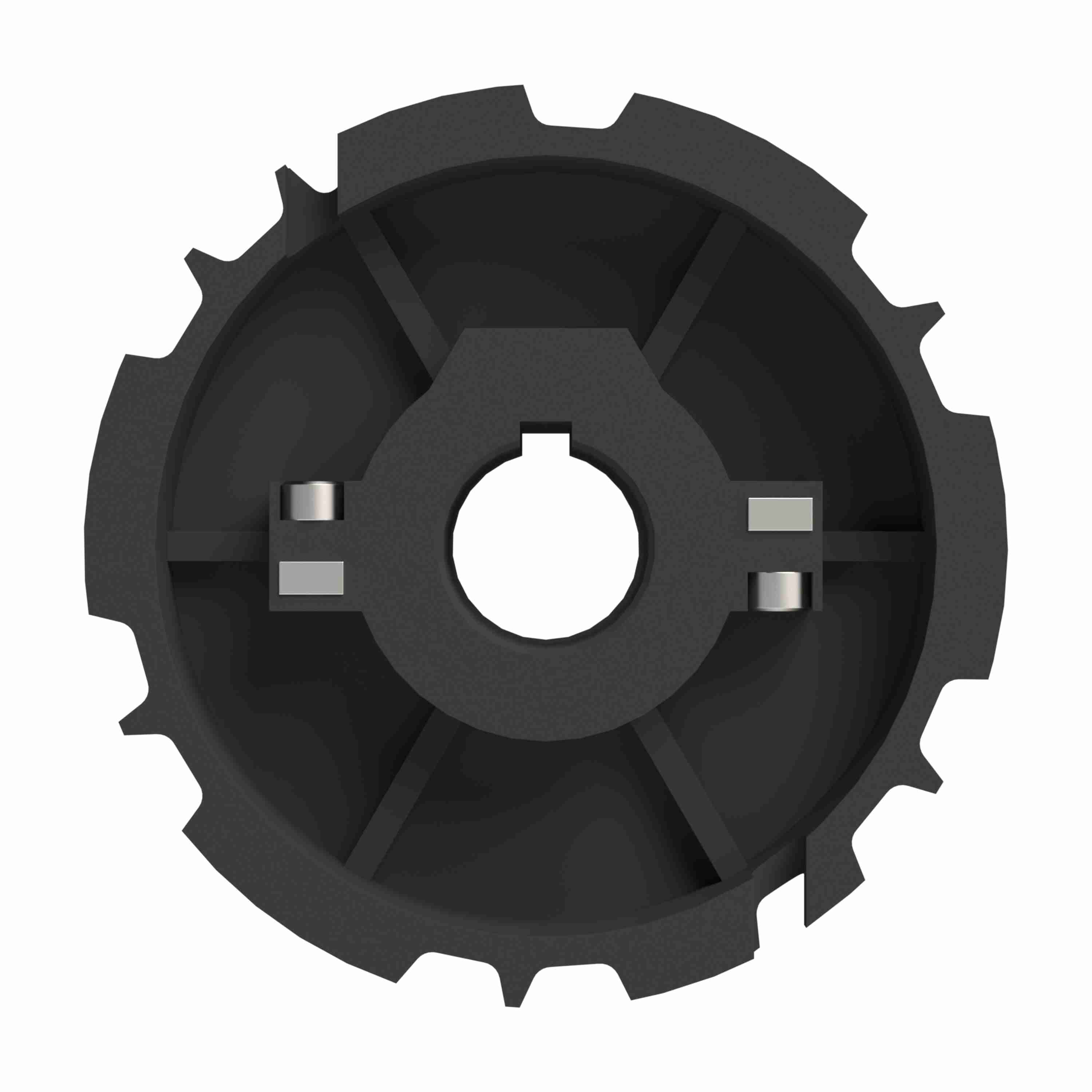

Rexnord 815 Series Split Molded Nylon Sprocket and a 23 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-55-3
Part #:10196898
Catalog #:614-55-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 815 | Sprocket Series: | 815 |
| Pitch Diameter (mm): | 139.9 | Bore Type: | Shaft-Ready |
| Number of Teeth: | 23 | Hub Type: | C-HUB |
| Product Line: | Chain and Belt Sprockets | Number of Set Screws: | 1 Setscrew |
| Material: | Nylon | Bore Diameter (in): | 1-1/4 in |
| Bore Shape: | Round | Body Style: | Block |
| Pitch Diameter (in): | 5.508 | Product Group: | TableTop® |
| Sprocket Construction: | Molded Split Sprocket | Number of Keyways: | 1 |
General Specifications
| UPC: | 782934708138 | Weight: | 1.30 LB |
| Packaged Length: | 6.00 IN | Packaged Width: | 6.00 IN |
| Packaged Height: | 2.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
