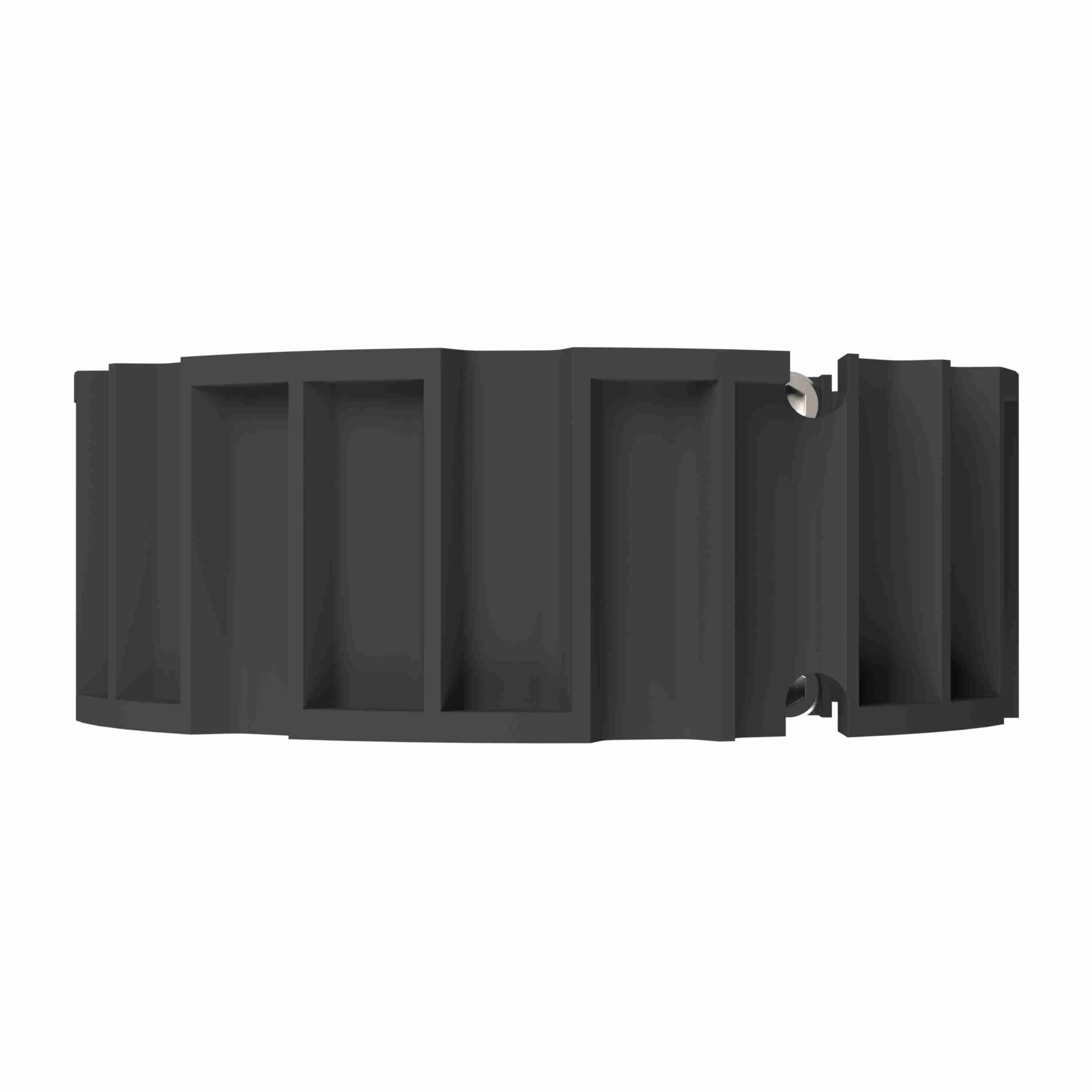

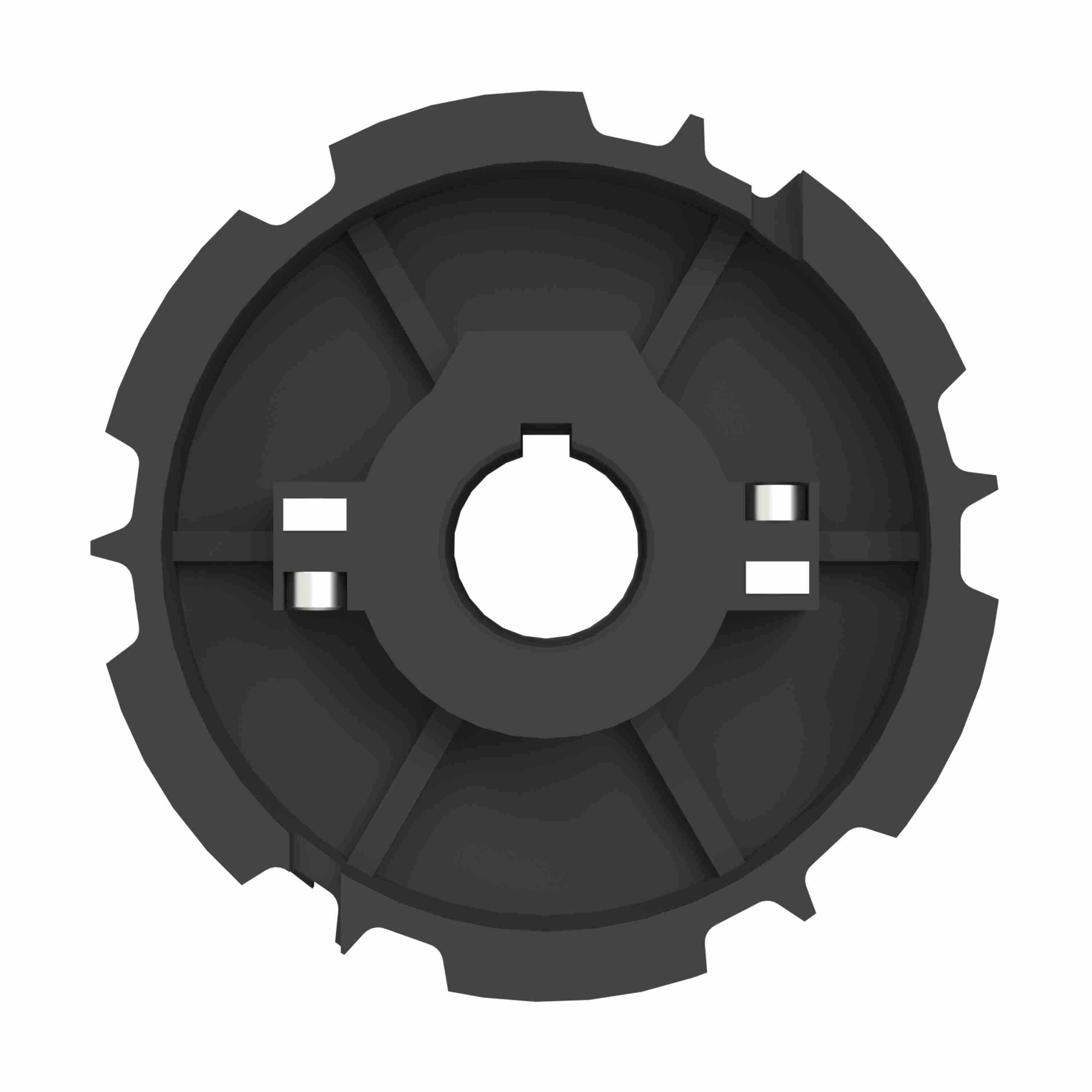

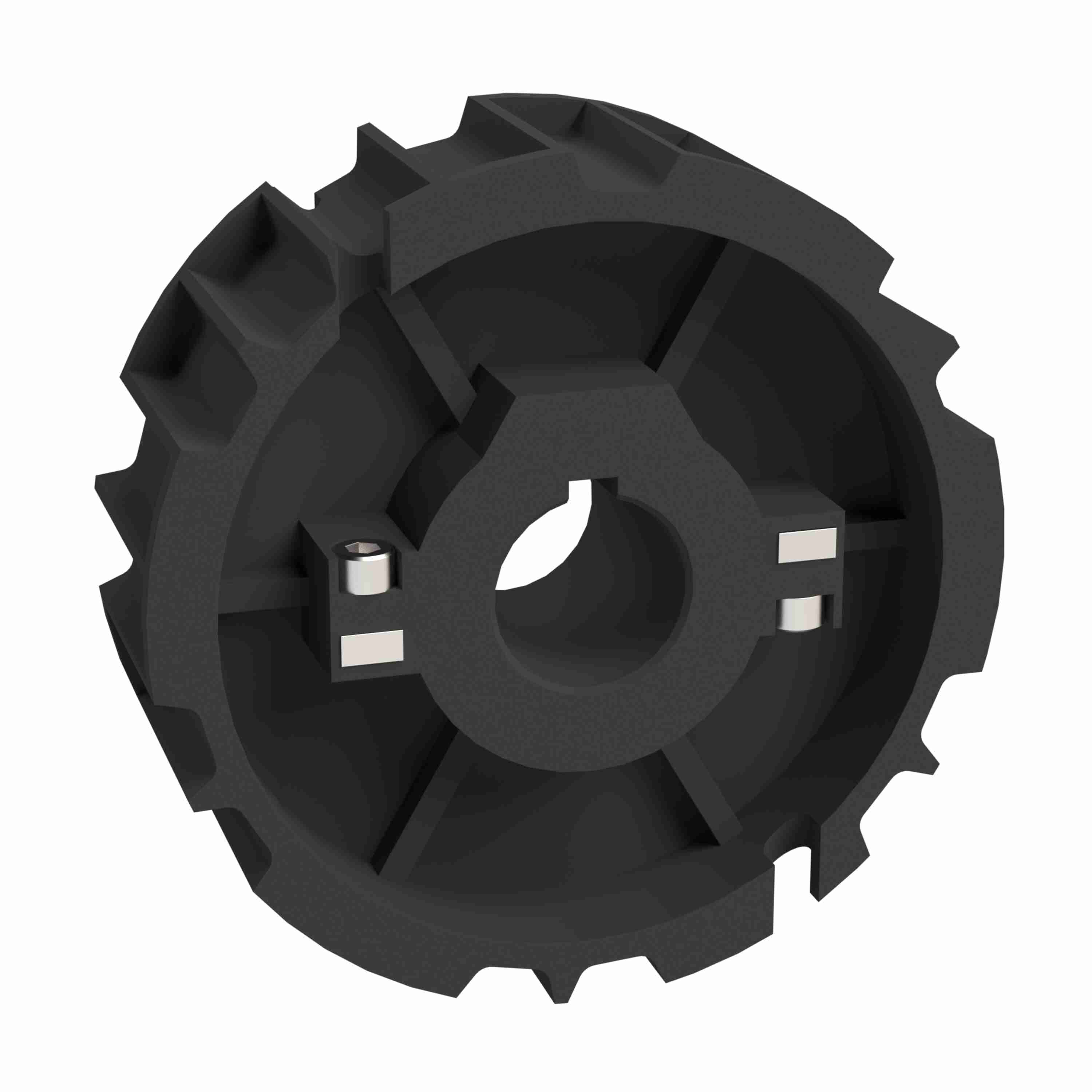

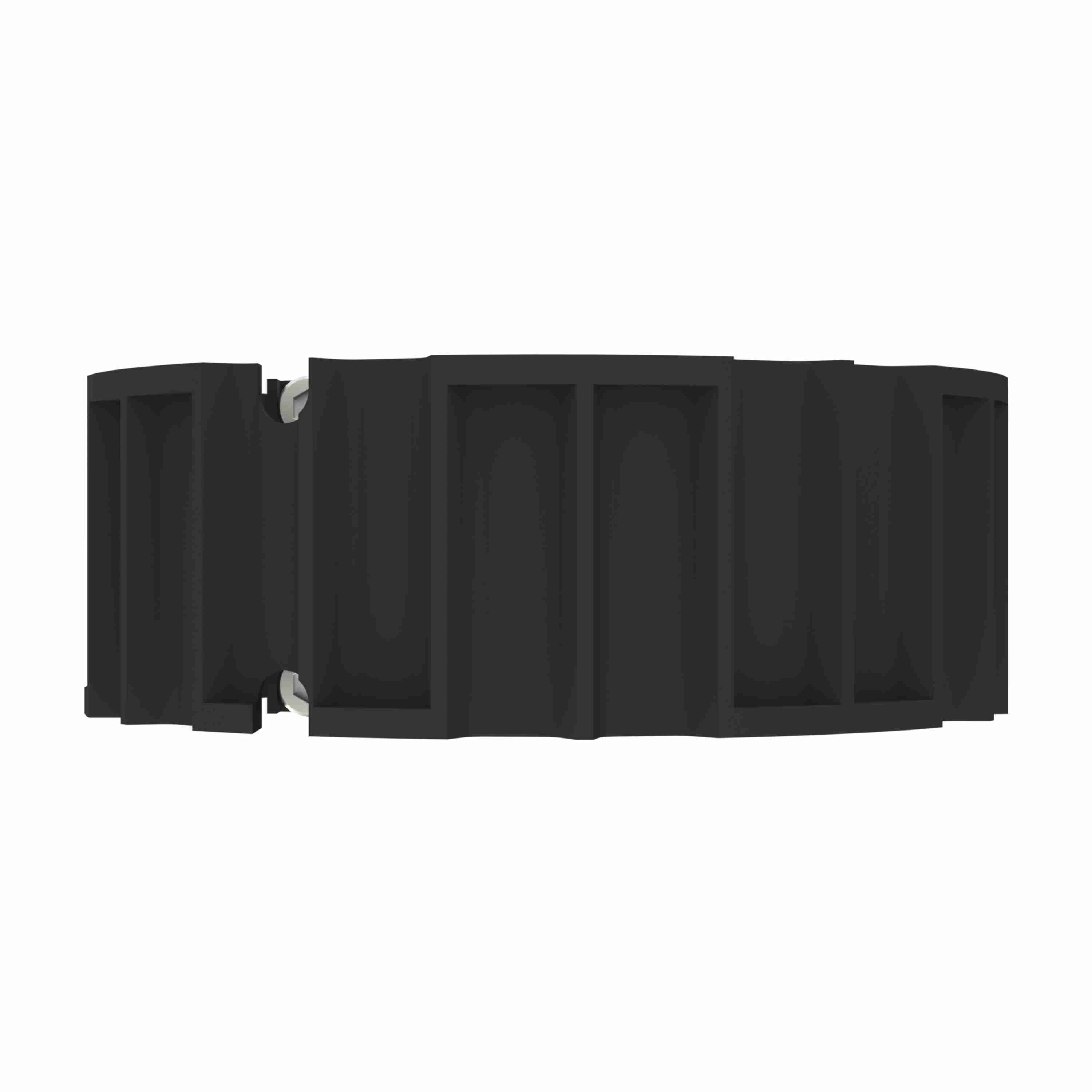

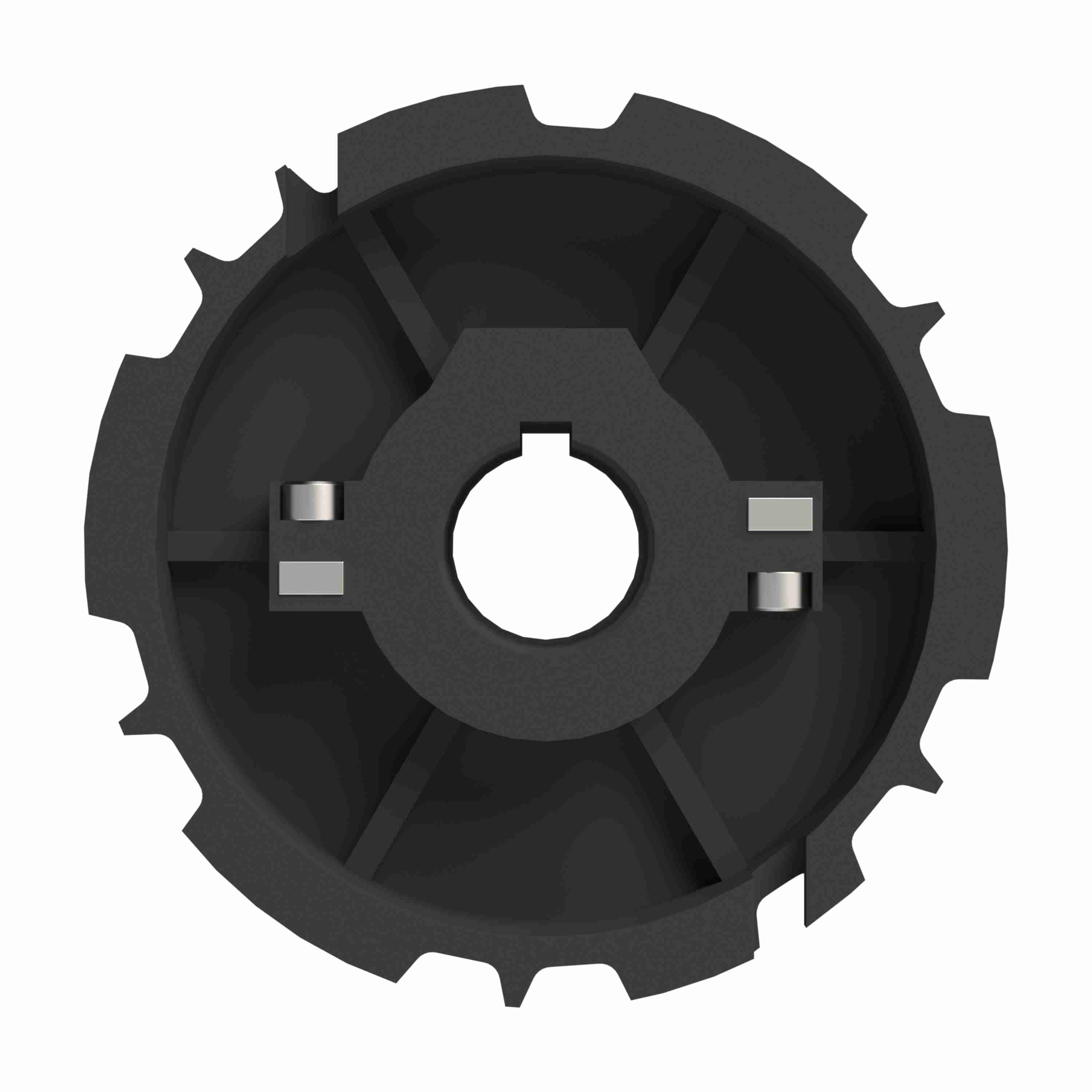

Rexnord 815 Series Split Molded Nylon Sprocket and a 23 Teeth with 1in Round Shaft-Ready Bore with Keyway & Setscrew - 614-30-1
Part #:10028610
Catalog #:614-30-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Material: | Nylon | Bore Shape: | Round |
| Bore Diameter (in): | 1 in | Sprocket Series: | 815 |
| Number of Keyways: | 1 | Pitch Diameter (in): | 5.508 |
| Product Group: | TableTop® | Chain Number: | 815 |
| Number of Teeth: | 23 | Hub Type: | C-HUB |
| Bore Type: | Shaft-Ready | Number of Set Screws: | 1 Setscrew |
| Product Line: | Chain and Belt Sprockets | Body Style: | Block |
| Sprocket Construction: | Molded Split Sprocket | Pitch Diameter (mm): | 139.9 |
General Specifications
| UPC: | 698210857394 | Weight: | 1.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
