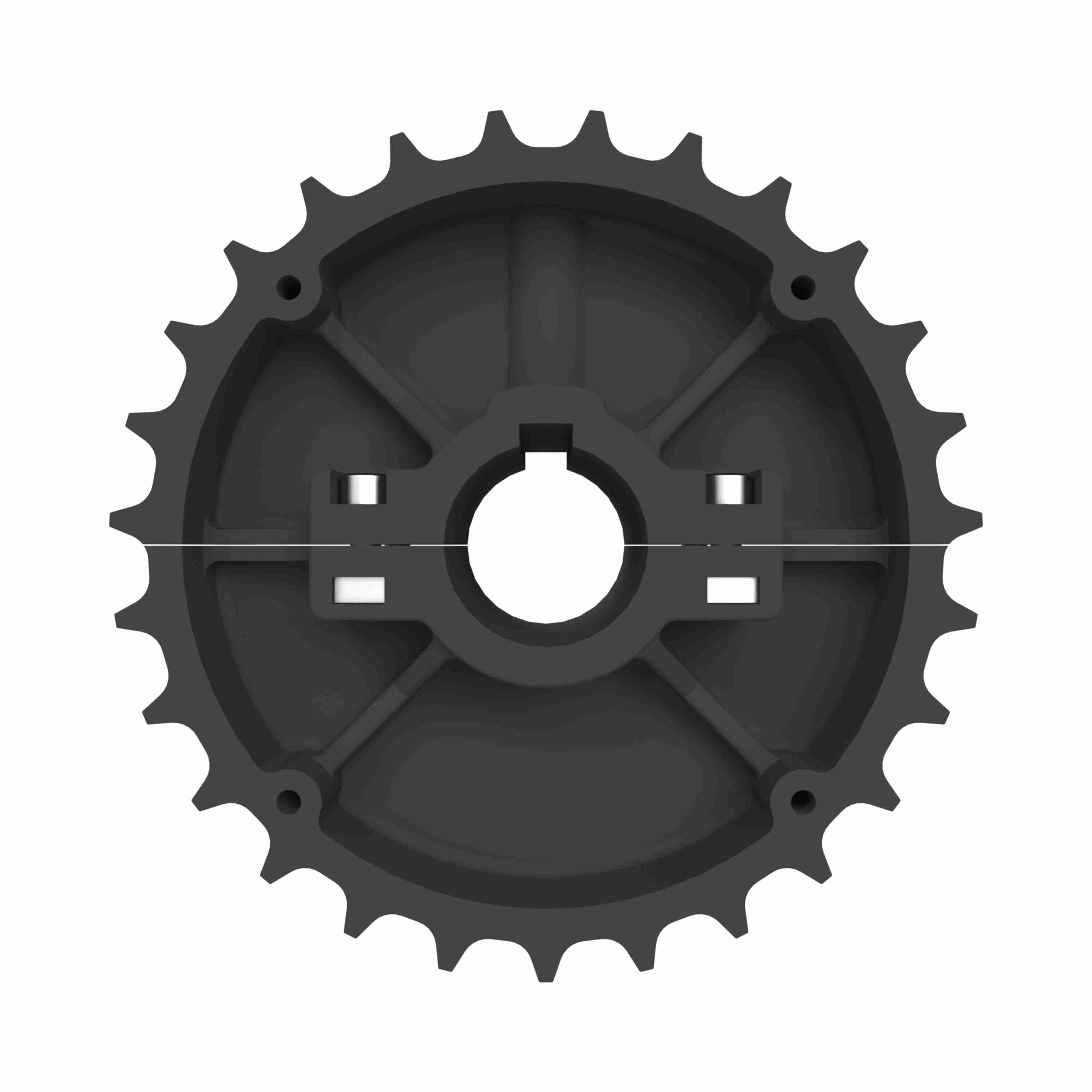

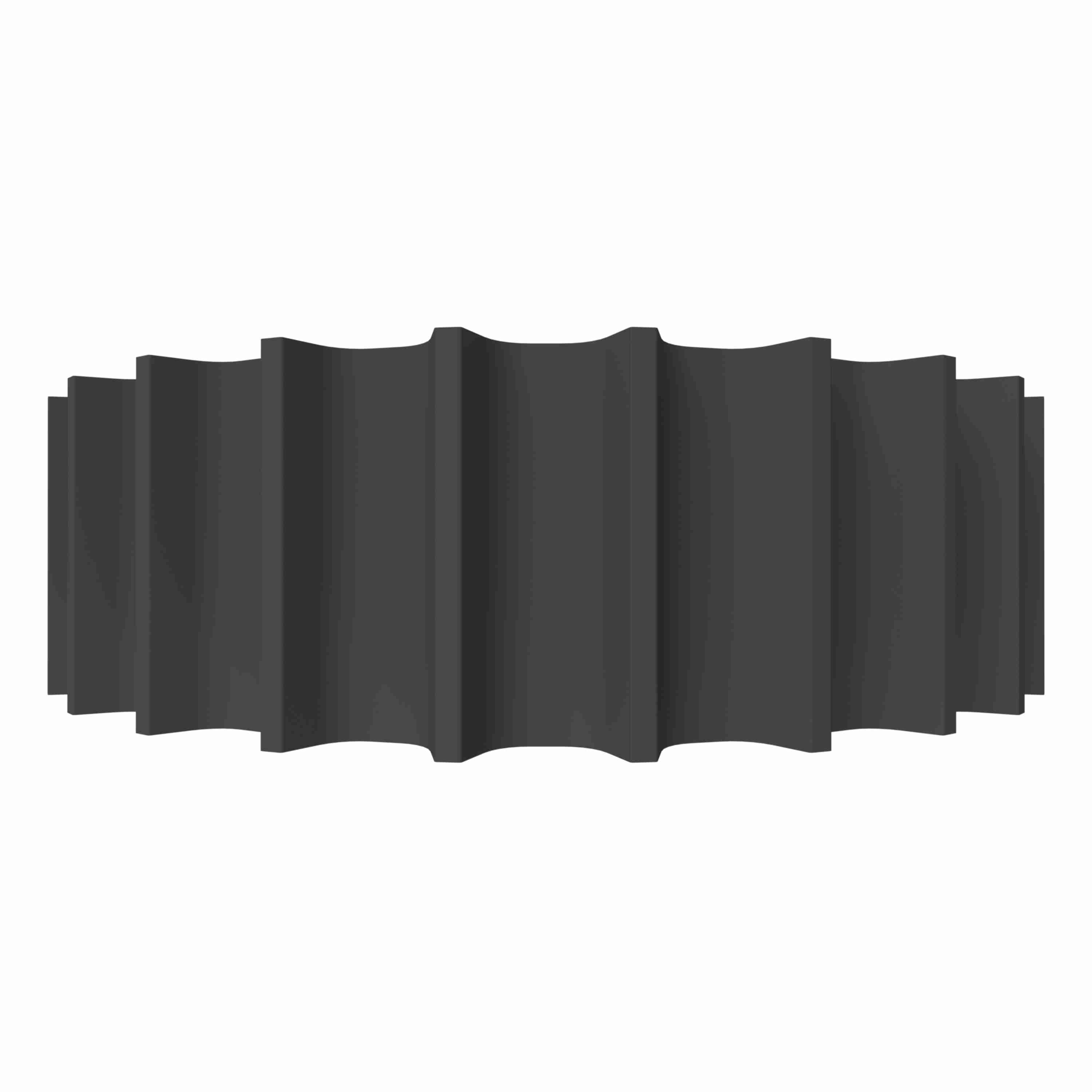

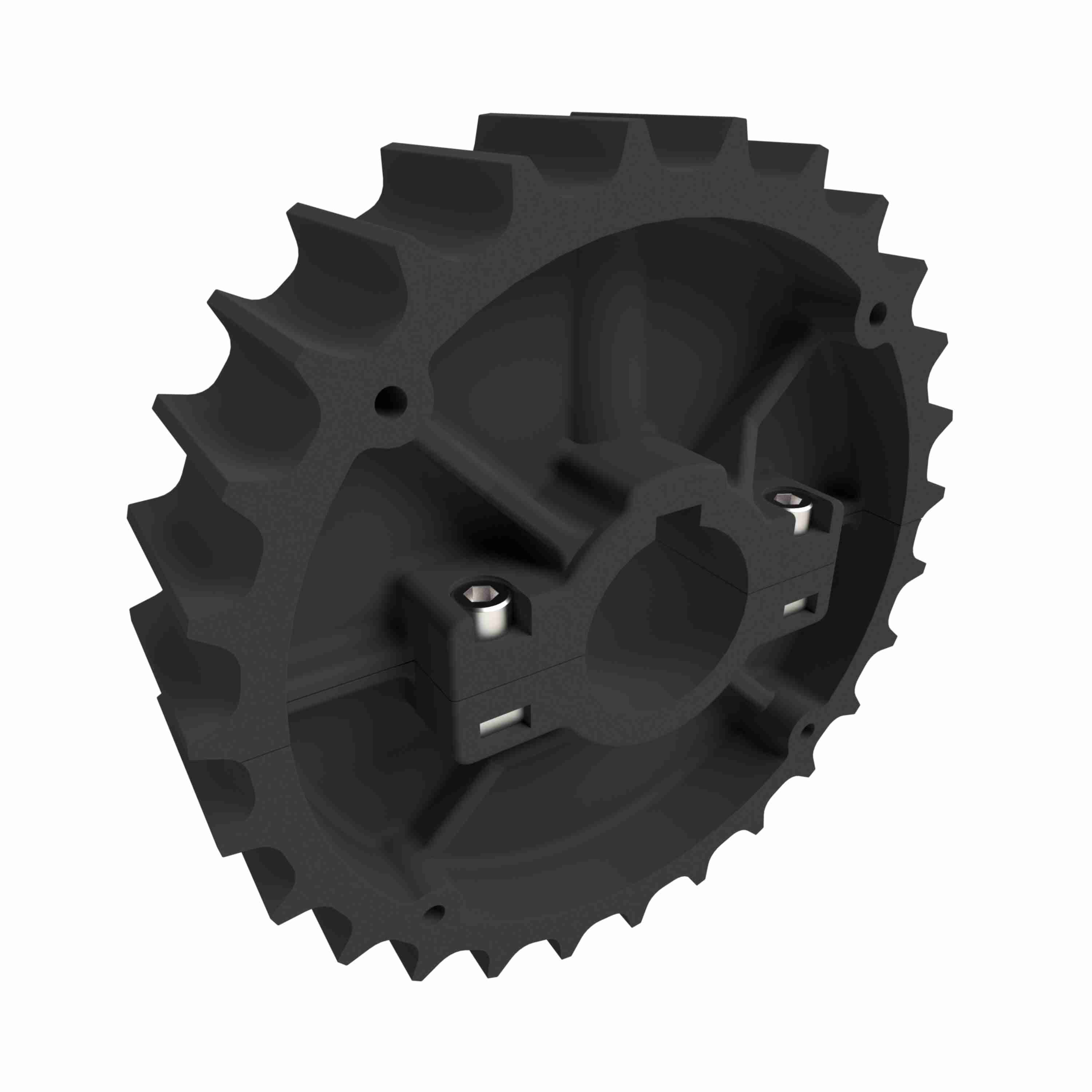

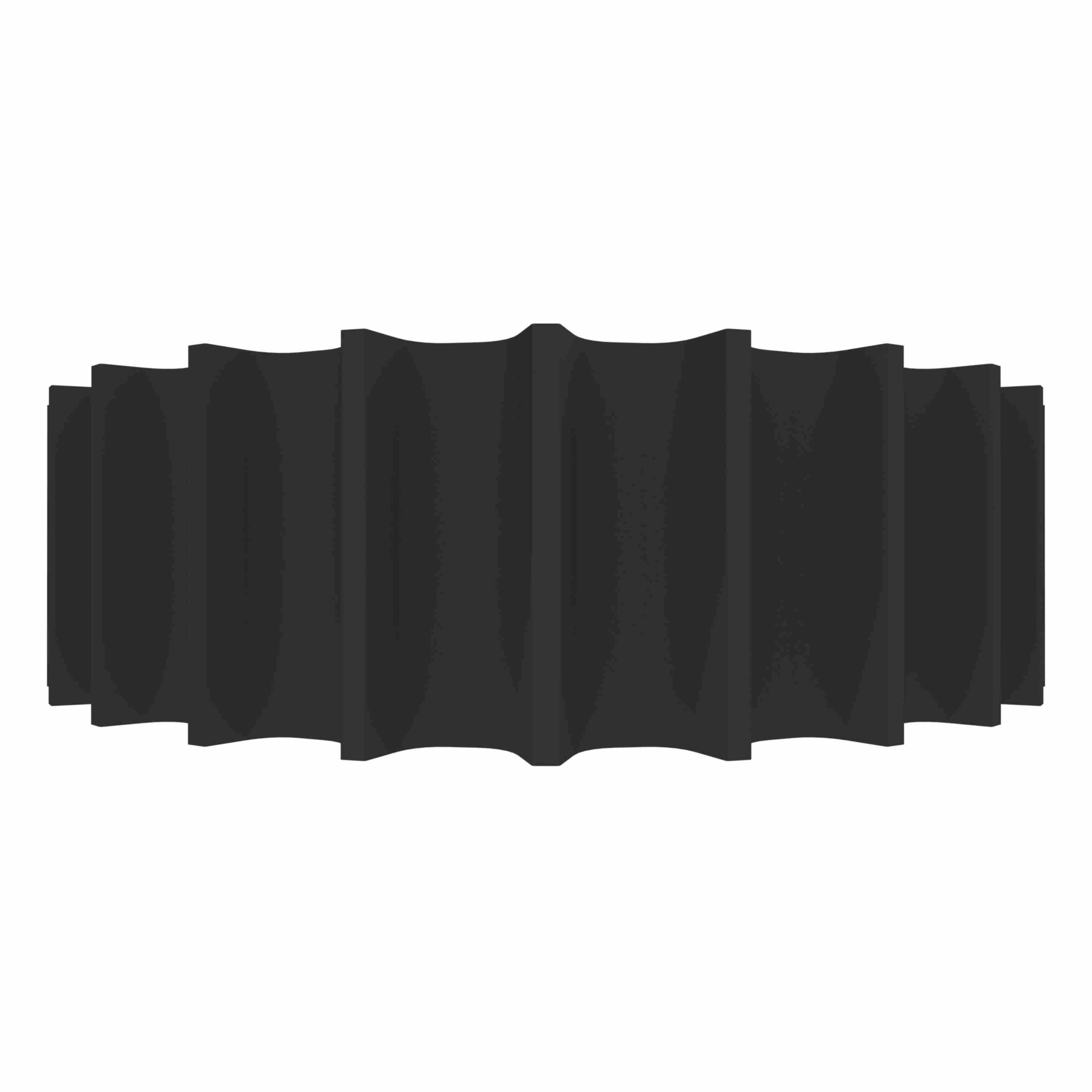

Rexnord 815 Series Split Molded Nylon Sprocket and a 27 Teeth with 1-1/2in Round Shaft-Ready Bore with Keyway & Setscrew - 614-41-11
Part #:10028621
Catalog #:614-41-11
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Body Style: | Block | Chain Number: | 815 |
| Pitch Diameter (in): | 6.46 | Sprocket Construction: | Molded Split Sprocket |
| Material: | Nylon | Bore Diameter (in): | 1-1/2 in |
| Hub Type: | C-HUB | Sprocket Series: | 815 |
| Bore Shape: | Round | Bore Type: | Shaft-Ready |
| Product Group: | TableTop® | Number of Teeth: | 27 |
| Number of Keyways: | 1 | Number of Set Screws: | 1 Setscrew |
| Pitch Diameter (mm): | 164.09 | Product Line: | Chain and Belt Sprockets |
General Specifications
| UPC: | 793699413571 | Weight: | 1.76 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
