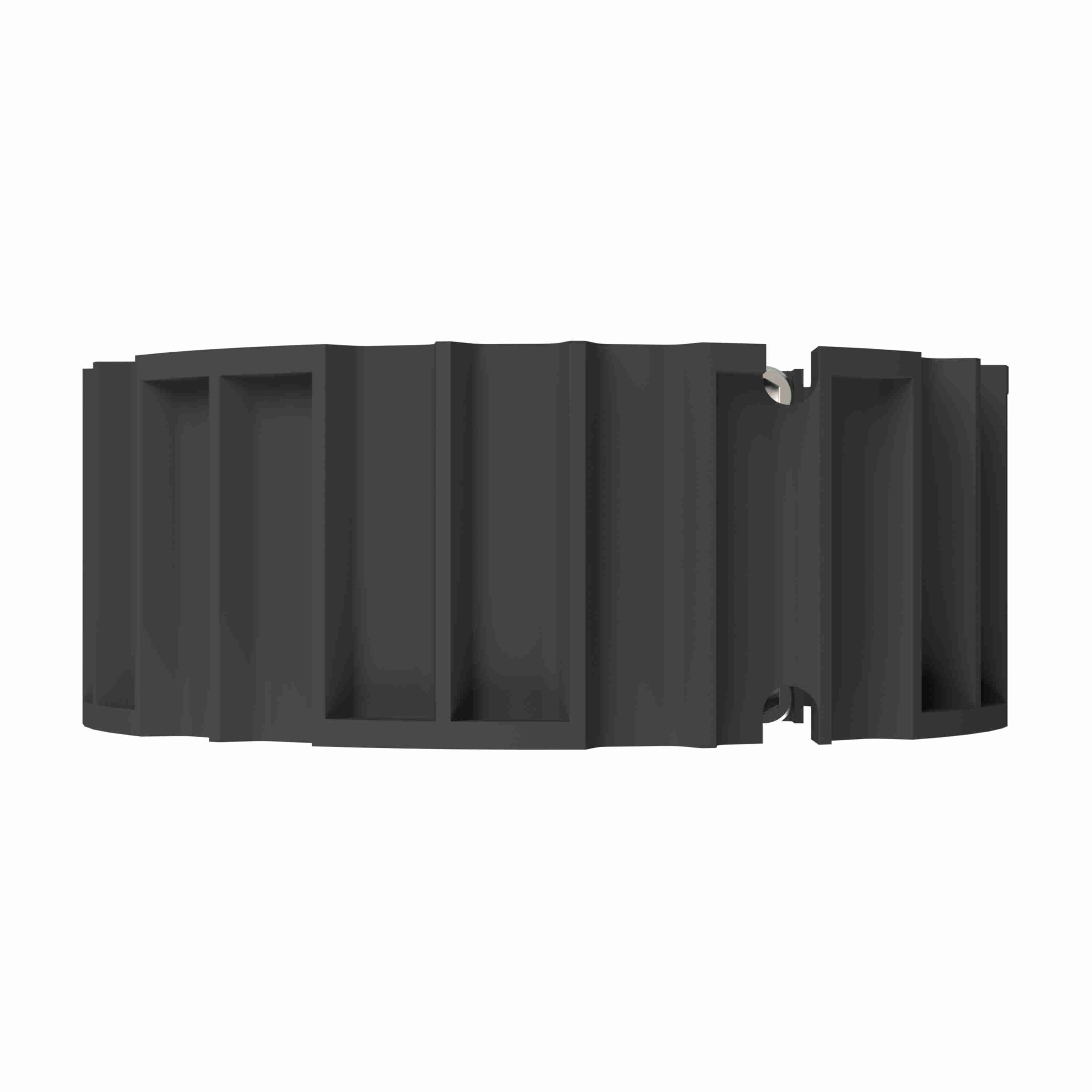

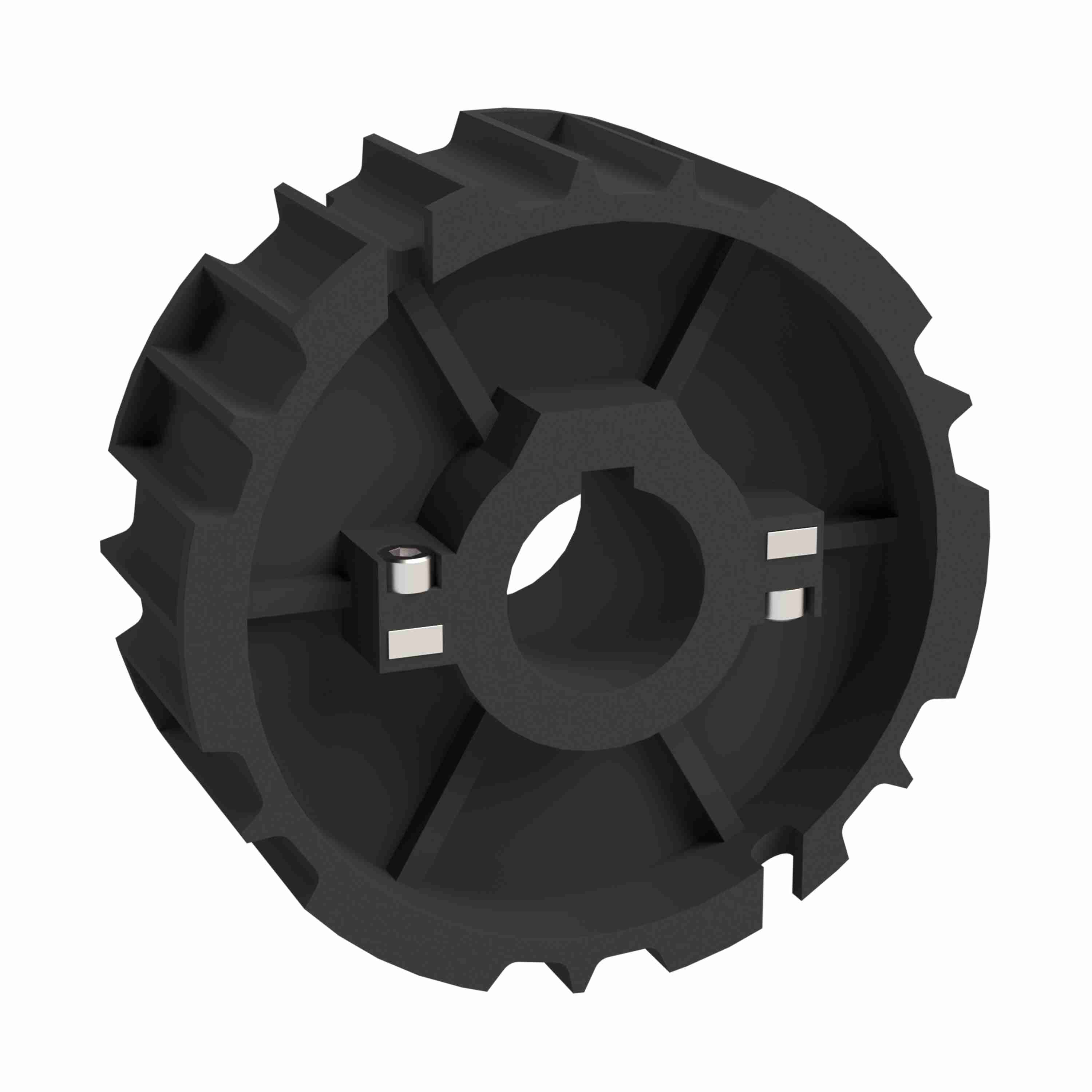

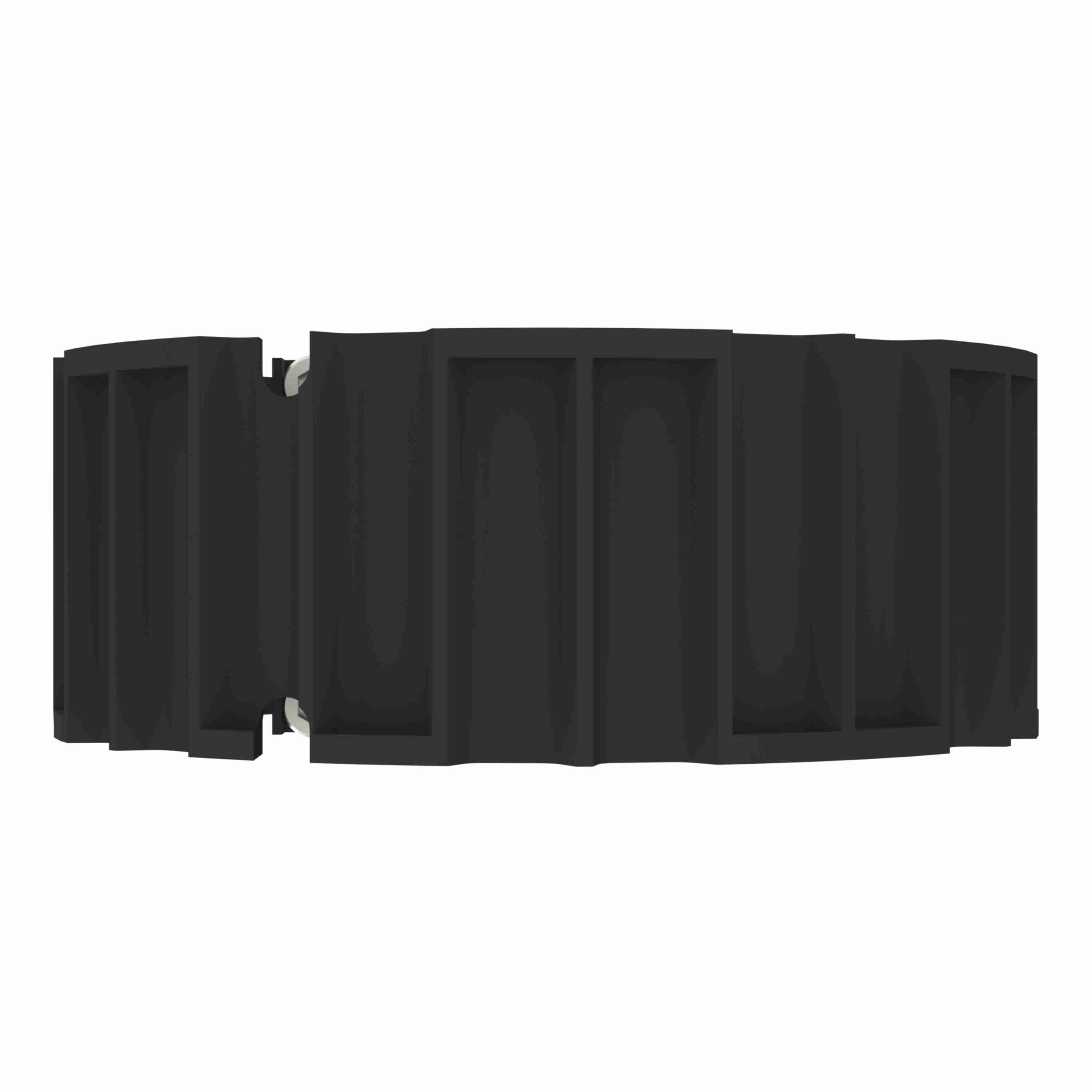

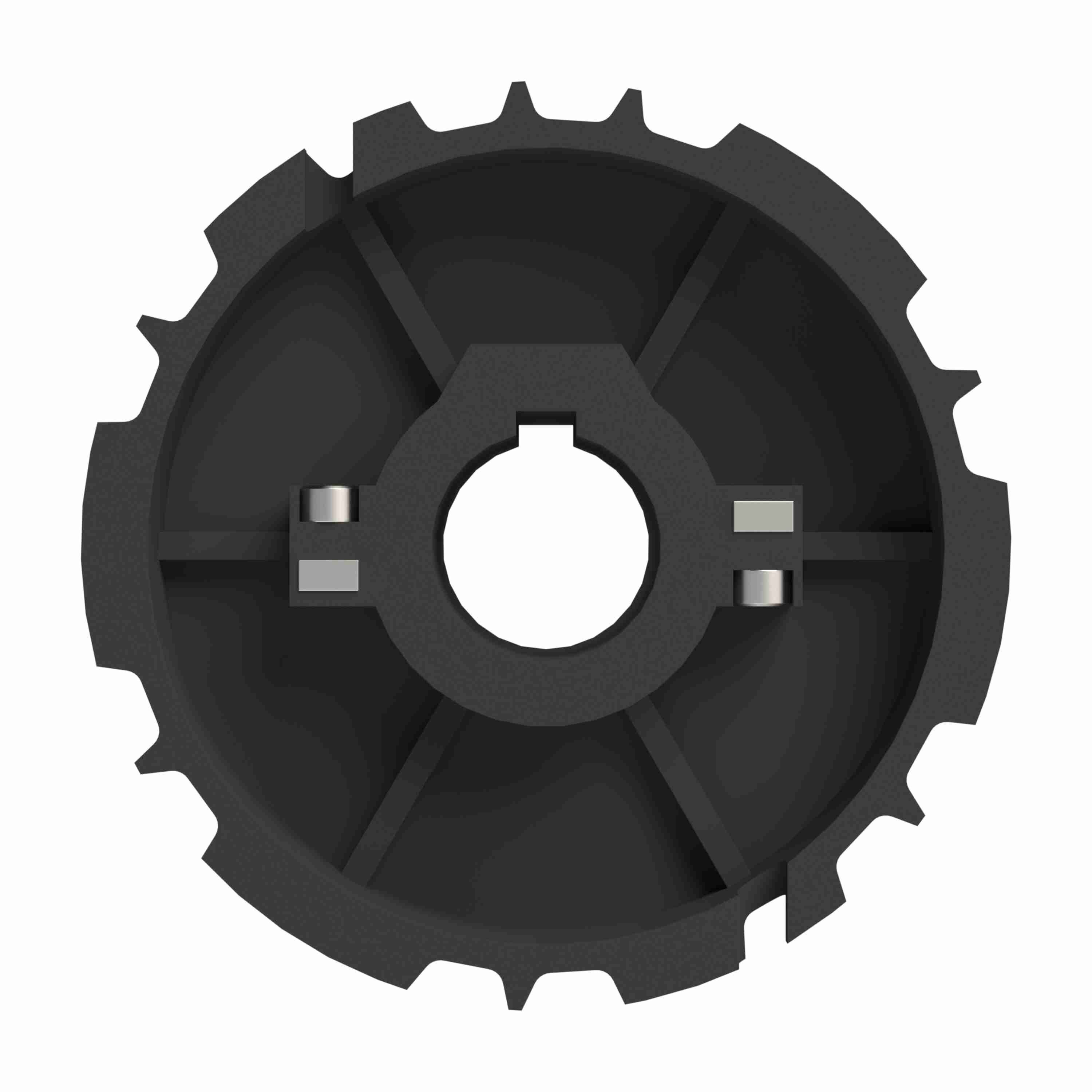

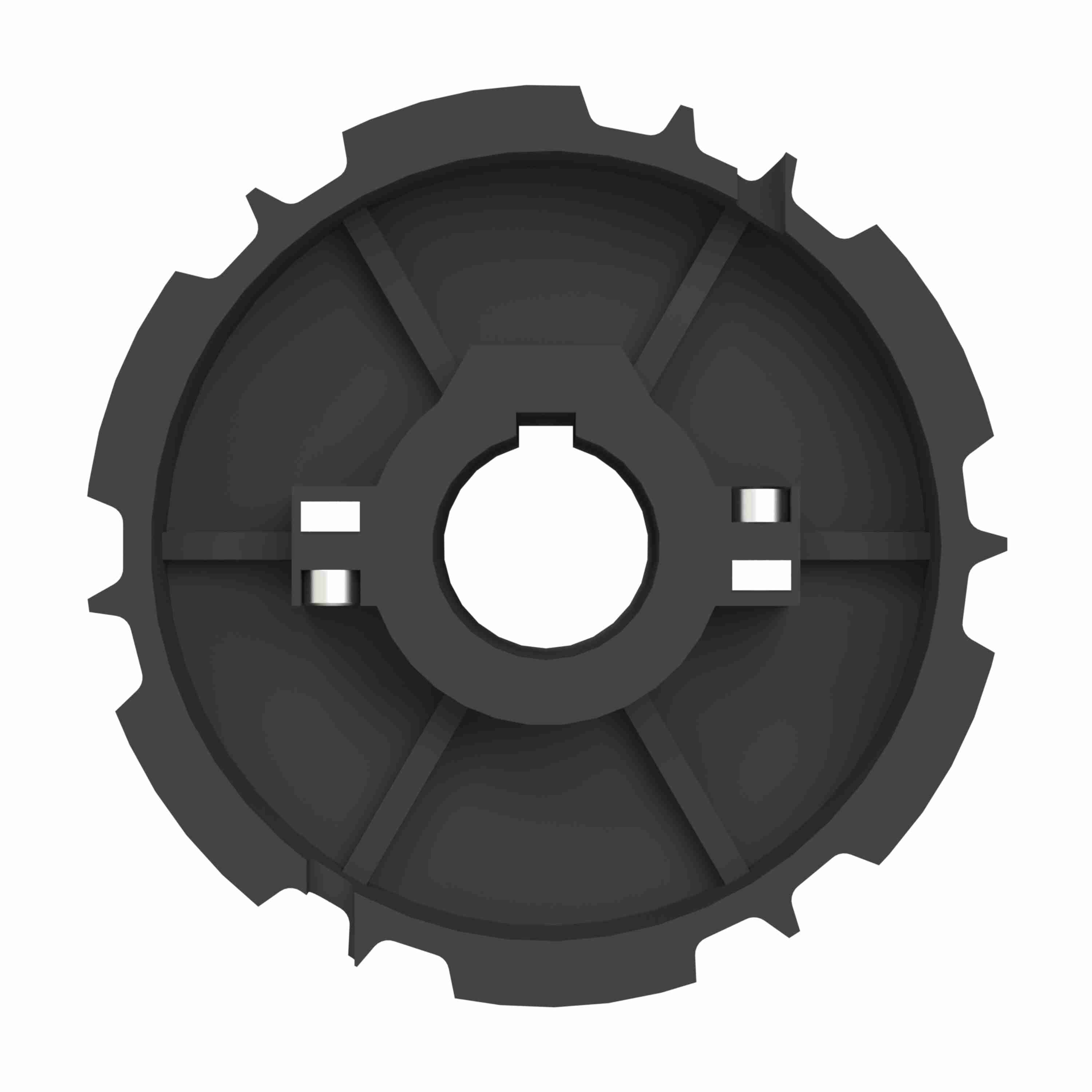

Rexnord 815 Series Split Molded Nylon Sprocket with 25 Teeth and 30mm Round Shaft-Ready Bore with Keyway - 614-53-30
Part #:10131628
Catalog #:614-53-30
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Chain and Belt Sprockets | Number of Keyways: | 1 |
| Bore Shape: | Round | Sprocket Series: | 815 |
| Sprocket Construction: | Molded Split Sprocket | Product Group: | TableTop® |
| Body Style: | Block | Number of Teeth: | 25 |
| Material: | Nylon | Pitch Diameter (in): | 5.984 |
| Number of Set Screws: | None | Bore Diameter (mm): | 30 mm |
| Chain Number: | 815 | Bore Type: | Shaft-Ready |
| Pitch Diameter (mm): | 151.99 |
General Specifications
| UPC: | 782934921841 | Weight: | 0.38 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
