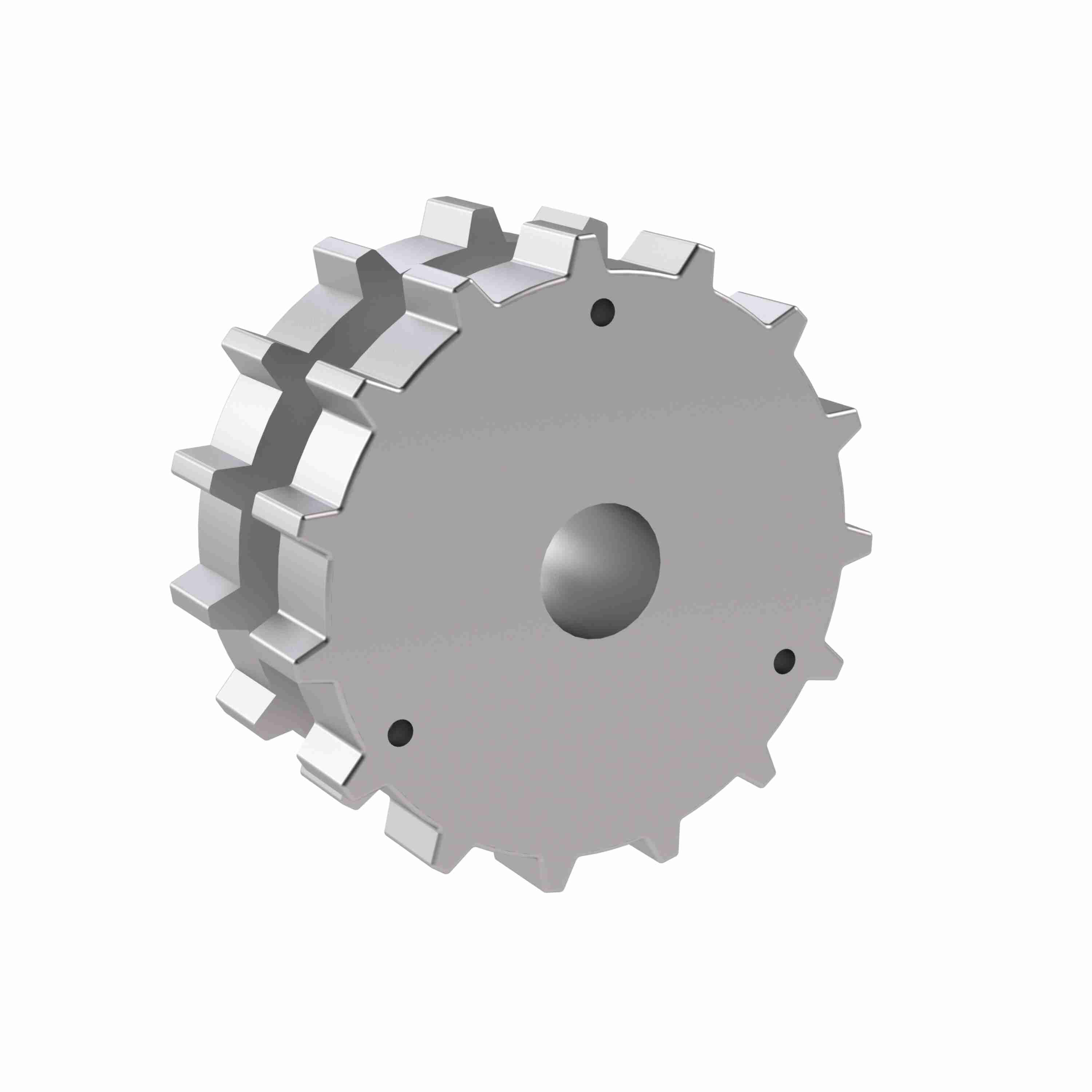

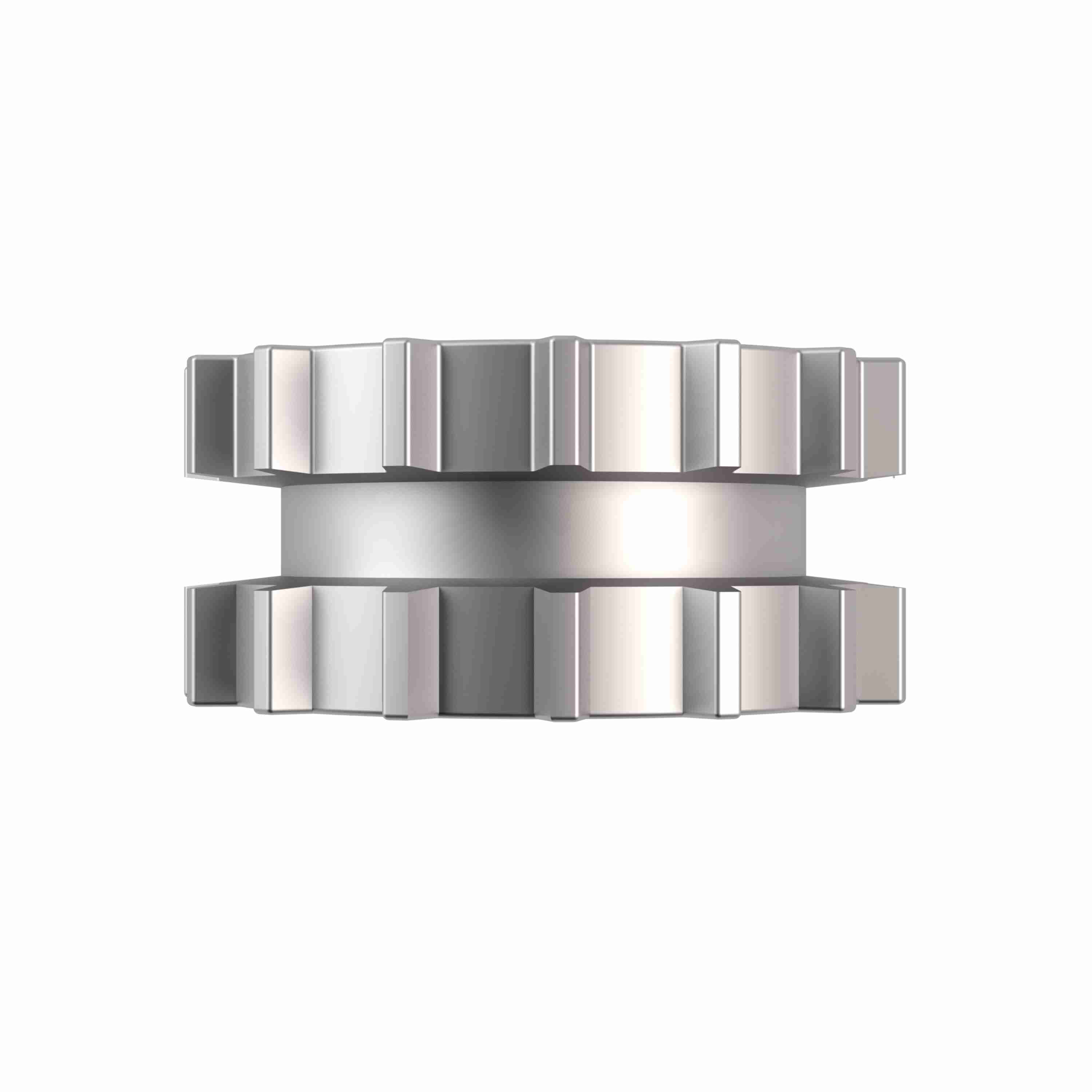

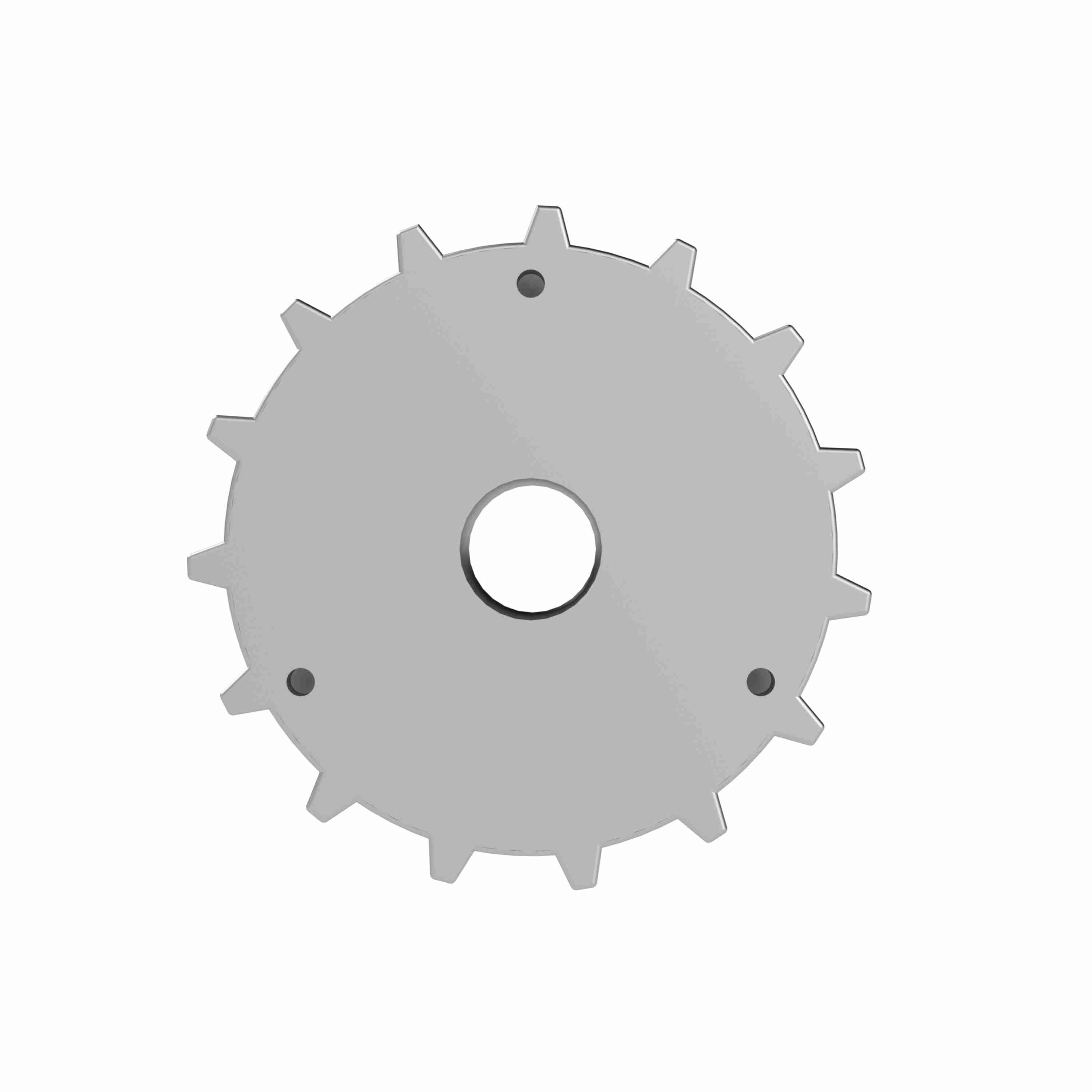

Rexnord 820 Series Solid One Piece Cast Iron Sprocket with 15 Teeth and a 3/4in Round Rough Stock Bore (RSB) - 401-194-2
Part #:10027413
Catalog #:401-194-2
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Set Screws: | None | Pitch Diameter (in): | 3.607 |
| Pitch Diameter (mm): | 91.63 | Product Line: | Chain and Belt Sprockets |
| Bore Shape: | Round | Material: | Cast Iron |
| Number of Teeth: | 15 | Chain Number: | 820 |
| Bore Type: | Rough Stock Bore (RSB) | Sprocket Series: | 820 |
| Body Style: | Block | Bore Diameter (in): | 3/4 in |
| Sprocket Construction: | Cast-Iron Non-Split Sprocket | Product Group: | TableTop® |
| Number of Keyways: | 0 |
General Specifications
| UPC: | 698210632182 | Weight: | 0.01 LB |
| Packaged Length: | 3.75 IN | Packaged Width: | 3.75 IN |
| Packaged Height: | 1.75 IN | HTC: | 8483901050 |
| Country of Origin: | United States of America |
