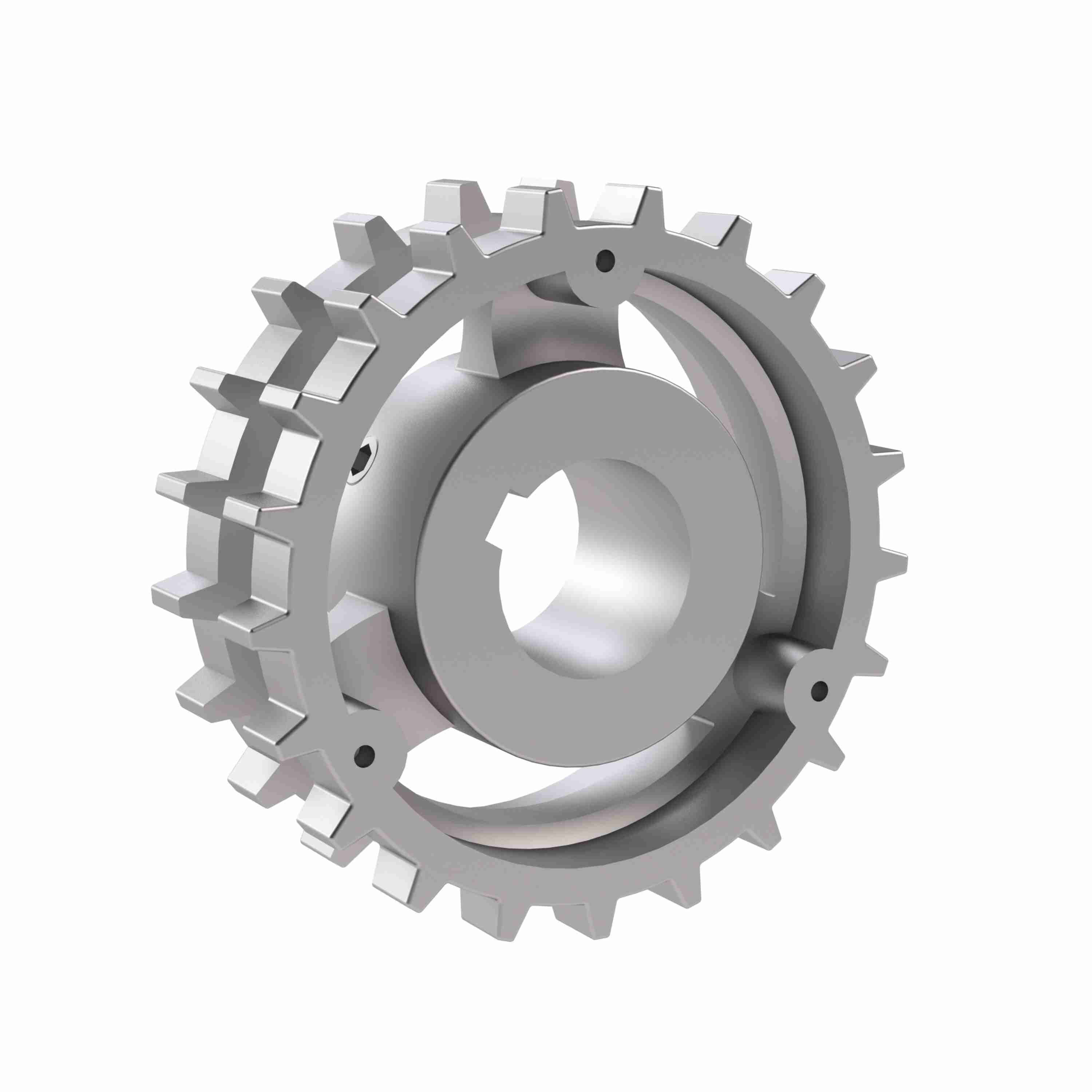

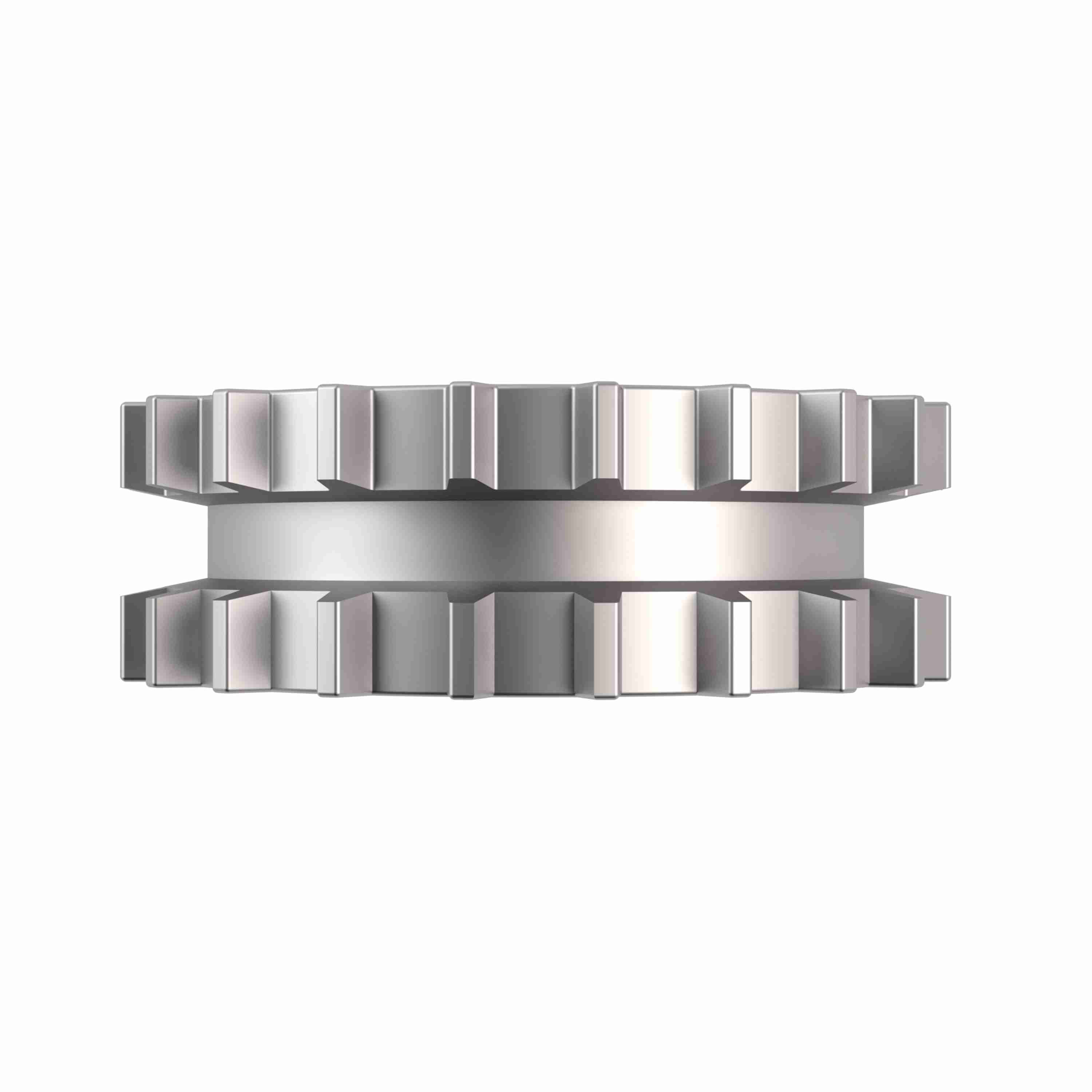

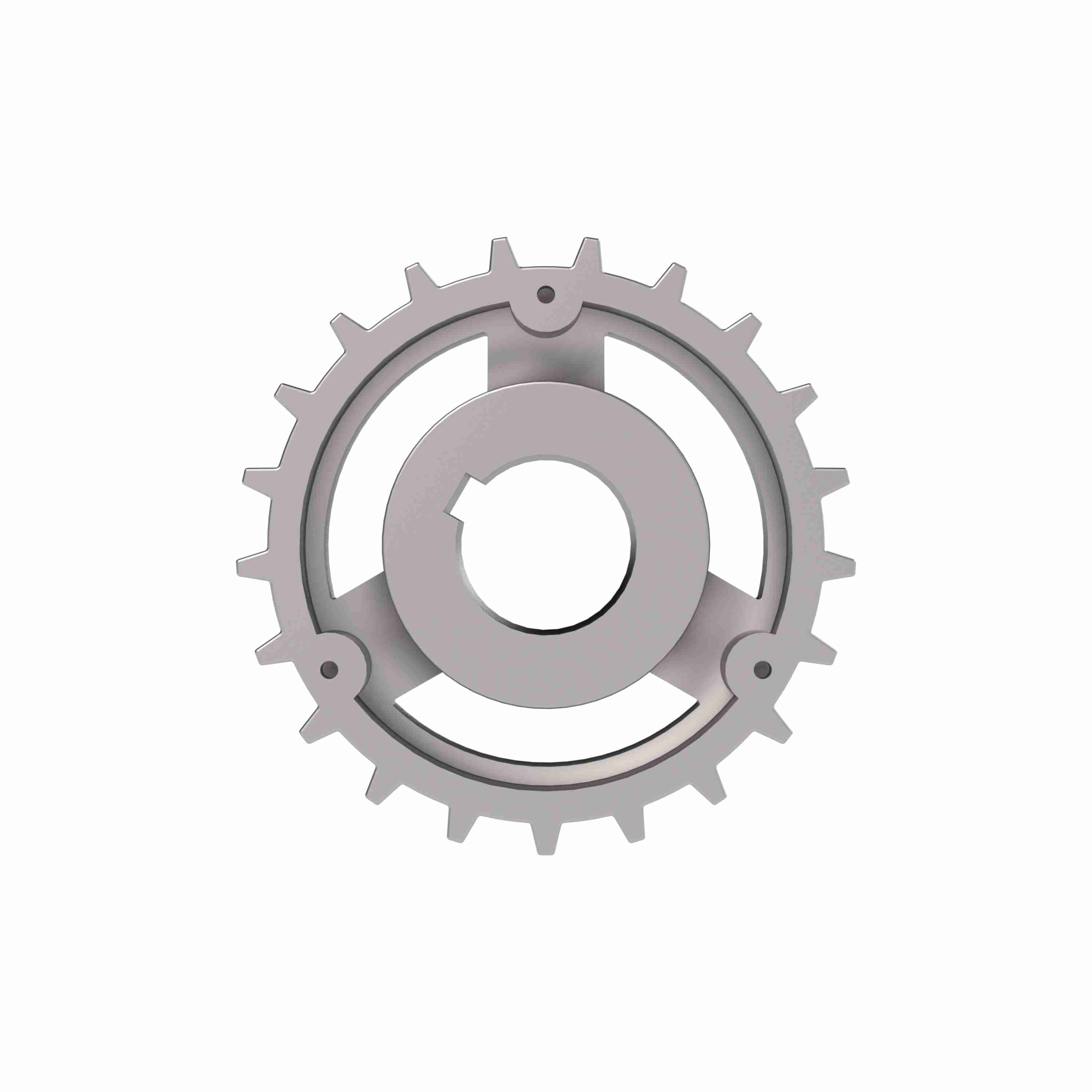

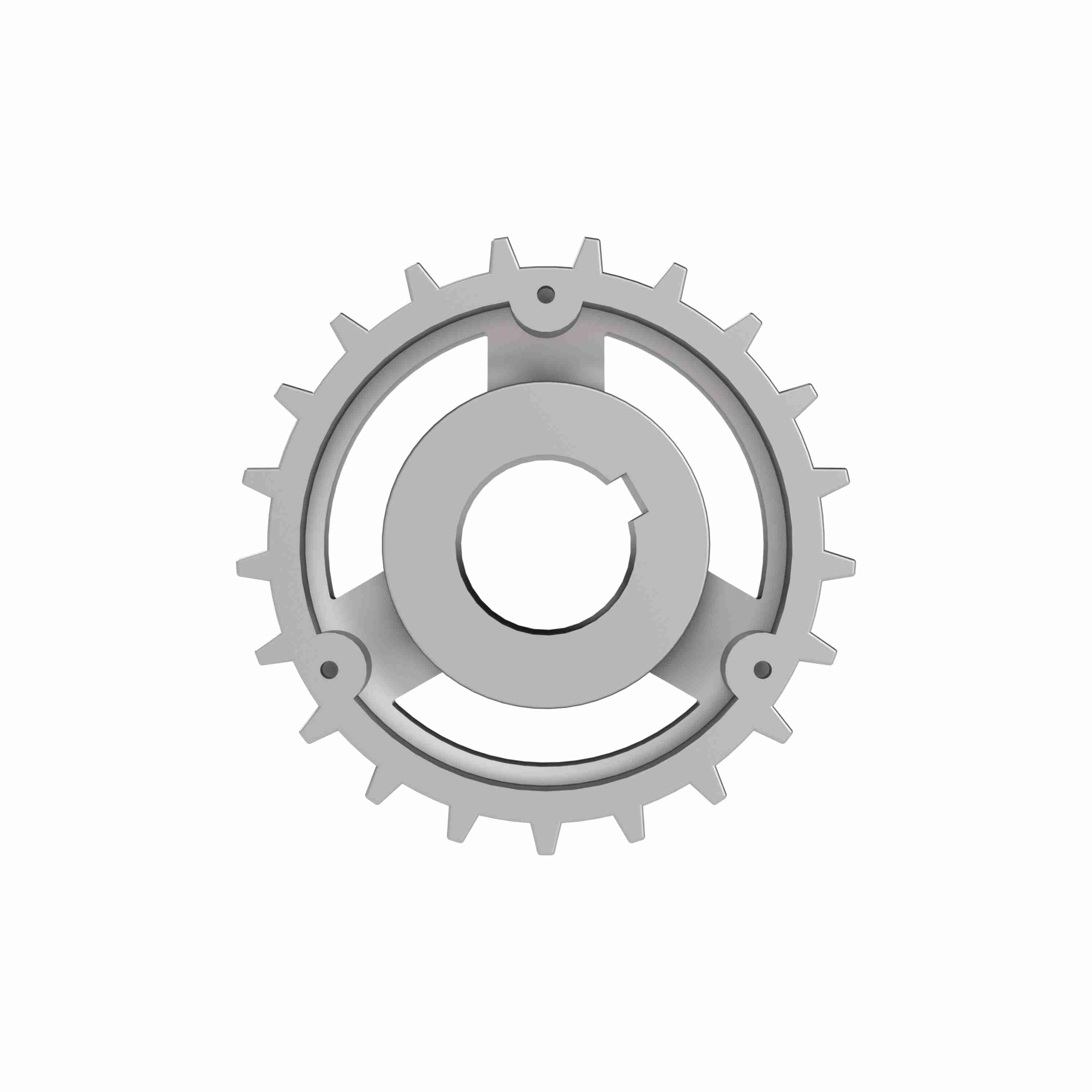

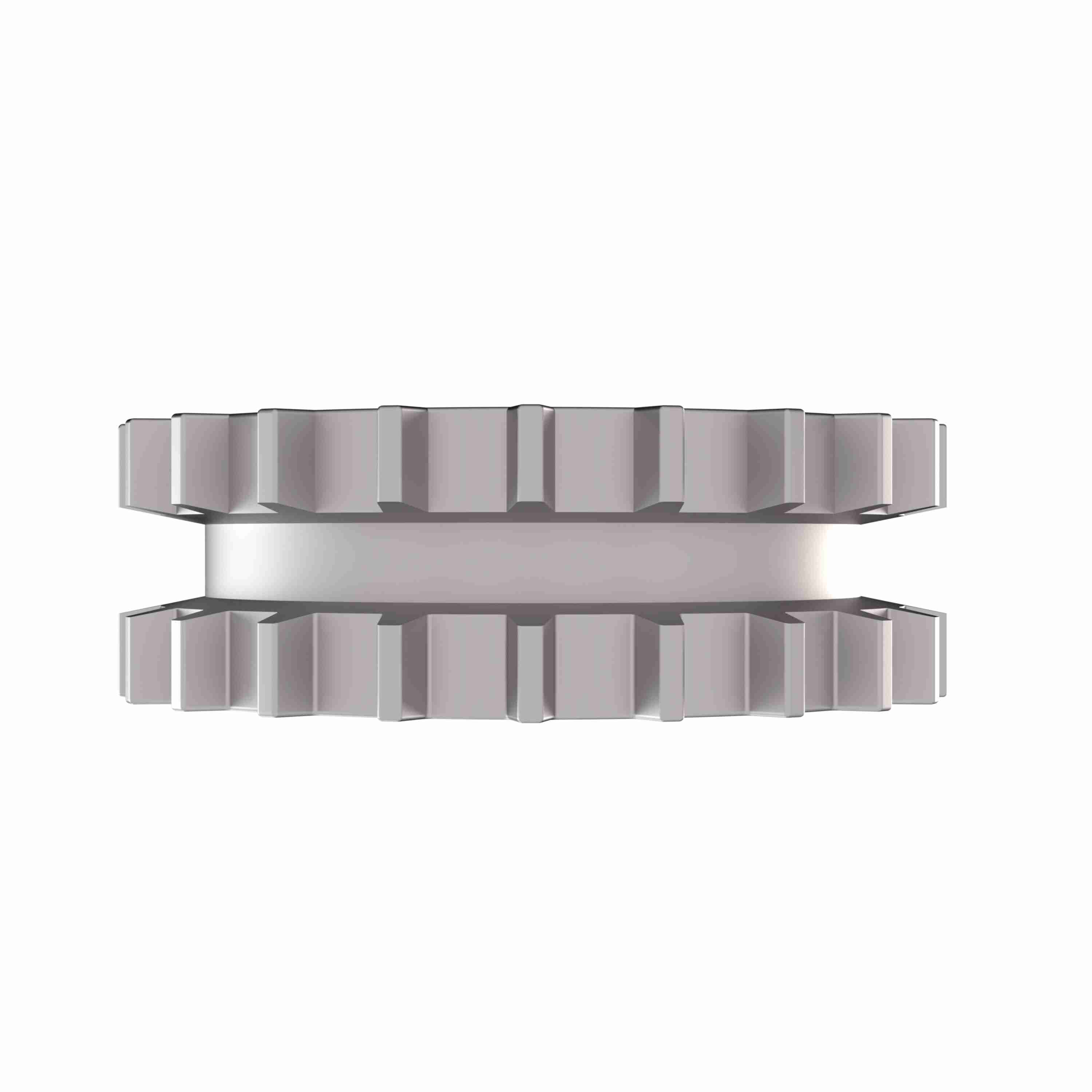

Rexnord 820 Series Solid One Piece Cast Iron Sprocket with 21 Teeth and a 1in Round Shaft-Ready Bore with Keyway & Setscrew - 401-160-11
Part #:10028799
Catalog #:401-160-11
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Pitch Diameter (mm): | 127.82 | Bore Type: | Shaft-Ready |
| Material: | Cast Iron | Number of Teeth: | 21 |
| Pitch Diameter (in): | 5.032 | Bore Diameter (in): | 1 in |
| Chain Number: | 820 | Number of Keyways: | 1 |
| Number of Set Screws: | 1 Setscrew | Sprocket Series: | 820 |
| Sprocket Construction: | Cast-Iron Non-Split Sprocket | Body Style: | Arm |
| Product Line: | Chain and Belt Sprockets | Bore Shape: | Round |
| Product Group: | TableTop® |
General Specifications
| UPC: | 698210631796 | Weight: | 0.01 LB |
| Packaged Length: | 5.25 IN | Packaged Width: | 5.25 IN |
| Packaged Height: | 1.75 IN | HTC: | 8483408000 |
| Country of Origin: | United States of America |
