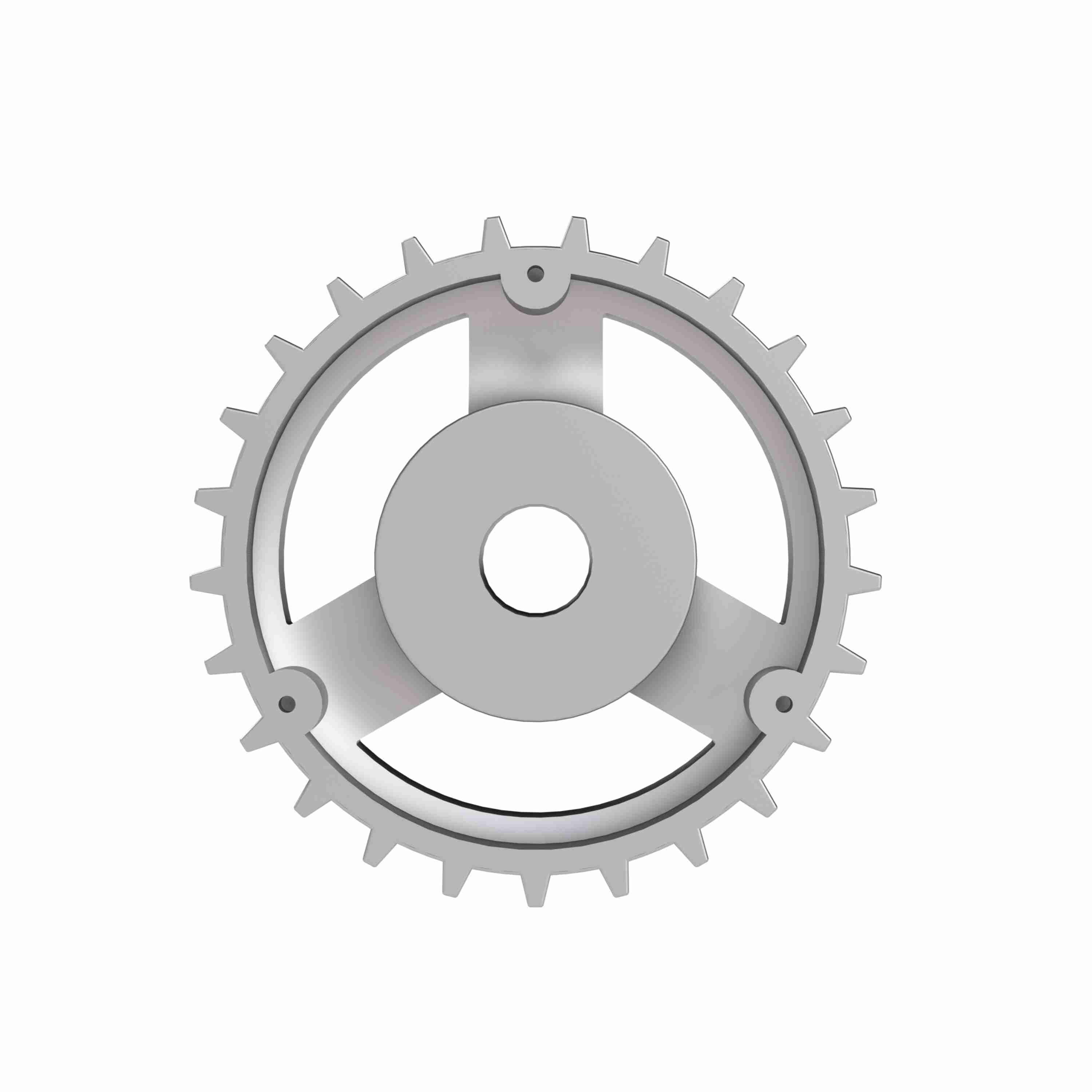

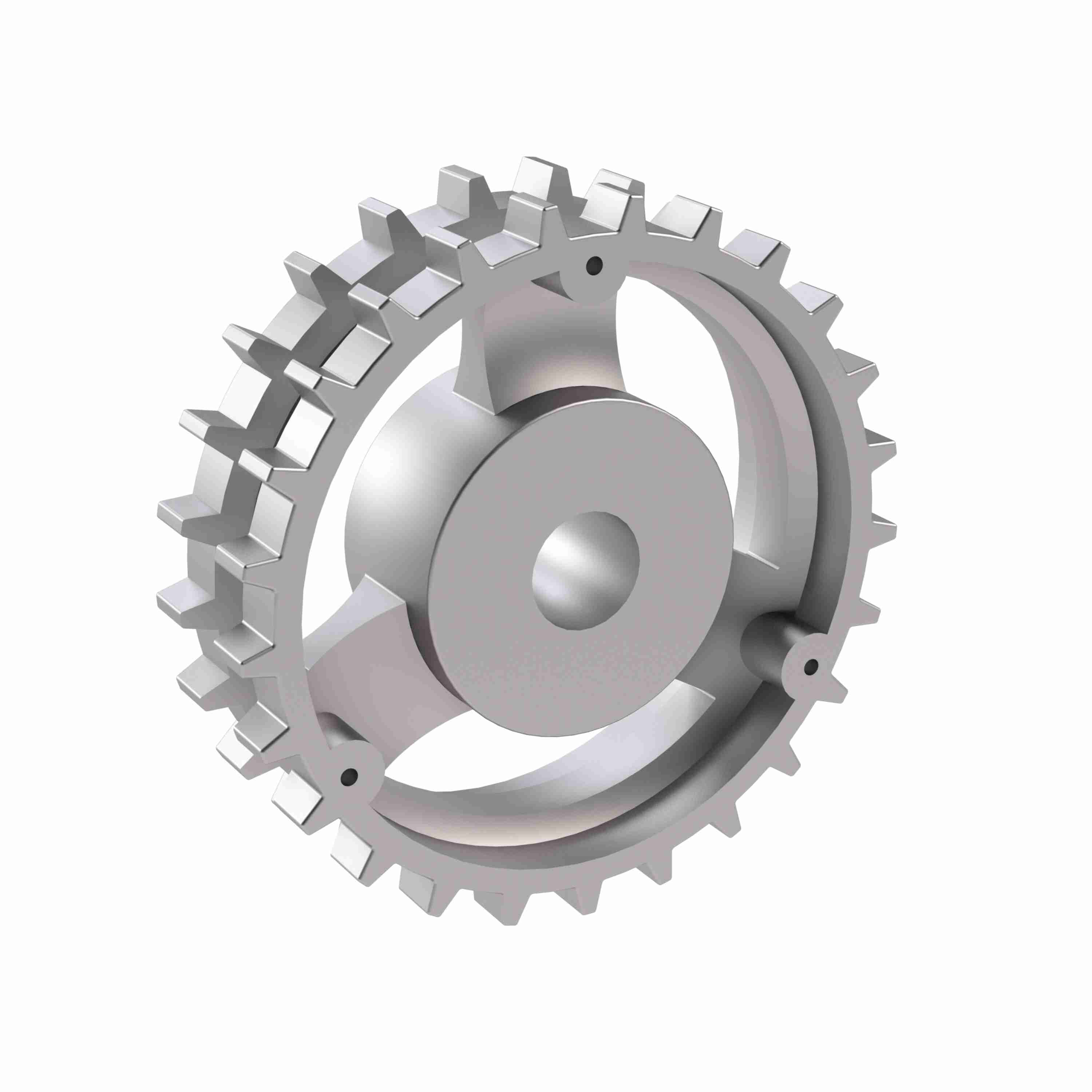

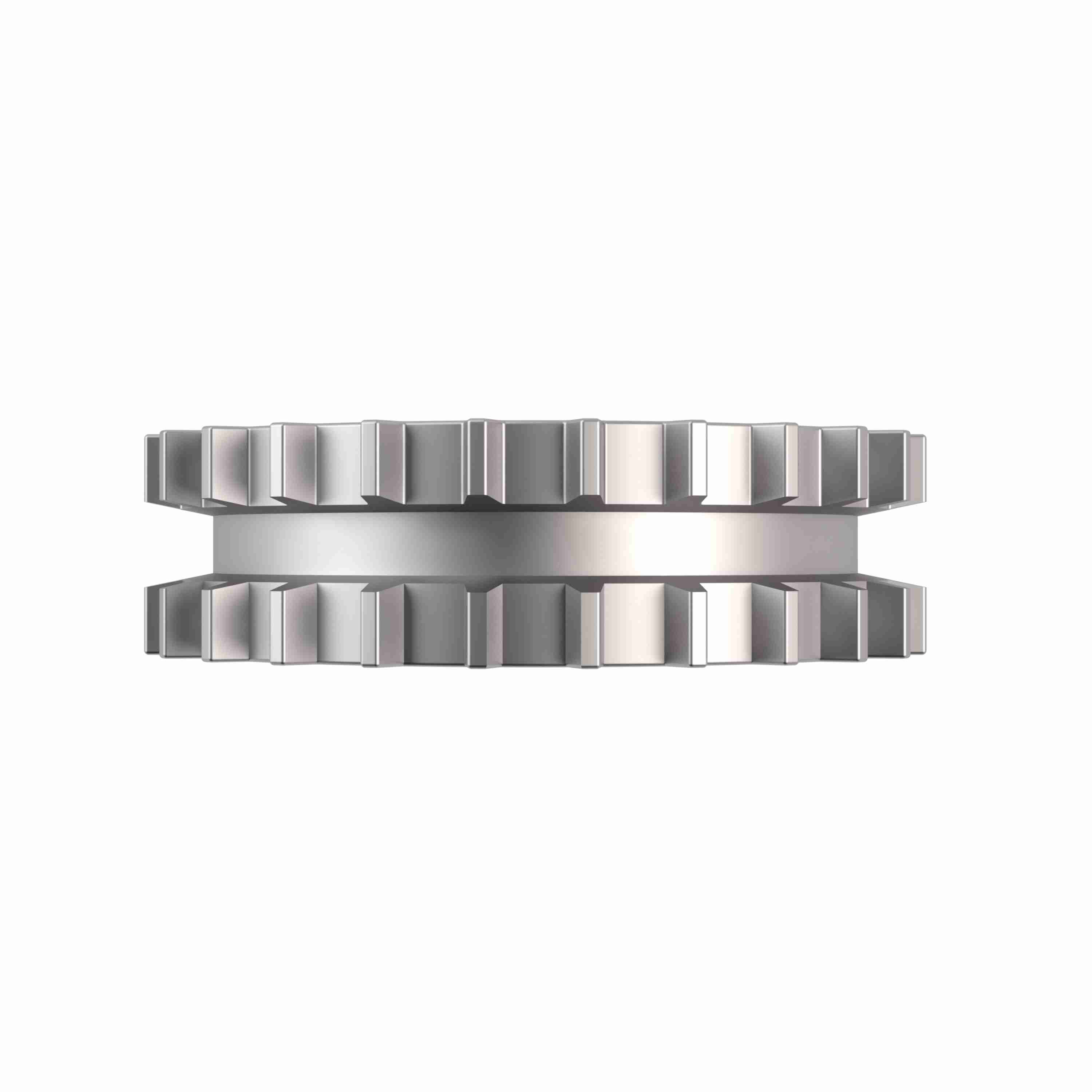

Rexnord 820 Series Solid One Piece Cast Iron Sprocket with 25 Teeth and 1in Round Plain Bore - 401-162-14
Part #:10028822
Catalog #:401-162-14
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Diameter (in): | 1 in | Product Line: | Chain and Belt Sprockets |
| Bore Type: | Plain | Number of Teeth: | 25 |
| Body Style: | Arm | Number of Keyways: | 0 |
| Chain Number: | 820 | Material: | Cast Iron |
| Sprocket Construction: | Cast-Iron Non-Split Sprocket | Product Group: | TableTop® |
| Number of Set Screws: | None | Pitch Diameter (mm): | 151.99 |
| Pitch Diameter (in): | 5.984 | Sprocket Series: | 820 |
| Bore Shape: | Round |
General Specifications
| UPC: | 698210122409 | Weight: | 5.57 LB |
| Packaged Length: | 6.13 IN | Packaged Width: | 6.13 IN |
| Packaged Height: | 1.75 IN | HTC: | 8483901050 |
| Country of Origin: | United States of America |
