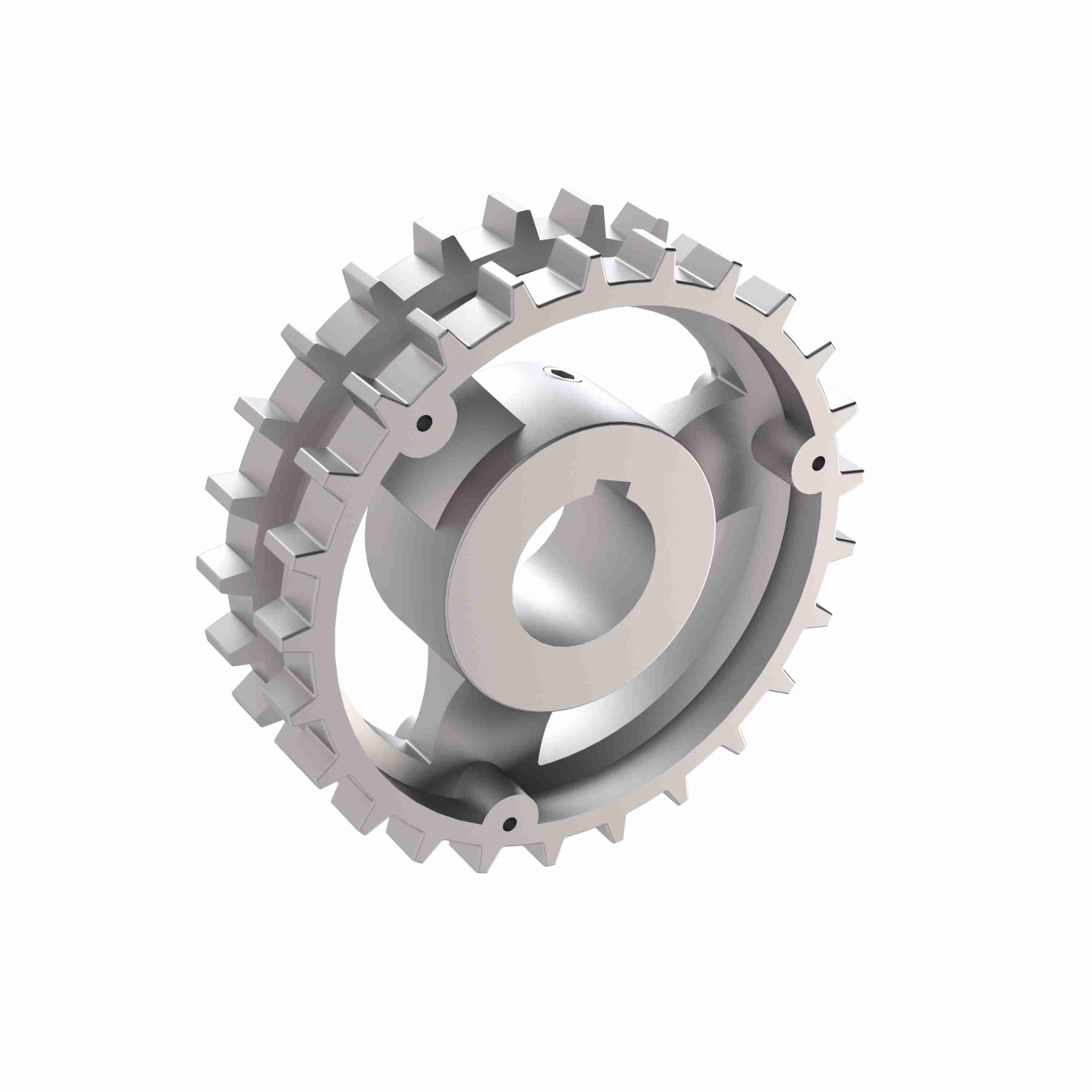

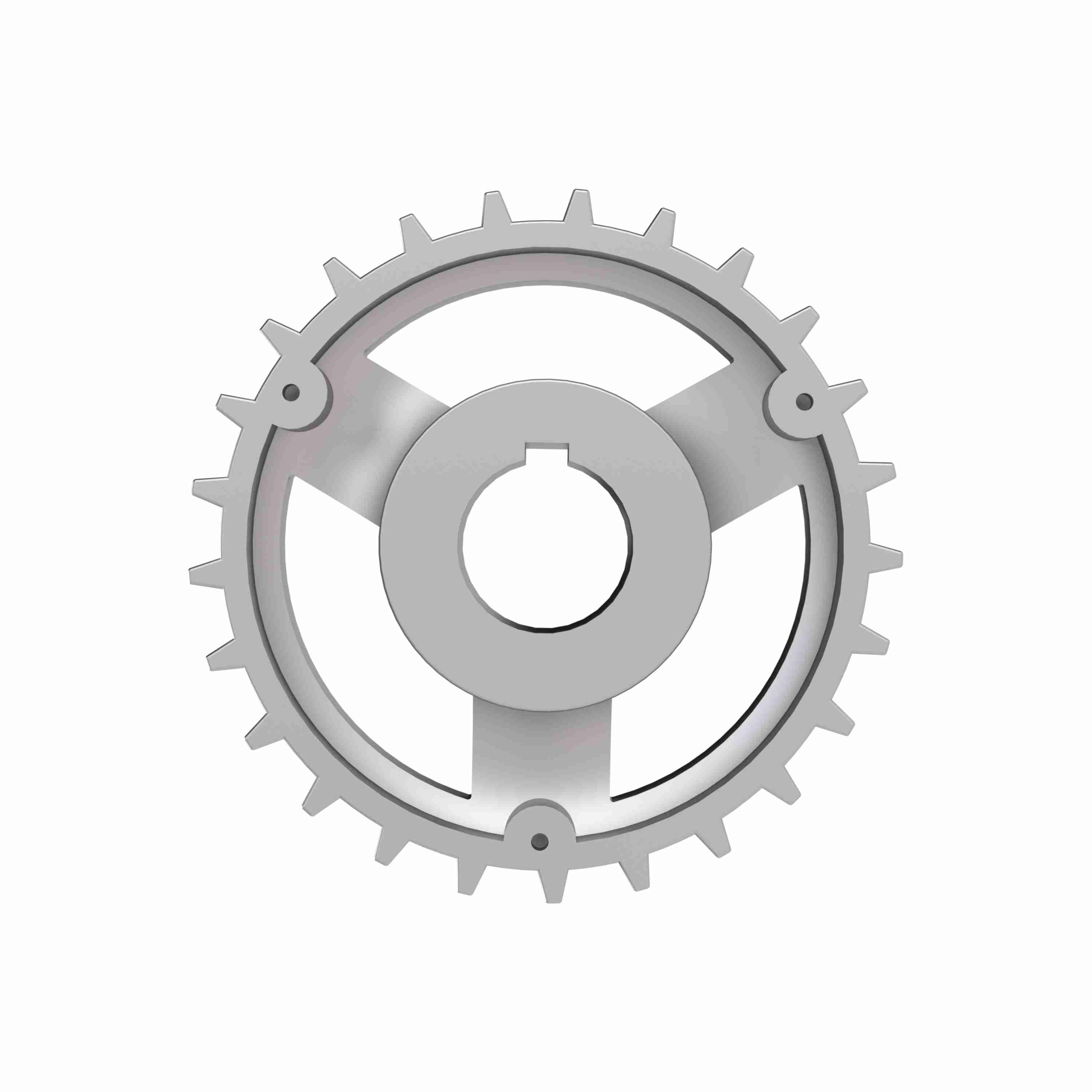

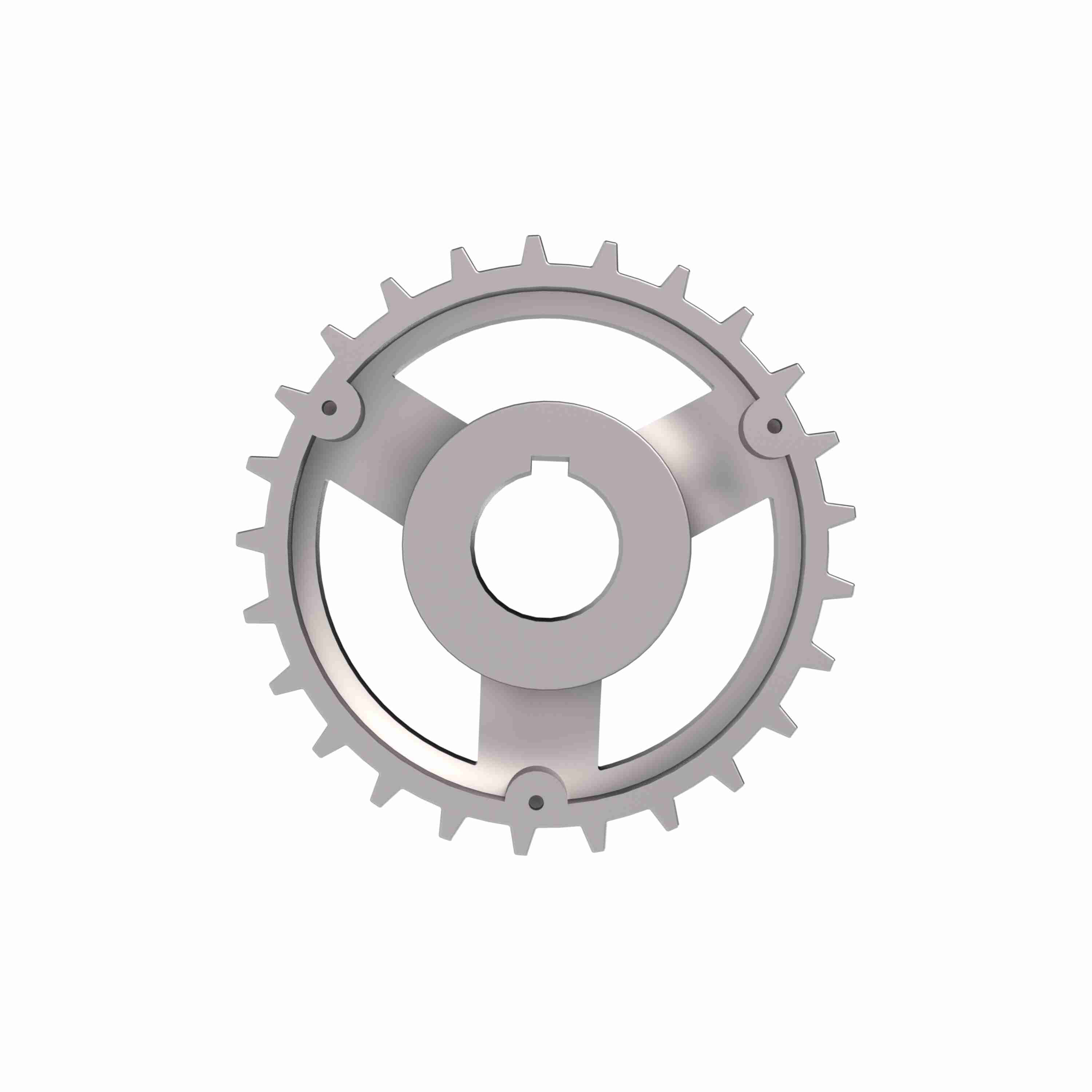

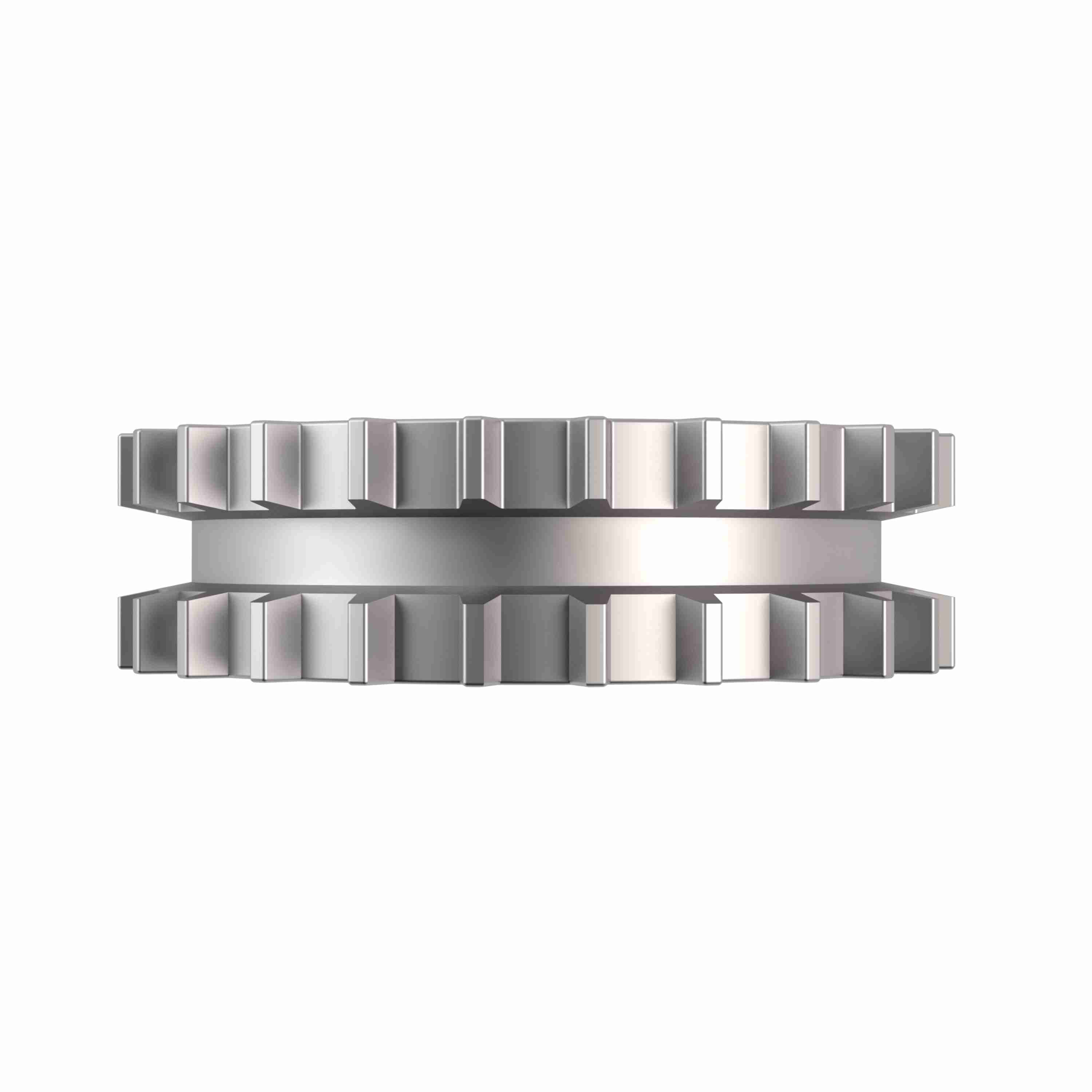

Rexnord 820 Series Solid One Piece Cast Iron Sprocket with 25 Teeth and a 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 401-162-13
Part #:10028825
Catalog #:401-162-13
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | TableTop® | Bore Type: | Shaft-Ready |
| Chain Number: | 820 | Number of Set Screws: | 1 Setscrew |
| Sprocket Construction: | Cast-Iron Non-Split Sprocket | Product Line: | Chain and Belt Sprockets |
| Bore Shape: | Round | Body Style: | Arm |
| Number of Teeth: | 25 | Bore Diameter (in): | 1-1/4 in |
| Pitch Diameter (in): | 5.984 | Pitch Diameter (mm): | 151.99 |
| Material: | Cast Iron | Number of Keyways: | 1 |
| Sprocket Series: | 820 |
General Specifications
| UPC: | 698210631864 | Weight: | 0.01 LB |
| Packaged Length: | 6.13 IN | Packaged Width: | 6.13 IN |
| Packaged Height: | 1.75 IN | HTC: | 8483408000 |
| Country of Origin: | United States of America |
