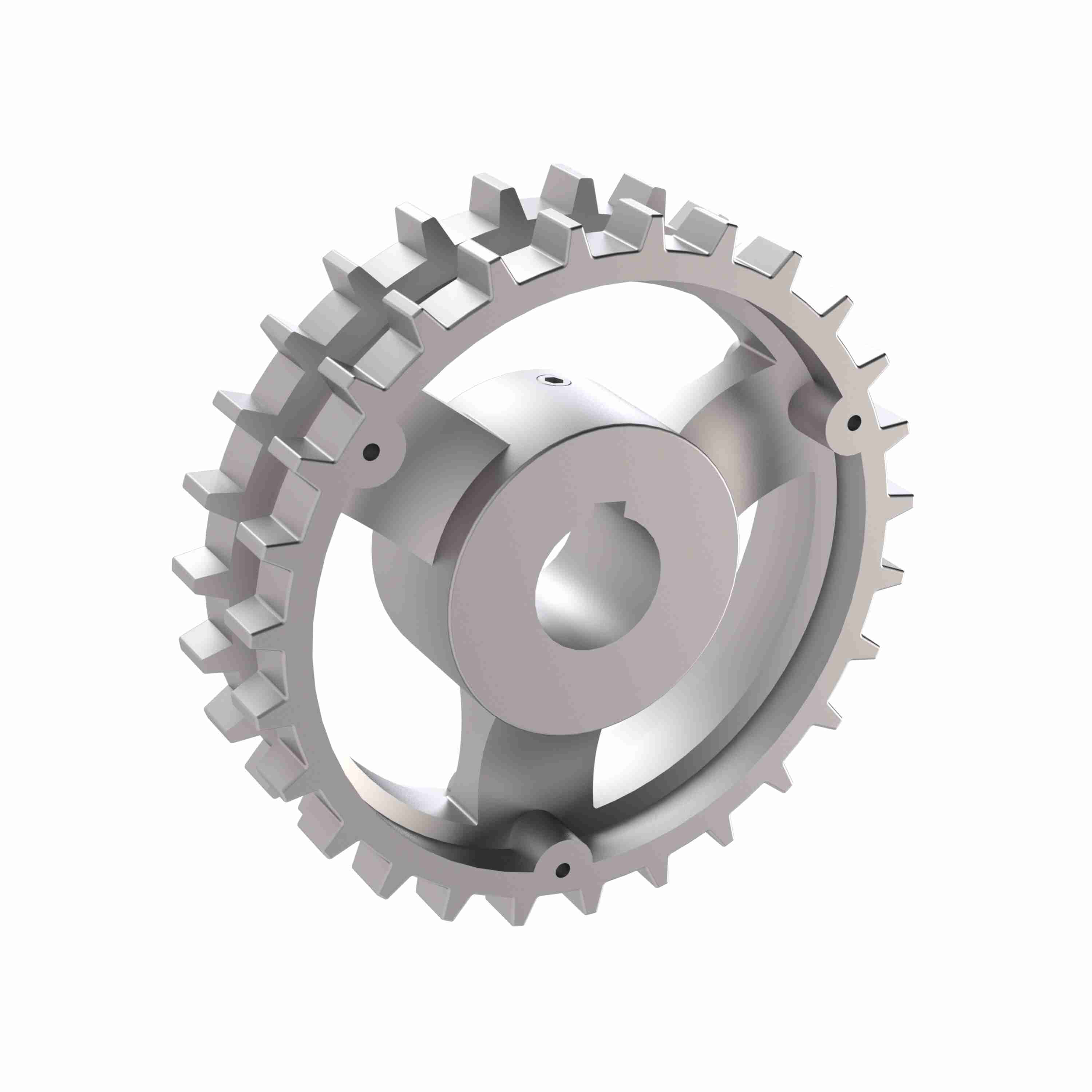

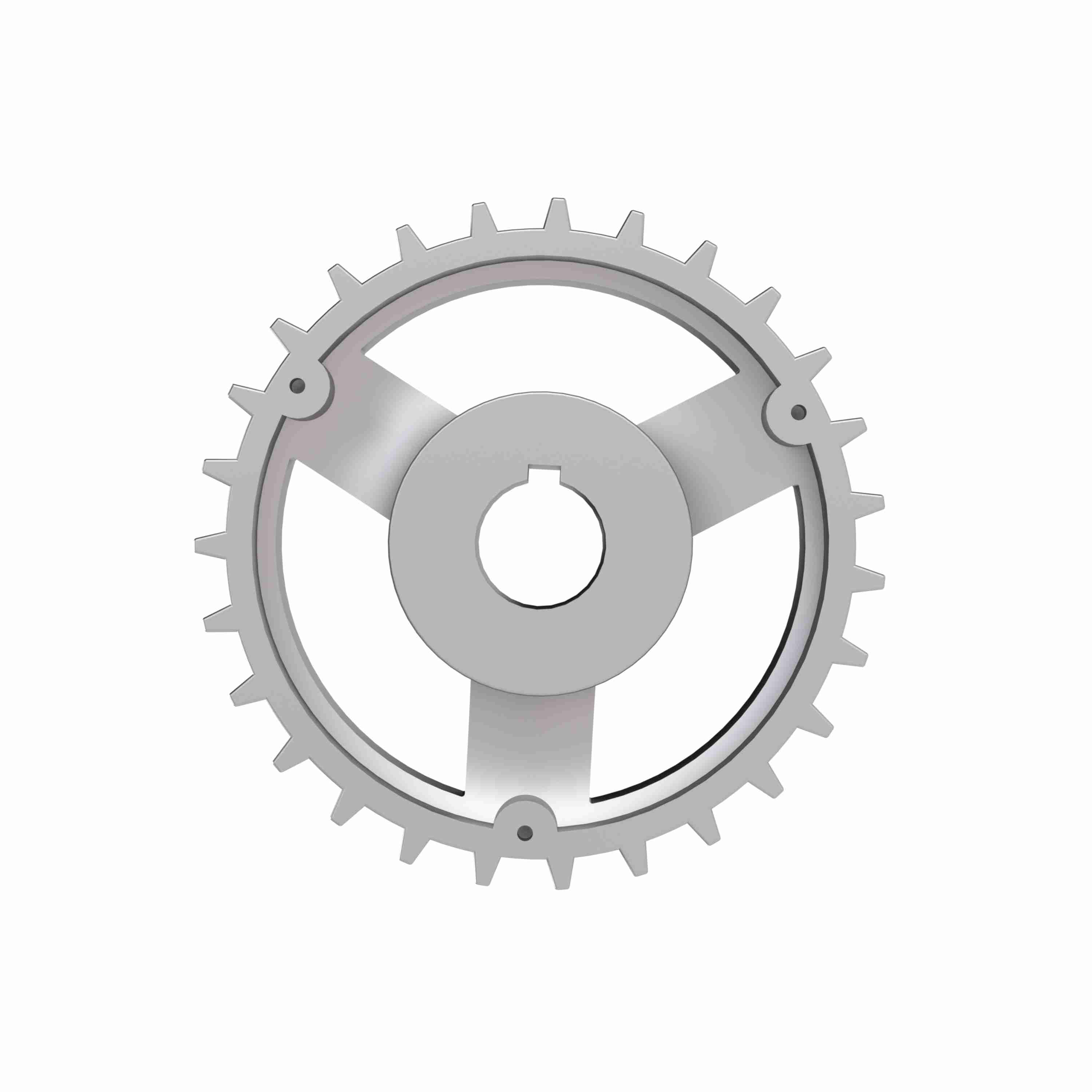

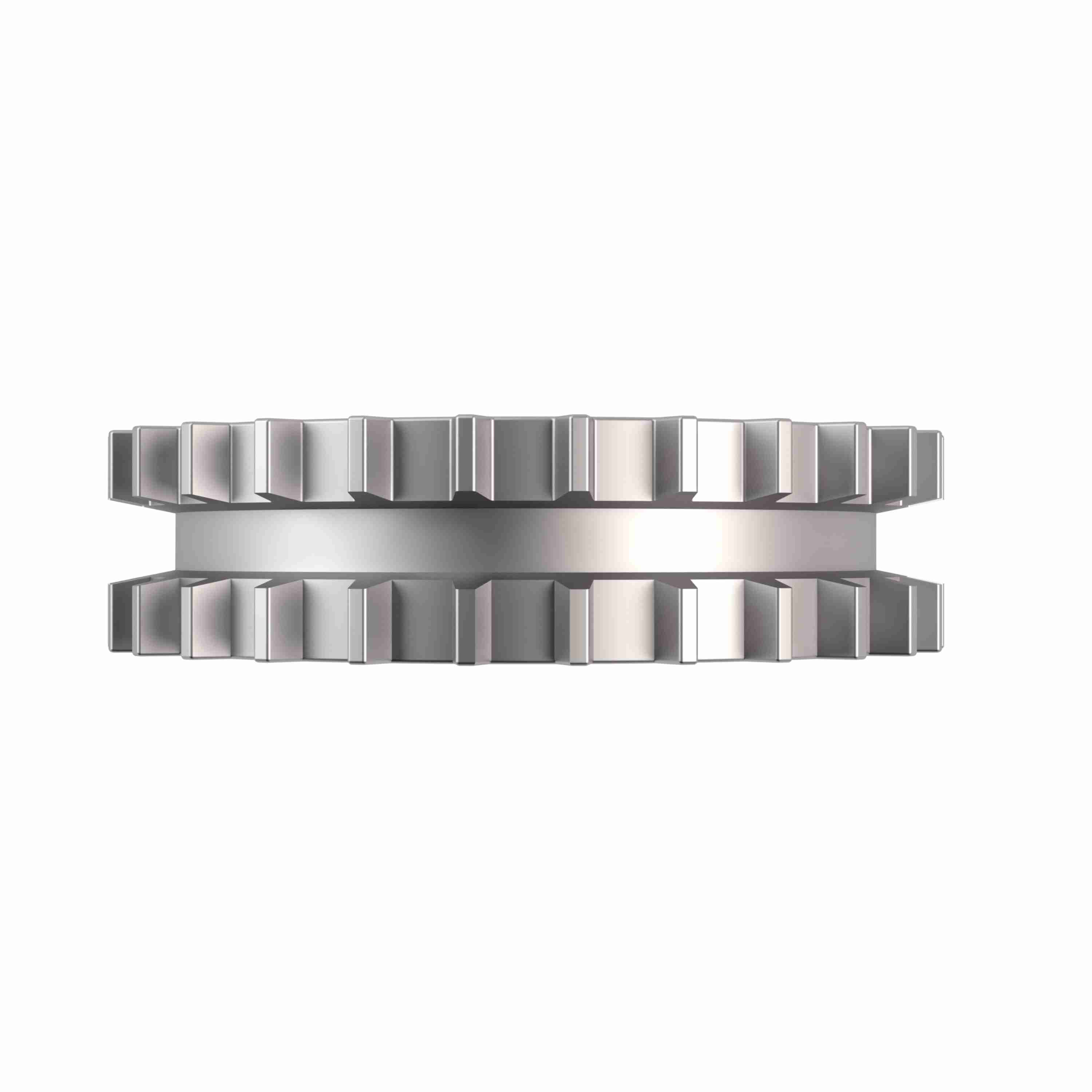

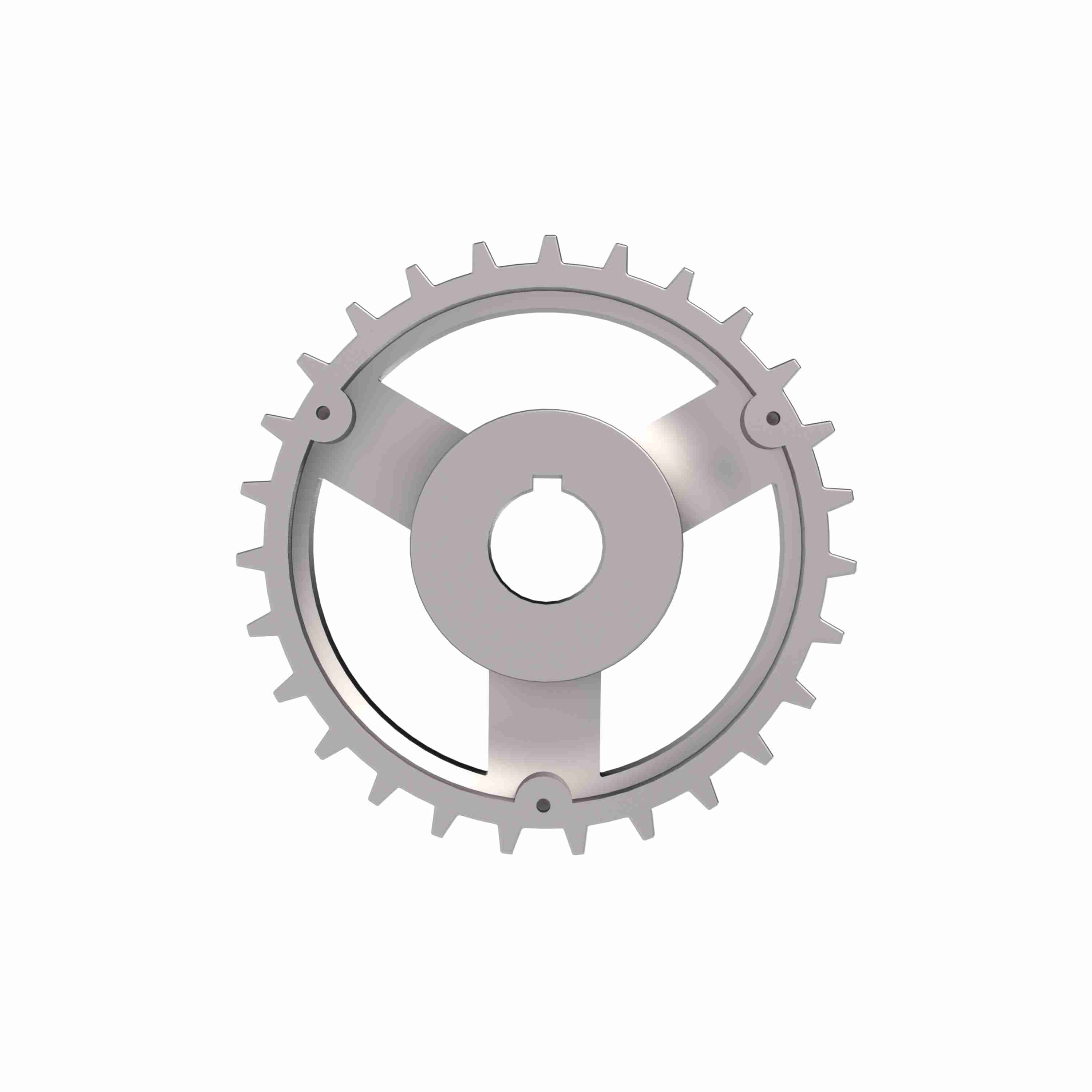

Rexnord 820 Series Solid One Piece Cast Iron Sprocket with 27 Teeth and a 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 401-163-7
Part #:10028831
Catalog #:401-163-7
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 27 | Number of Keyways: | 1 |
| Sprocket Construction: | Cast-Iron Non-Split Sprocket | Body Style: | Arm |
| Number of Set Screws: | 1 Setscrew | Pitch Diameter (mm): | 164.09 |
| Product Group: | TableTop® | Hub Type: | A-No Hub |
| Sprocket Series: | 820 | Bore Shape: | Round |
| Chain Number: | 820 | Material: | Cast Iron |
| Product Line: | Chain and Belt Sprockets | Bore Diameter (in): | 1-1/4 in |
| Bore Type: | Shaft-Ready | Pitch Diameter (in): | 6.46 |
General Specifications
| UPC: | 698210135508 | Weight: | 6.50 LB |
| Packaged Length: | 6.75 IN | Packaged Width: | 6.75 IN |
| Packaged Height: | 1.75 IN | HTC: | 8483901050 |
| Country of Origin: | United States of America |
