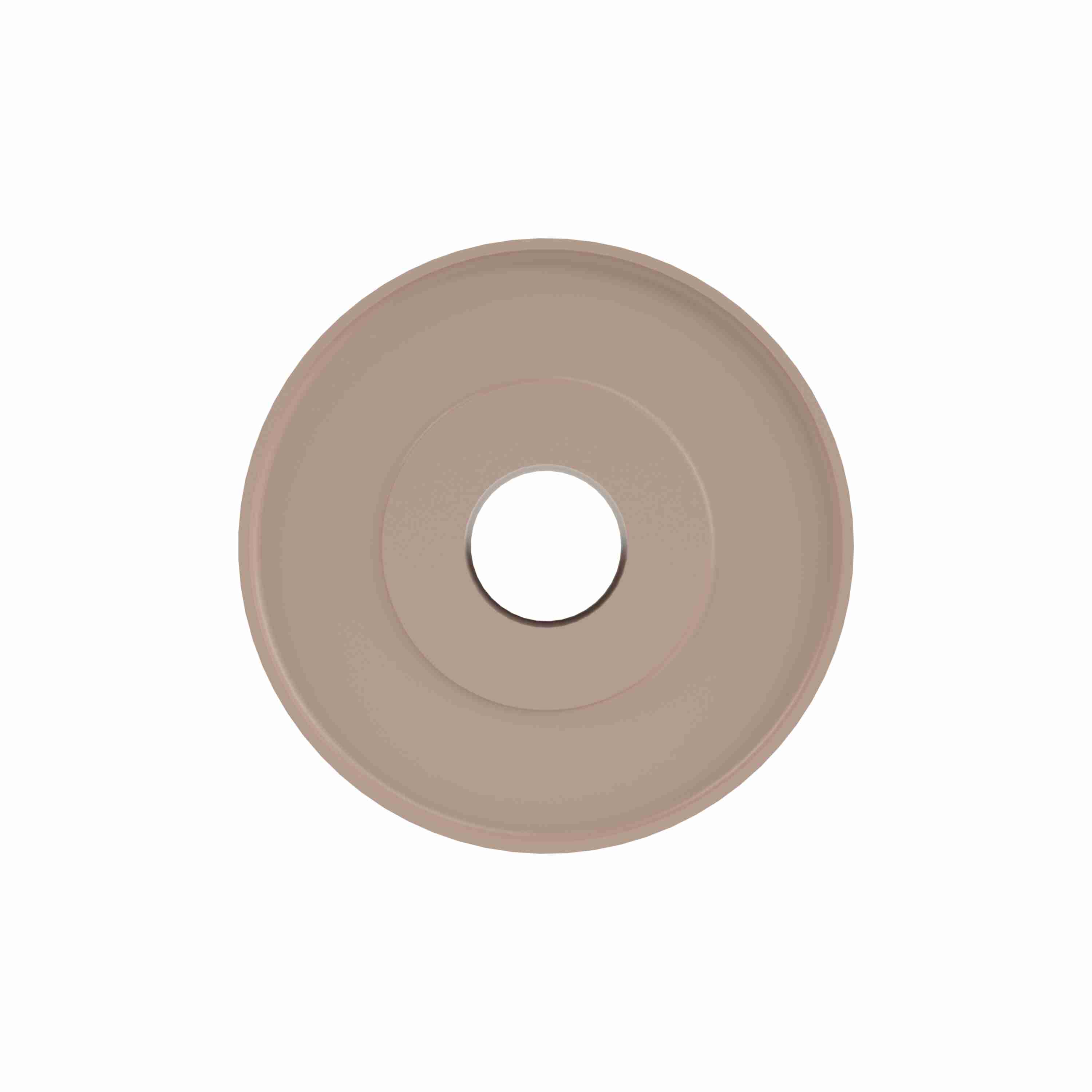

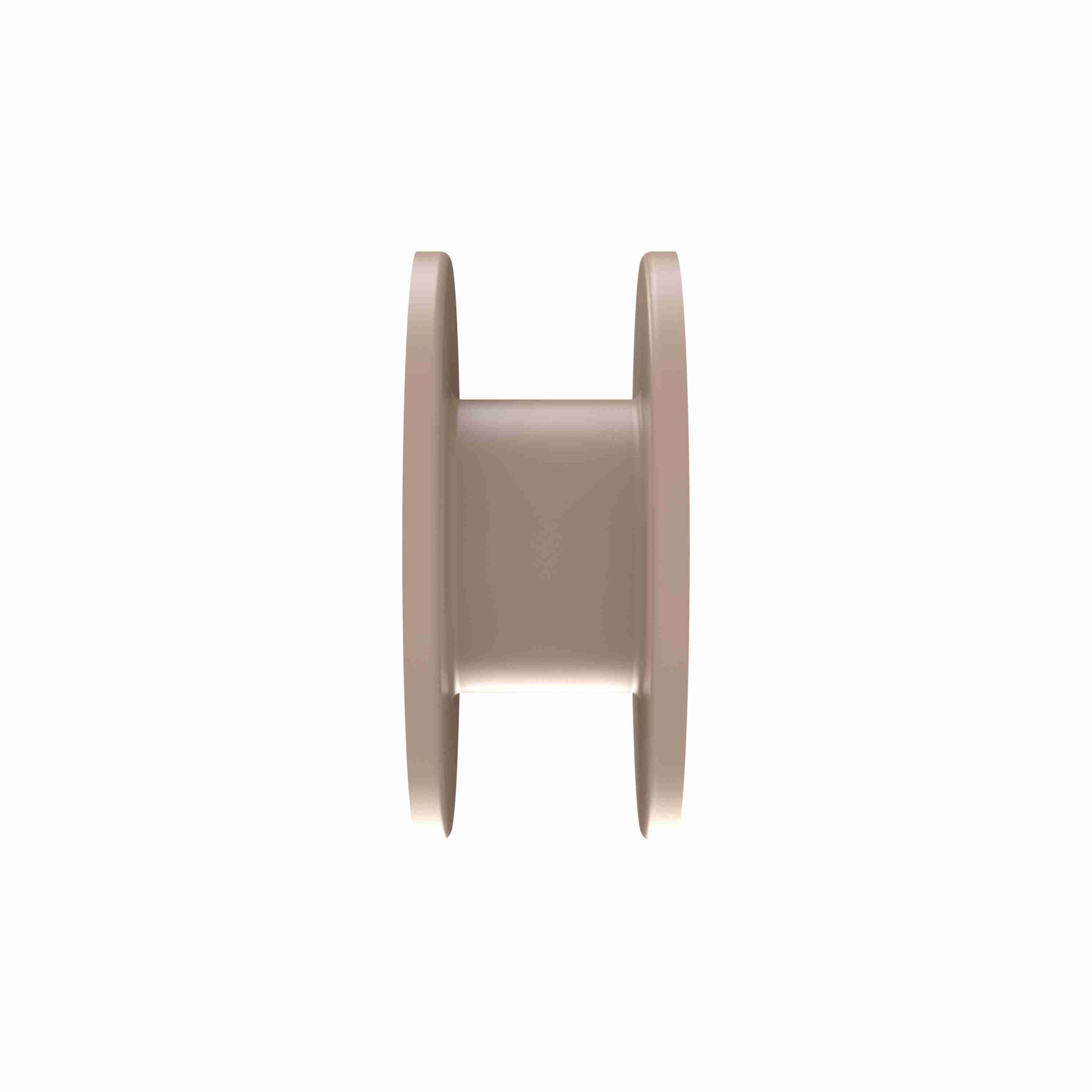

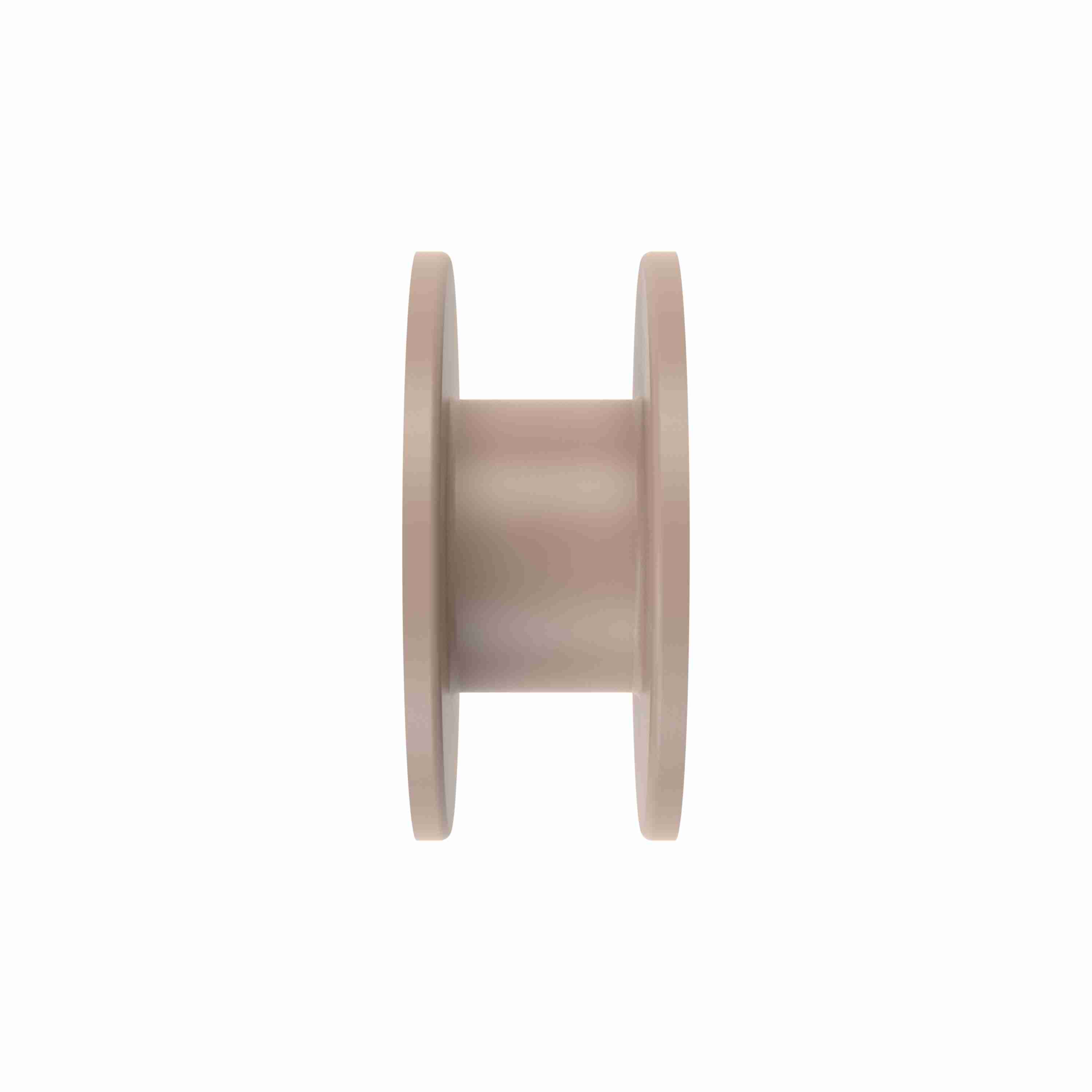

Rexnord 820 Series Solid One Piece Molded Tan Low Friction Idler Wheel with 21 Teeth and 1-1/2in Round Idler Bore - 101-8253-5
Part #:10012461
Catalog #:101-8253-5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Material: | Tan Low Friction | Product Group: | TableTop® |
| Pitch Diameter (mm): | 127.82 | Bore Shape: | Round |
| Pitch Diameter (in): | 5.032 | Body Style: | Block |
| Sprocket Construction: | Molded Non-Split Drum | Bore Diameter (in): | 1-1/2 in |
| Number of Set Screws: | None | Sprocket Series: | 820 |
| Bore Type: | Idler | Number of Keyways: | 0 |
| Number of Teeth: | 21 | Chain Number: | 820 |
| Product Line: | Chain and Belt Sprockets |
General Specifications
| UPC: | 698210642341 | Weight: | 0.40 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
