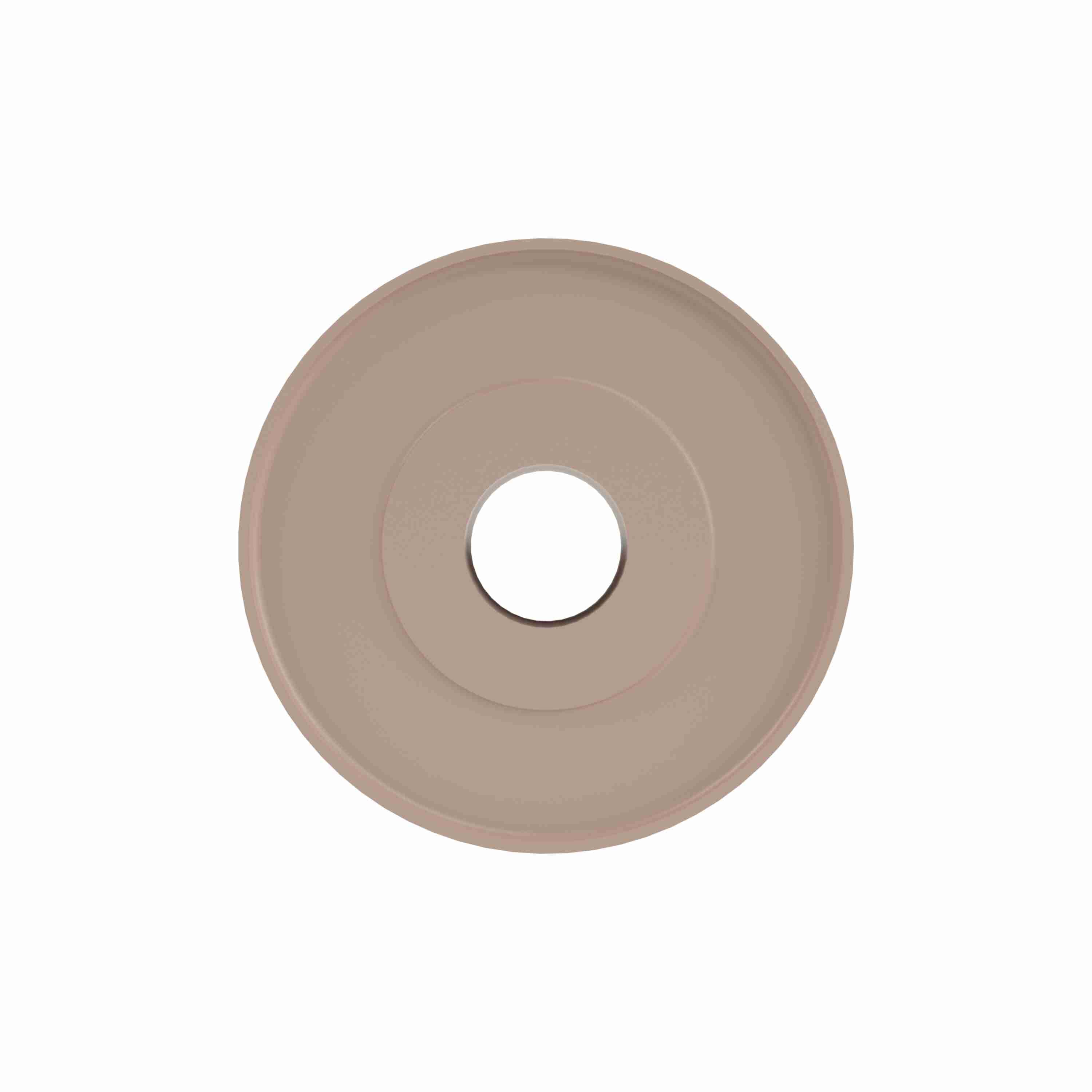

Rexnord 820 Series Solid One Piece Molded Tan Low Friction Idler Wheel with 23 Teeth and 1-3/16in Round Idler Bore - 101-8254-6
Part #:10012471
Catalog #:101-8254-6
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Body Style: | Block | Pitch Diameter (in): | 5.508 |
| Number of Teeth: | 23 | Number of Keyways: | 0 |
| Sprocket Construction: | Molded Non-Split Drum | Bore Diameter (in): | 1-3/16 in |
| Pitch Diameter (mm): | 139.9 | Product Group: | TableTop® |
| Chain Number: | 820 | Sprocket Series: | 820 |
| Number of Set Screws: | None | Product Line: | Chain and Belt Sprockets |
| Material: | Tan Low Friction | Bore Type: | Idler |
| Bore Shape: | Round |
General Specifications
| UPC: | 698210719173 | Weight: | 0.40 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483908080 |
| Country of Origin: | Mexico |
