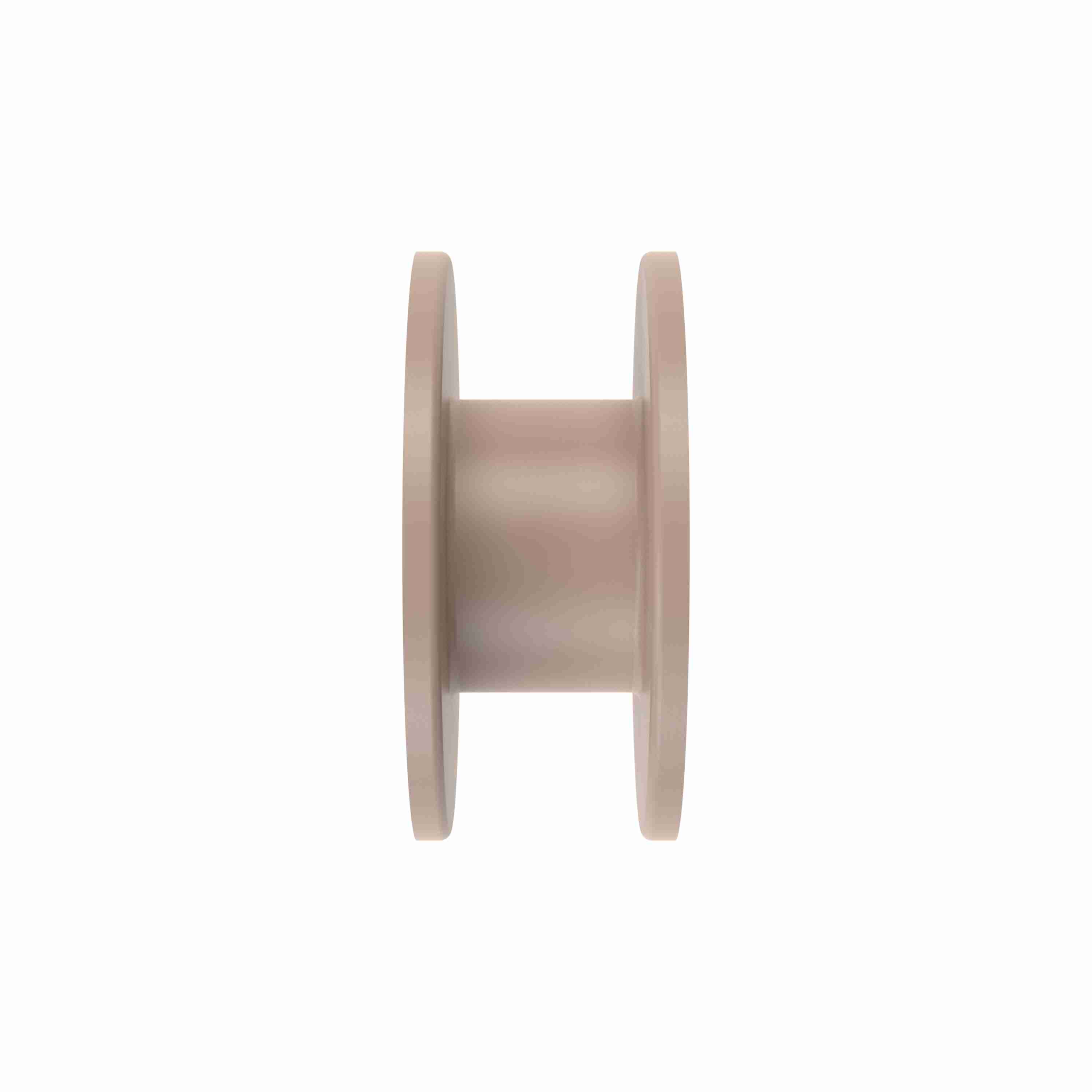

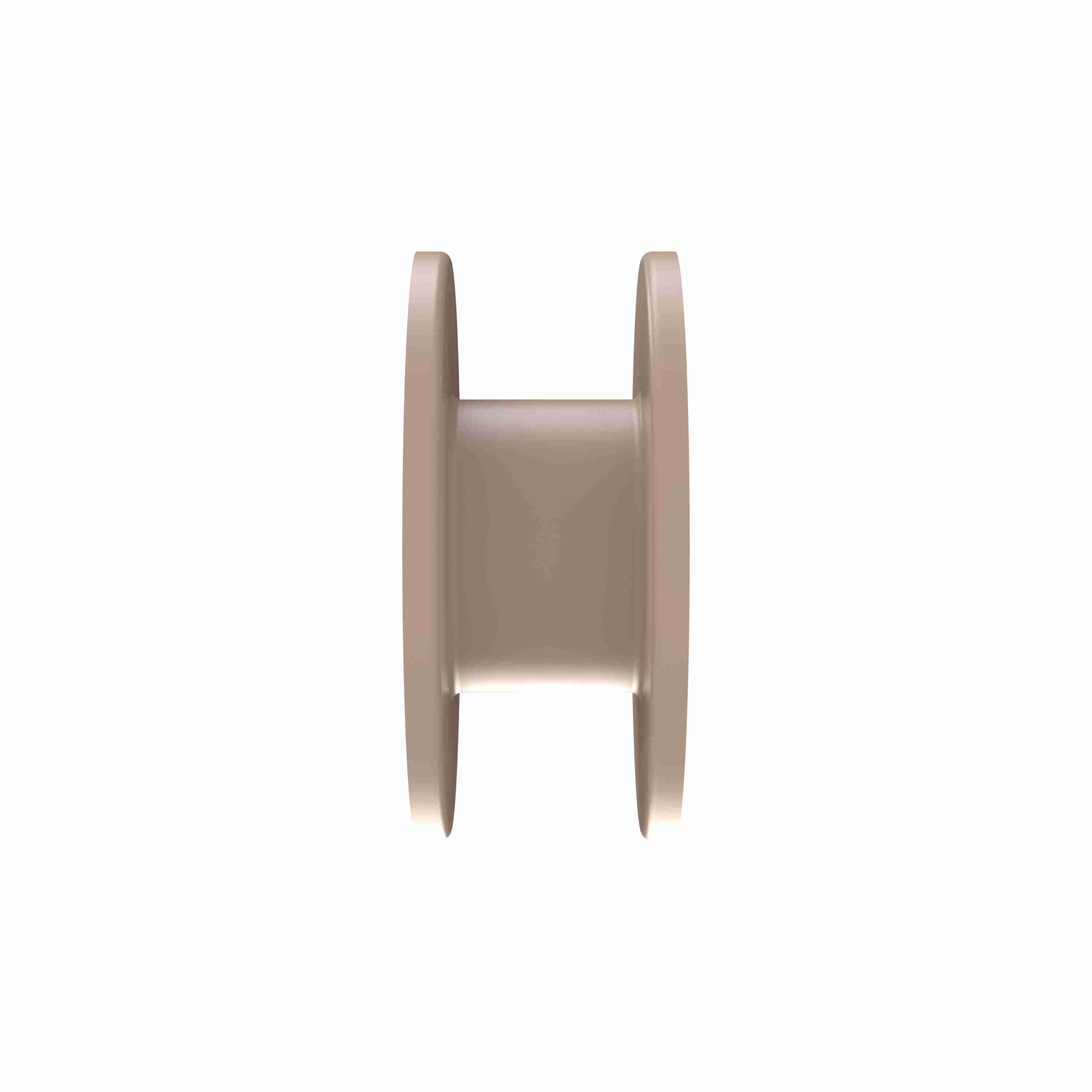

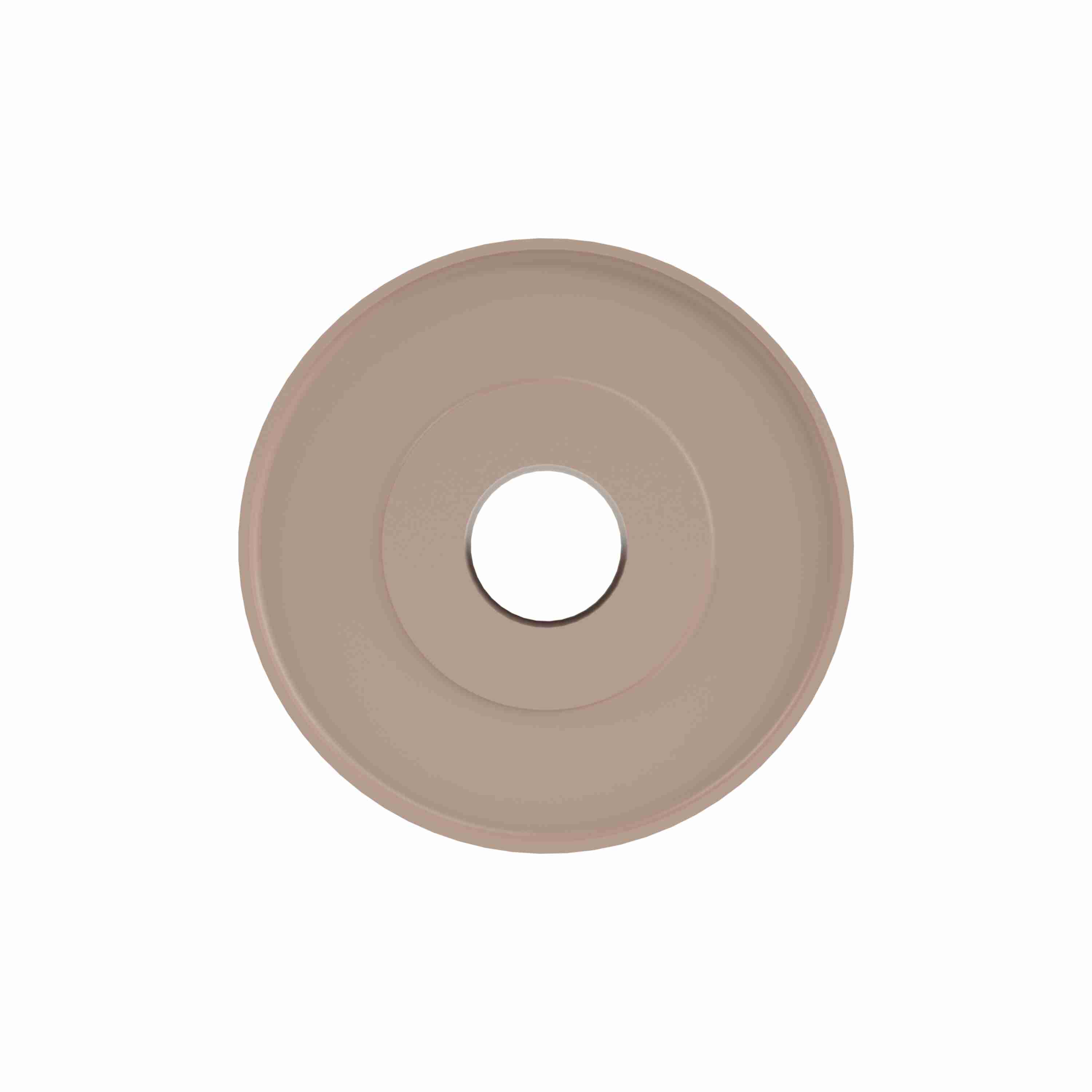

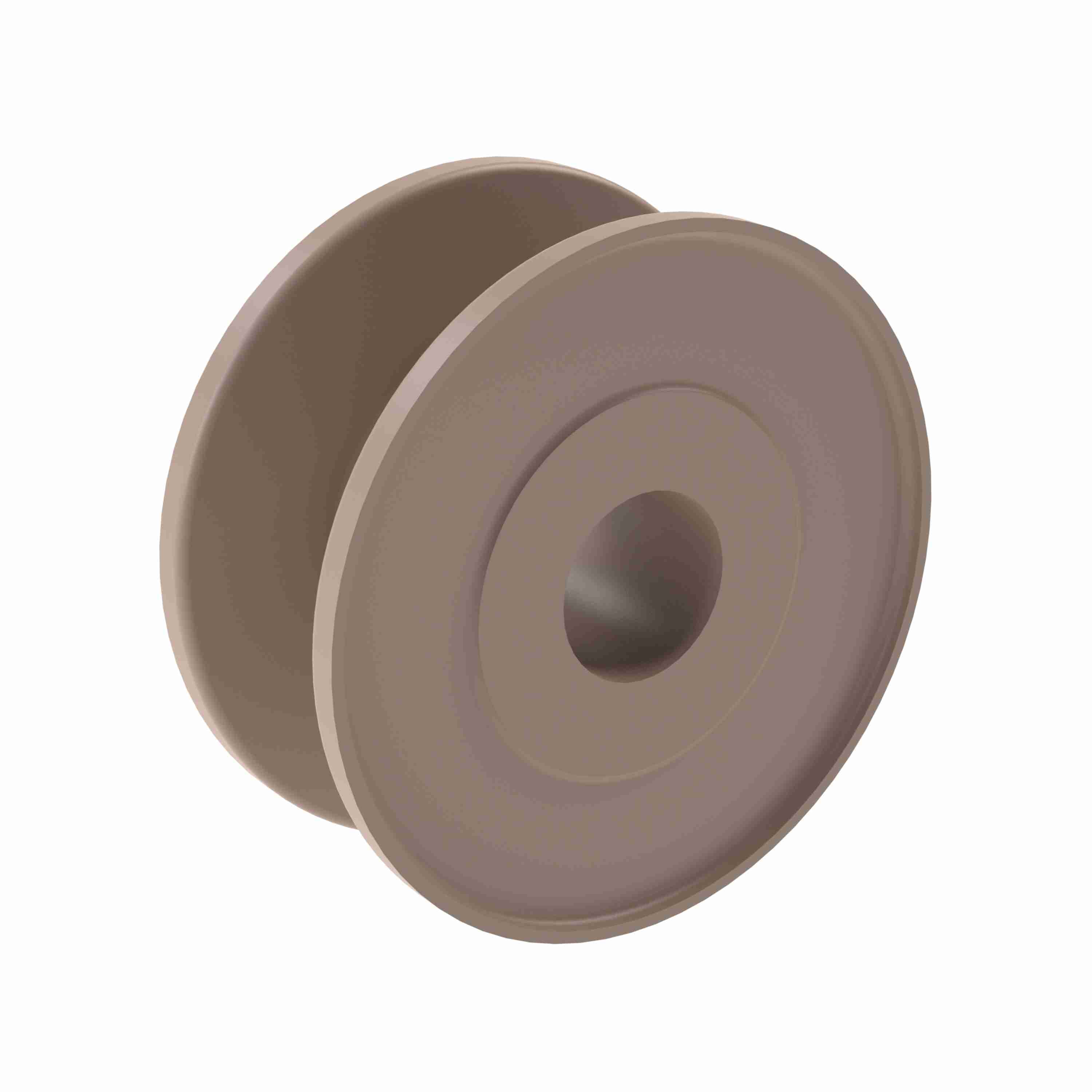

Rexnord 820 Series Solid One Piece Molded Tan Low Friction Idler Wheel with 23 Teeth and 25mm Round Idler Bore - 101-8254-15
Part #:10012463
Catalog #:101-8254-15
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Chain and Belt Sprockets | Material: | Tan Low Friction |
| Sprocket Construction: | Molded Non-Split Drum | Pitch Diameter (mm): | 139.9 |
| Number of Teeth: | 23 | Pitch Diameter (in): | 5.508 |
| Bore Diameter (mm): | 25 mm | Body Style: | Block |
| Bore Shape: | Round | Sprocket Series: | 820 |
| Number of Set Screws: | None | Number of Keyways: | 0 |
| Hub Type: | C-HUB | Bore Type: | Idler |
| Product Group: | TableTop® | Chain Number: | 820 |
General Specifications
| UPC: | 698210848590 | Weight: | 0.40 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
