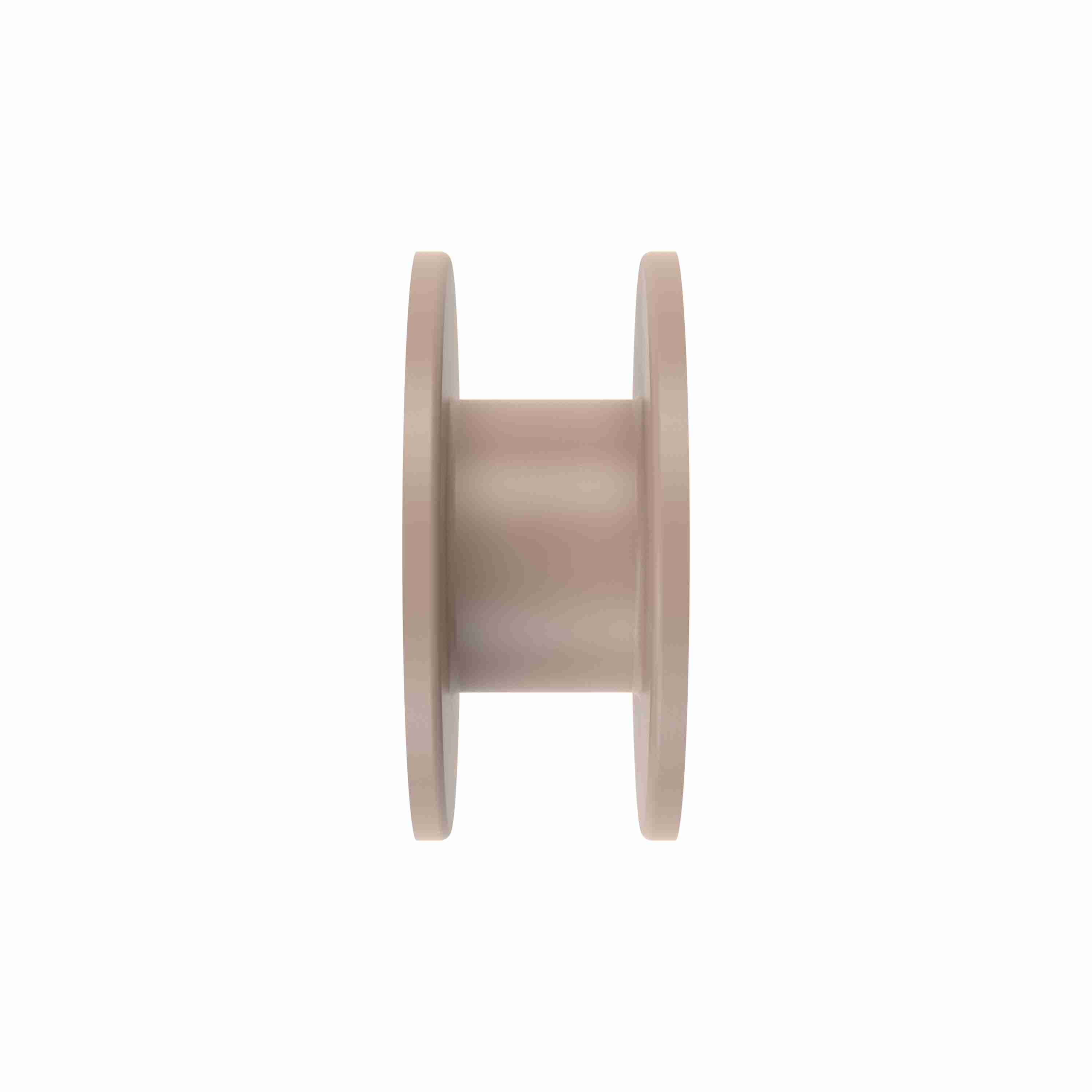

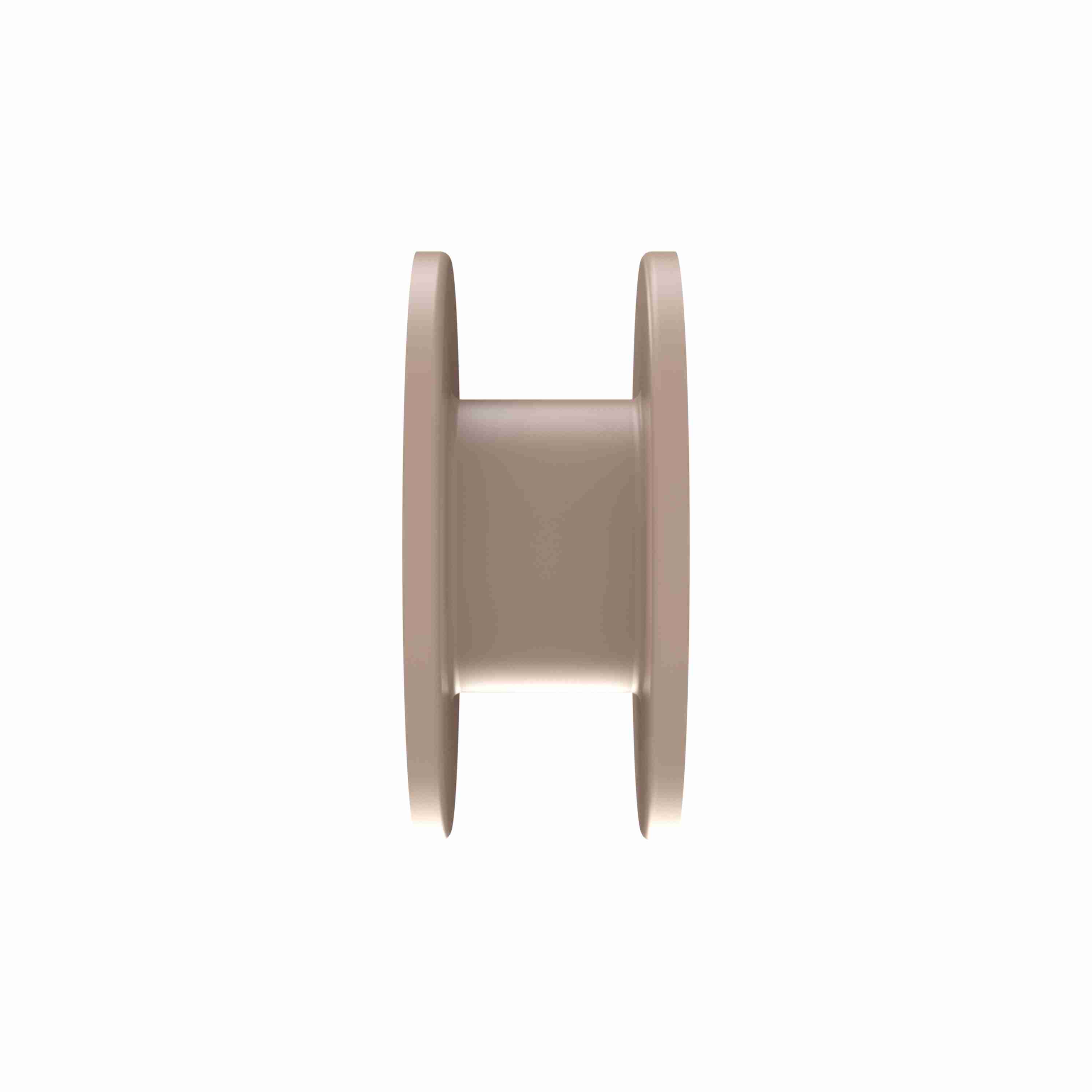

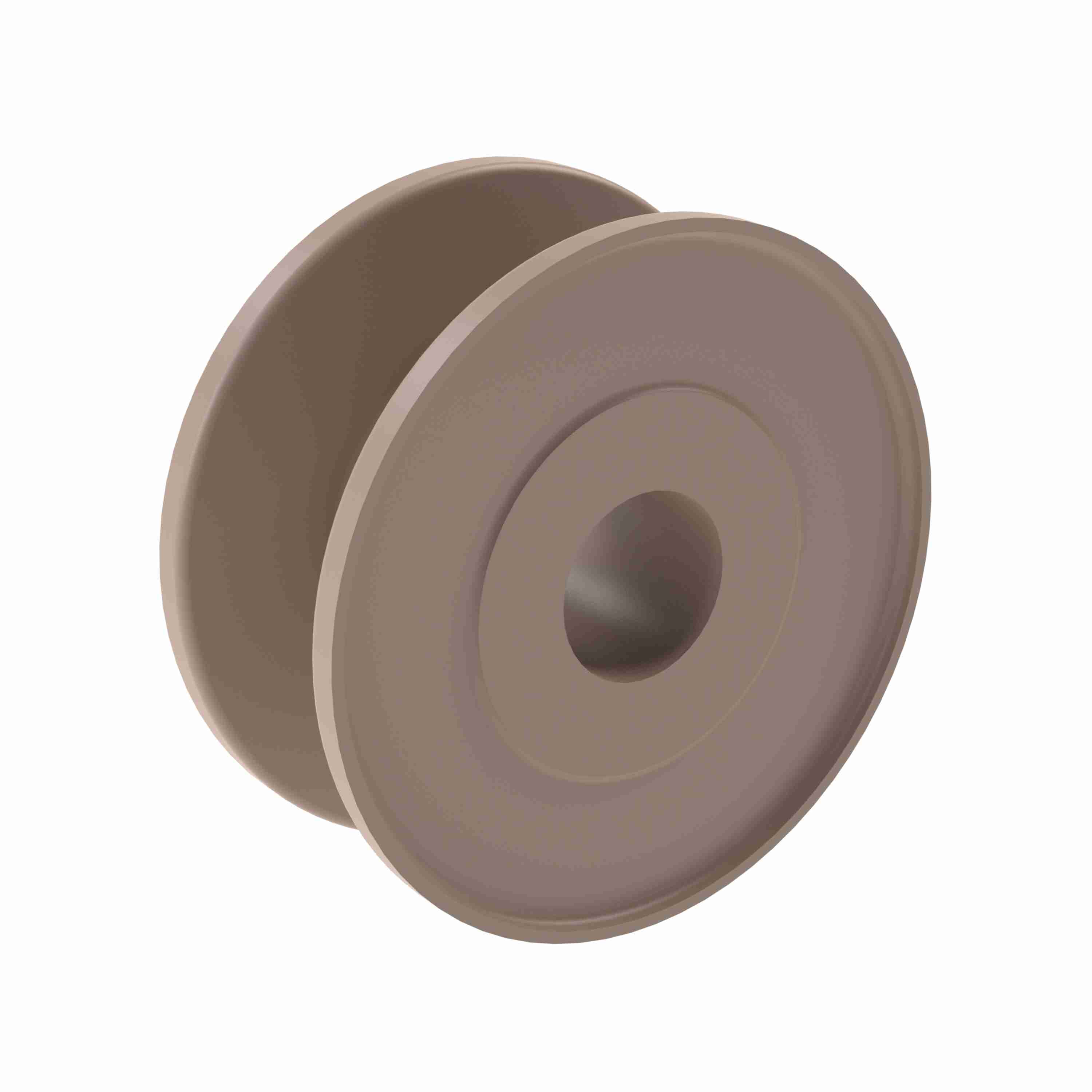

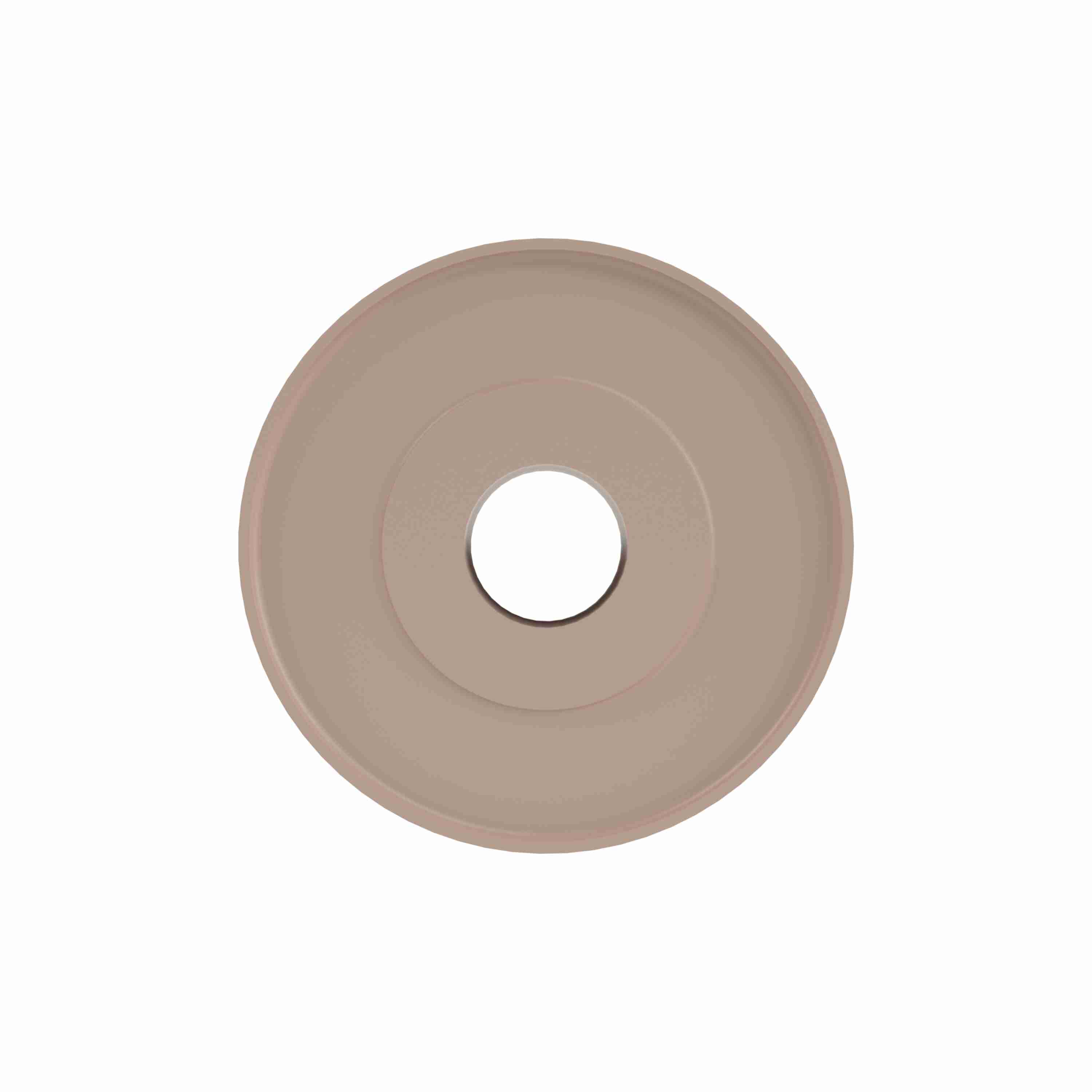

Rexnord 820 Series Solid One Piece Molded Tan Low Friction Idler Wheel with 23 Teeth and 40mm Round Idler Bore - 101-8254-18
Part #:10012466
Catalog #:101-8254-18
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Shape: | Round | Sprocket Series: | 820 |
| Pitch Diameter (in): | 5.508 | Bore Type: | Idler |
| Number of Keyways: | 0 | Material: | Tan Low Friction |
| Number of Set Screws: | None | Product Line: | Chain and Belt Sprockets |
| Hub Type: | C-HUB | Sprocket Construction: | Molded Non-Split Drum |
| Bore Diameter (mm): | 40 mm | Product Group: | TableTop® |
| Number of Teeth: | 23 | Pitch Diameter (mm): | 139.9 |
| Chain Number: | 820 | Body Style: | Block |
General Specifications
| UPC: | 698210848569 | Weight: | 0.40 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483908080 |
| Country of Origin: | Mexico |
