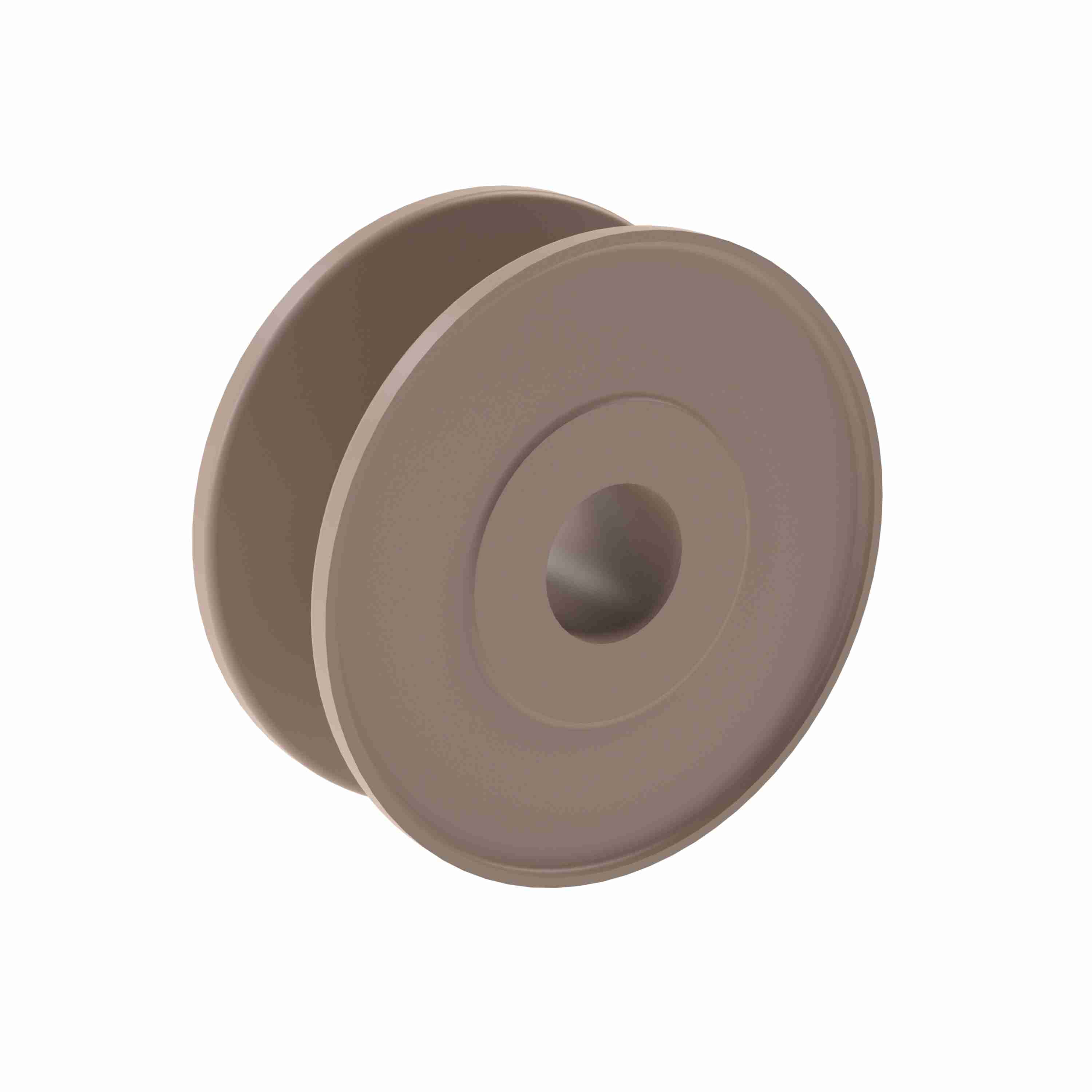

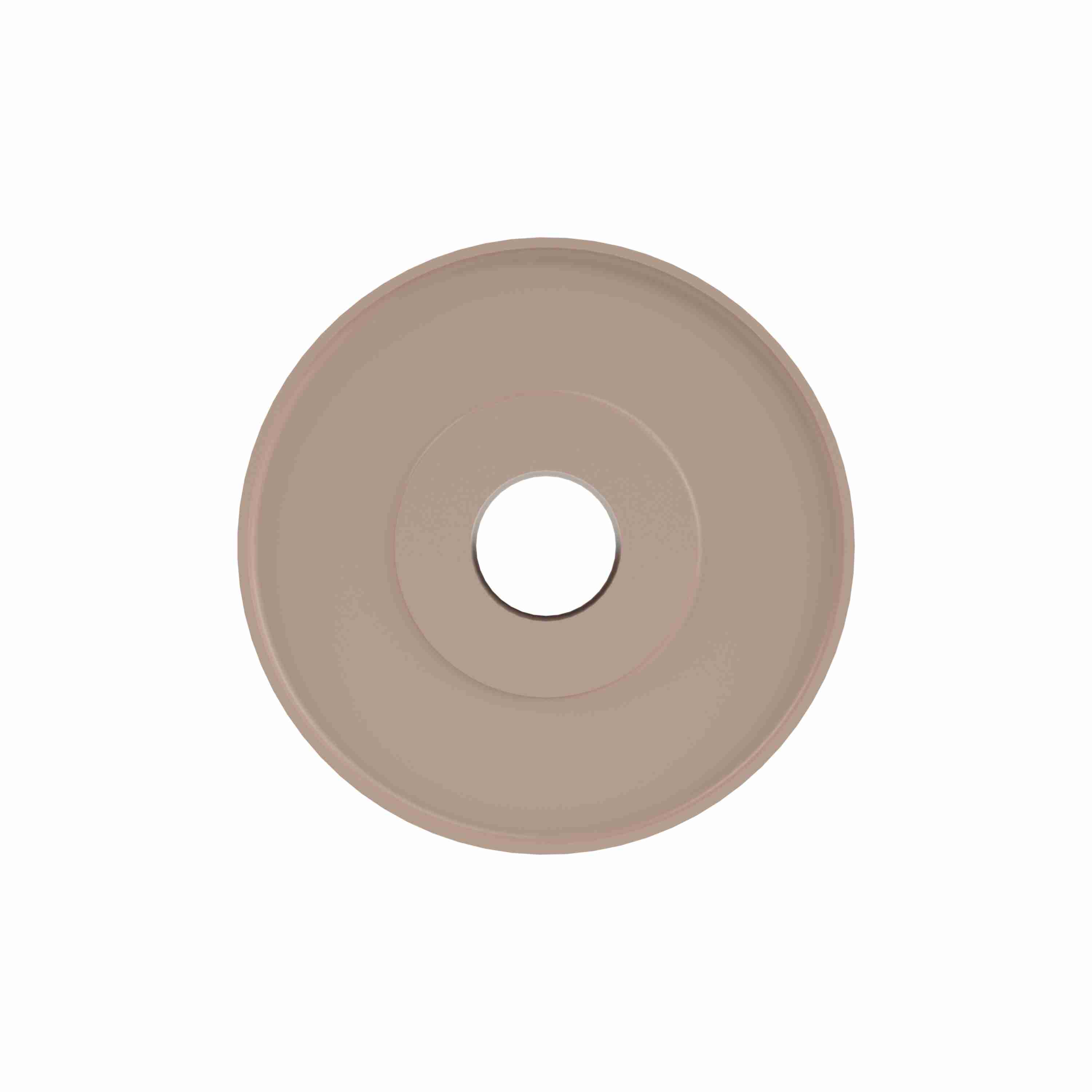

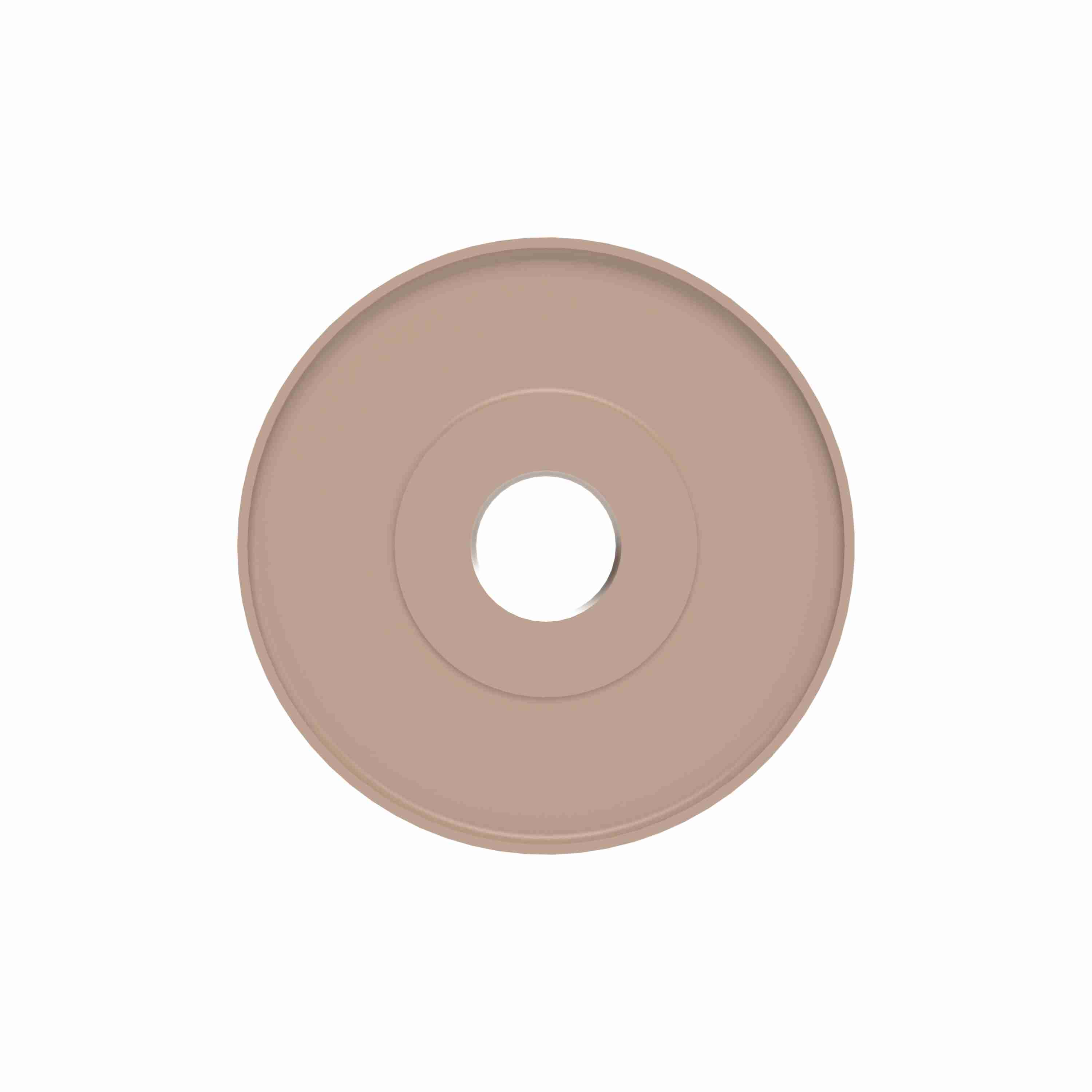

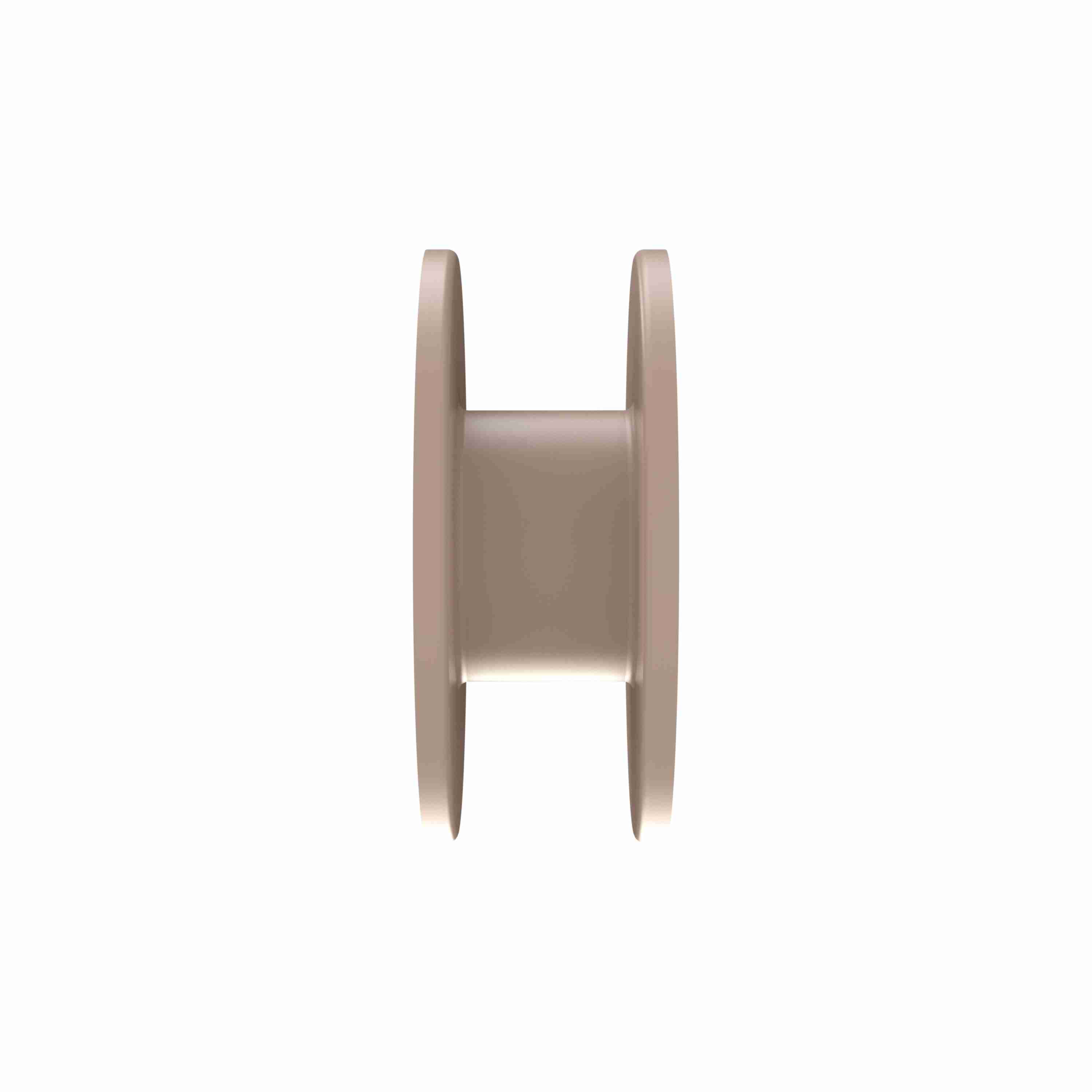

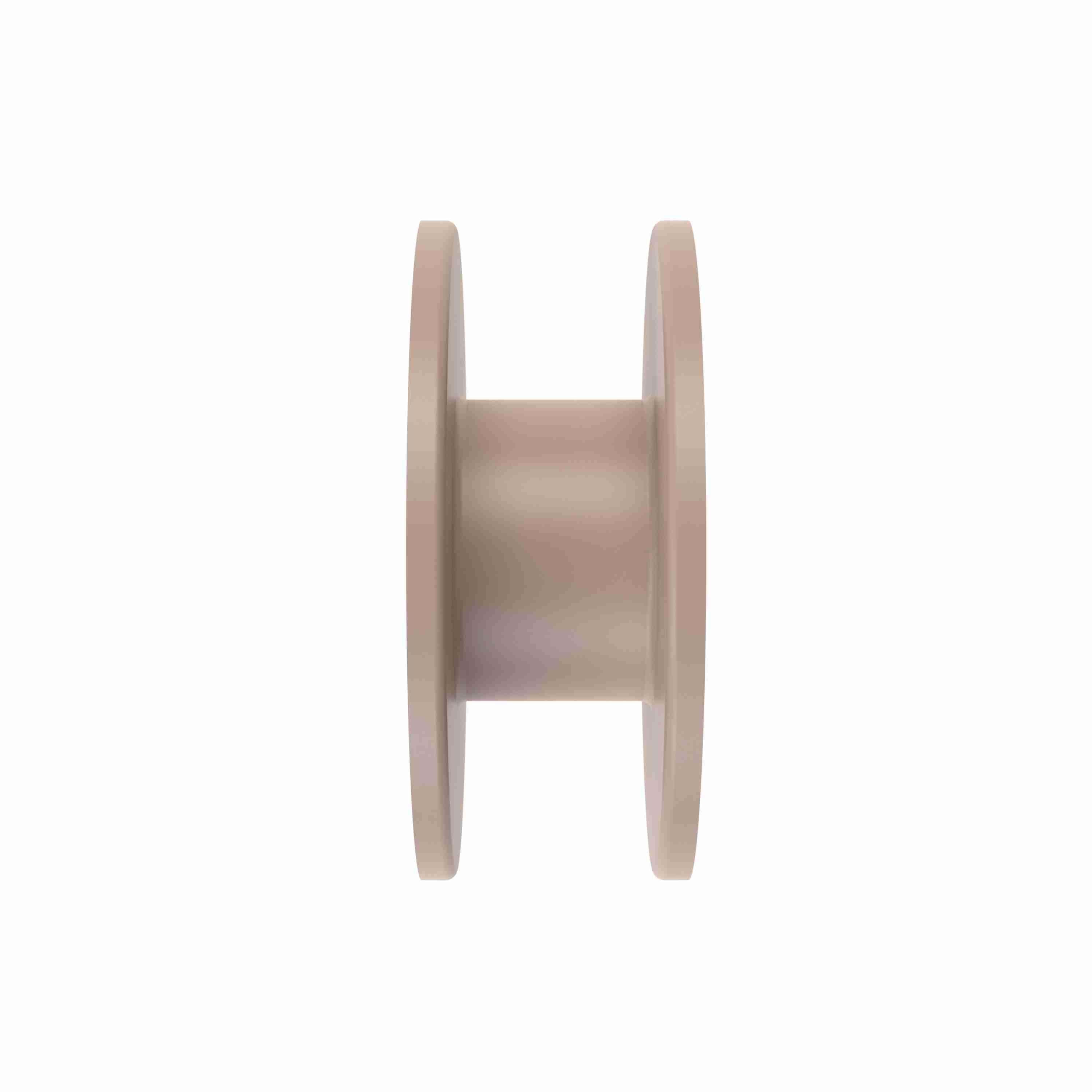

Rexnord 820 Series Solid One Piece Molded Tan Low Friction Idler Wheel with 25 Teeth and 1-7/16in Round Idler Bore - 101-8255-13
Part #:10068534
Catalog #:101-8255-13
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Construction: | Molded Non-Split Drum | Sprocket Series: | 820 |
| Pitch Diameter (mm): | 151.99 | Number of Keyways: | 0 |
| Number of Set Screws: | None | Chain Number: | 820 |
| Bore Shape: | Round | Product Group: | TableTop® |
| Product Line: | Chain and Belt Sprockets | Pitch Diameter (in): | 5.984 |
| Bore Diameter (in): | 1-7/16 in | Bore Type: | Idler |
| Number of Teeth: | 25 | Material: | Tan Low Friction |
| Body Style: | Block |
General Specifications
| UPC: | 698210836511 | Weight: | 0.50 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
