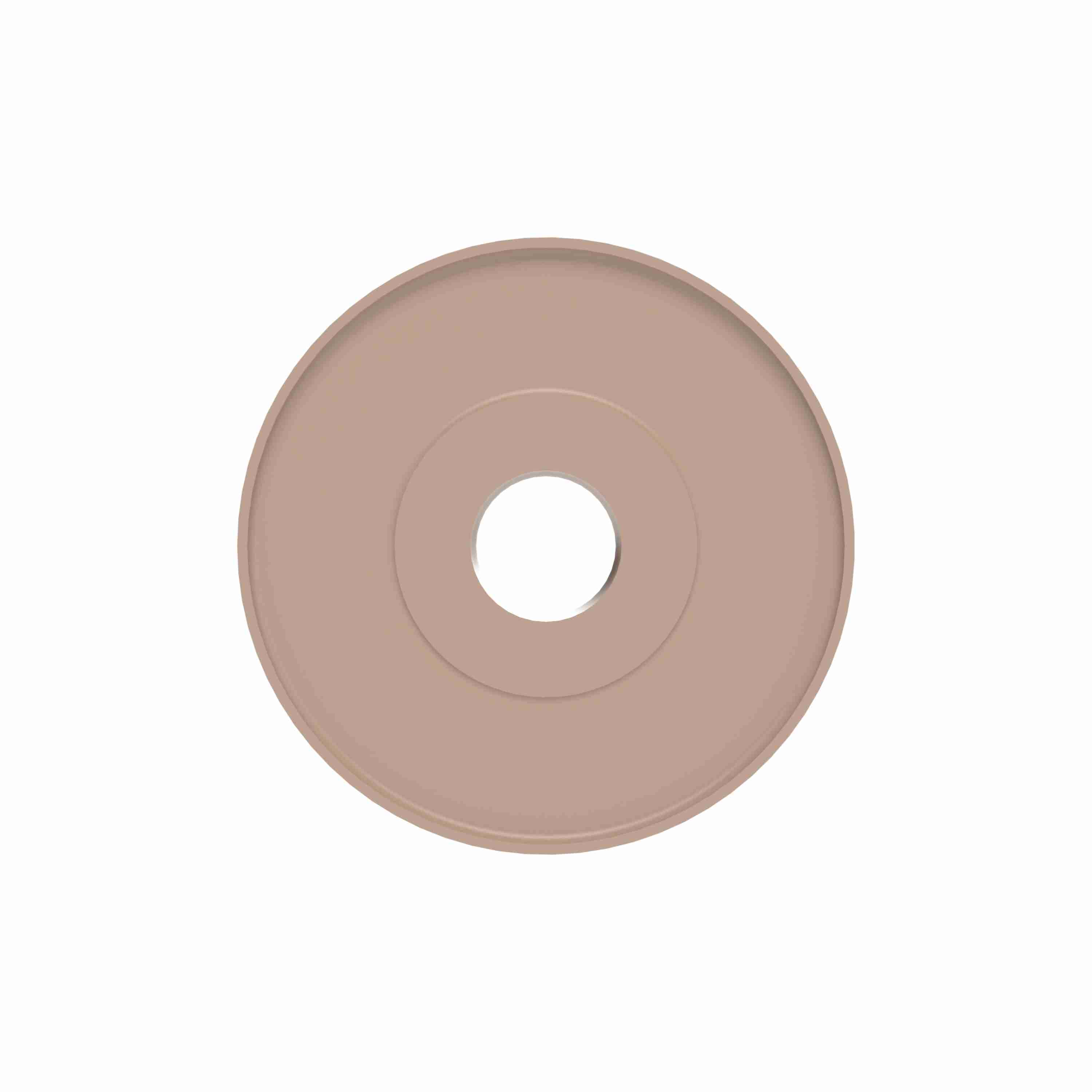

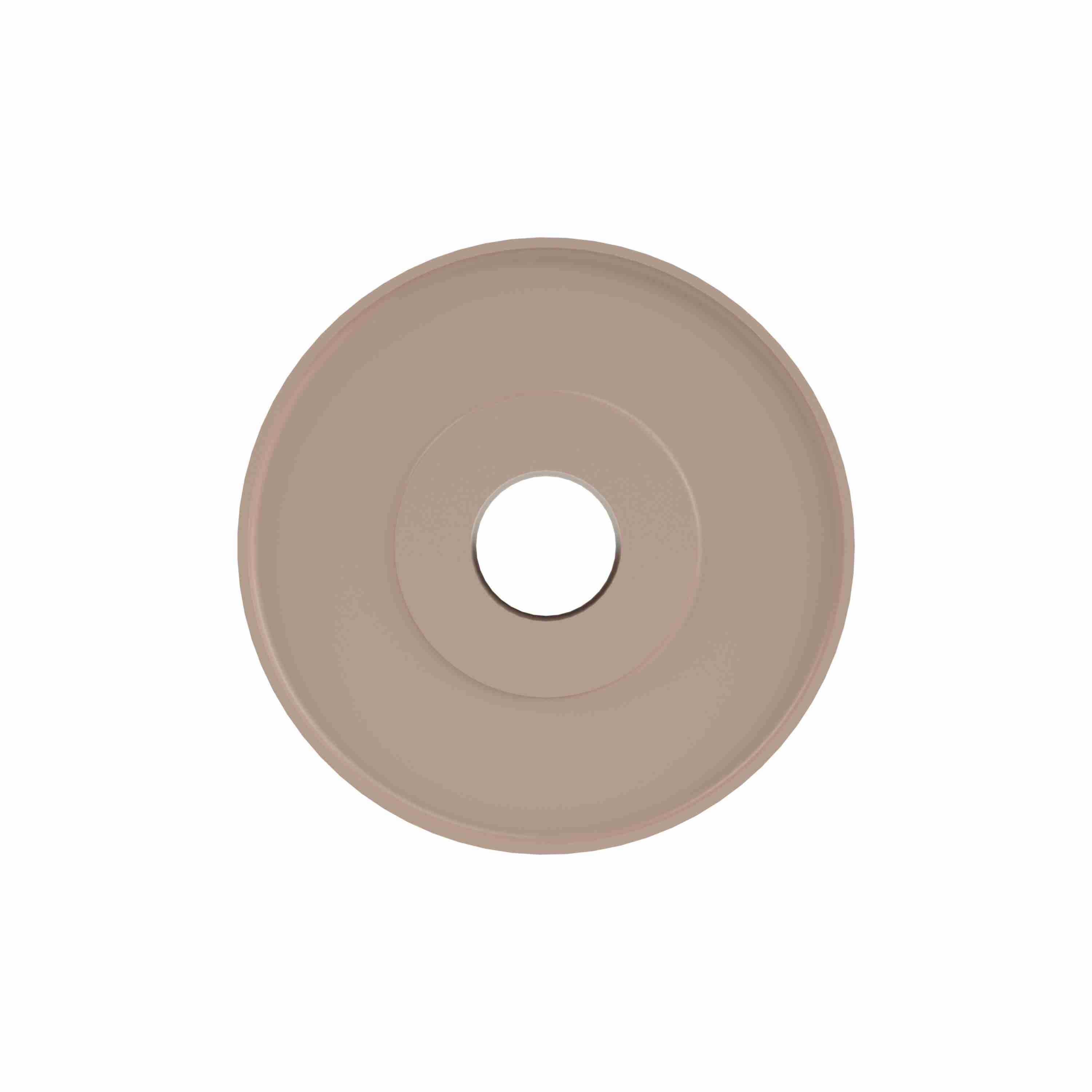

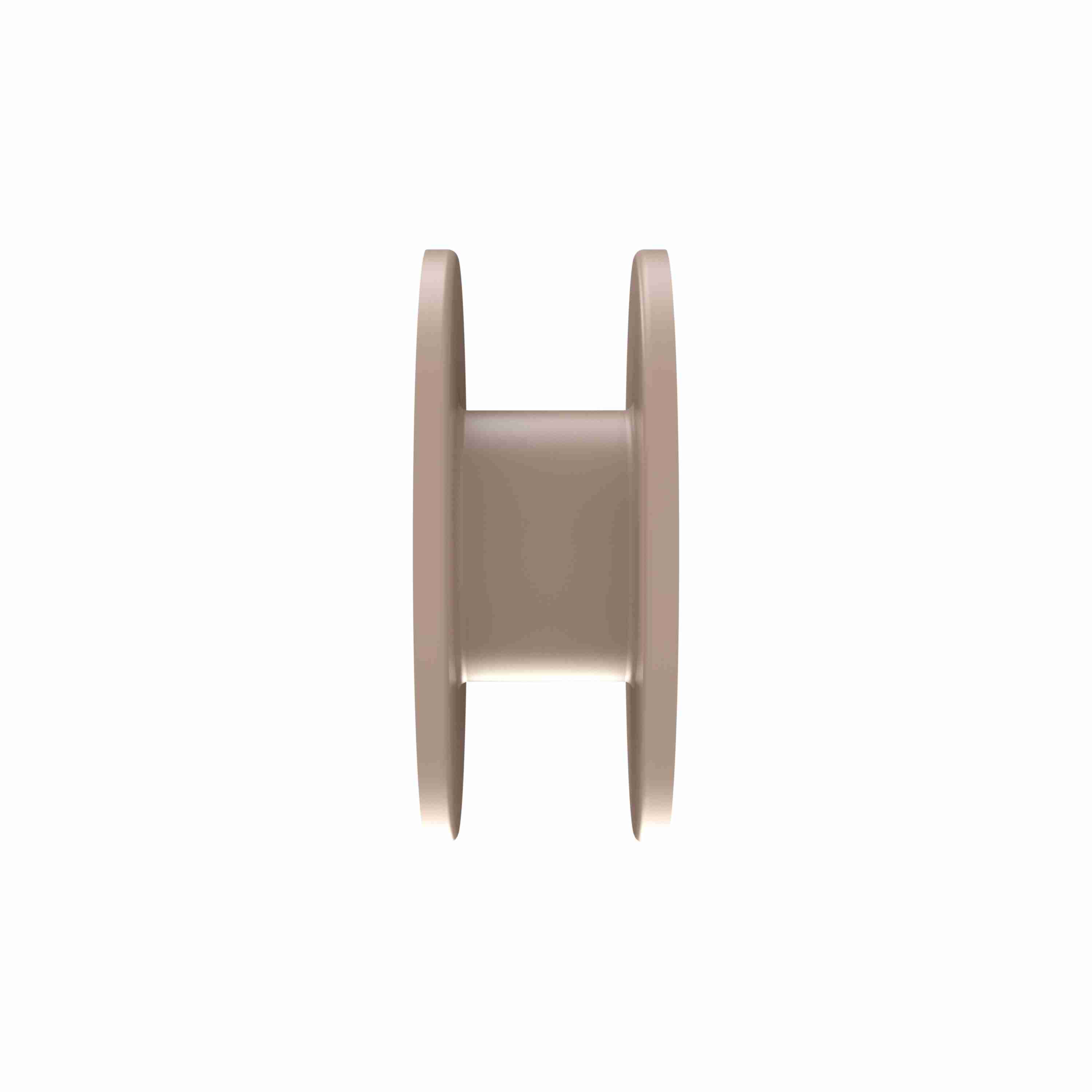

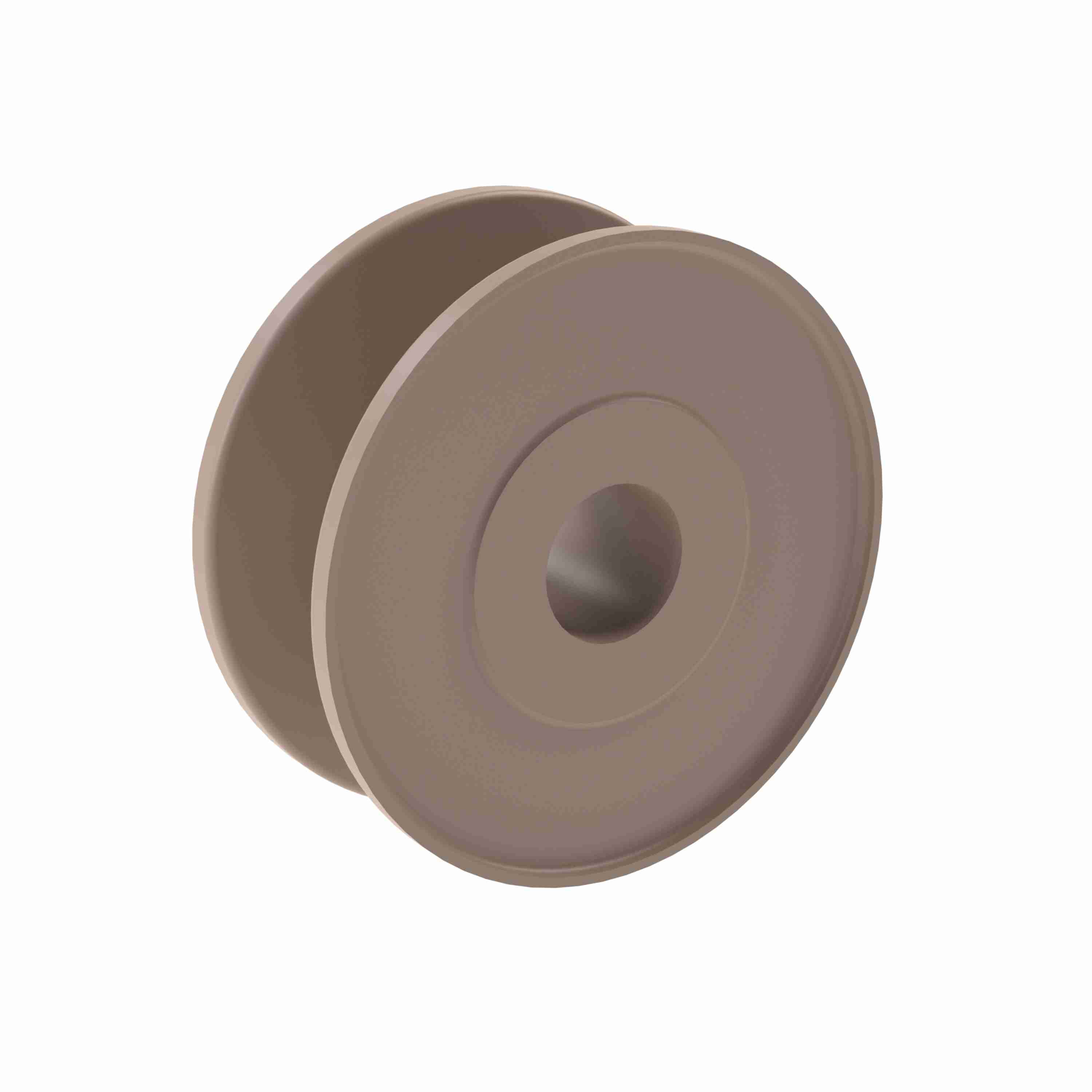

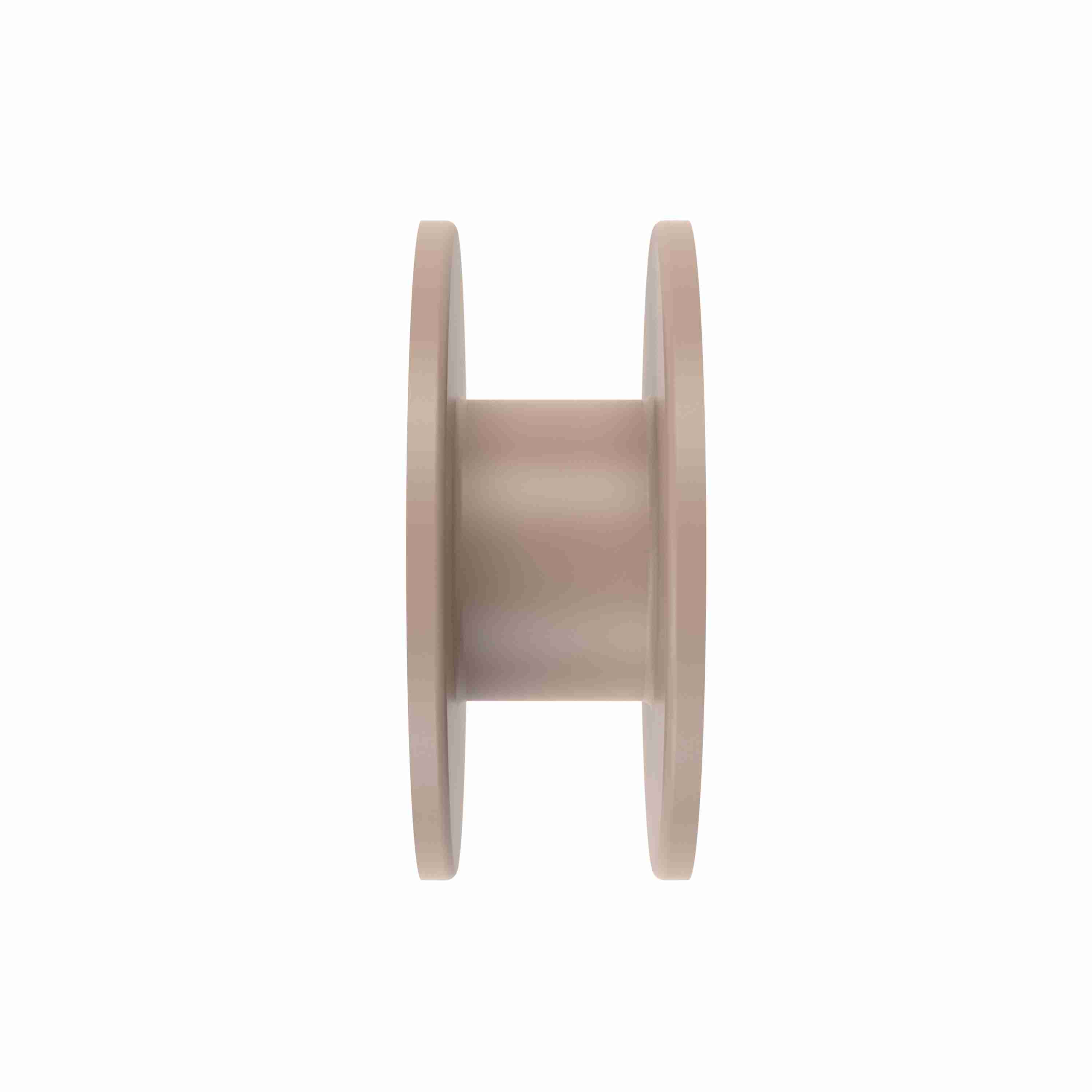

Rexnord 820 Series Solid One Piece Molded Tan Low Friction Idler Wheel with 25 Teeth and 25mm Round Idler Bore - 101-8255-15
Part #:10012472
Catalog #:101-8255-15
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Pitch Diameter (in): | 5.984 | Product Line: | Chain and Belt Sprockets |
| Bore Shape: | Round | Sprocket Series: | 820 |
| Number of Teeth: | 25 | Material: | Tan Low Friction |
| Number of Keyways: | 0 | Chain Number: | 820 |
| Bore Type: | Idler | Number of Set Screws: | None |
| Hub Type: | C-HUB | Bore Diameter (mm): | 25 mm |
| Body Style: | Block | Product Group: | TableTop® |
| Sprocket Construction: | Molded Non-Split Drum | Pitch Diameter (mm): | 151.99 |
General Specifications
| UPC: | 698210848545 | Weight: | 0.50 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483908080 |
| Country of Origin: | Mexico |
