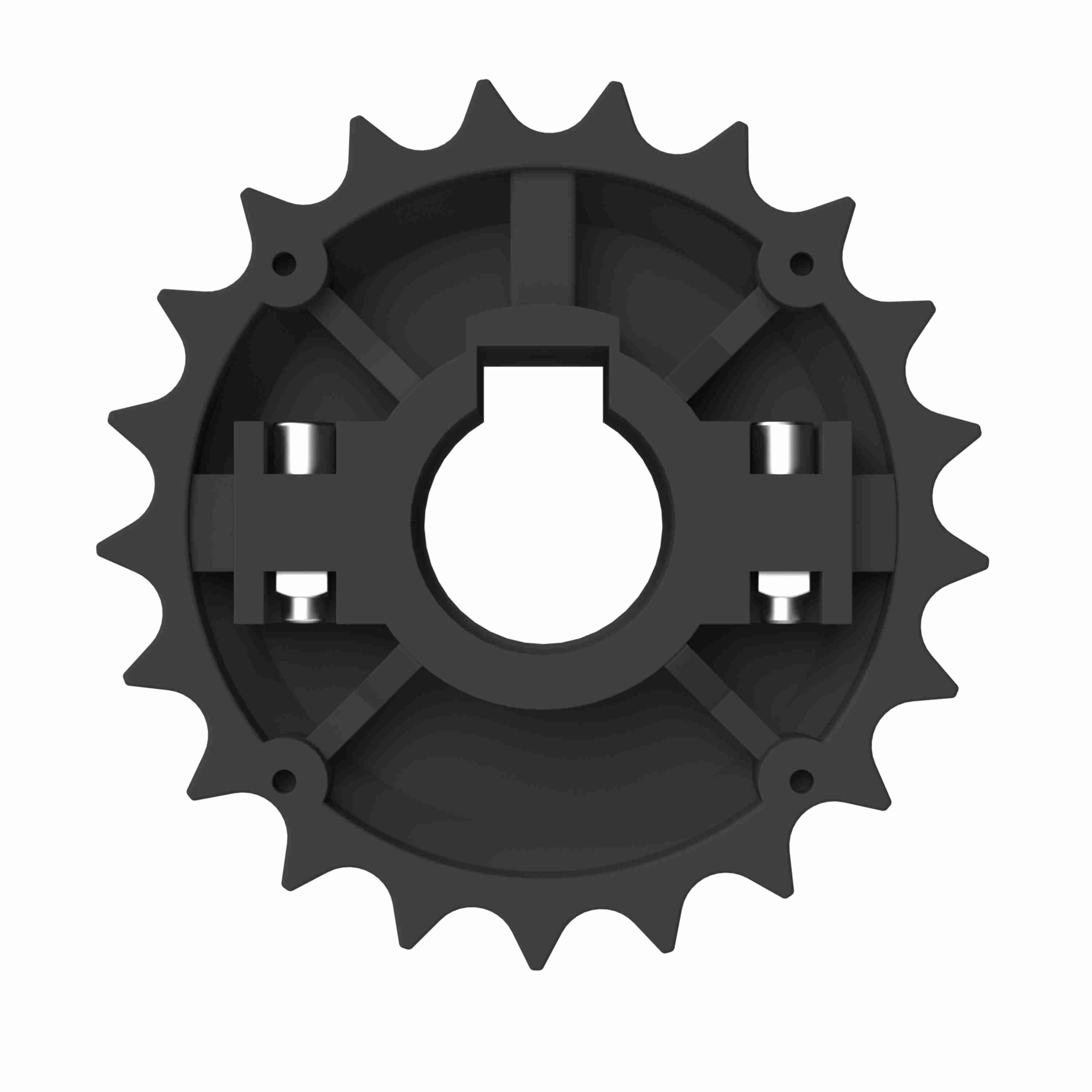

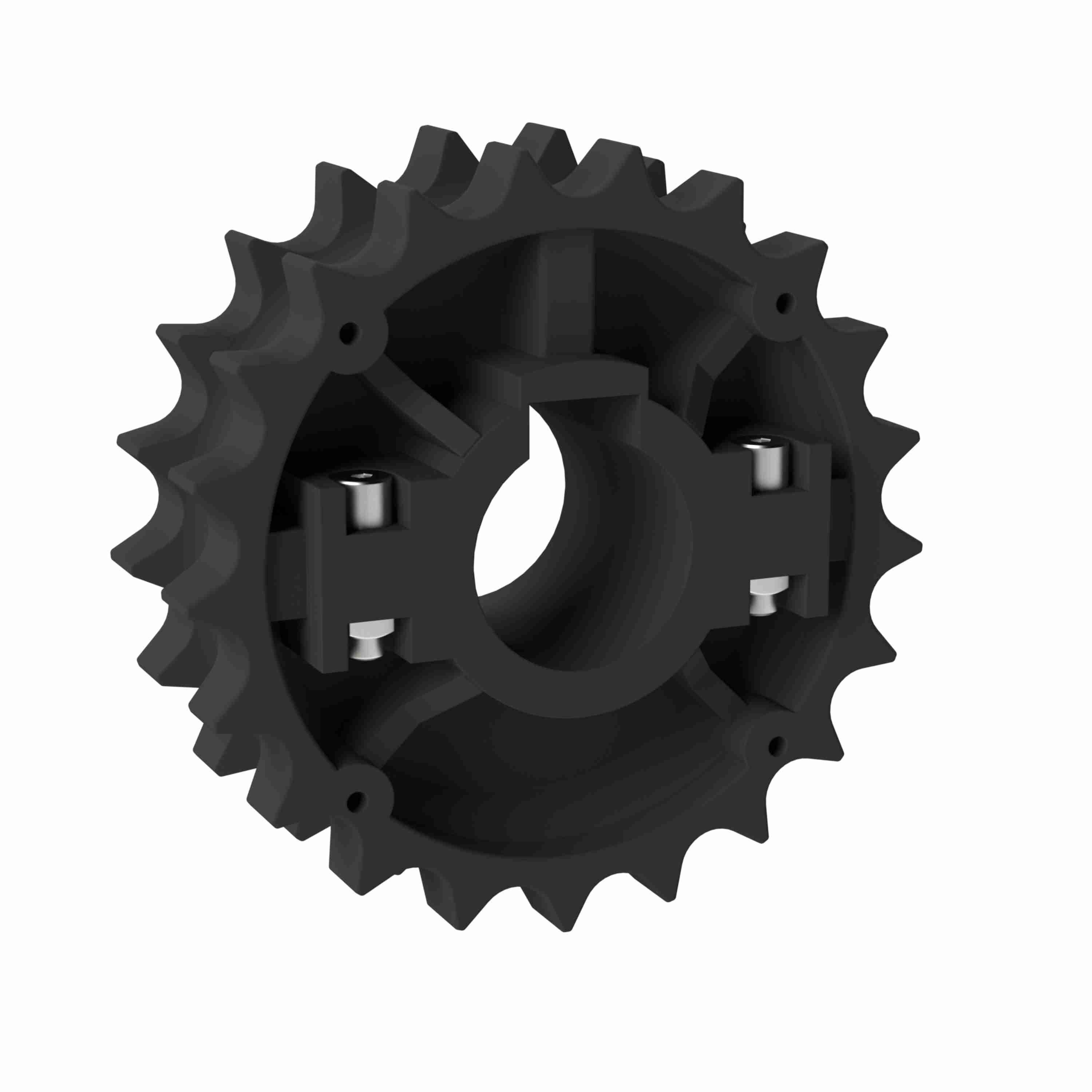

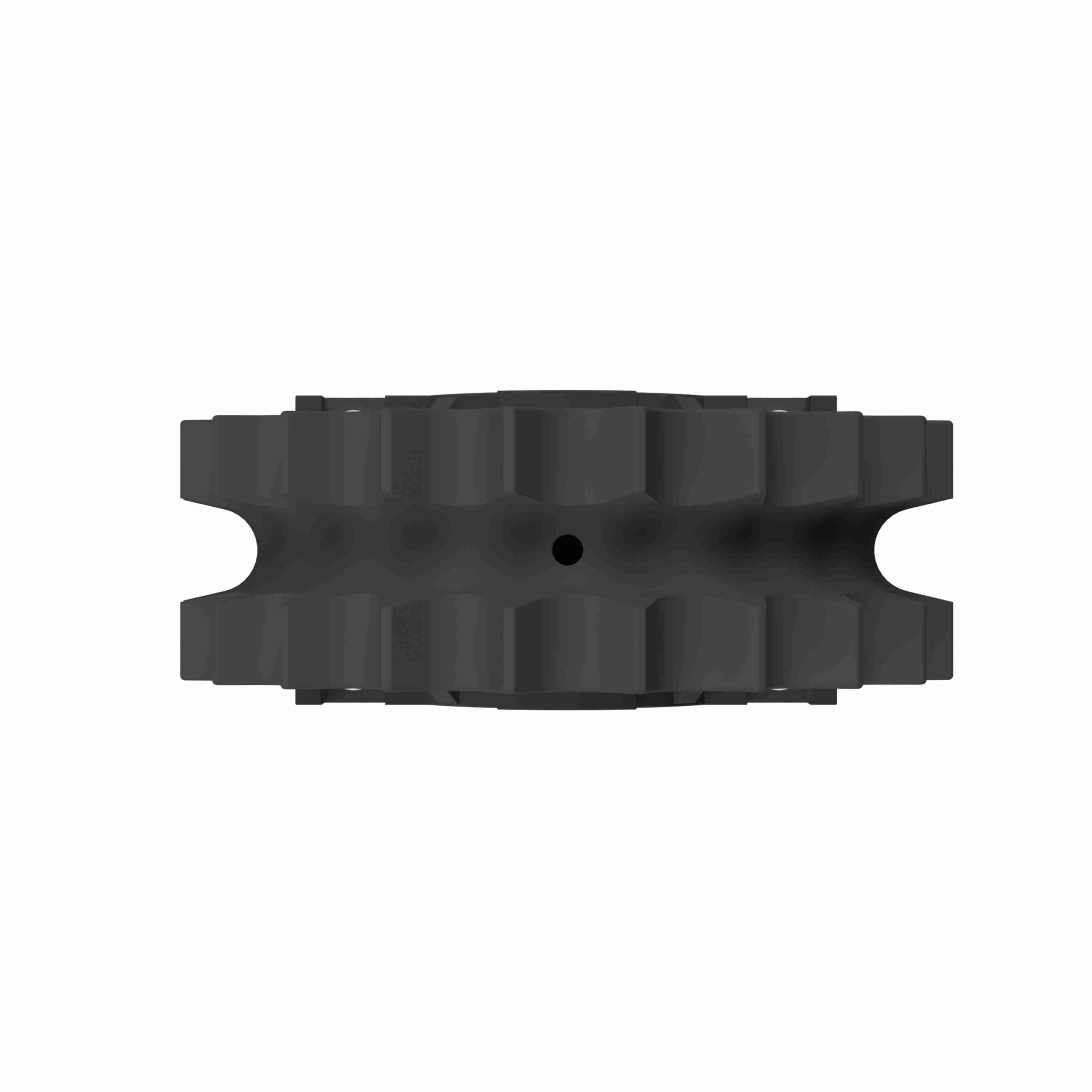

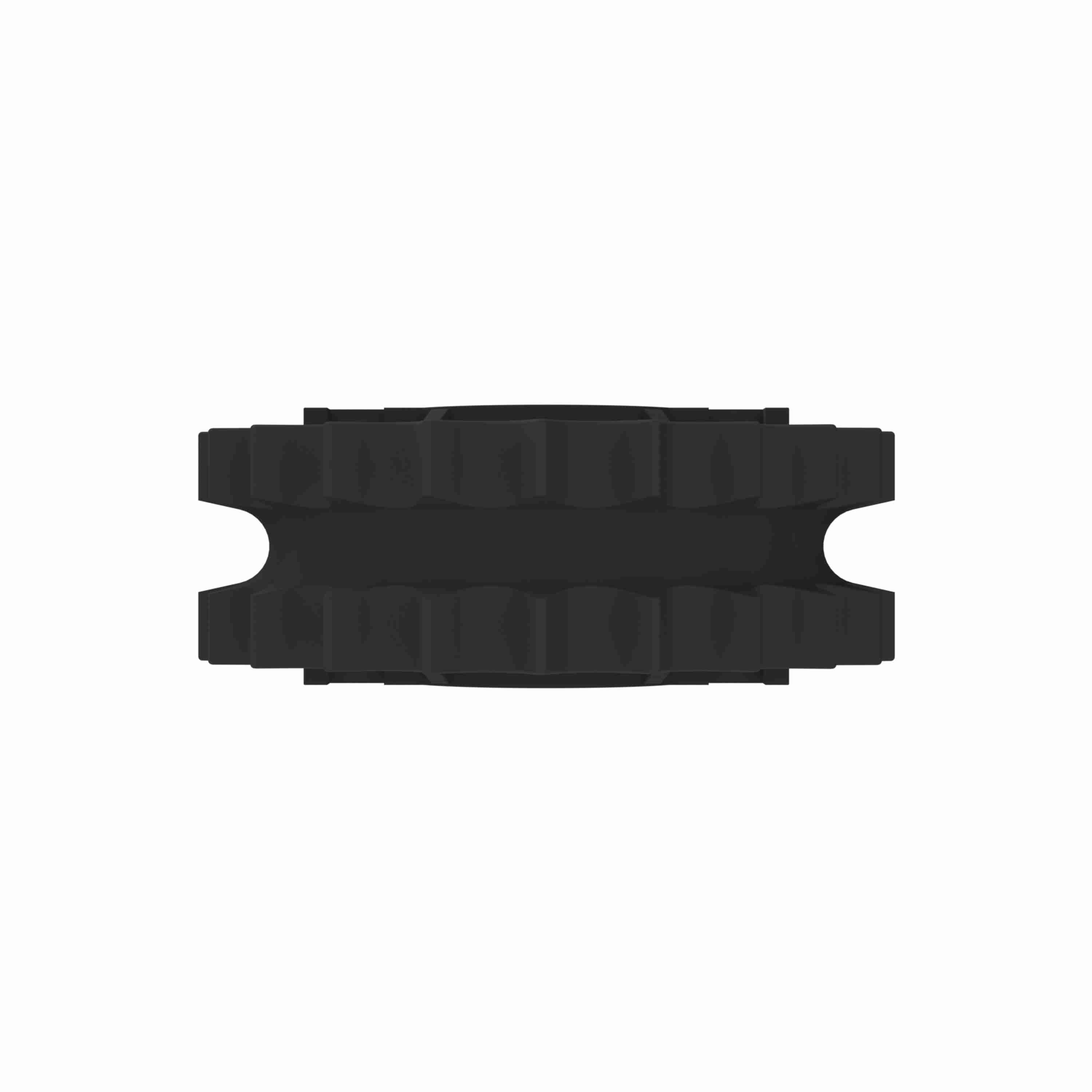

Rexnord 820 Series Split Molded Nylon Sprocket and a 21 Teeth with 1-1/2in Round Shaft-Ready Bore with Keyway & Setscrew - 614-38-11
Part #:10028626
Catalog #:614-38-11
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Shape: | Round | Number of Keyways: | 1 |
| Body Style: | Block | Product Line: | Chain and Belt Sprockets |
| Pitch Diameter (mm): | 127.82 | Number of Teeth: | 21 |
| Hub Type: | C-HUB | Material: | Nylon |
| Product Group: | TableTop® | Bore Diameter (in): | 1-1/2 in |
| Number of Set Screws: | 1 Setscrew | Sprocket Series: | 820 |
| Sprocket Construction: | Molded Split Sprocket | Pitch Diameter (in): | 5.032 |
| Chain Number: | 820 | Bore Type: | Shaft-Ready |
General Specifications
| UPC: | 793699412987 | Weight: | 1.01 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
