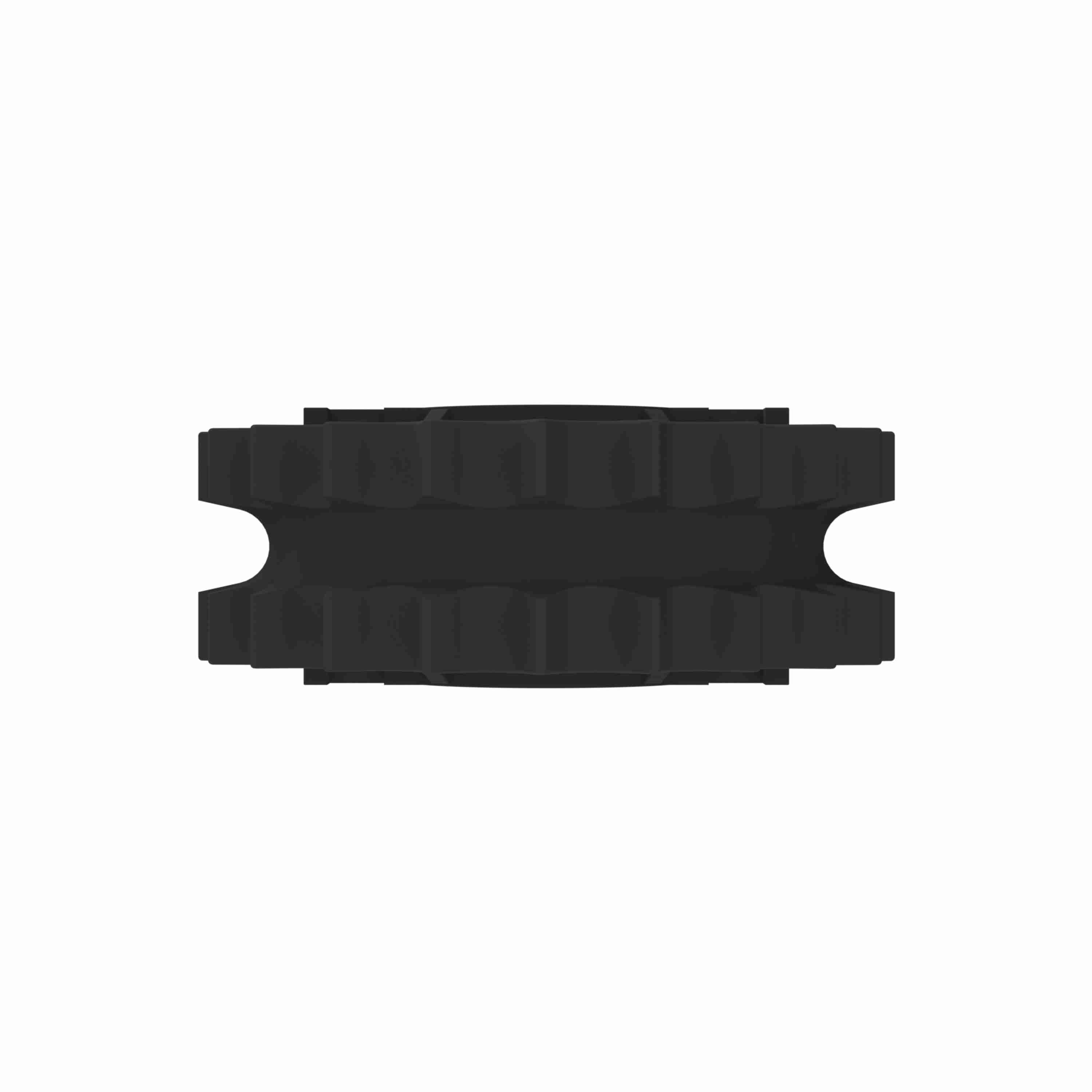

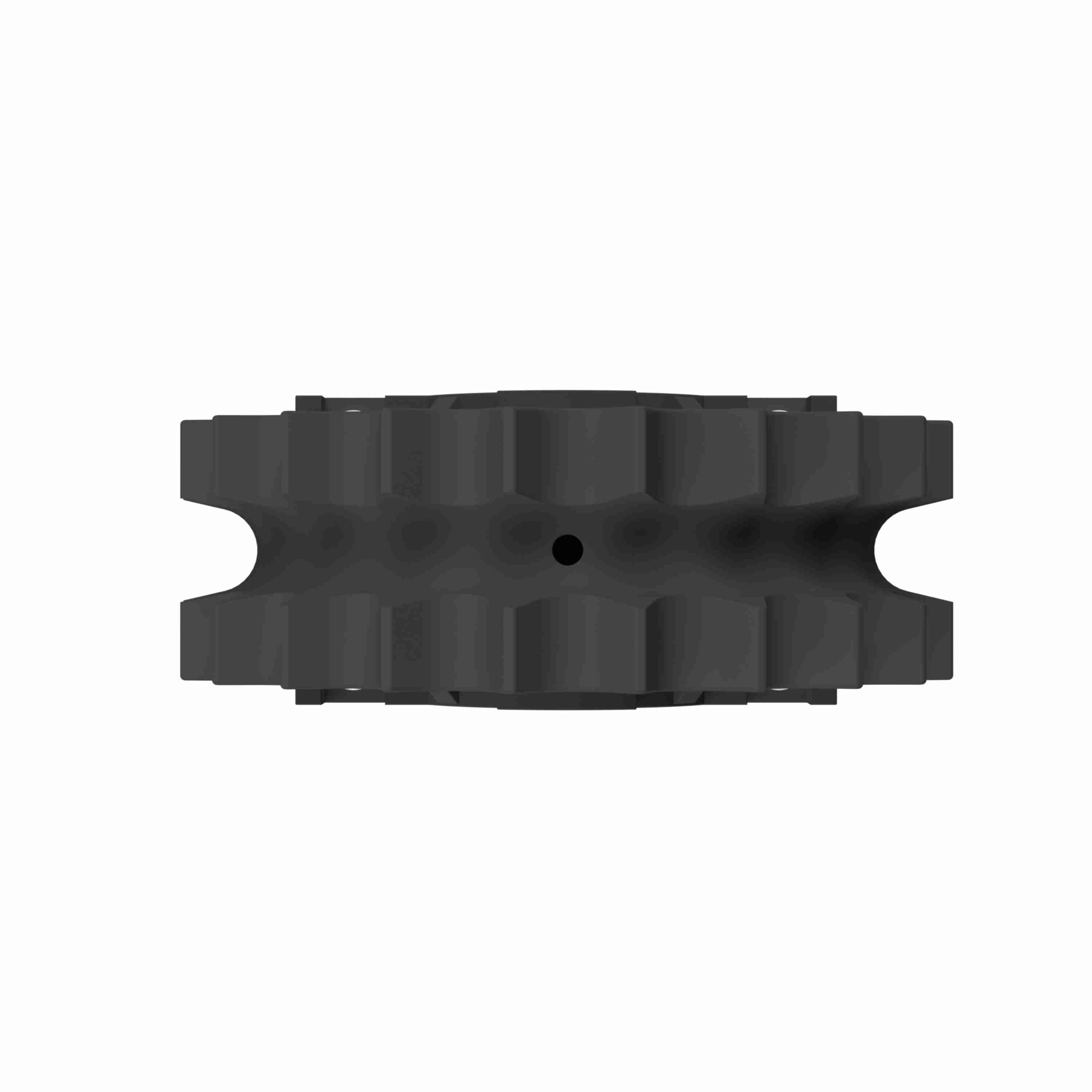

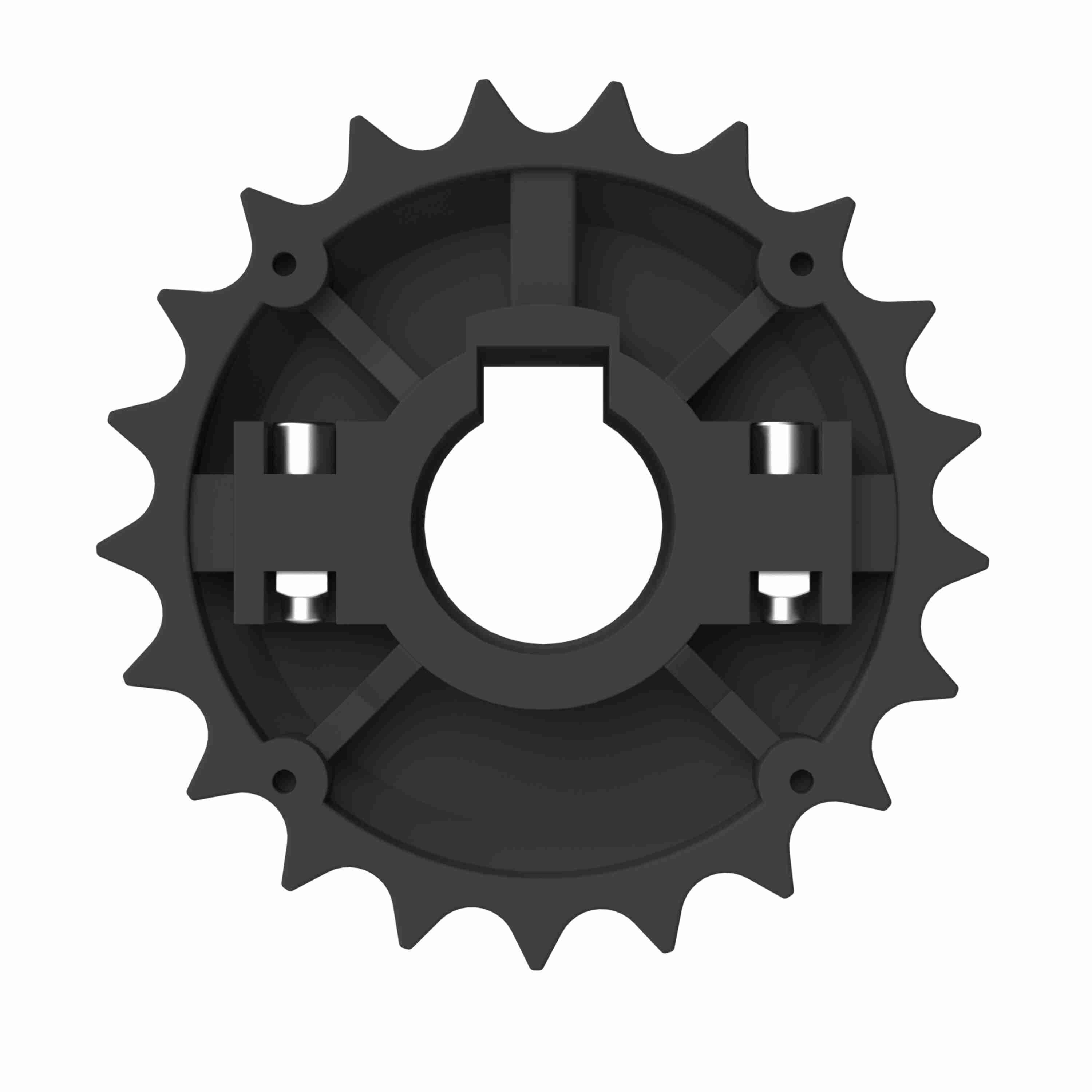

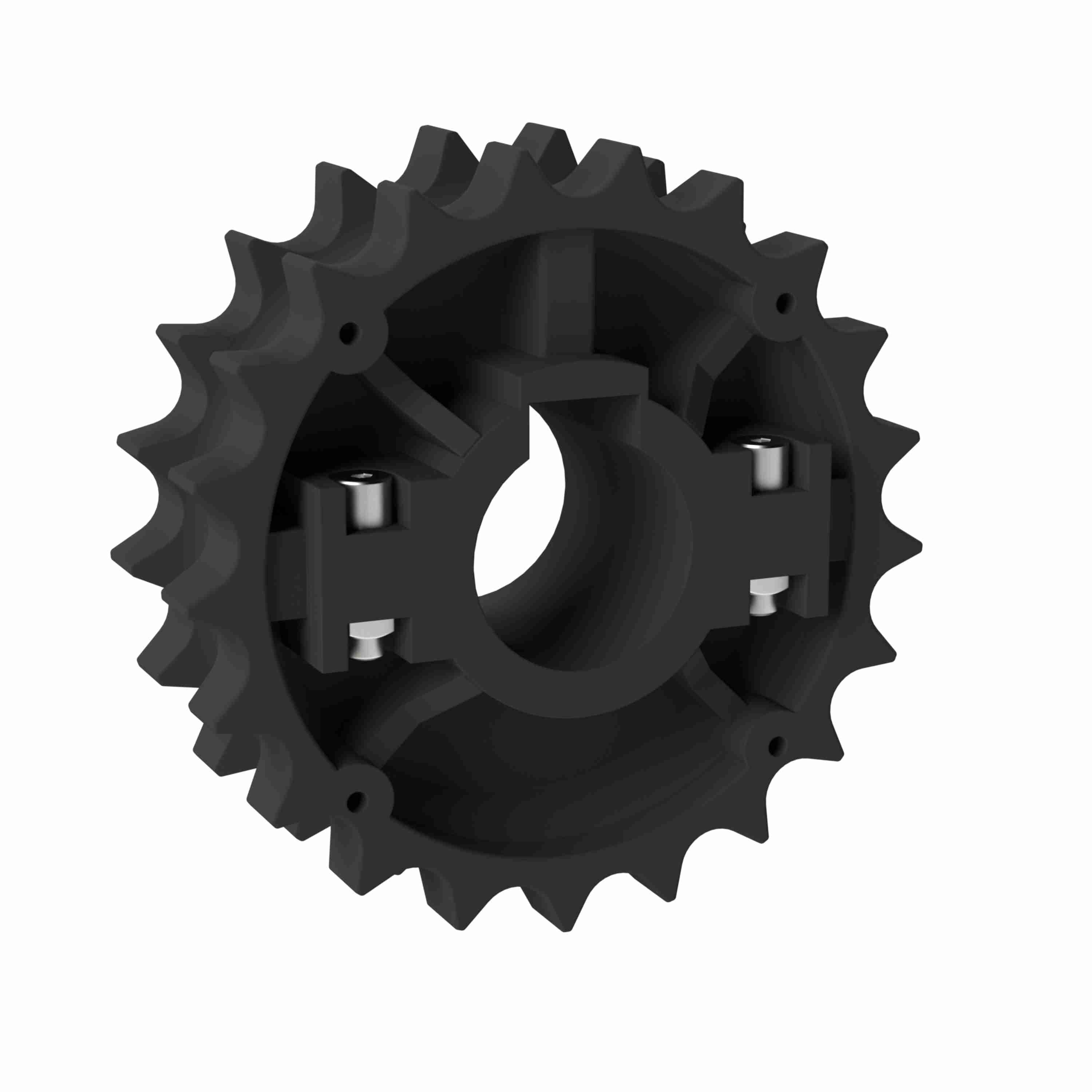

Rexnord 820 Series Split Molded Nylon Sprocket and a 21 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-38-3
Part #:10028627
Catalog #:614-38-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 21 | Bore Shape: | Round |
| Number of Set Screws: | 1 Setscrew | Bore Diameter (in): | 1-1/4 in |
| Sprocket Series: | 820 | Body Style: | Block |
| Chain Number: | 820 | Pitch Diameter (in): | 5.032 |
| Bore Type: | Shaft-Ready | Product Group: | TableTop® |
| Number of Keyways: | 1 | Material: | Nylon |
| Pitch Diameter (mm): | 127.82 | Sprocket Construction: | Molded Split Sprocket |
| Product Line: | Chain and Belt Sprockets |
General Specifications
| UPC: | 698210857172 | Weight: | 0.90 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
