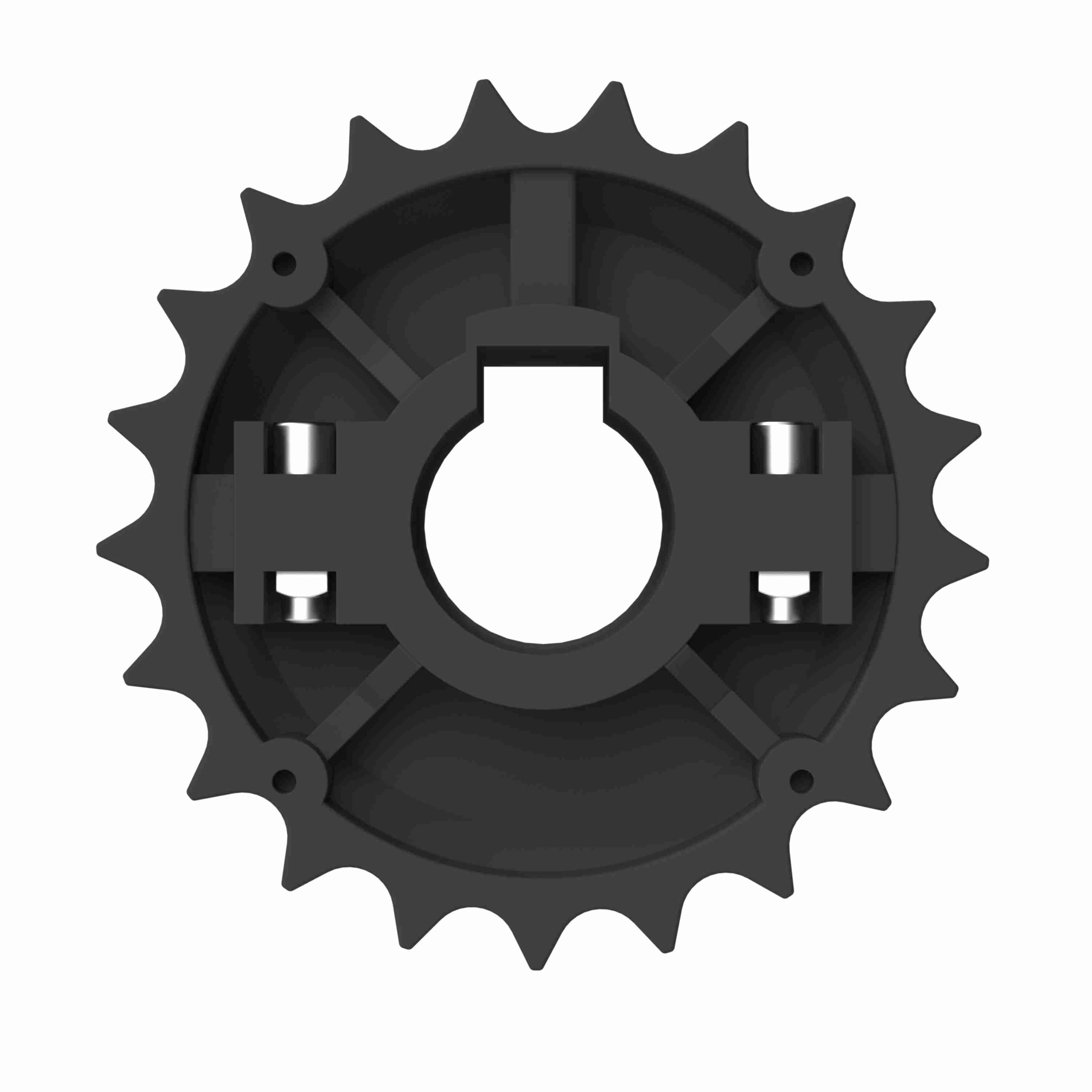

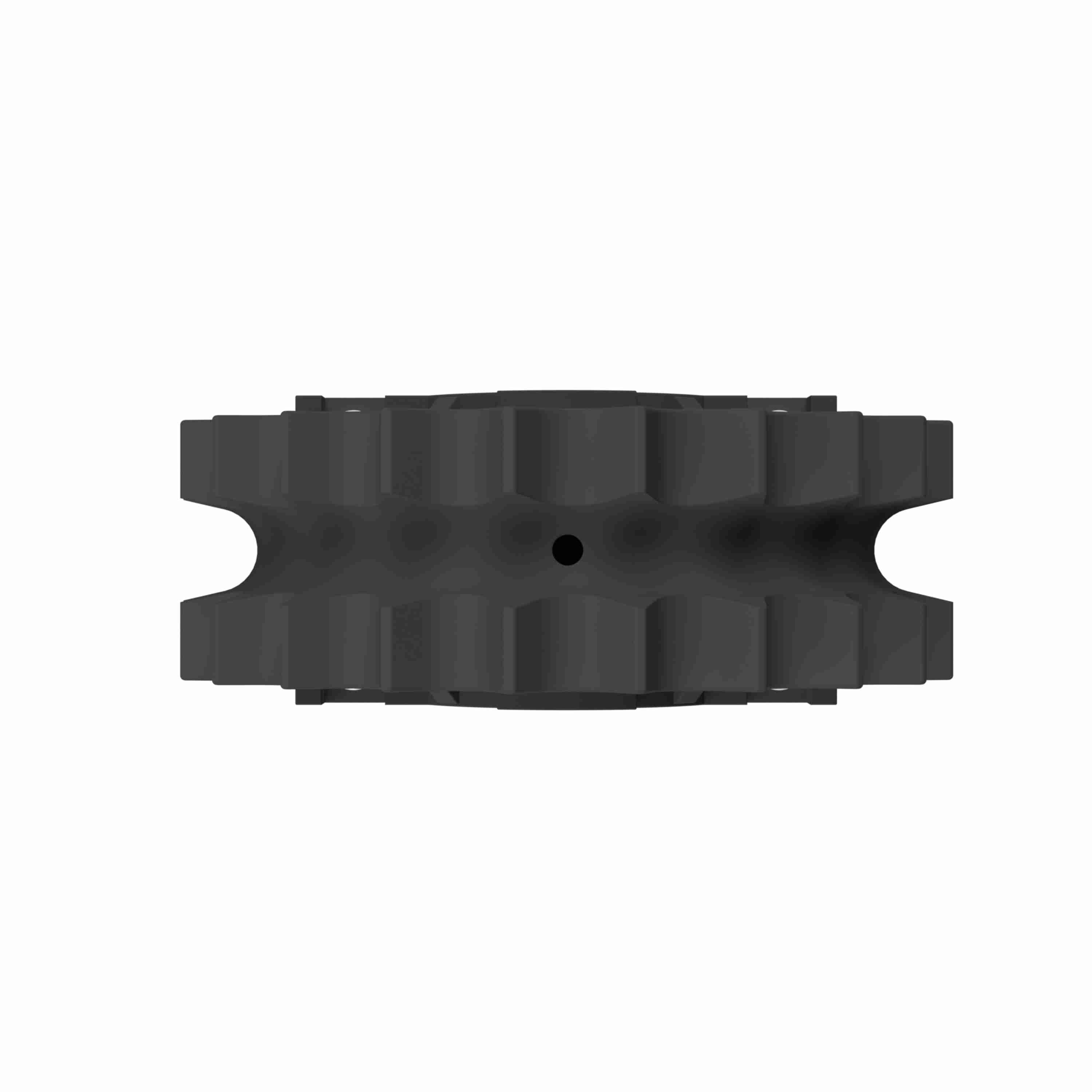

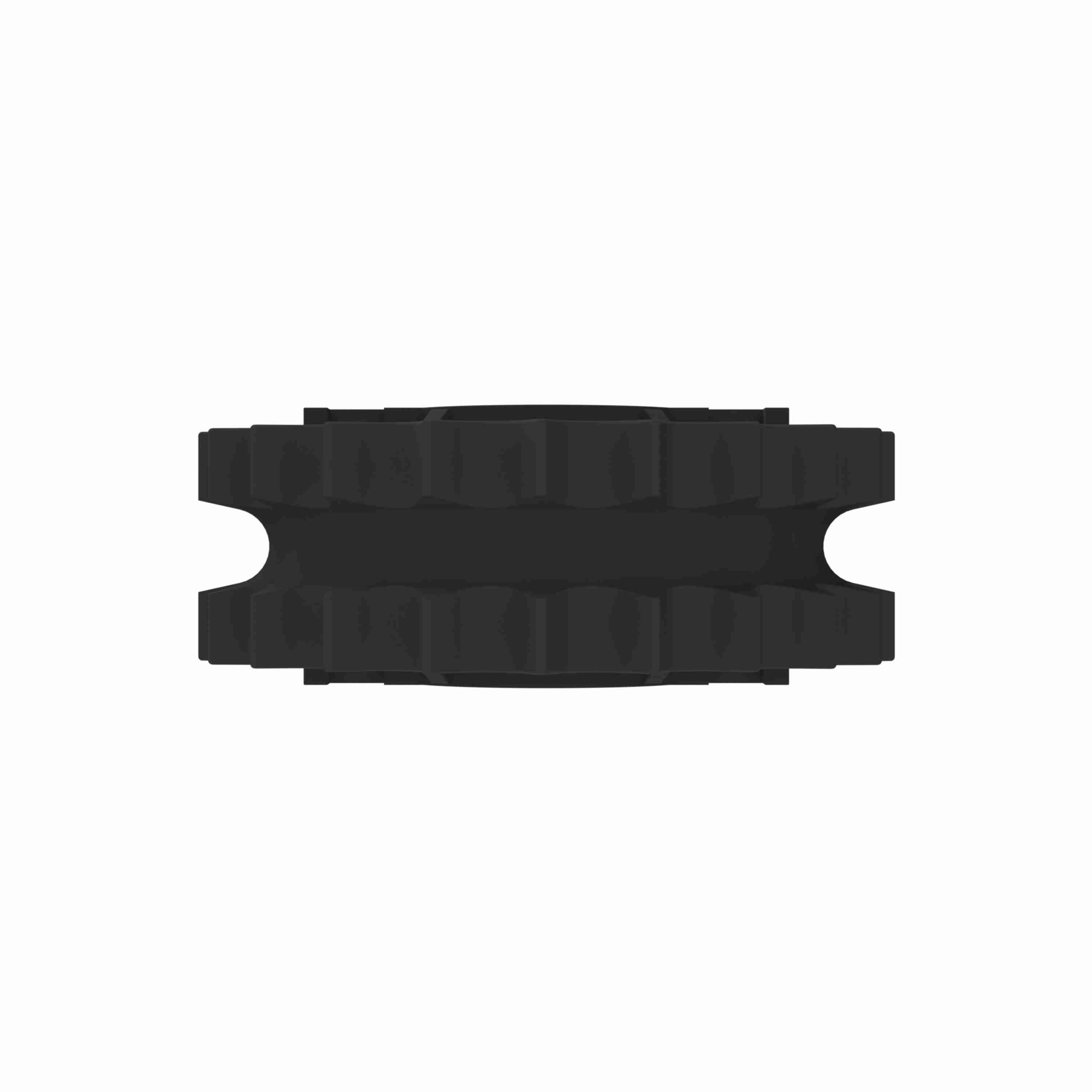

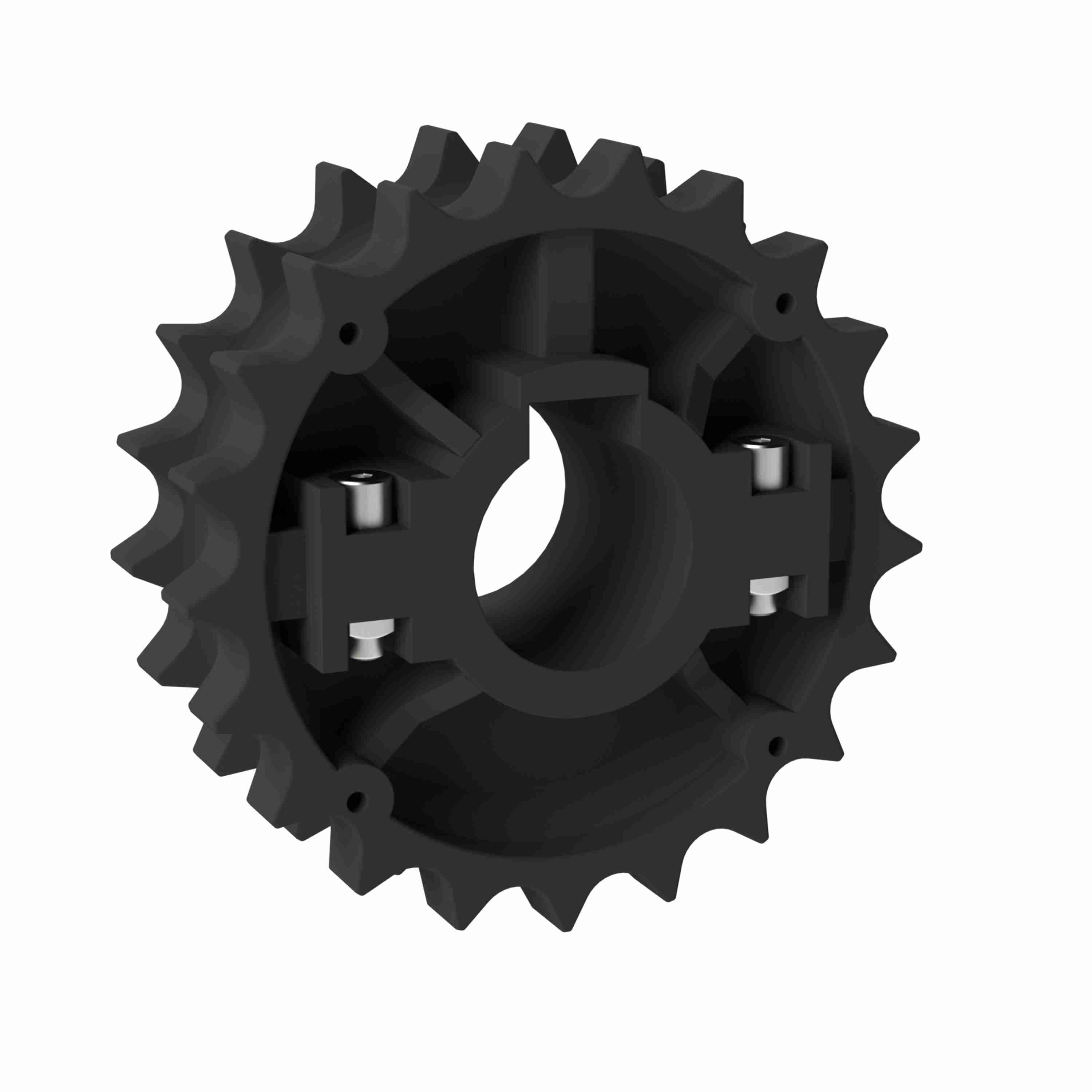

Rexnord 820 Series Split Molded Nylon Sprocket and a 21 Teeth with 1-3/16in Round Shaft-Ready Bore with Keyway & Setscrew - 614-38-2
Part #:10028629
Catalog #:614-38-2
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 21 | Chain Number: | 820 |
| Product Line: | Chain and Belt Sprockets | Sprocket Construction: | Molded Split Sprocket |
| Sprocket Series: | 820 | Pitch Diameter (in): | 5.032 |
| Material: | Nylon | Body Style: | Block |
| Pitch Diameter (mm): | 127.82 | Number of Set Screws: | 1 Setscrew |
| Number of Keyways: | 1 | Product Group: | TableTop® |
| Bore Diameter (in): | 1-3/16 in | Bore Shape: | Round |
| Bore Type: | Shaft-Ready |
General Specifications
| UPC: | 698210857165 | Weight: | 0.90 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
