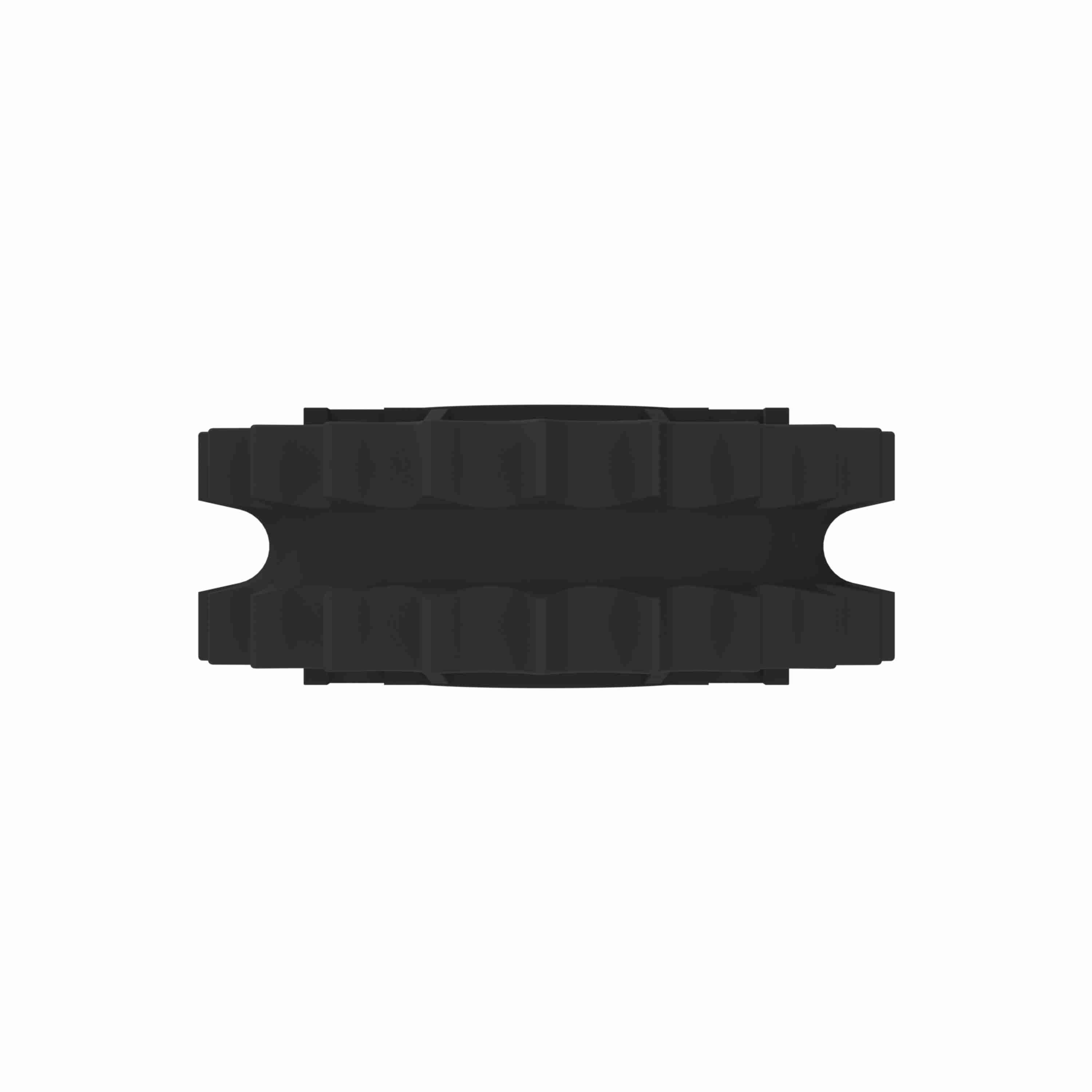

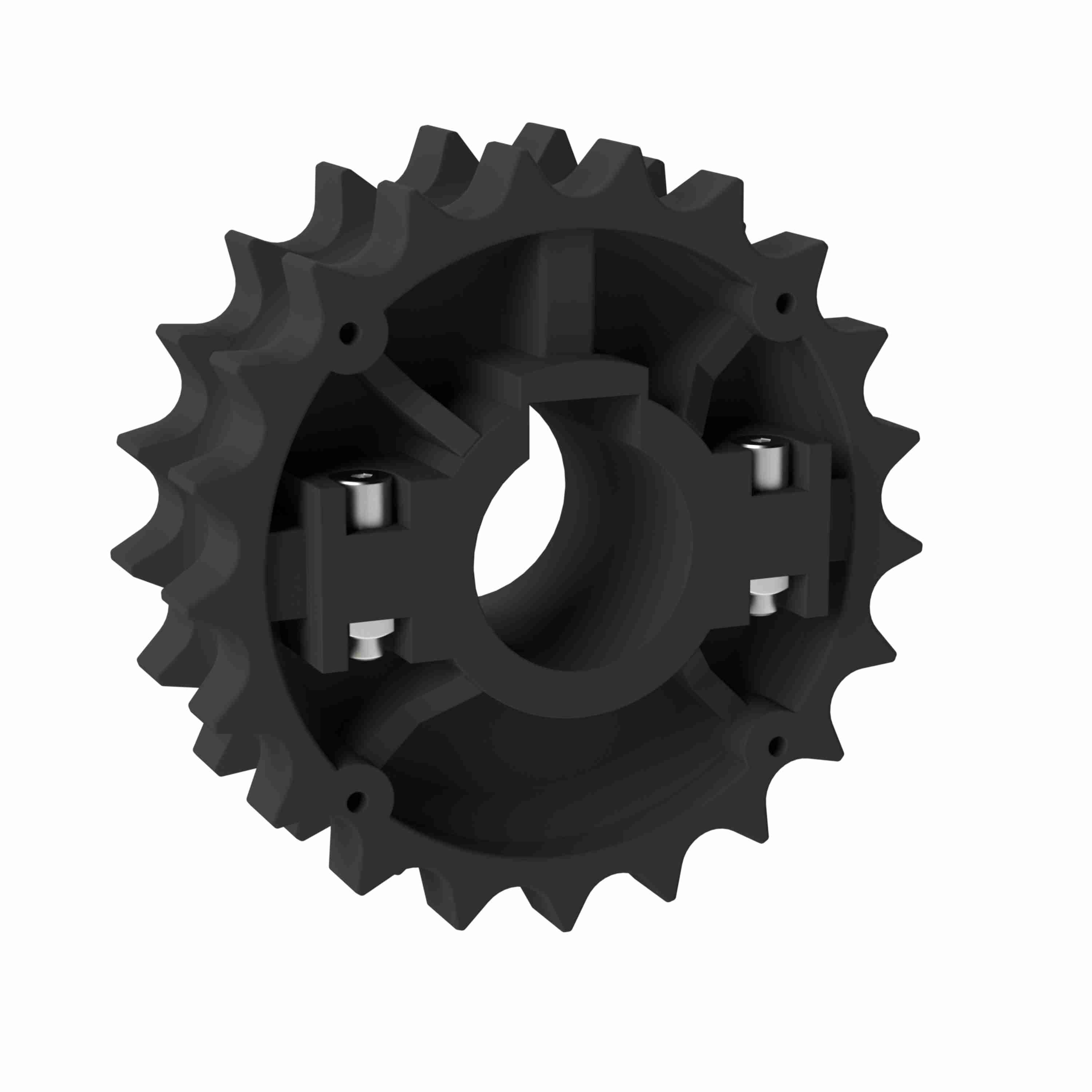

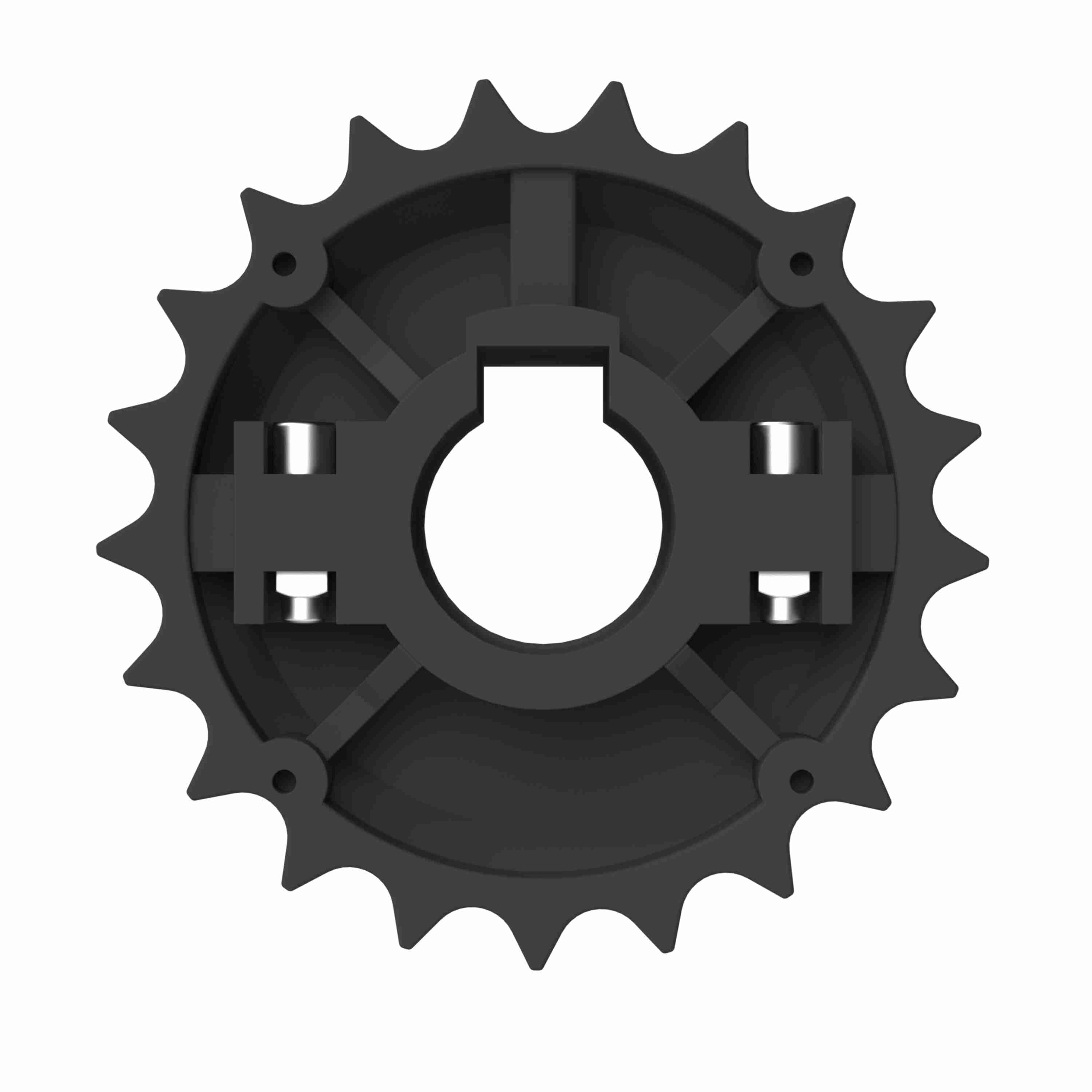

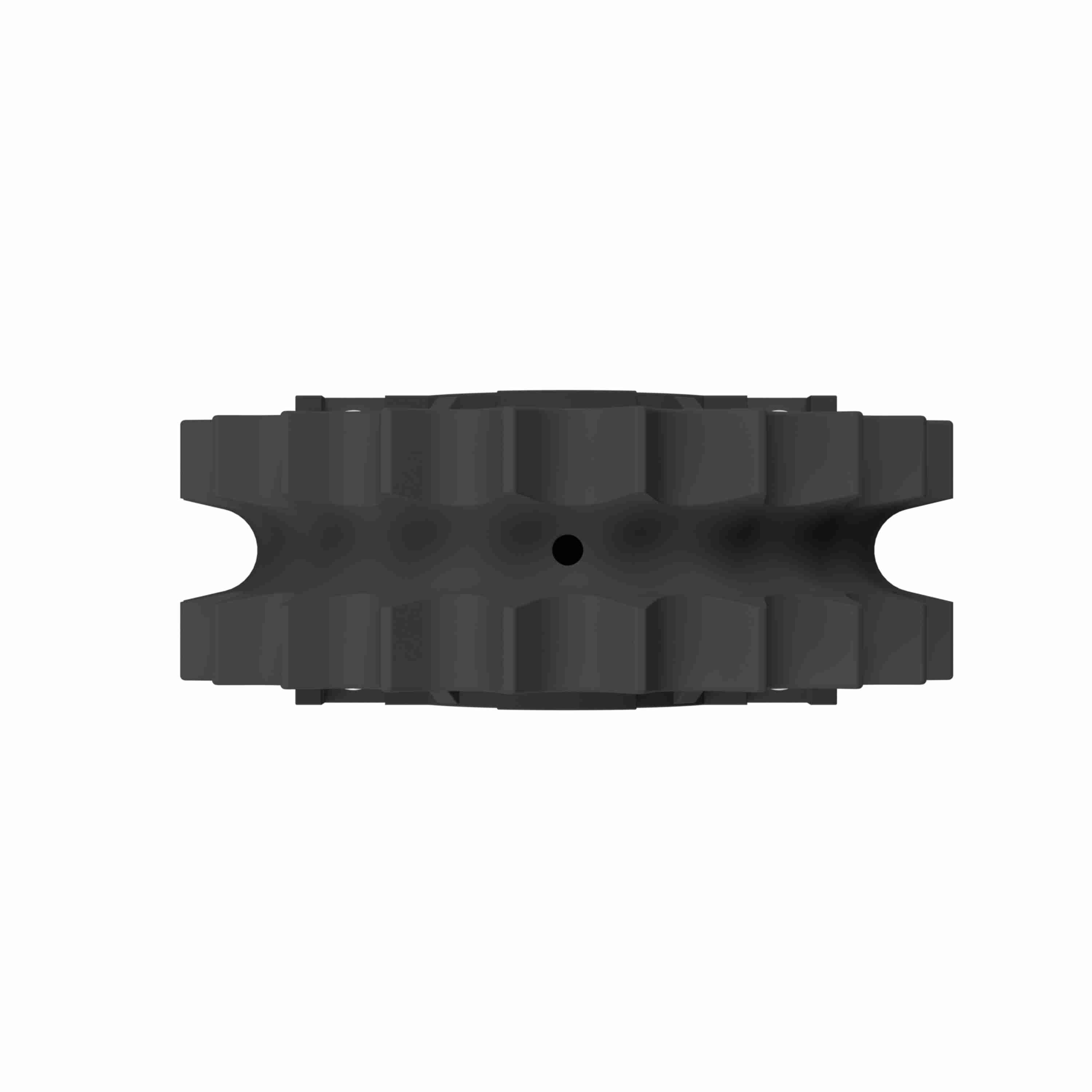

Rexnord 820 Series Split Molded Nylon Sprocket and a 21 Teeth with 1-7/16in Round Shaft-Ready Bore with Keyway & Setscrew - 614-38-4
Part #:10028631
Catalog #:614-38-4
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Construction: | Molded Split Sprocket | Number of Set Screws: | 1 Setscrew |
| Pitch Diameter (mm): | 127.82 | Bore Shape: | Round |
| Sprocket Series: | 820 | Product Group: | TableTop® |
| Body Style: | Block | Bore Diameter (in): | 1-7/16 in |
| Bore Type: | Shaft-Ready | Number of Keyways: | 1 |
| Material: | Nylon | Pitch Diameter (in): | 5.032 |
| Number of Teeth: | 21 | Product Line: | Chain and Belt Sprockets |
| Chain Number: | 820 |
General Specifications
| UPC: | 698210868543 | Weight: | 0.90 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
