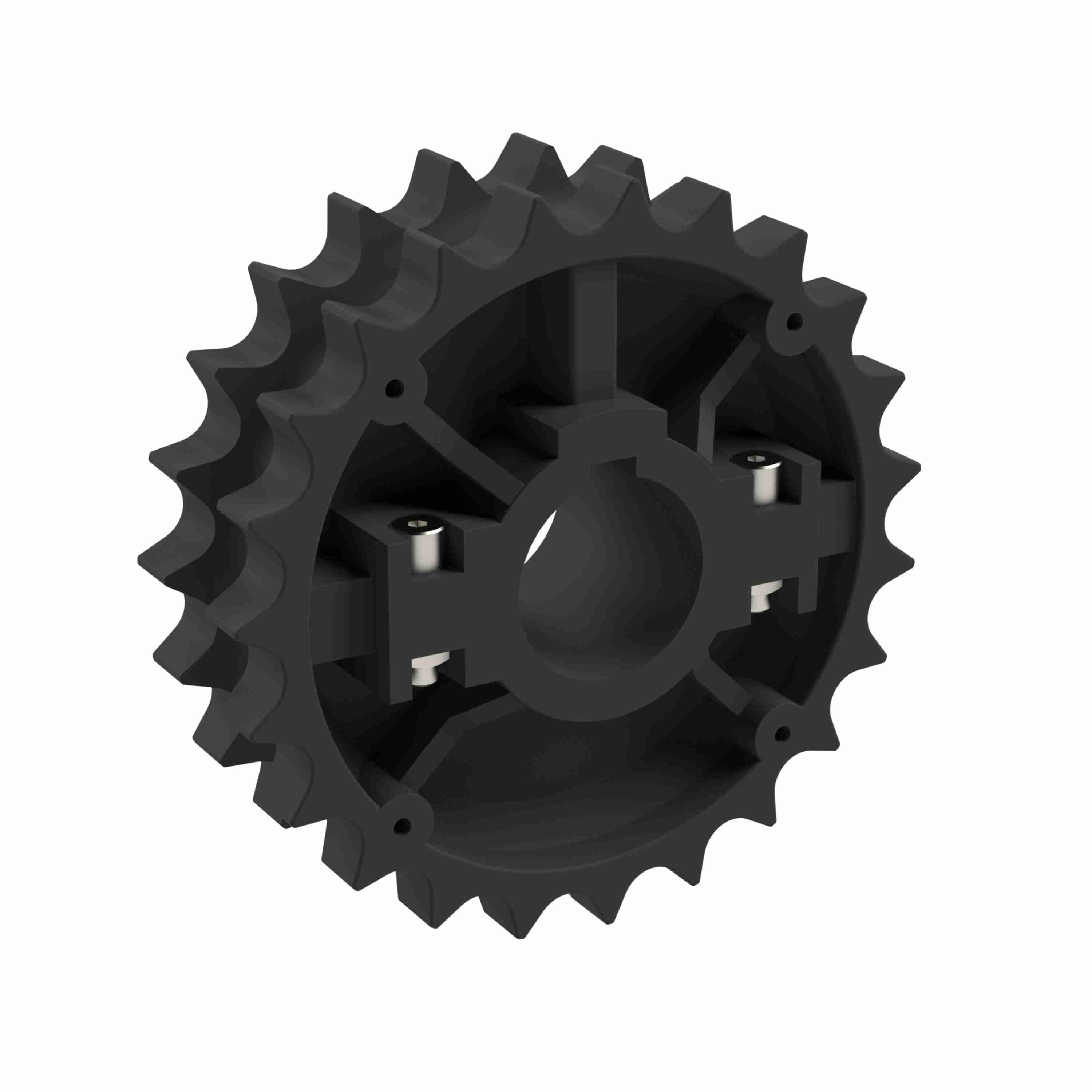

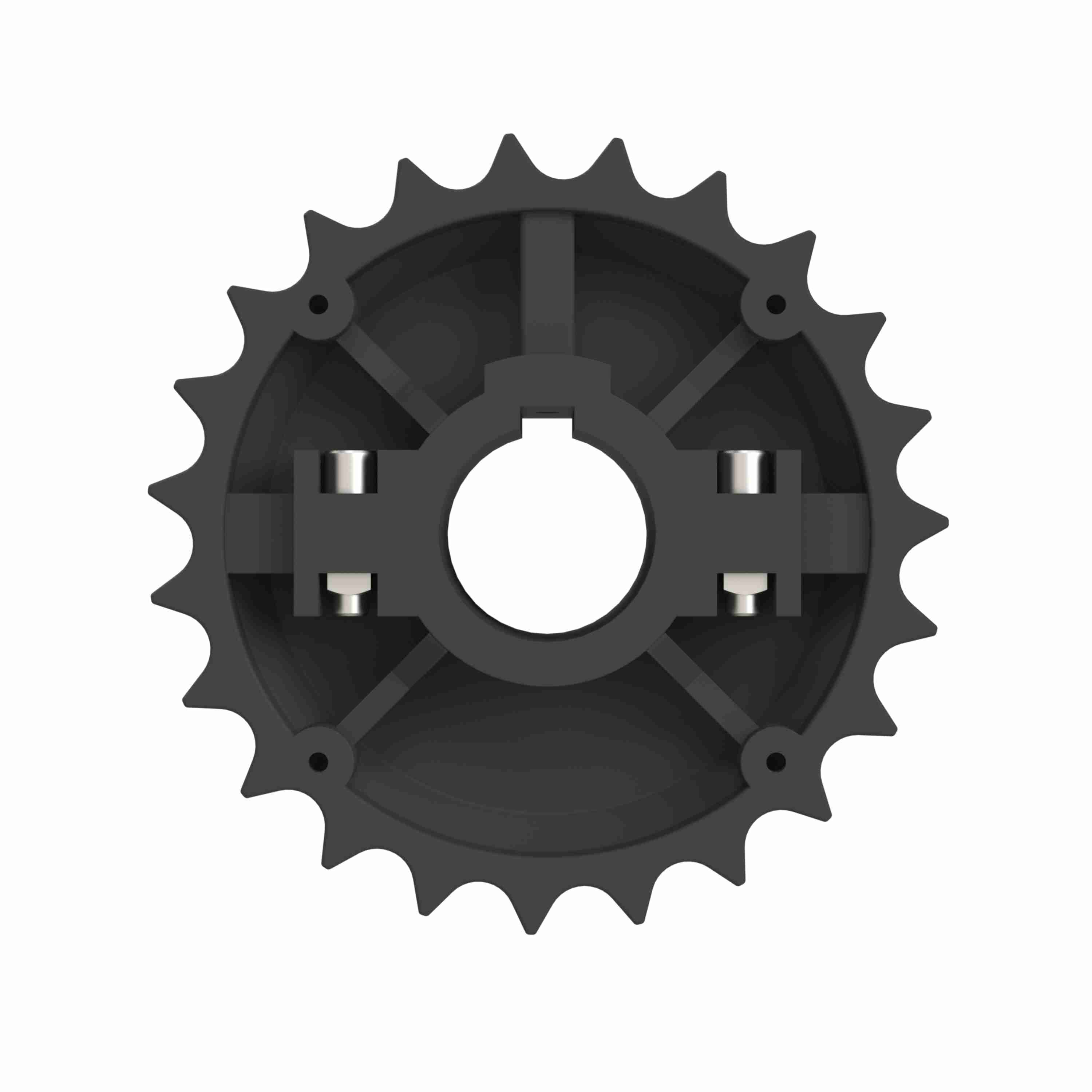

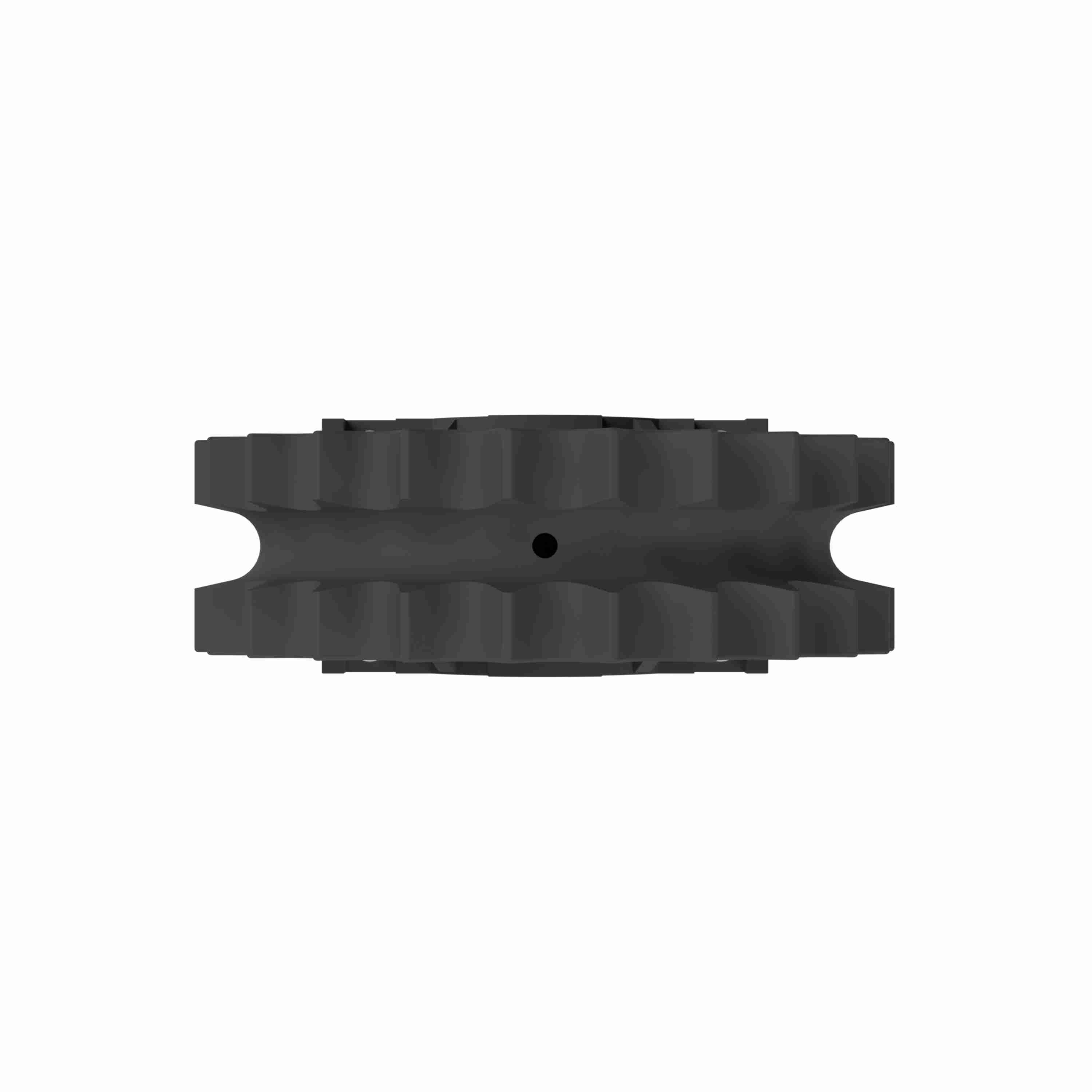

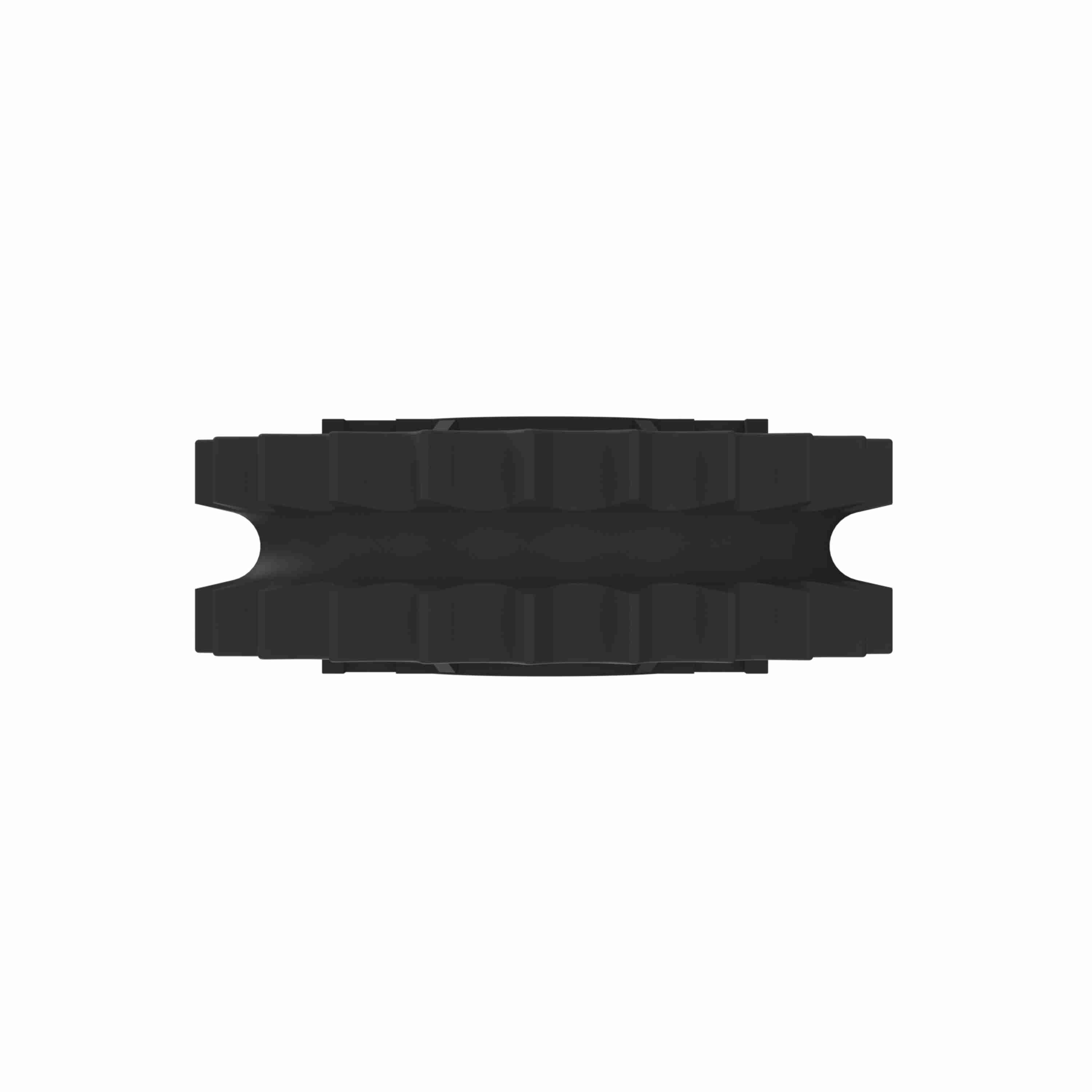

Rexnord 820 Series Split Molded Nylon Sprocket and a 23 Teeth with 1-1/2in Round Shaft-Ready Bore with Keyway & Setscrew - 614-39-11
Part #:10028635
Catalog #:614-39-11
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | TableTop® | Product Line: | Chain and Belt Sprockets |
| Sprocket Series: | 820 | Material: | Nylon |
| Bore Type: | Shaft-Ready | Bore Diameter (in): | 1-1/2 in |
| Body Style: | Block | Number of Set Screws: | 1 Setscrew |
| Chain Number: | 820 | Sprocket Construction: | Molded Split Sprocket |
| Pitch Diameter (mm): | 139.9 | Hub Type: | C-HUB |
| Bore Shape: | Round | Pitch Diameter (in): | 5.508 |
| Number of Keyways: | 1 | Number of Teeth: | 23 |
General Specifications
| UPC: | 793699413199 | Weight: | 1.19 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
