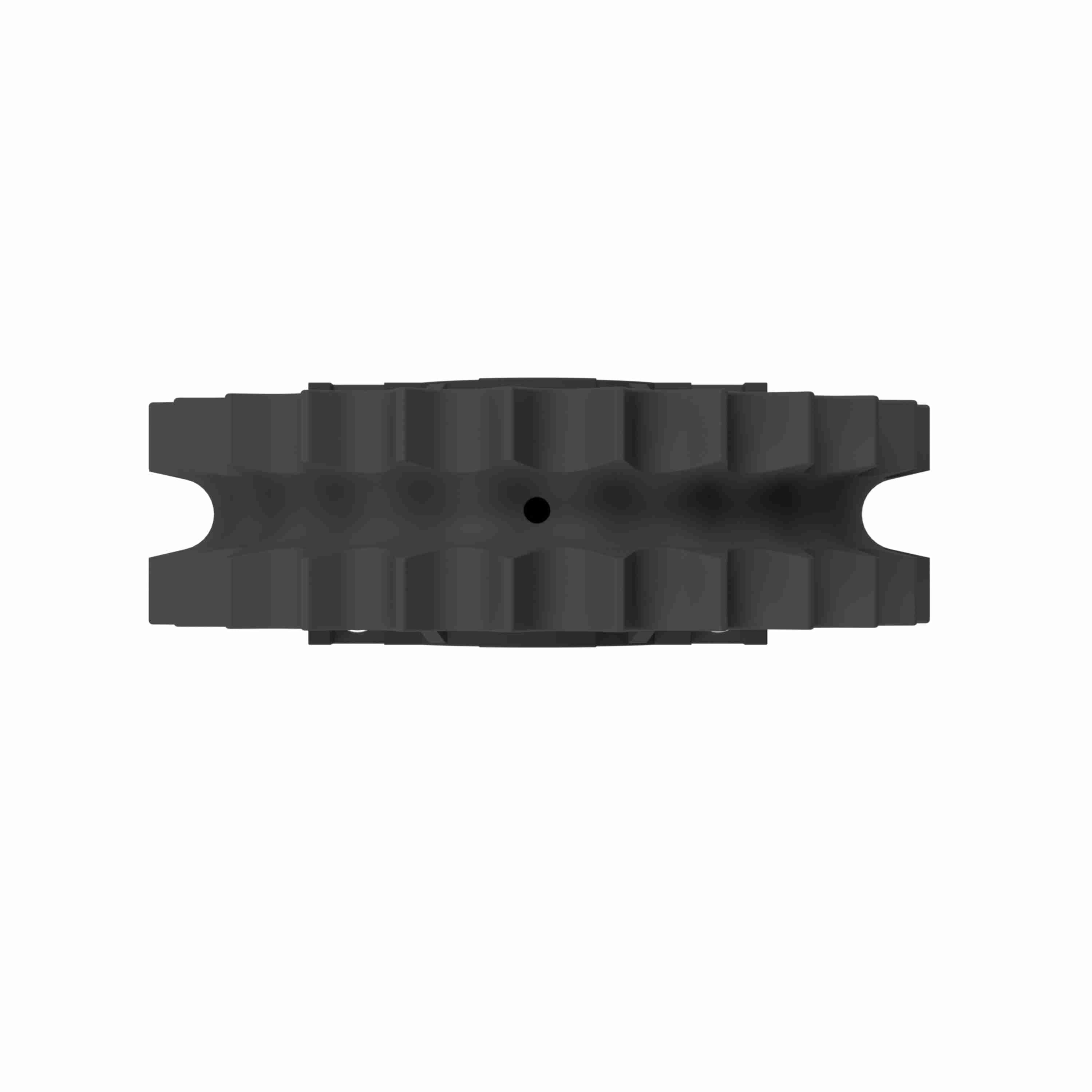

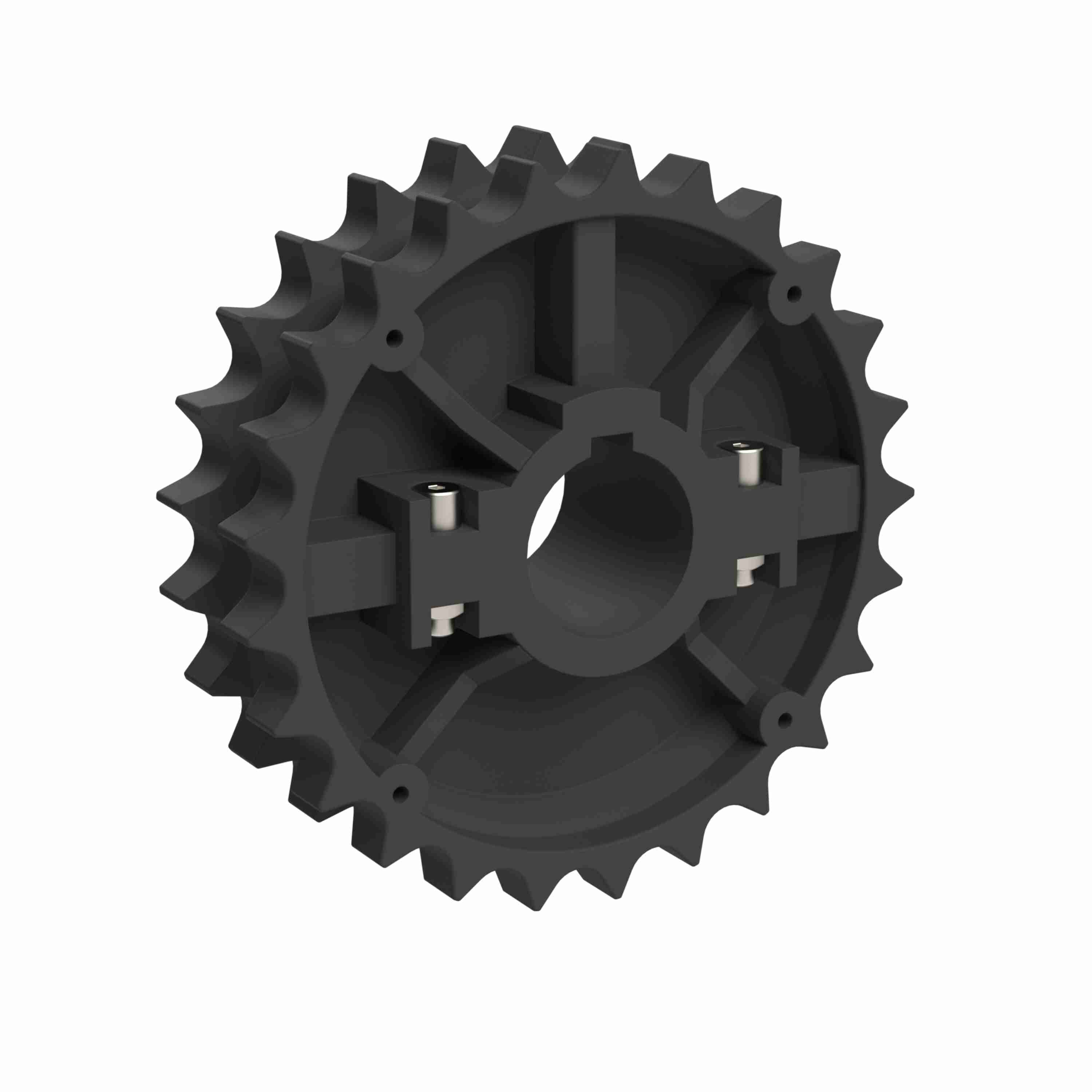

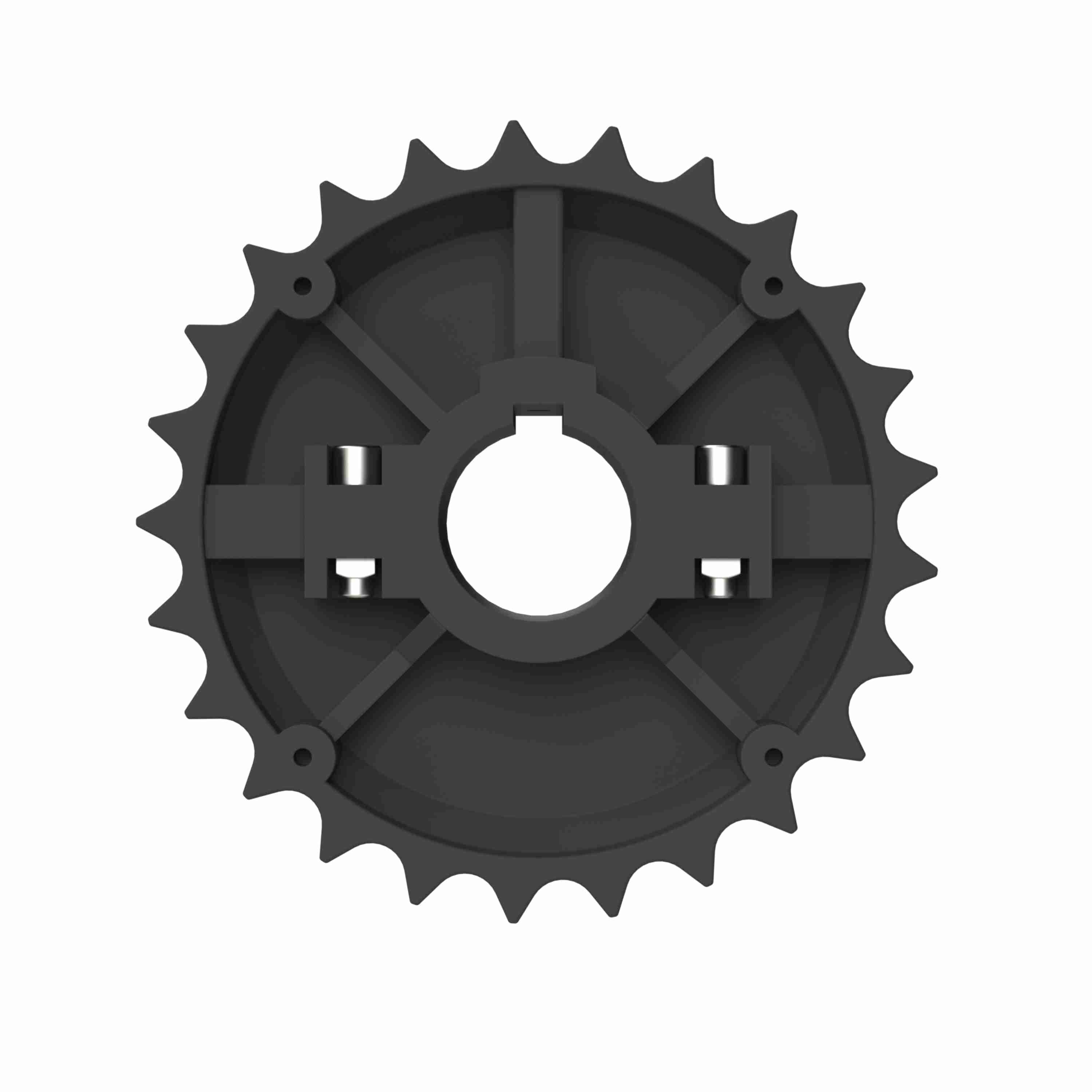

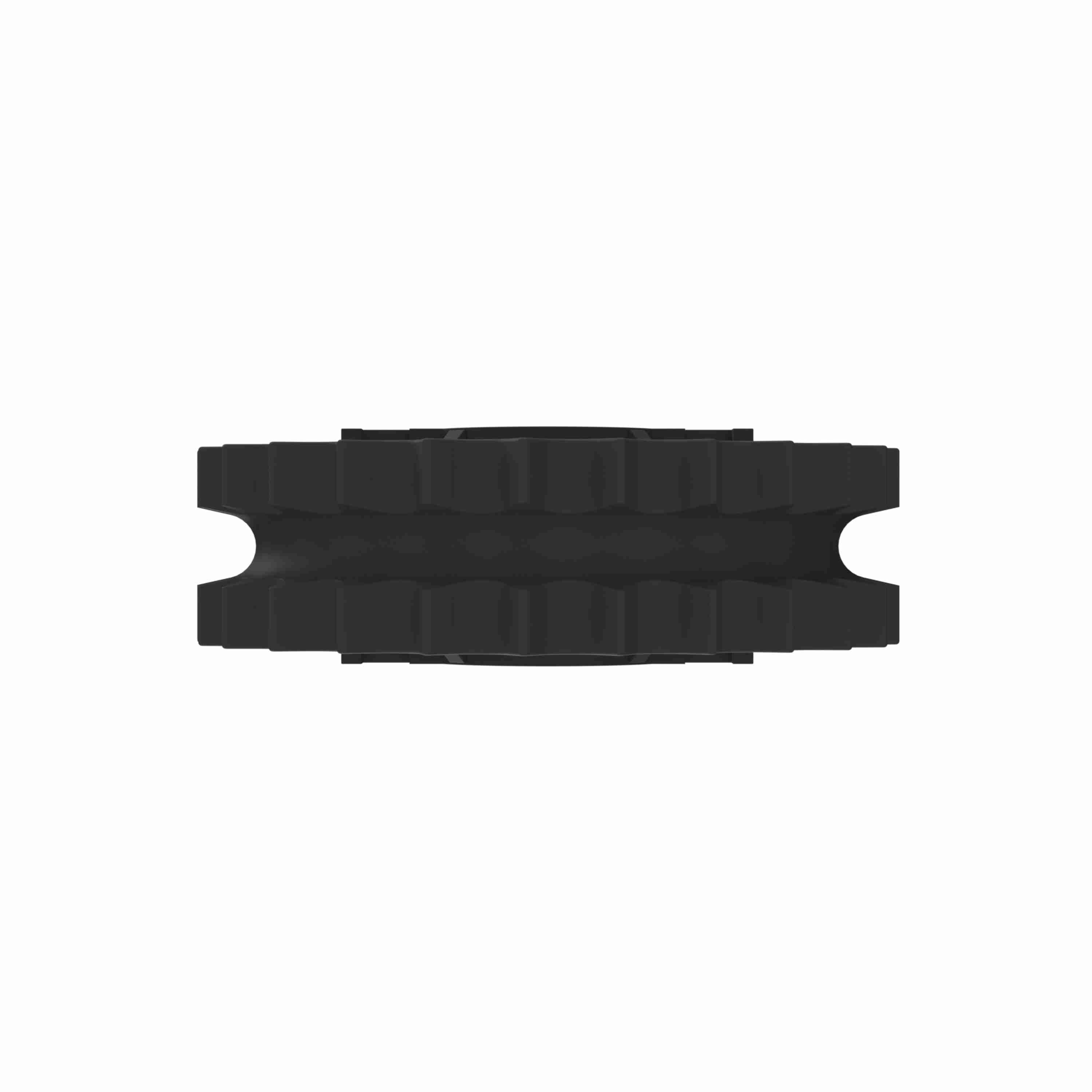

Rexnord 820 Series Split Molded Nylon Sprocket and a 25 Teeth with 1-7/16in Round Shaft-Ready Bore with Keyway & Setscrew - 614-40-4
Part #:10028647
Catalog #:614-40-4
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Keyways: | 1 | Product Group: | TableTop® |
| Chain Number: | 820 | Bore Shape: | Round |
| Pitch Diameter (mm): | 151.99 | Bore Diameter (in): | 1-7/16 in |
| Sprocket Construction: | Molded Split Sprocket | Product Line: | Chain and Belt Sprockets |
| Material: | Nylon | Number of Set Screws: | 1 Setscrew |
| Sprocket Series: | 820 | Body Style: | Block |
| Bore Type: | Shaft-Ready | Number of Teeth: | 25 |
| Pitch Diameter (in): | 5.984 |
General Specifications
| UPC: | 698210857110 | Weight: | 1.20 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
