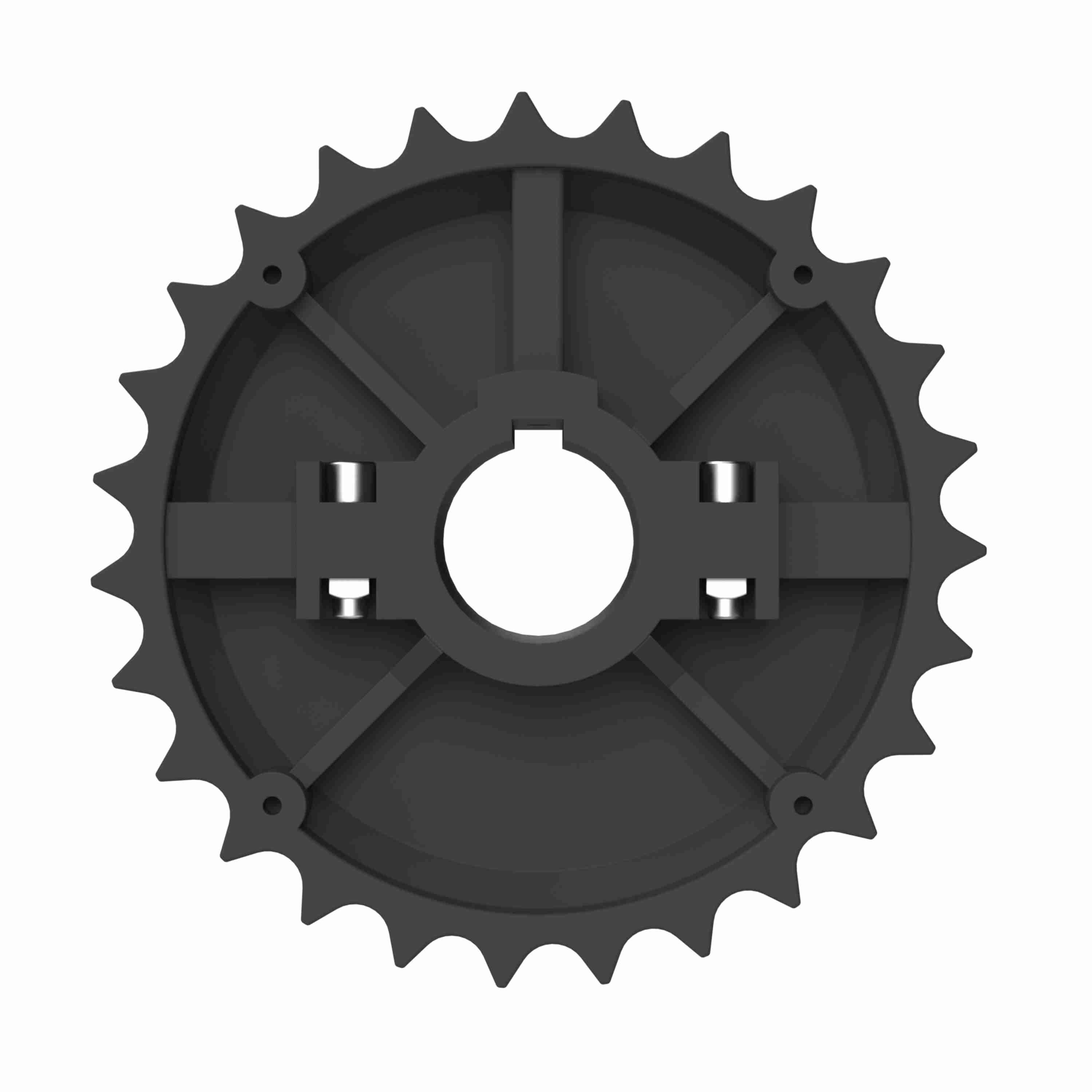

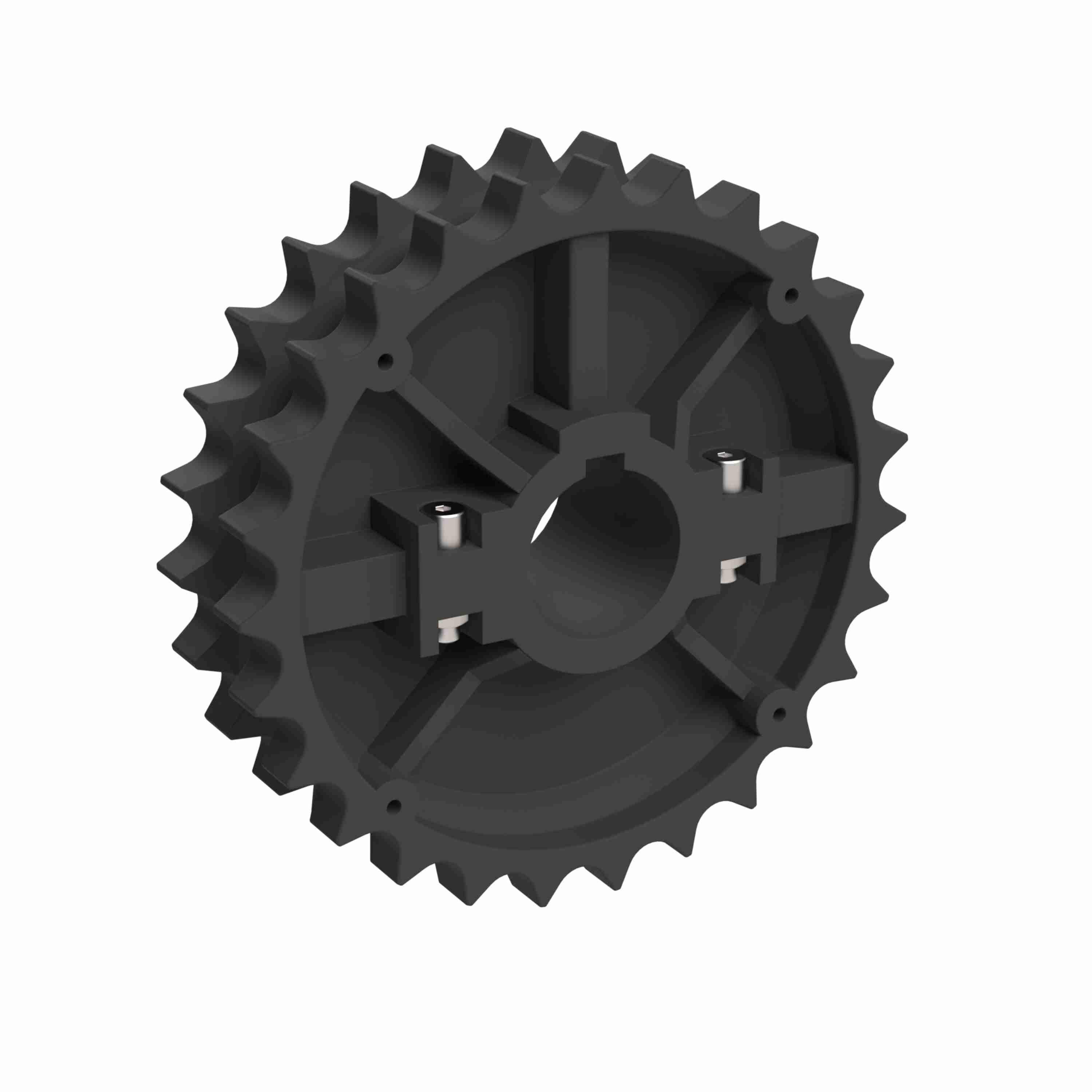

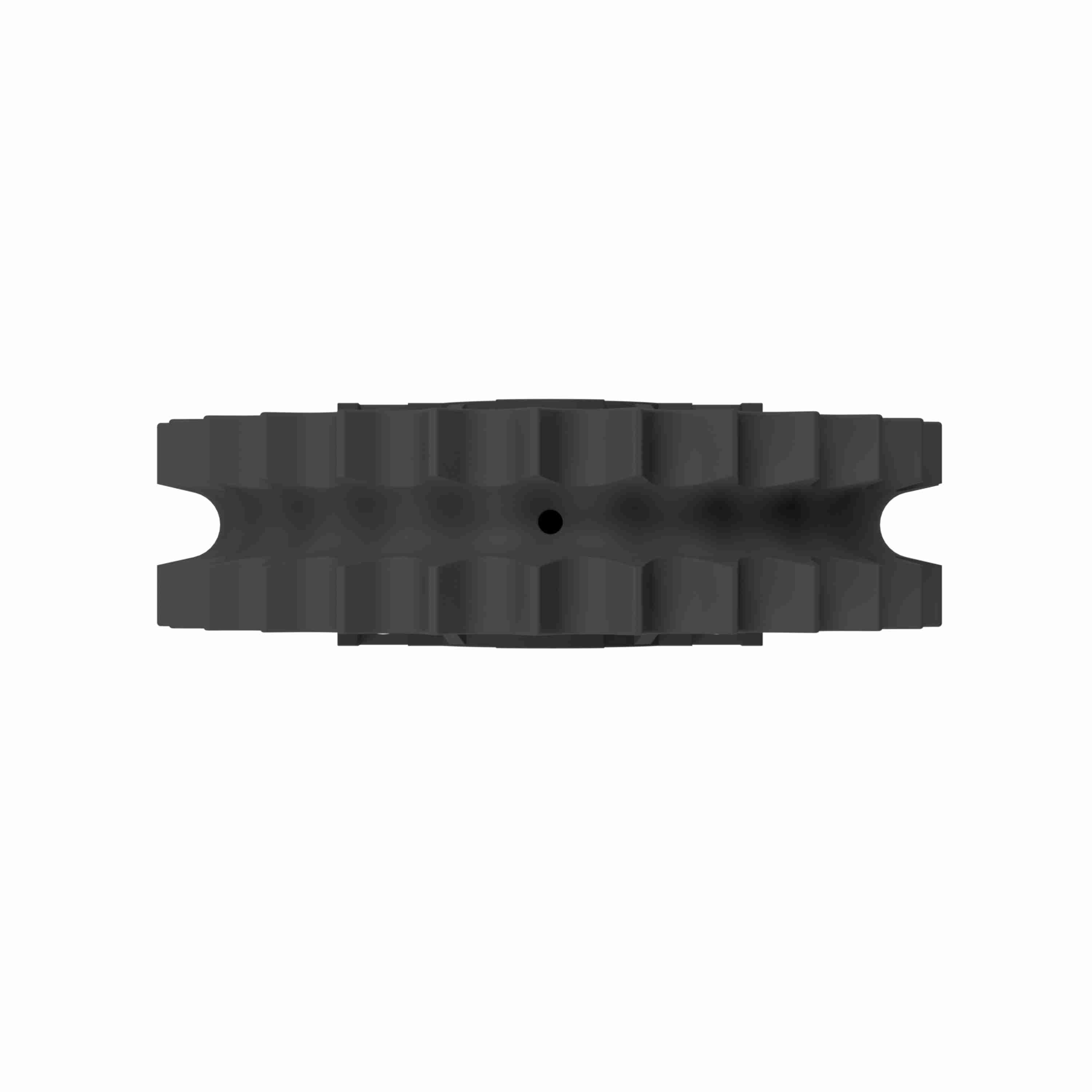

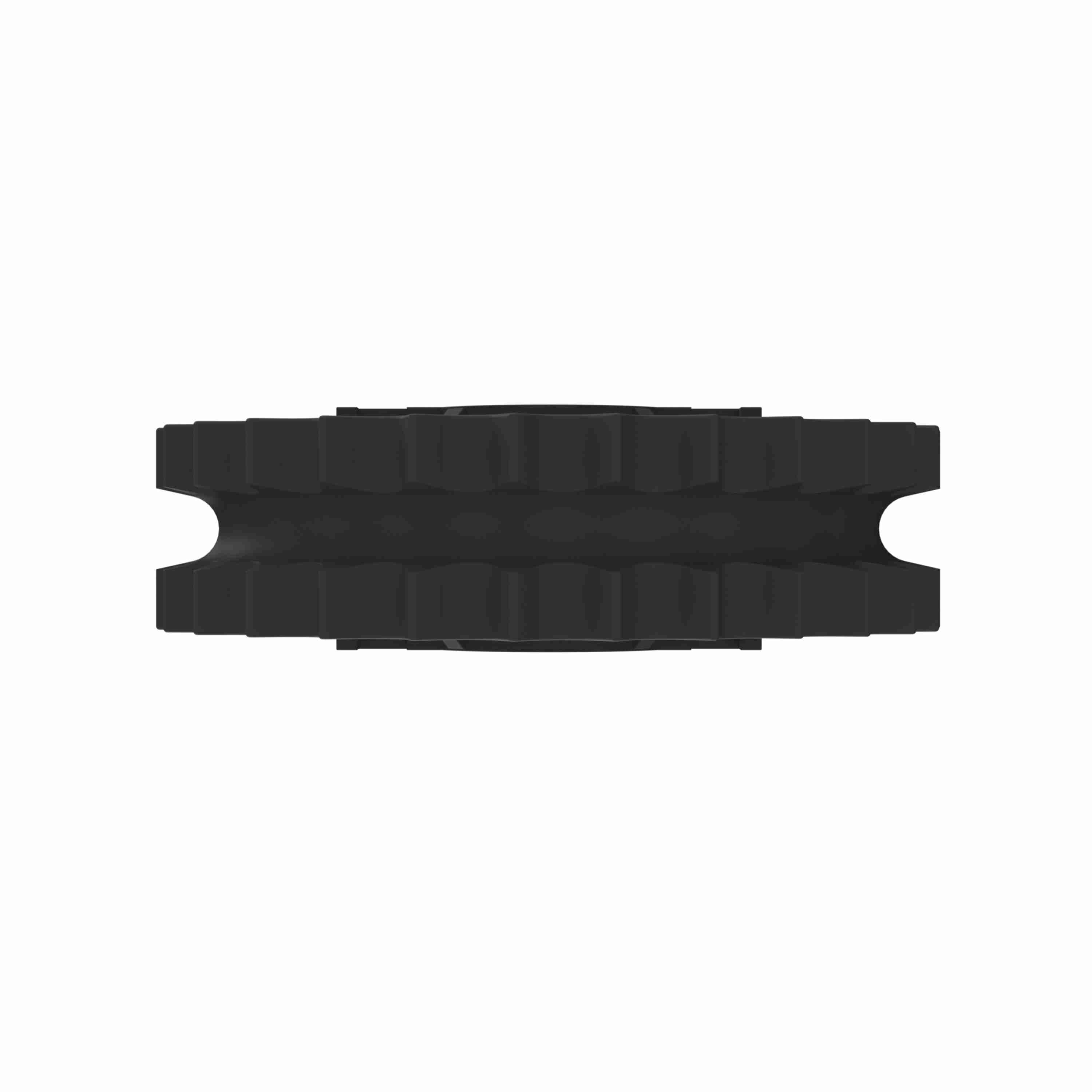

Rexnord 820 Series Split Molded Nylon Sprocket and a 27 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-52-3
Part #:10028654
Catalog #:614-52-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Material: | Nylon | Chain Number: | 820 |
| Sprocket Series: | 820 | Bore Type: | Shaft-Ready |
| Pitch Diameter (mm): | 164.09 | Product Group: | TableTop® |
| Sprocket Construction: | Molded Split Sprocket | Bore Shape: | Round |
| Number of Teeth: | 27 | Number of Keyways: | 1 |
| Bore Diameter (in): | 1-1/4 in | Body Style: | Block |
| Product Line: | Chain and Belt Sprockets | Pitch Diameter (in): | 6.46 |
| Number of Set Screws: | 1 Setscrew |
General Specifications
| UPC: | 698210874421 | Weight: | 1.40 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
