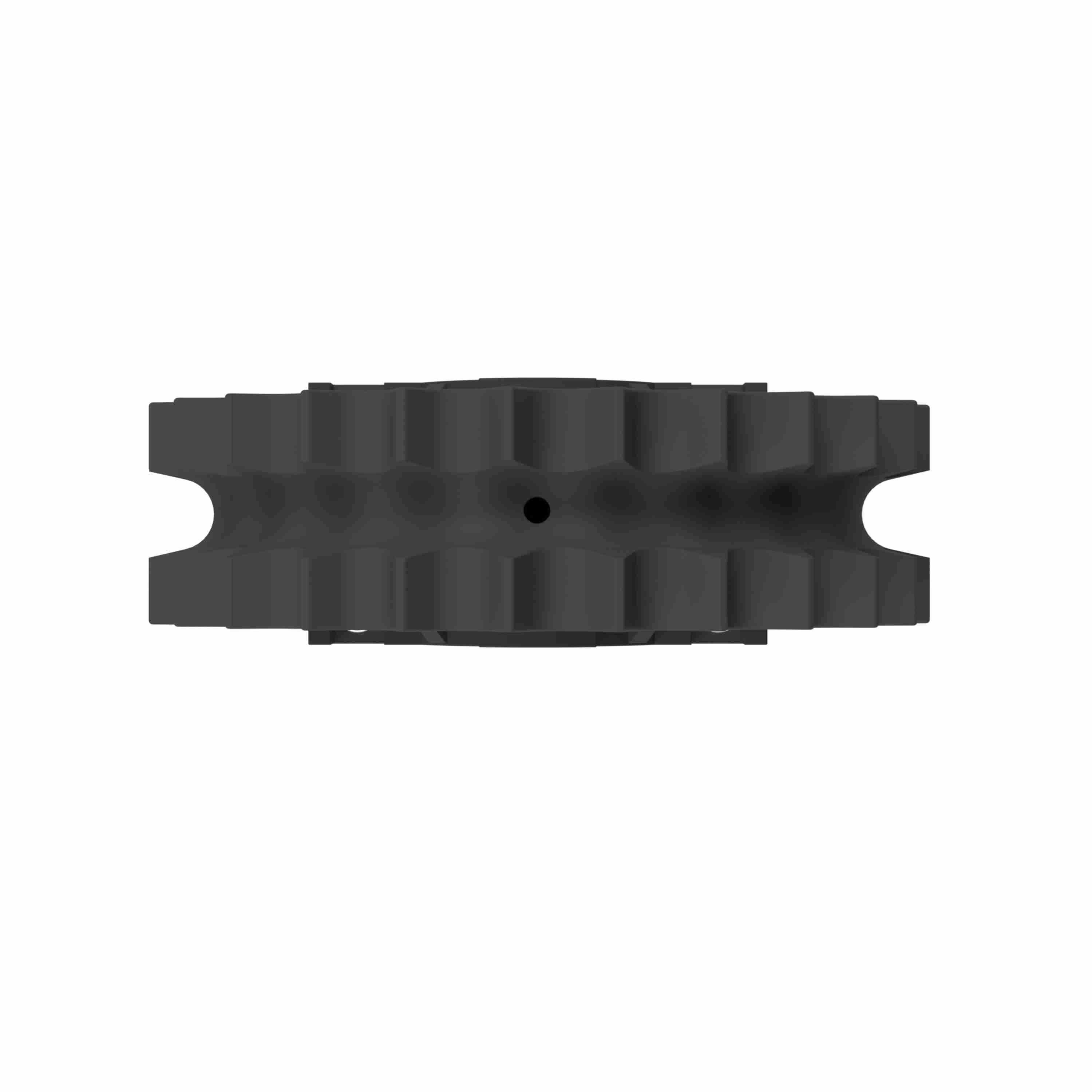

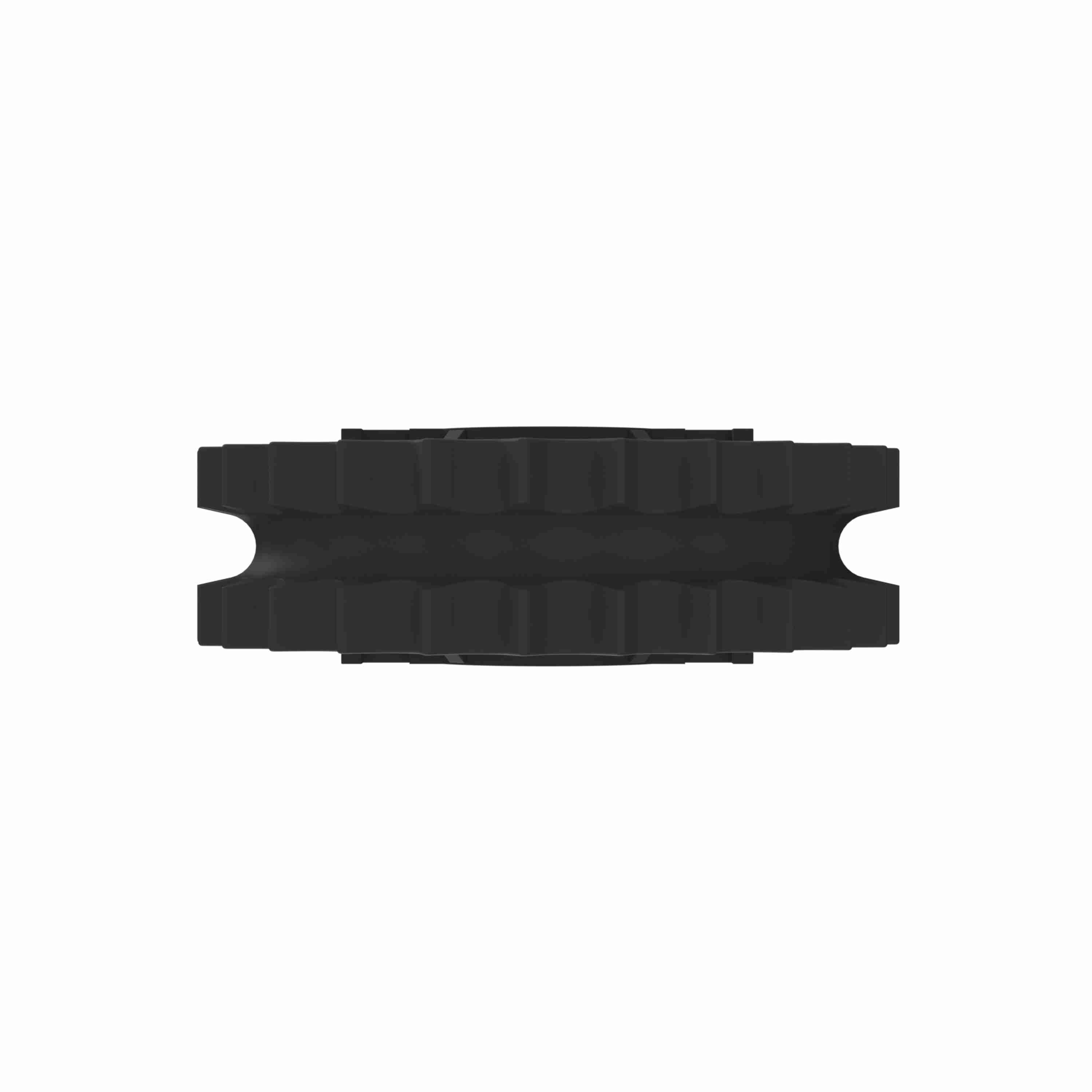

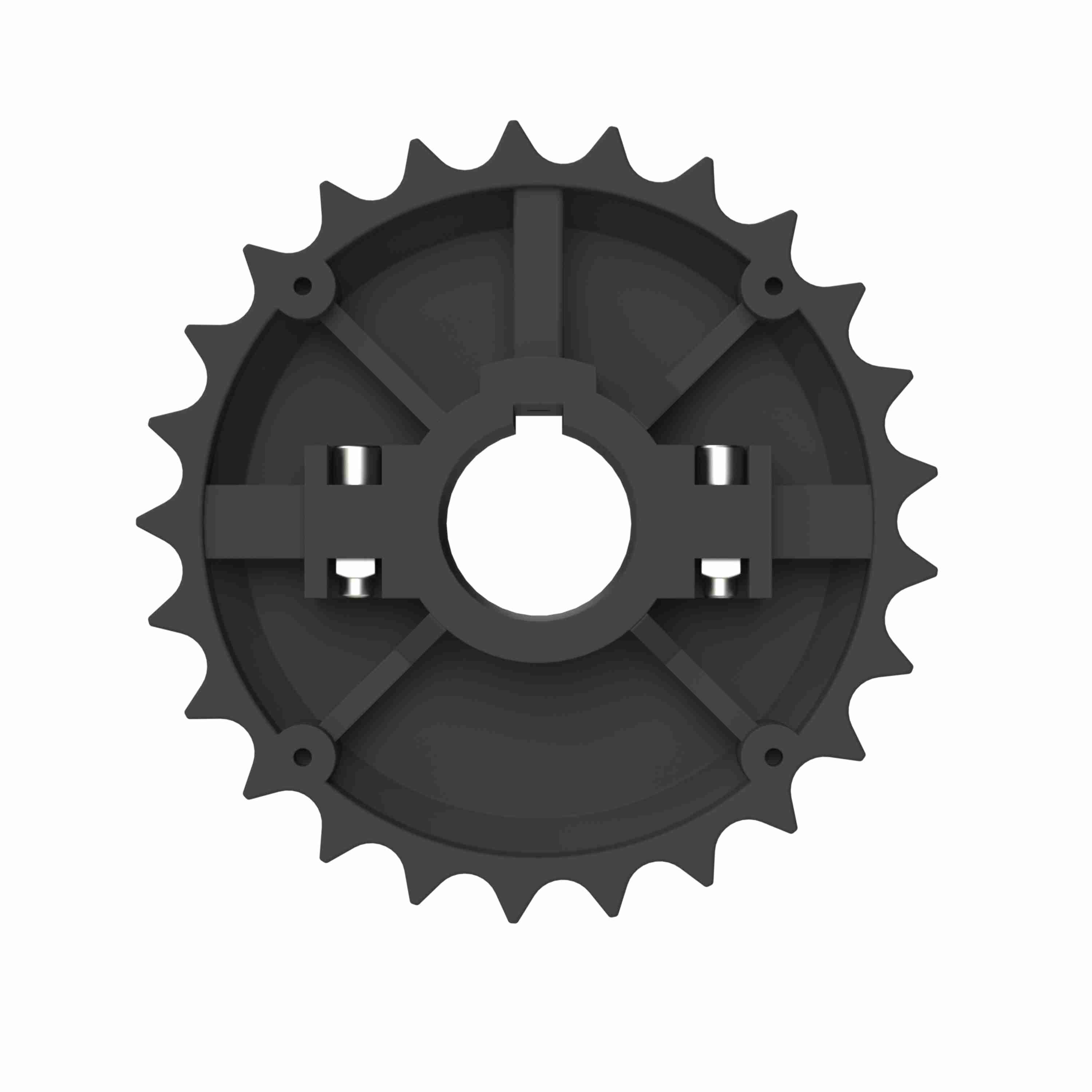

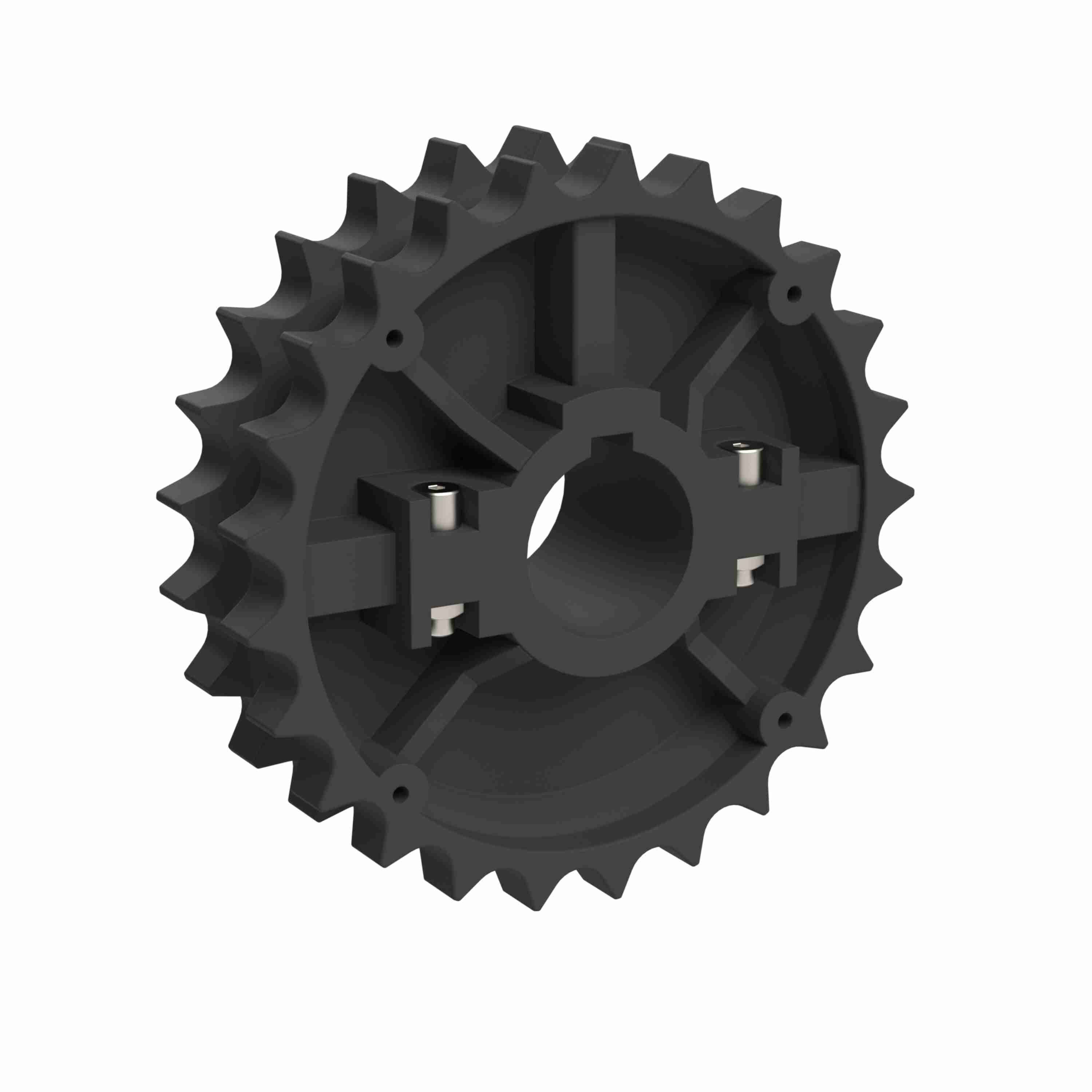

Rexnord 820 Series Split Molded Nylon Sprocket with 25 Teeth and 30mm Round Shaft-Ready Bore with Keyway - 614-40-30
Part #:10028648
Catalog #:614-40-30
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Material: | Nylon | Chain Number: | 820 |
| Body Style: | Block | Sprocket Series: | 820 |
| Sprocket Construction: | Molded Split Sprocket | Pitch Diameter (mm): | 151.99 |
| Number of Teeth: | 25 | Product Line: | Chain and Belt Sprockets |
| Number of Set Screws: | None | Product Group: | TableTop® |
| Bore Diameter (mm): | 30 mm | Bore Type: | Shaft-Ready |
| Number of Keyways: | 1 | Pitch Diameter (in): | 5.984 |
| Bore Shape: | Round |
General Specifications
| UPC: | 698210878856 | Weight: | 1.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
