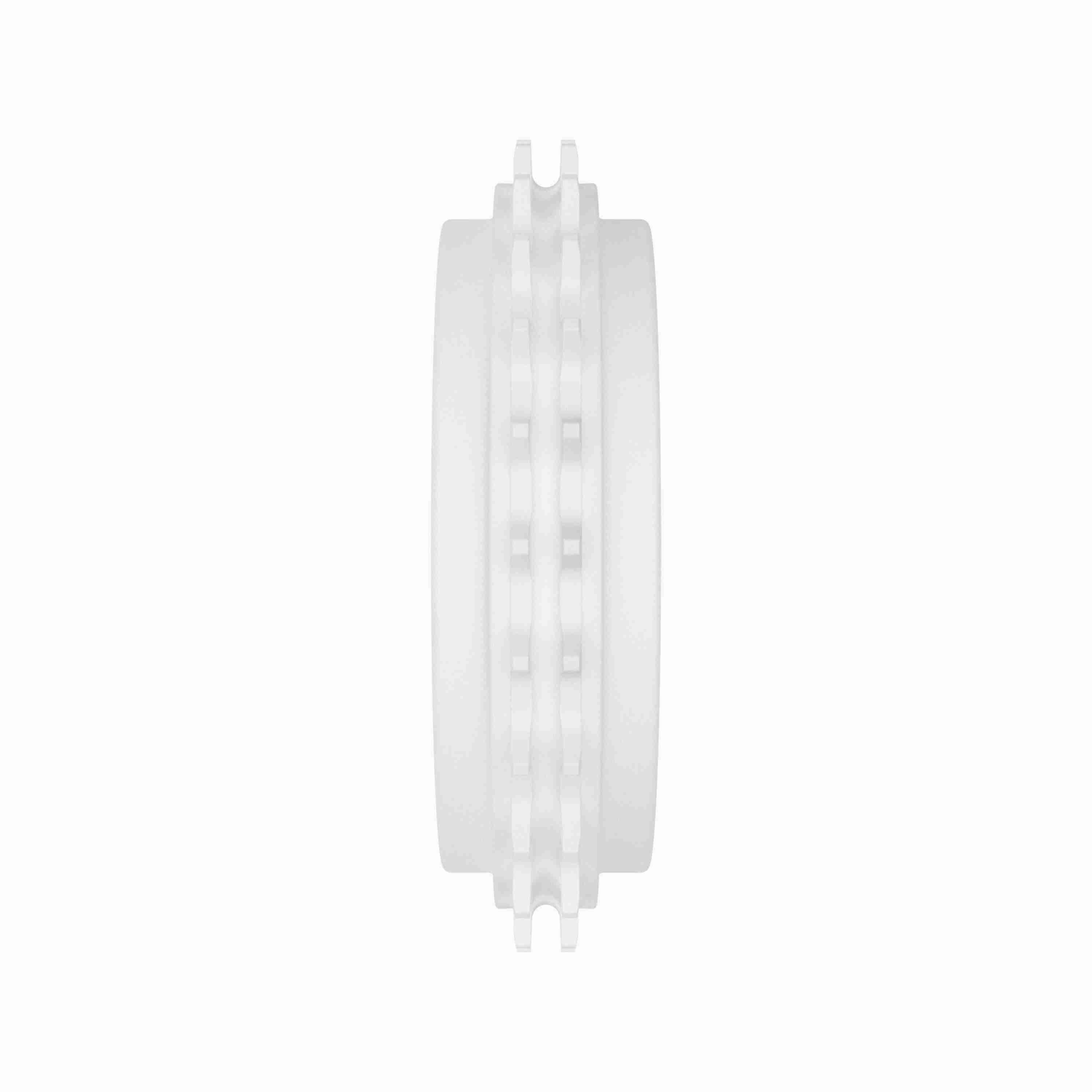

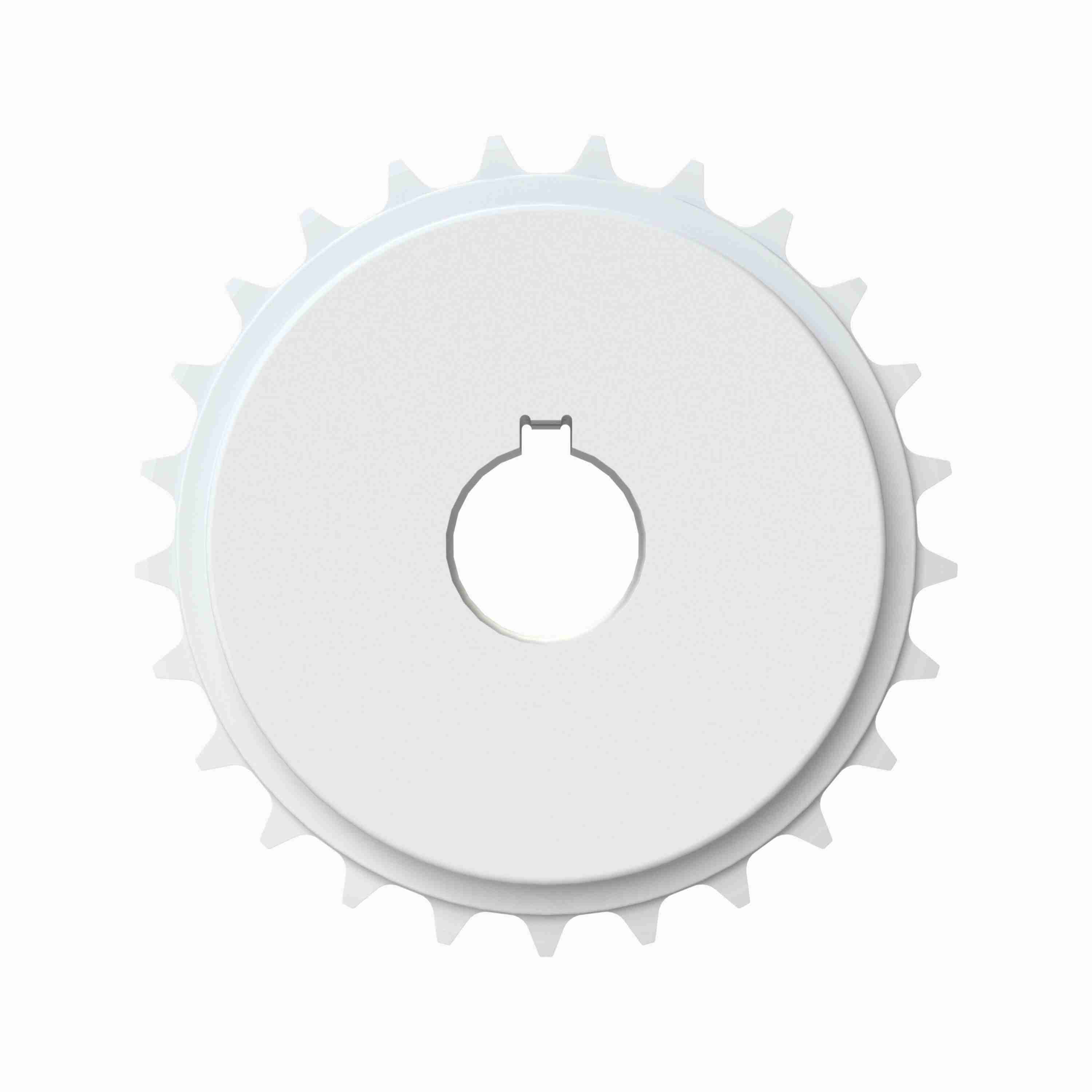

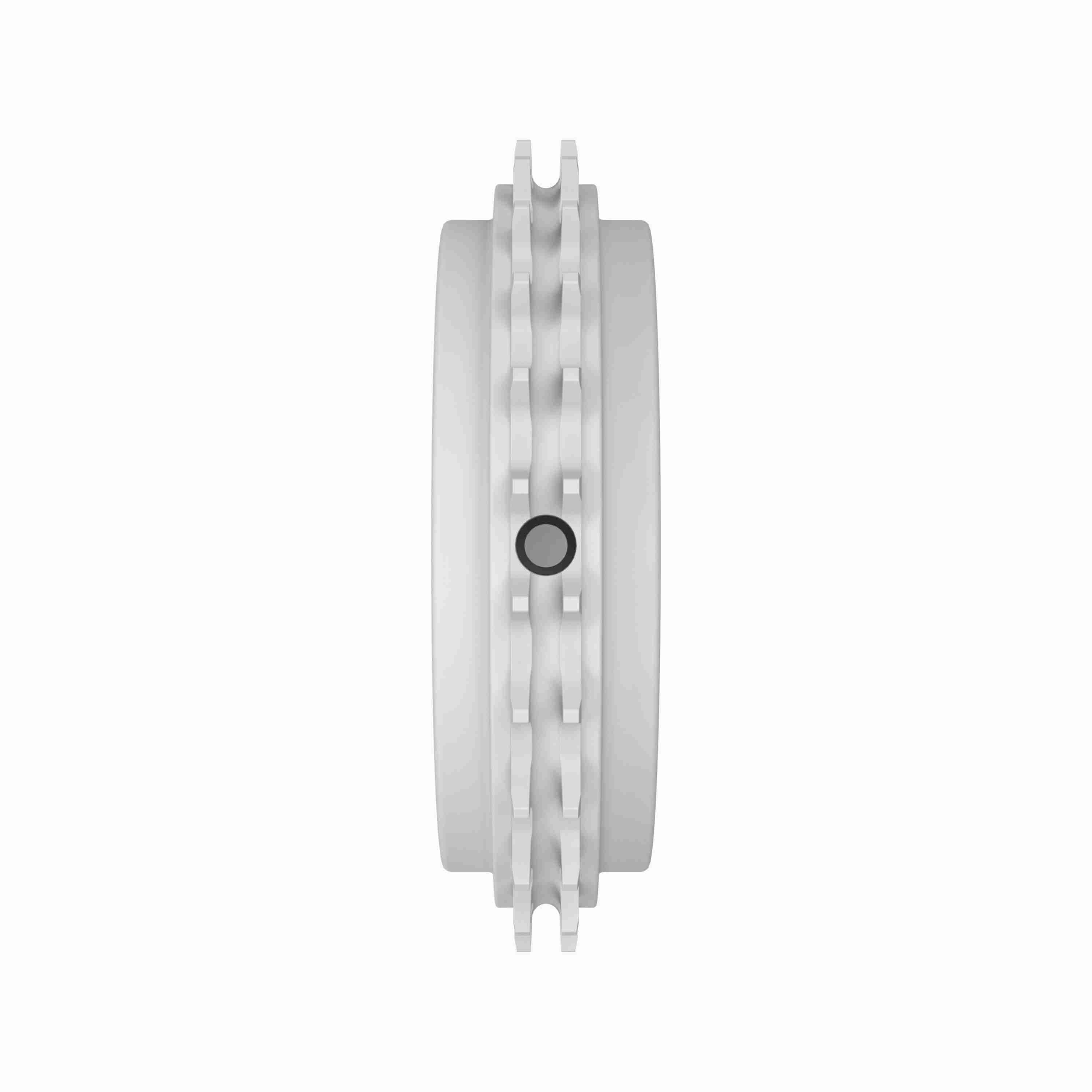

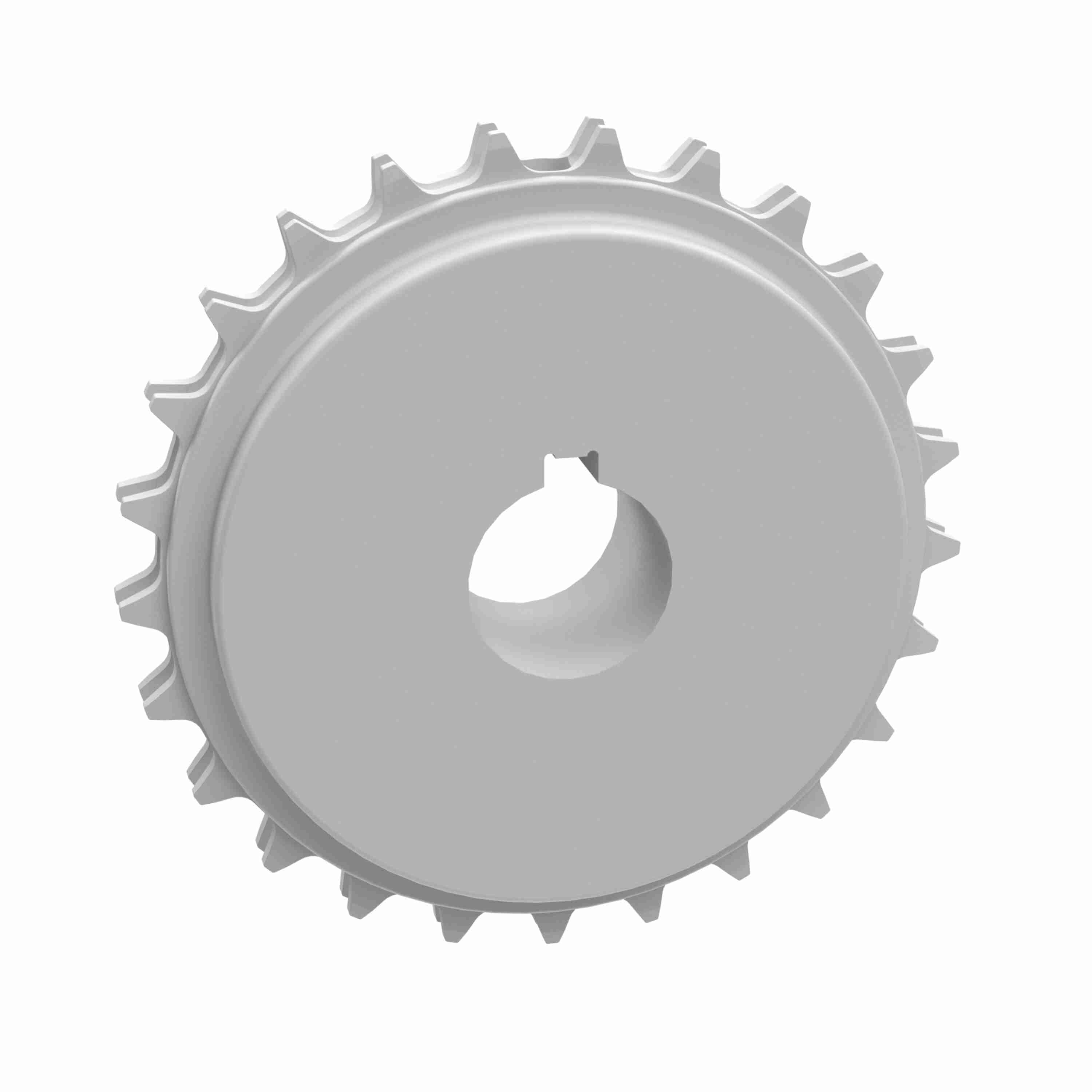

Rexnord 8500 Series Solid One Piece Machined Nylon Sprocket and a 25 Teeth with 1-7/16in Round Shaft-Ready Bore with Keyway & Setscrew - 114-2844-19
Part #:10071121
Catalog #:114-2844-19
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Construction: | Machined Non-Split Sprocket | Number of Keyways: | 1 |
| Bore Diameter (in): | 1-7/16 in | Number of Teeth: | 25 |
| Bore Shape: | Round | Sprocket Series: | 8500 |
| Product Group: | MatTop® | Bore Type: | Shaft-Ready |
| Hub Type: | A-No Hub | Product Line: | Chain and Belt Sprockets |
| Body Style: | Block | Number of Set Screws: | 1 Setscrew |
| Chain Number: | 8500 | Pitch Diameter (in): | 5.984 |
| Material: | Nylon | Pitch Diameter (mm): | 151.99 |
General Specifications
| UPC: | 793699951325 | Weight: | 1.24 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
