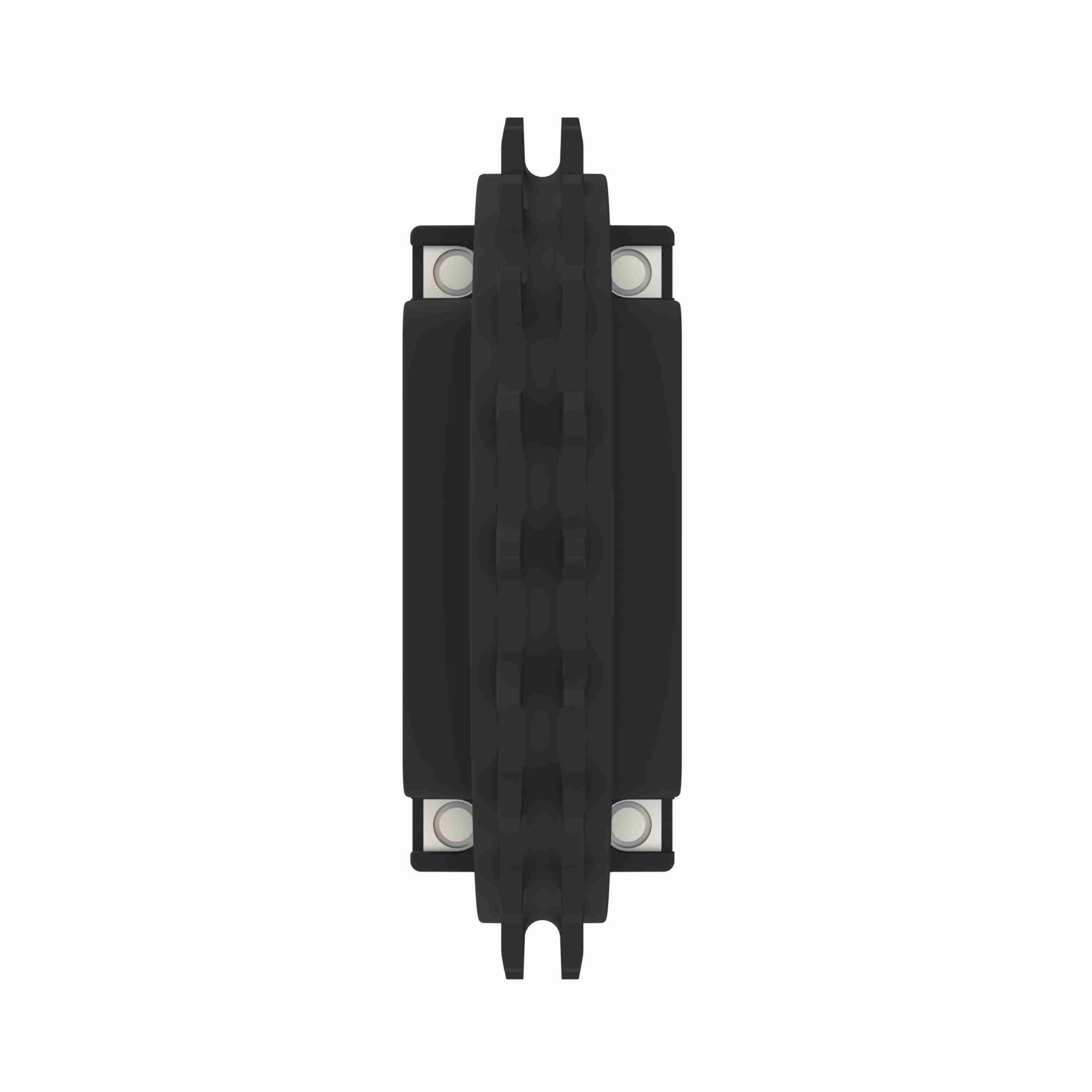

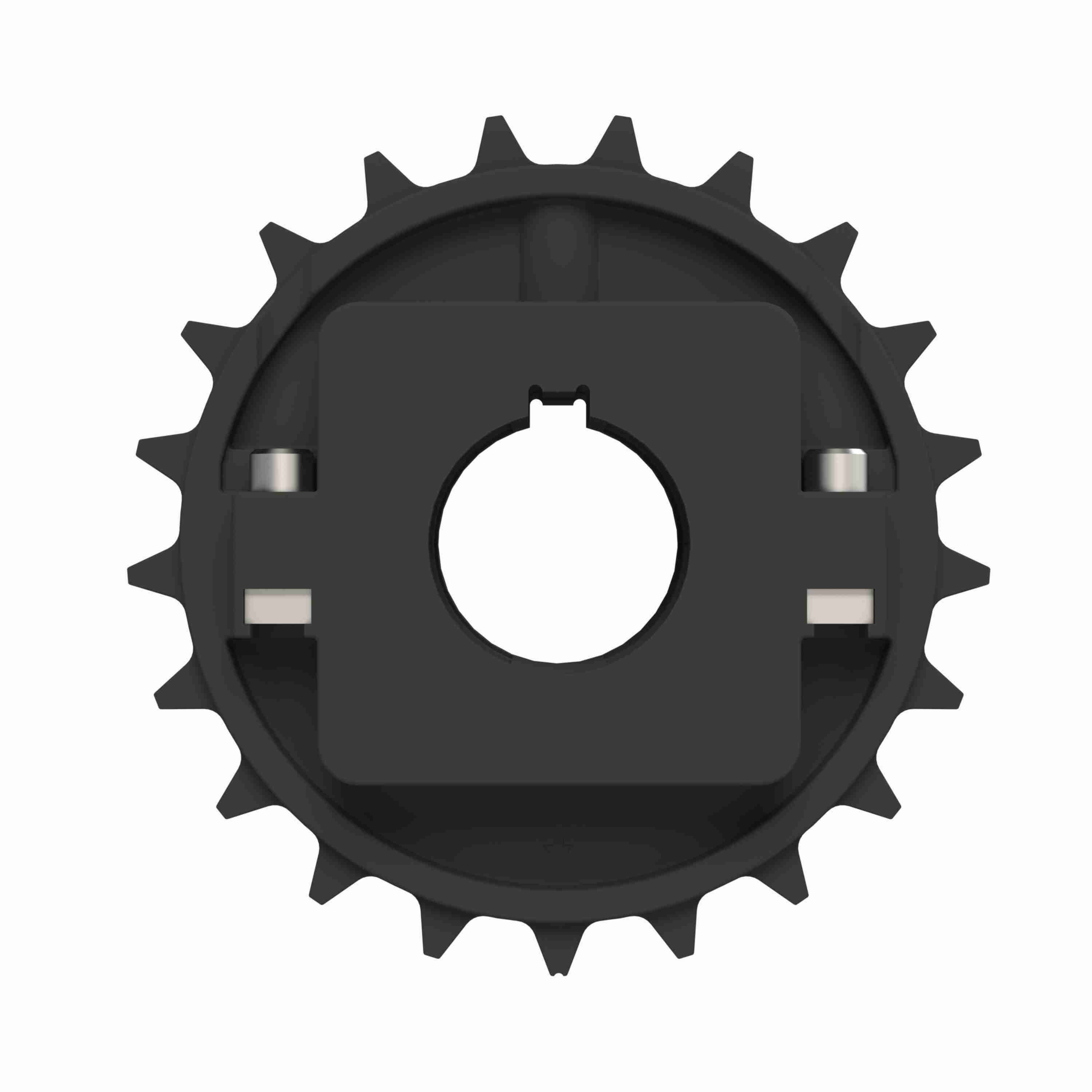

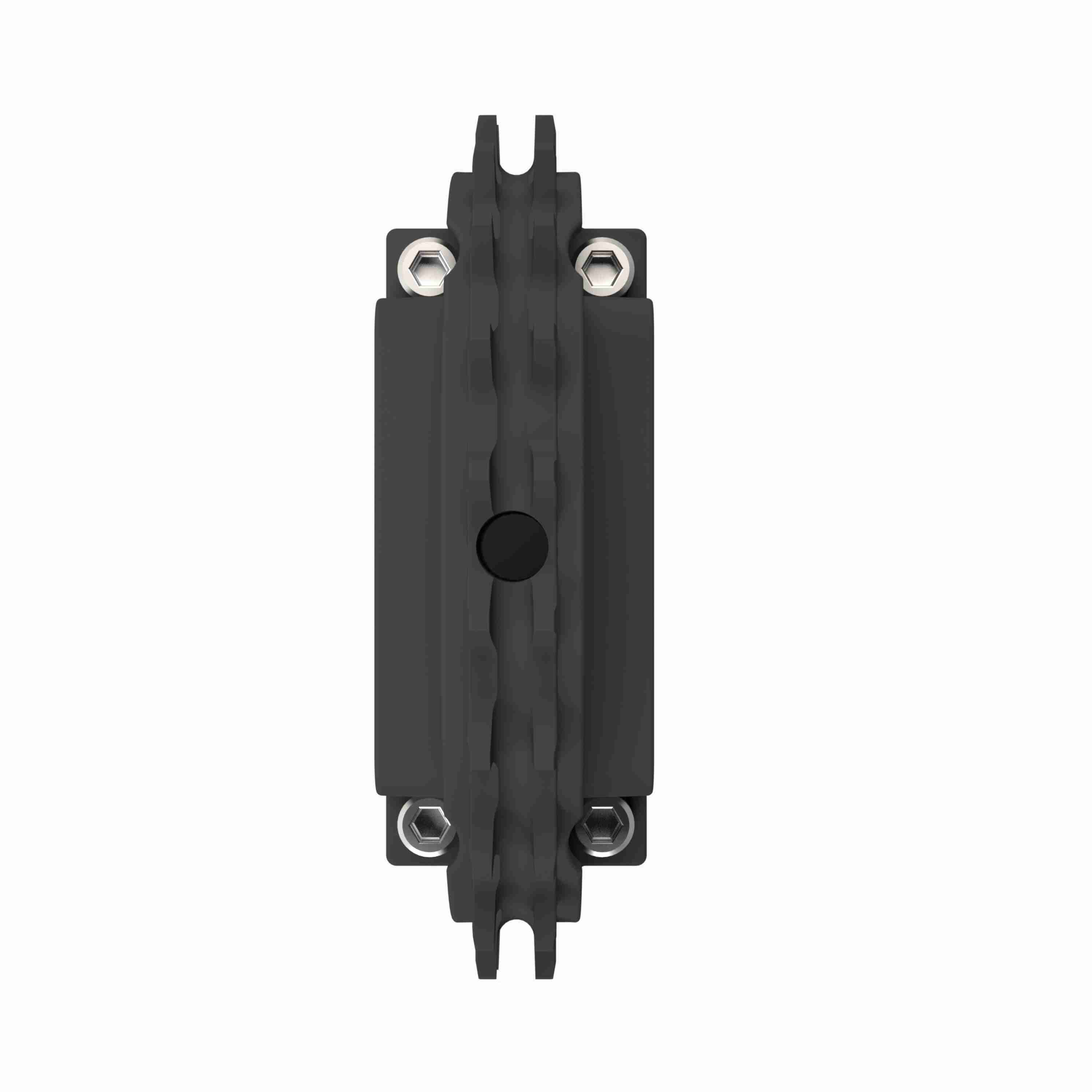

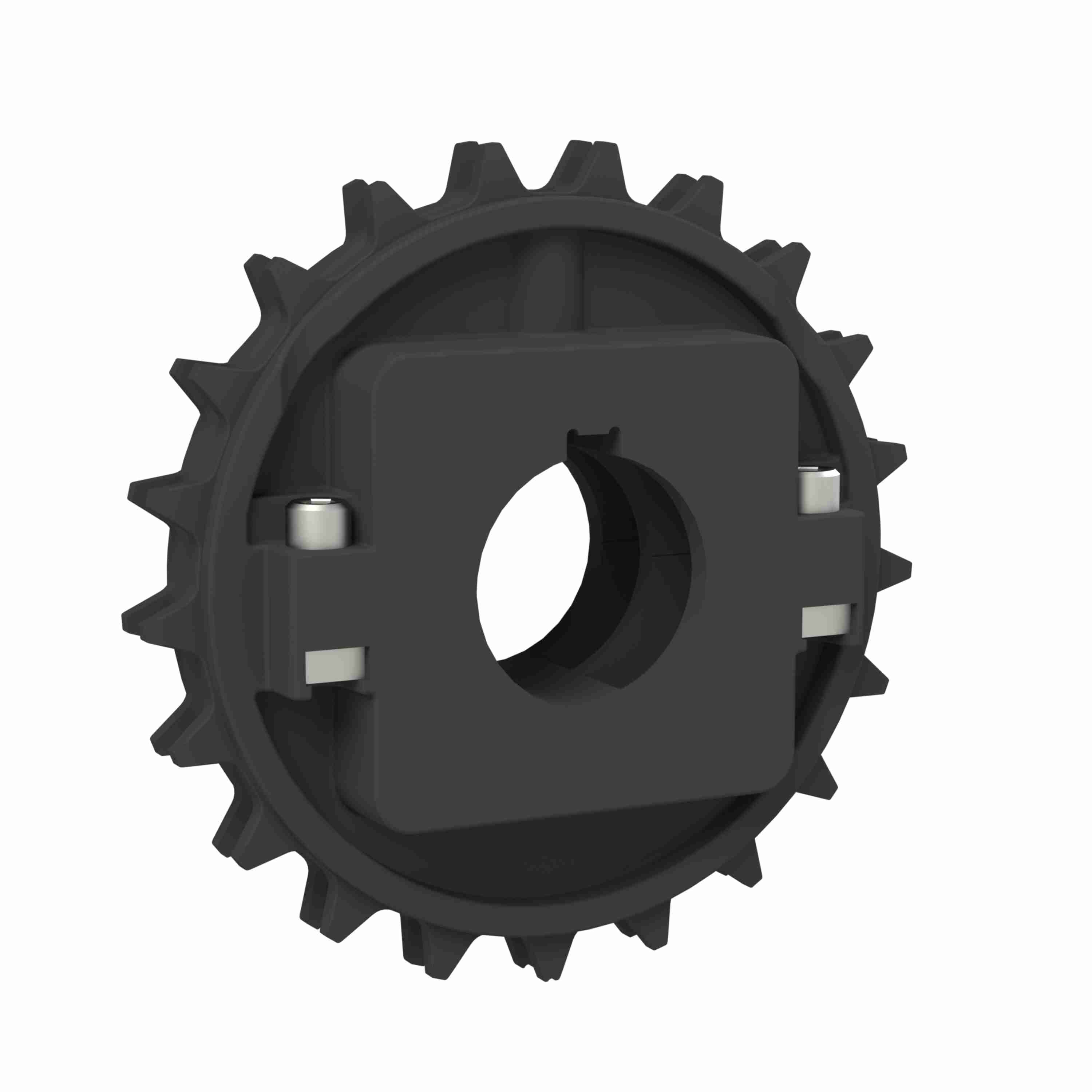

Rexnord 8500 Series Split Molded Nylon Sprocket and a 21 Teeth with 1-1/2in Round Shaft-Ready Bore with Keyway & Setscrew - 614-237-5
Part #:10028674
Catalog #:614-237-5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 21 | Product Line: | Chain and Belt Sprockets |
| Bore Diameter (in): | 1-1/2 in | Body Style: | Block |
| Pitch Diameter (in): | 5.032 | Chain Number: | 8500 |
| Bore Type: | Shaft-Ready | Sprocket Series: | 8500 |
| Number of Set Screws: | 1 Setscrew | Number of Keyways: | 1 |
| Sprocket Construction: | Molded Split Sprocket | Product Group: | MatTop® |
| Material: | Nylon | Bore Shape: | Round |
| Pitch Diameter (mm): | 127.82 |
General Specifications
| UPC: | 793699269659 | Weight: | 1.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
