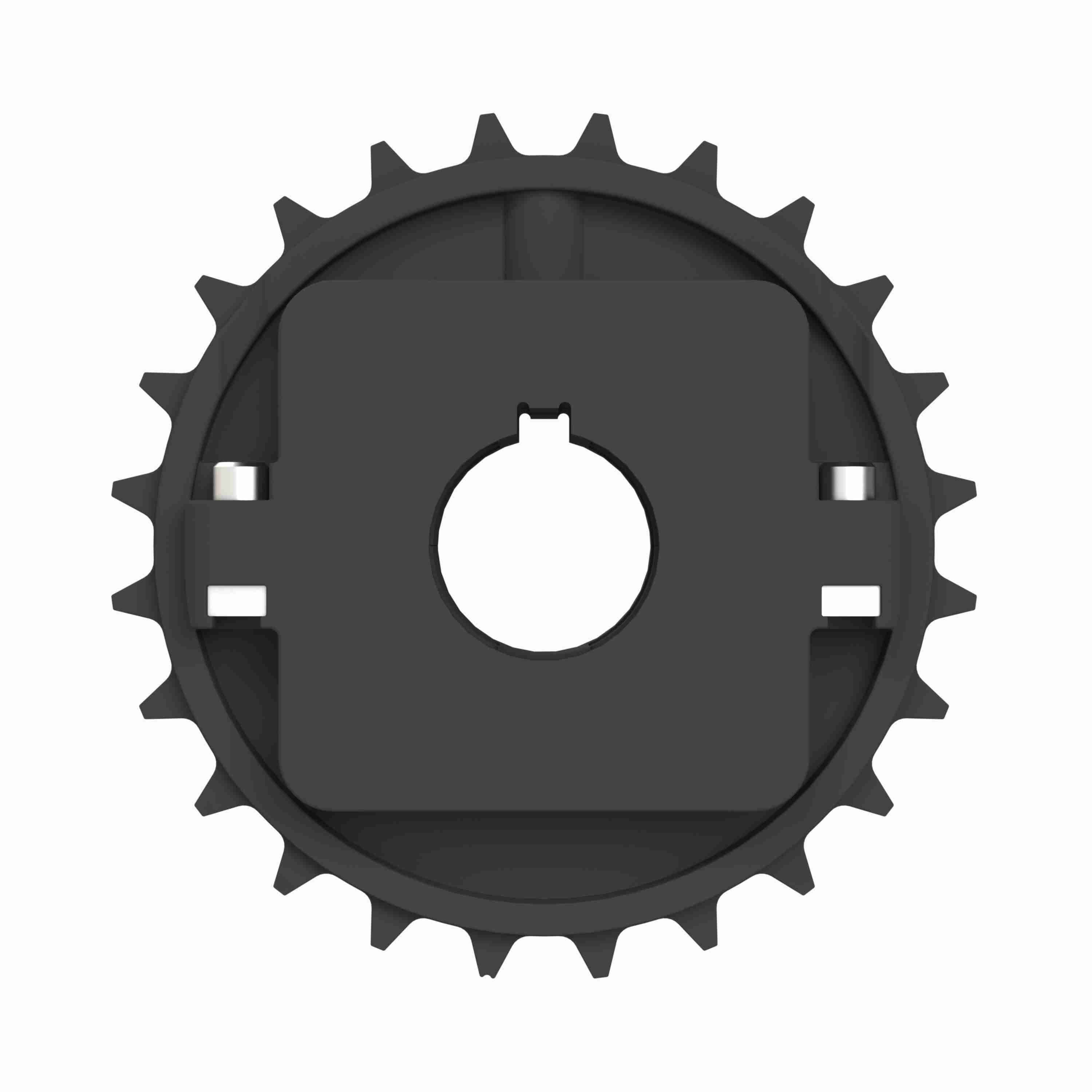

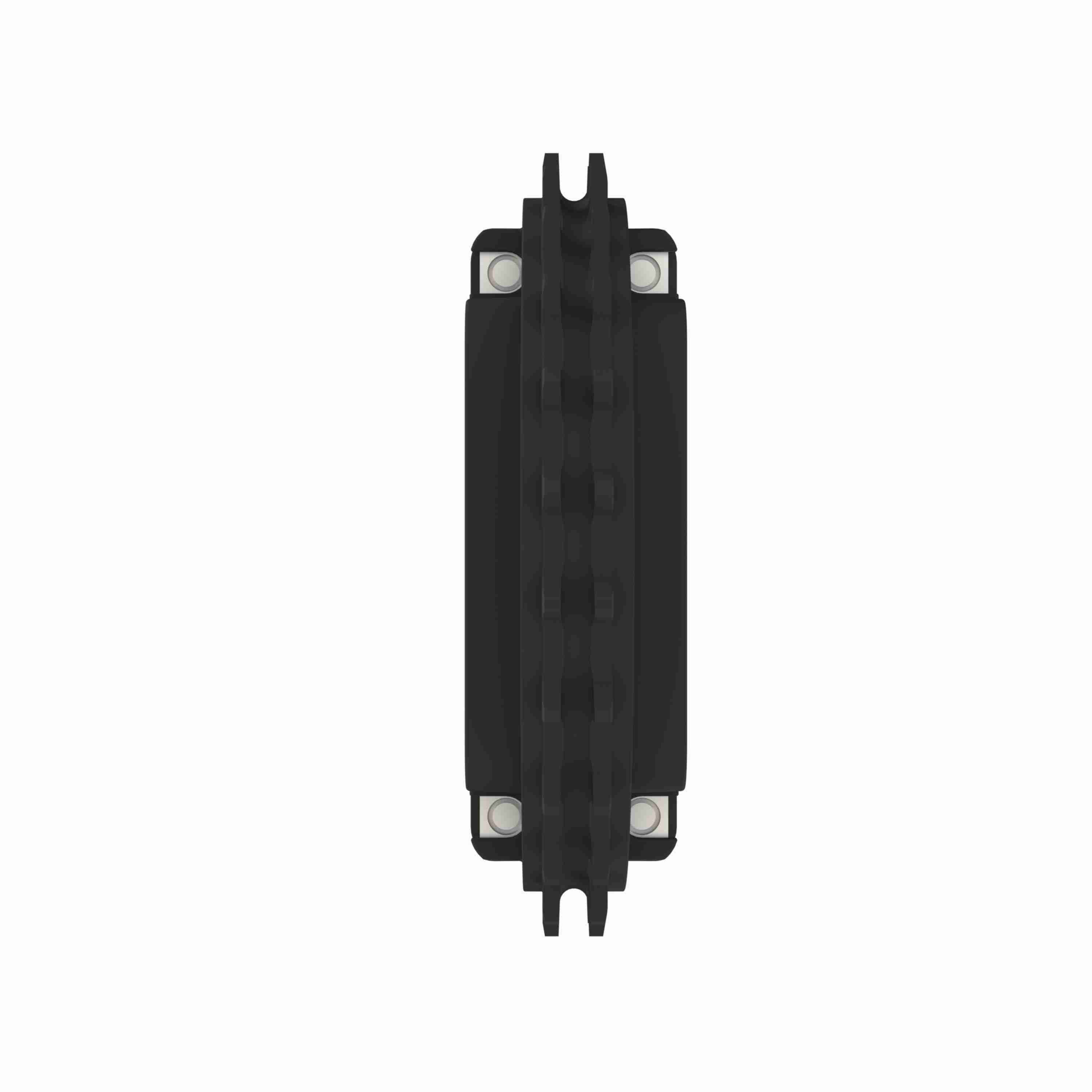

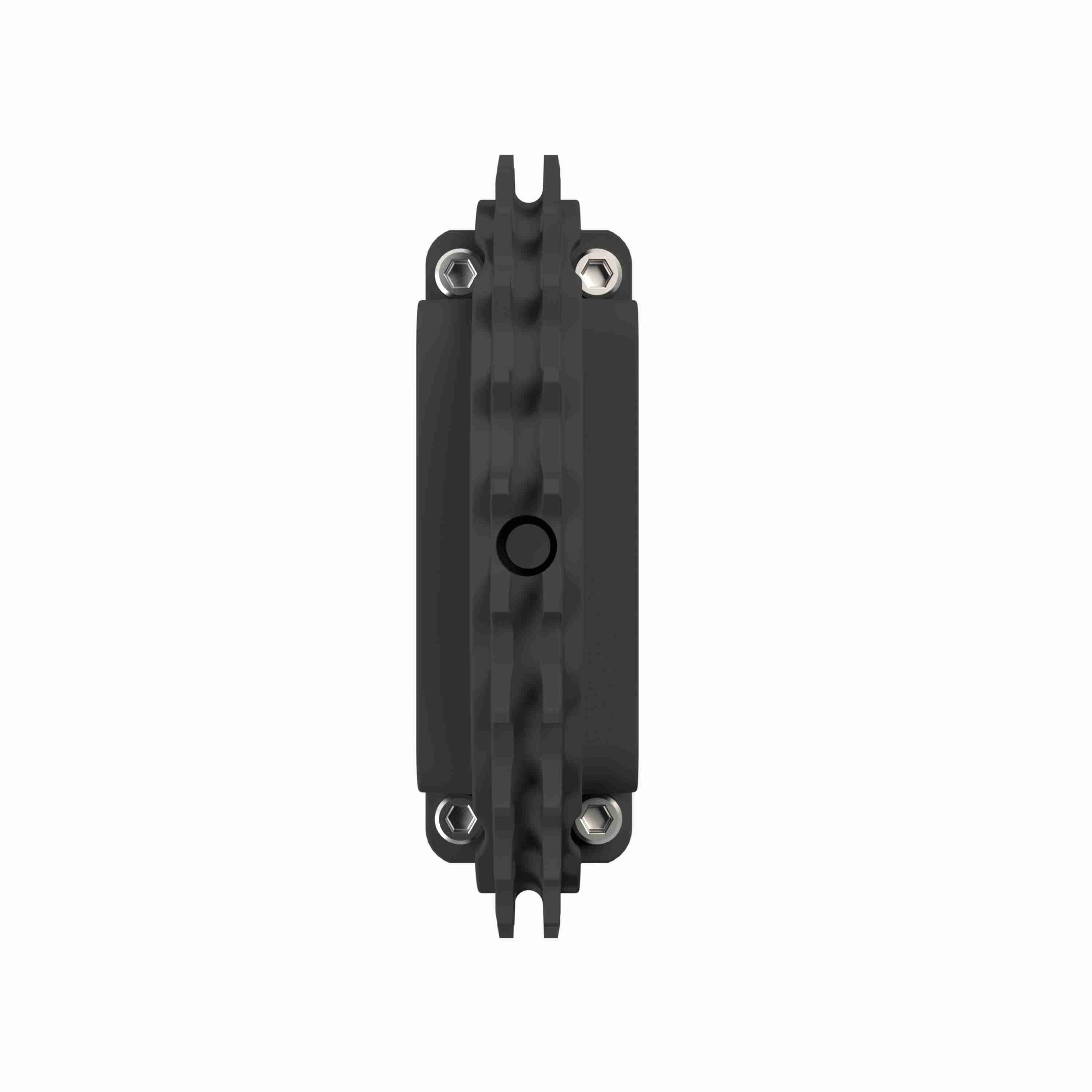

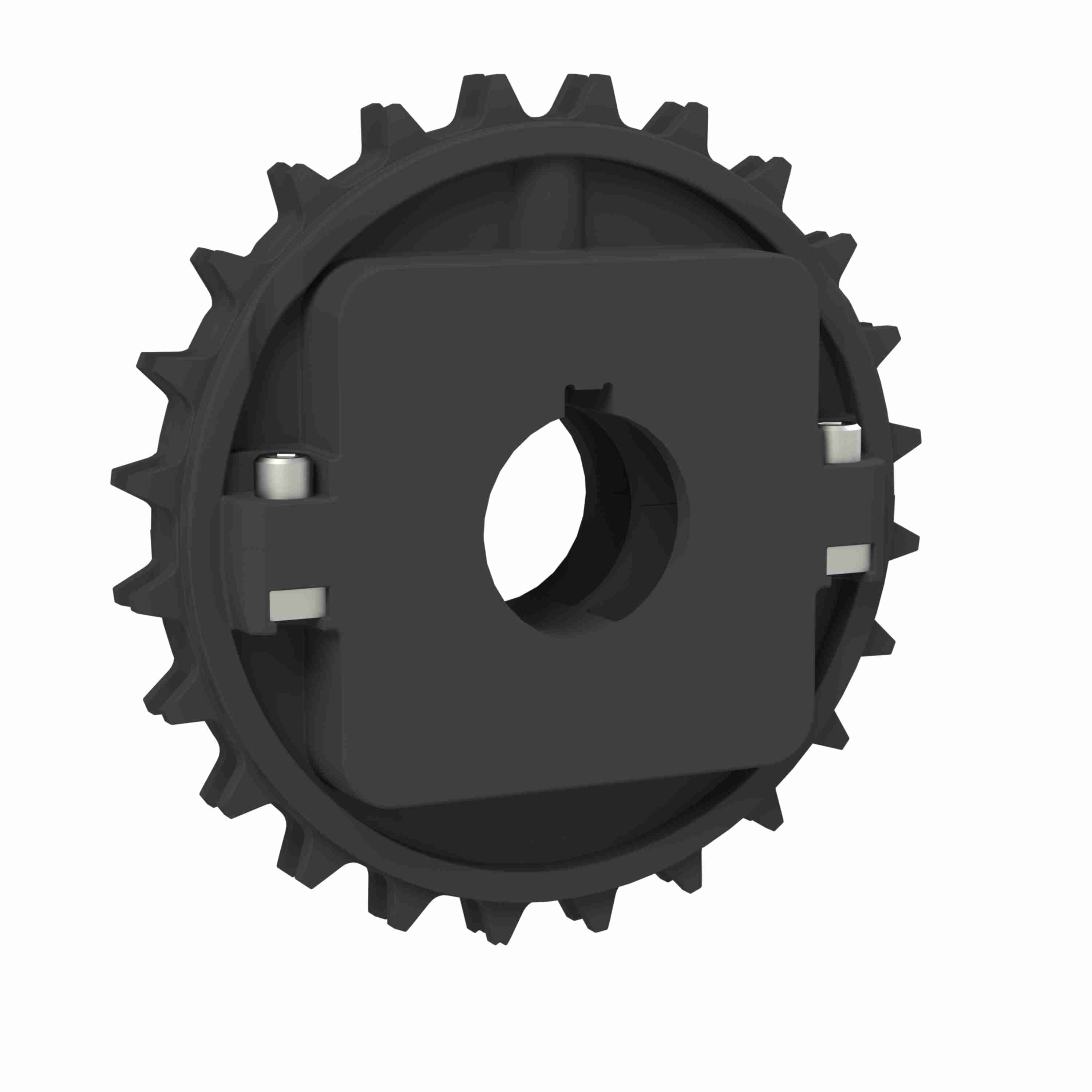

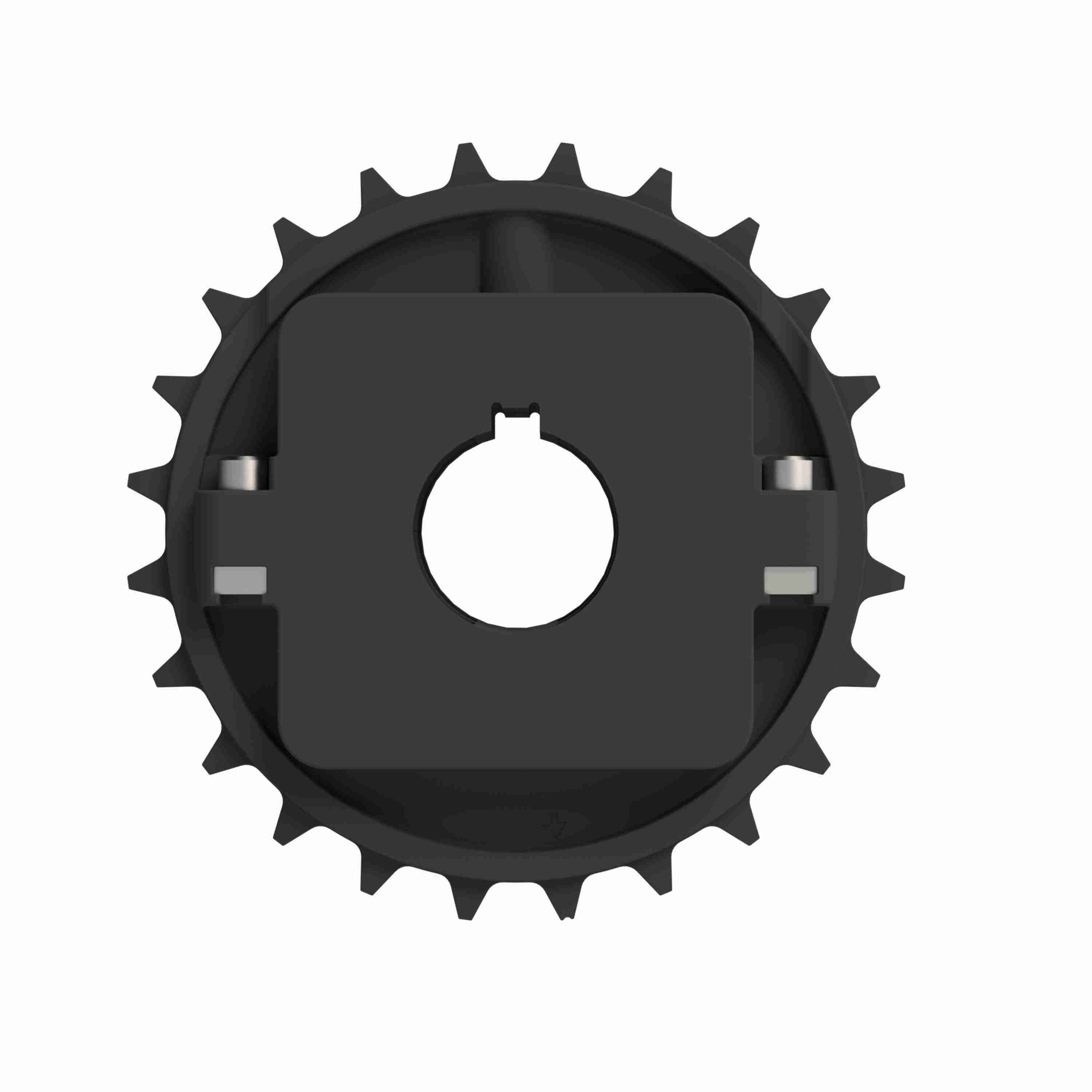

Rexnord 8500 Series Split Molded Nylon Sprocket and a 24 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-186-3
Part #:10028687
Catalog #:614-186-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Set Screws: | 1 Setscrew | Material: | Nylon |
| Bore Diameter (in): | 1-1/4 in | Sprocket Series: | 8500 |
| Sprocket Construction: | Molded Split Sprocket | Chain Number: | 8500 |
| Bore Shape: | Round | Bore Type: | Shaft-Ready |
| Number of Teeth: | 24 | Pitch Diameter (mm): | 145.95 |
| Pitch Diameter (in): | 5.746 | Number of Keyways: | 1 |
| Product Line: | Chain and Belt Sprockets | Product Group: | MatTop® |
| Body Style: | Block |
General Specifications
| UPC: | 793699408850 | Weight: | 0.68 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
