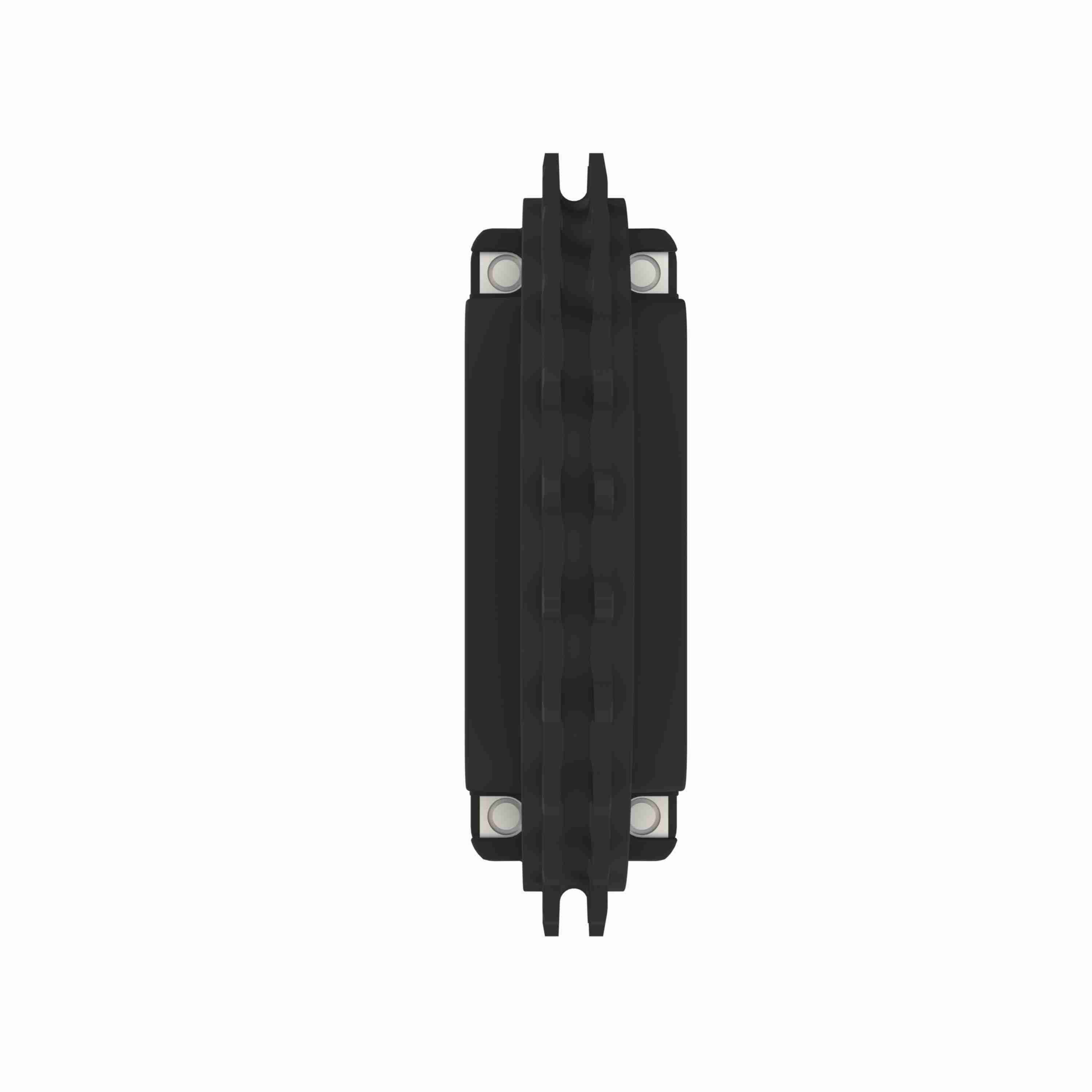

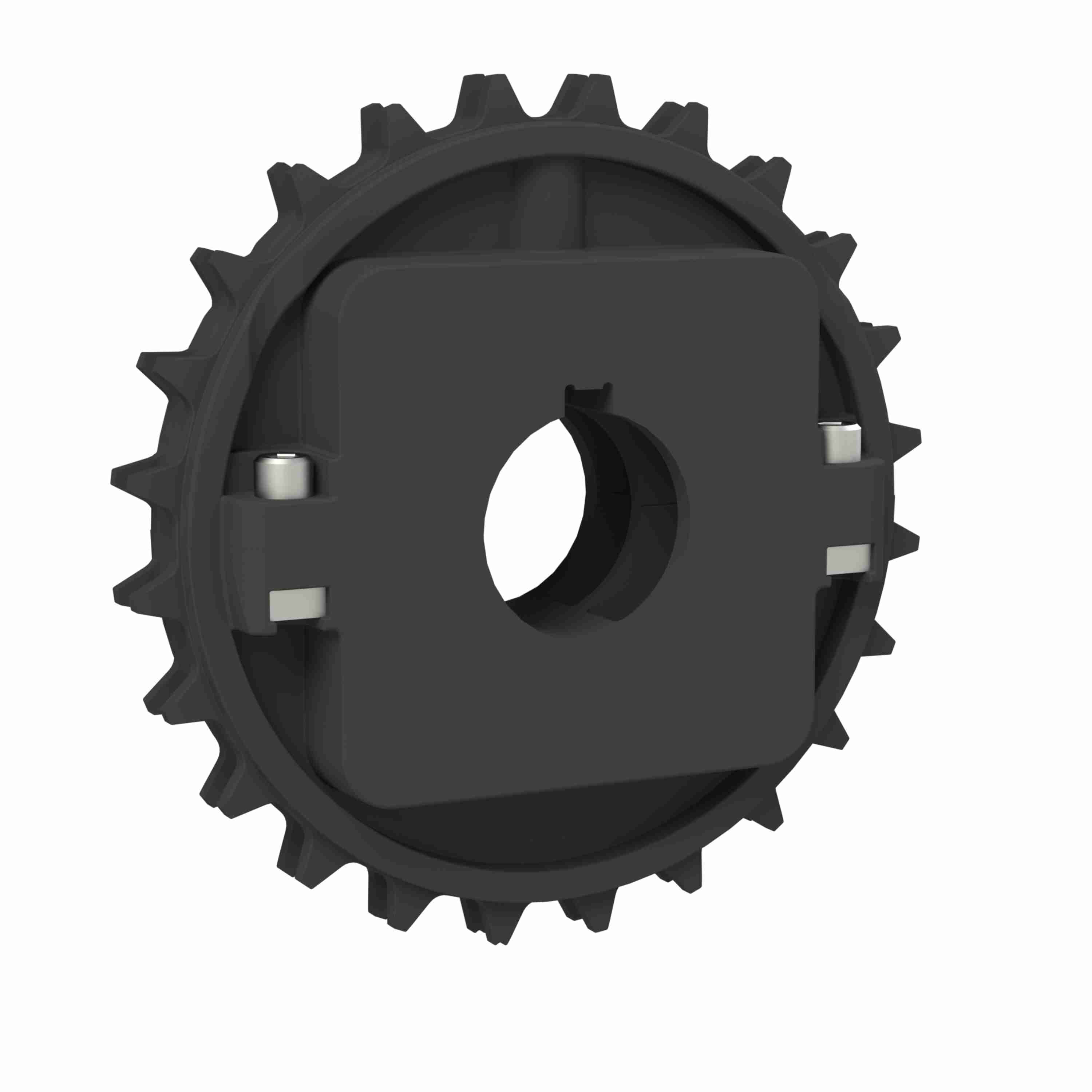

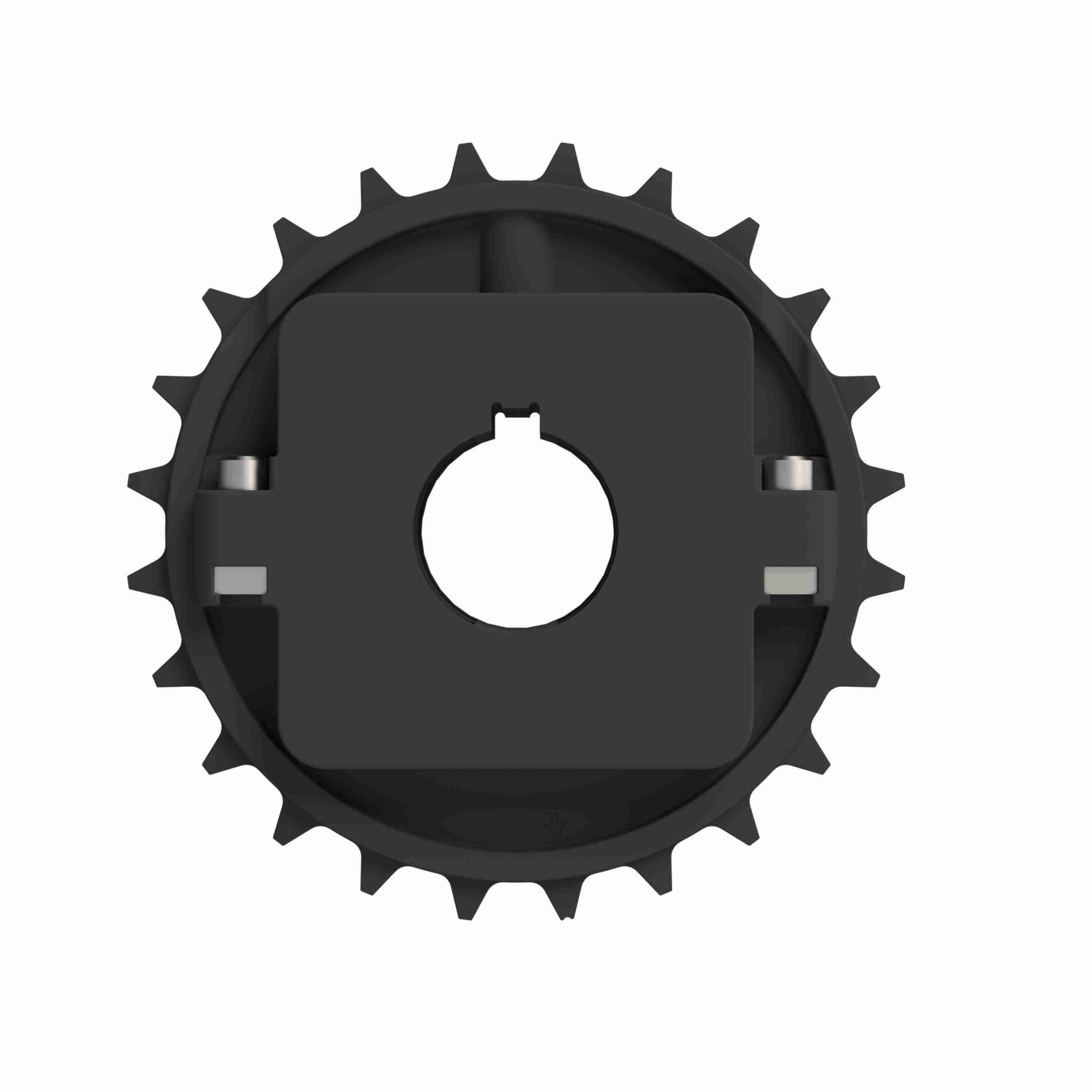

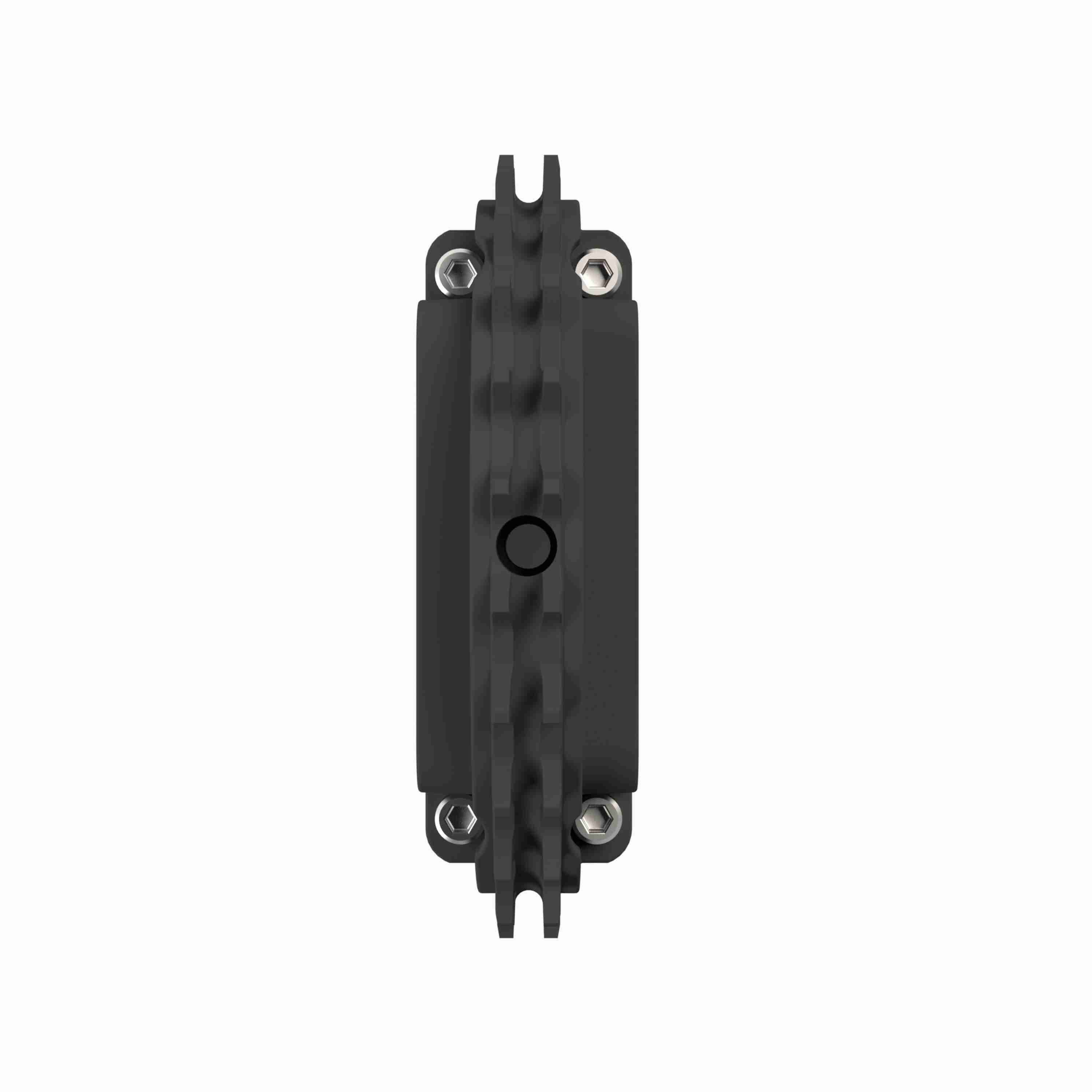

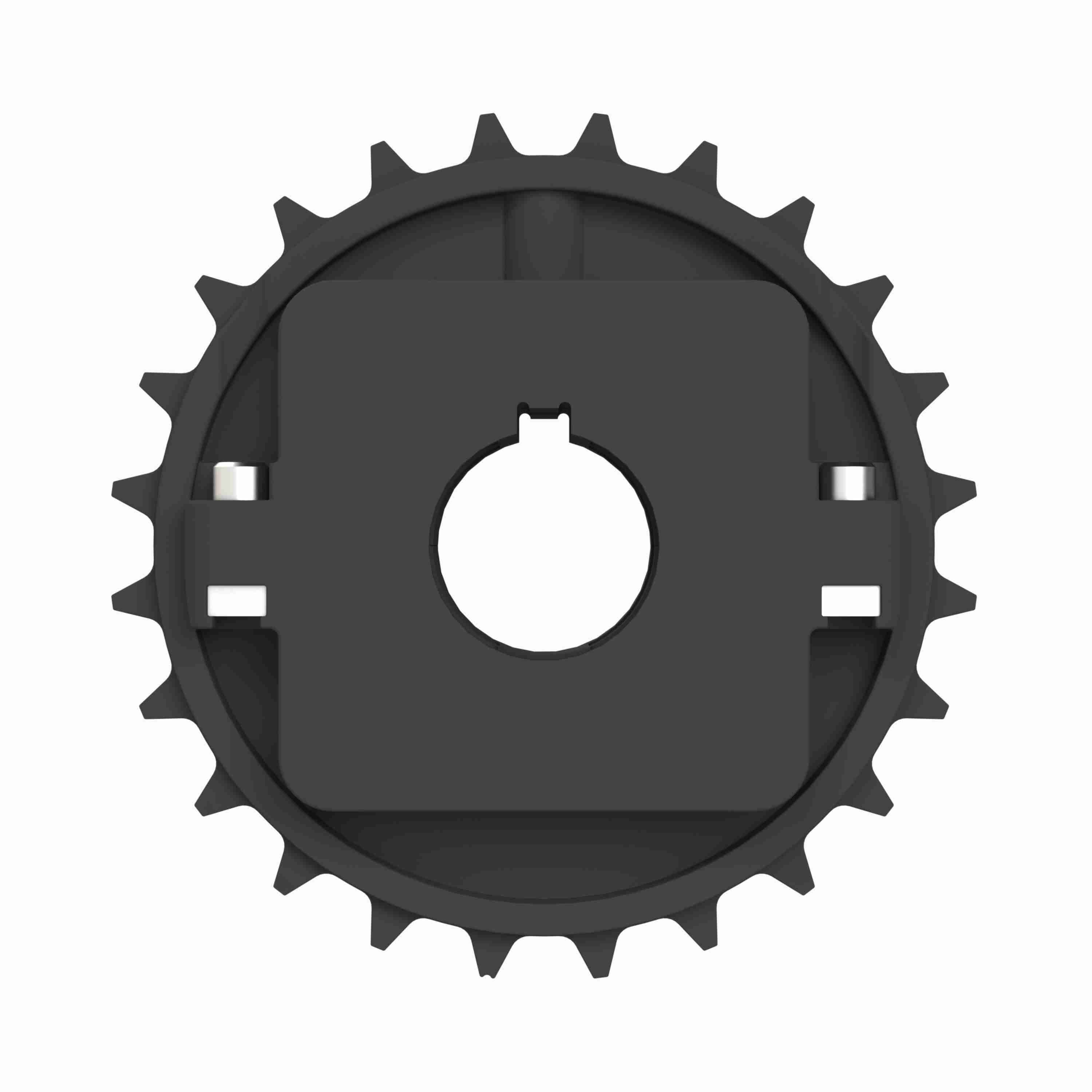

Rexnord 8500 Series Split Molded Nylon Sprocket and a 24 Teeth with 1in Round Shaft-Ready Bore with Keyway & Setscrew - 614-186-1
Part #:10028683
Catalog #:614-186-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Pitch Diameter (mm): | 145.95 | Sprocket Construction: | Molded Split Sprocket |
| Product Group: | MatTop® | Number of Set Screws: | 1 Setscrew |
| Chain Number: | 8500 | Bore Shape: | Round |
| Number of Keyways: | 1 | Material: | Nylon |
| Pitch Diameter (in): | 5.746 | Bore Type: | Shaft-Ready |
| Product Line: | Chain and Belt Sprockets | Body Style: | Block |
| Sprocket Series: | 8500 | Bore Diameter (in): | 1 in |
| Number of Teeth: | 24 |
General Specifications
| UPC: | 793699408744 | Weight: | 0.68 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
