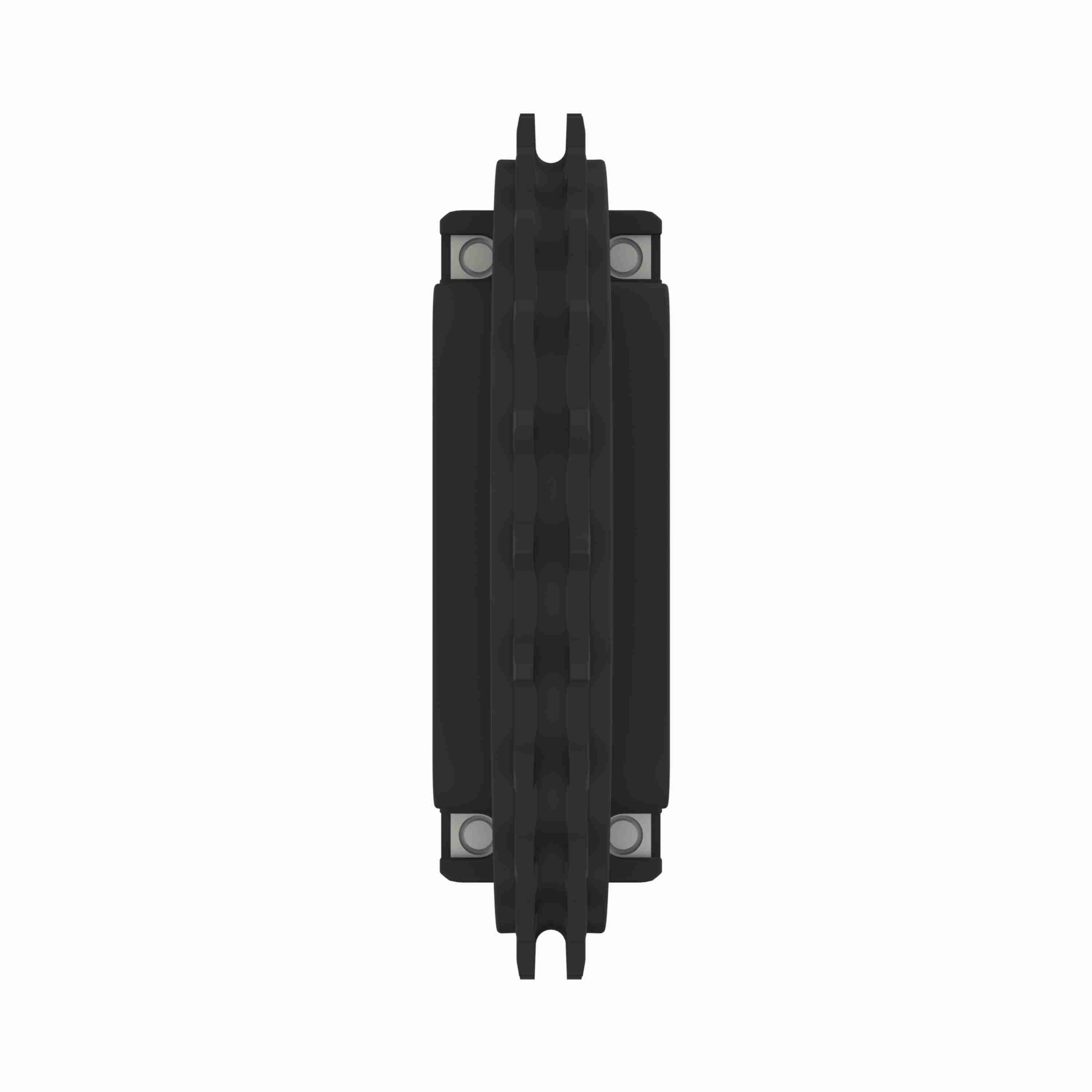

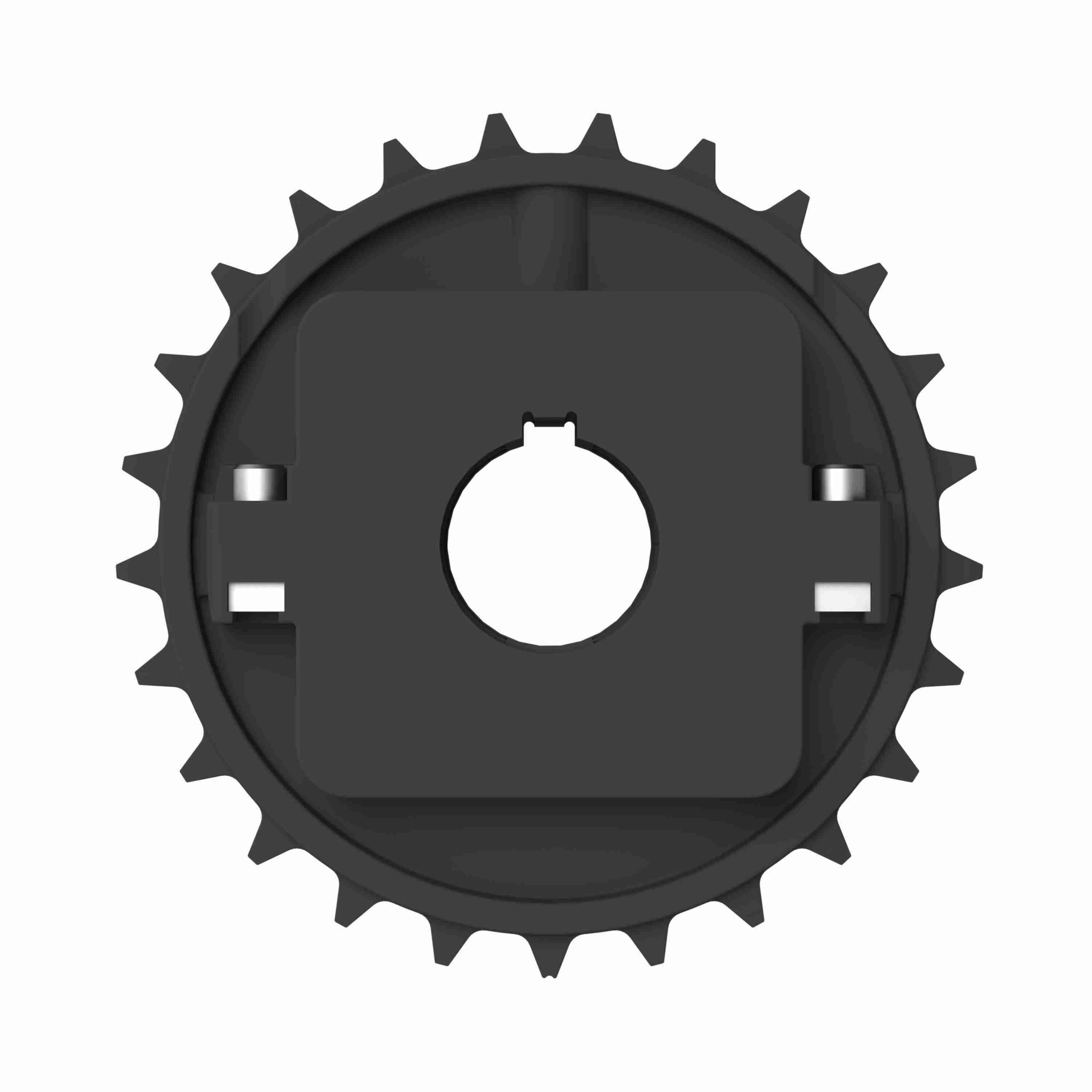

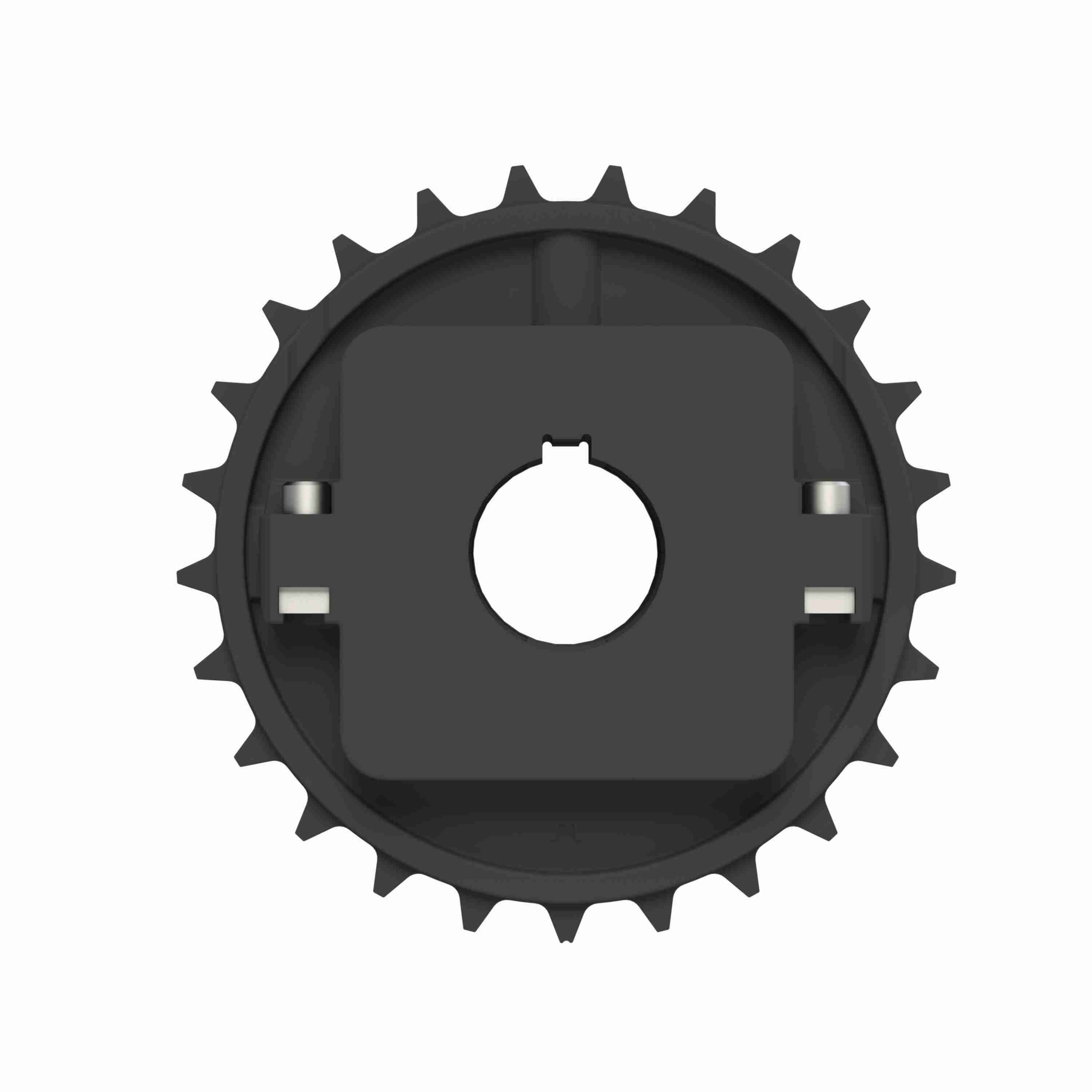

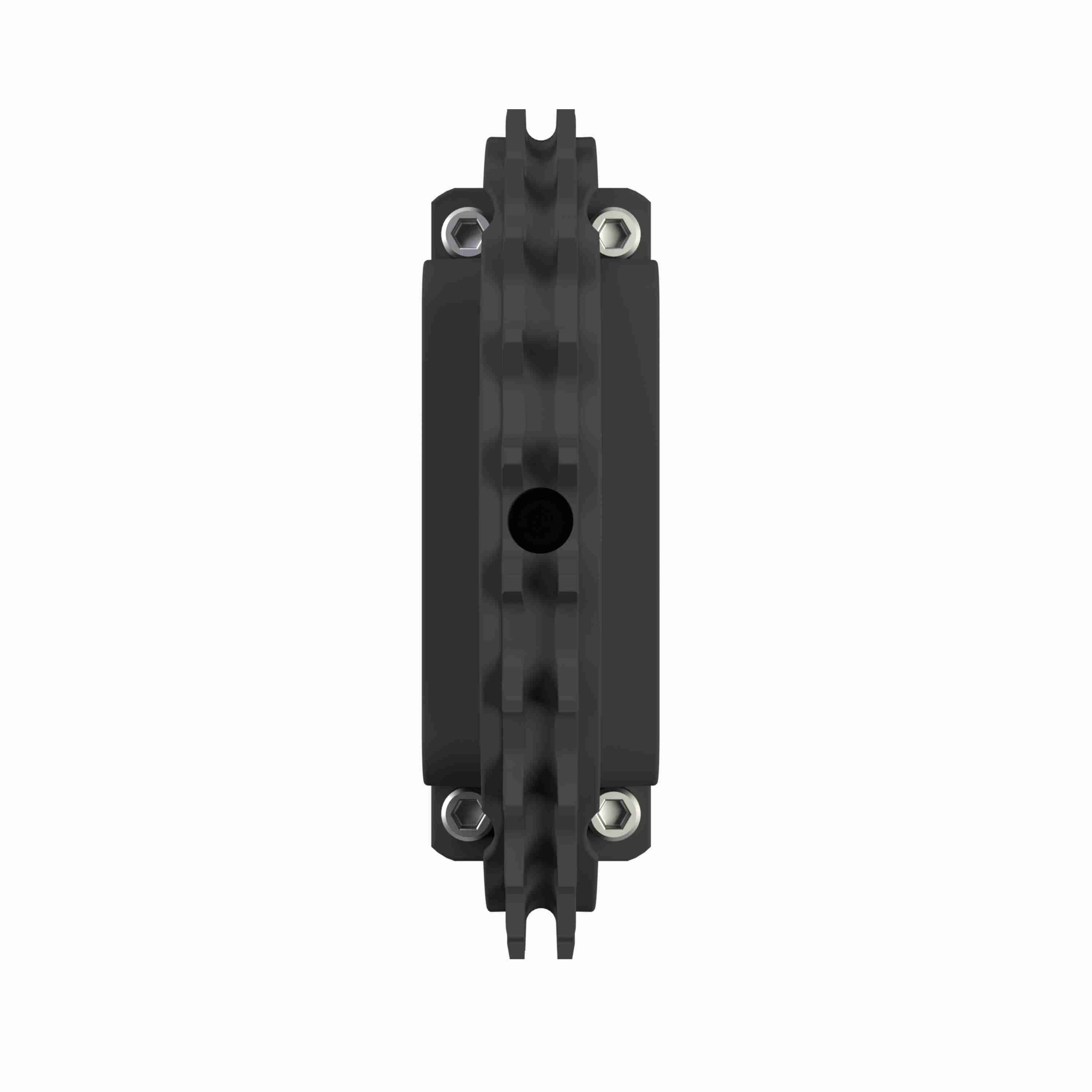

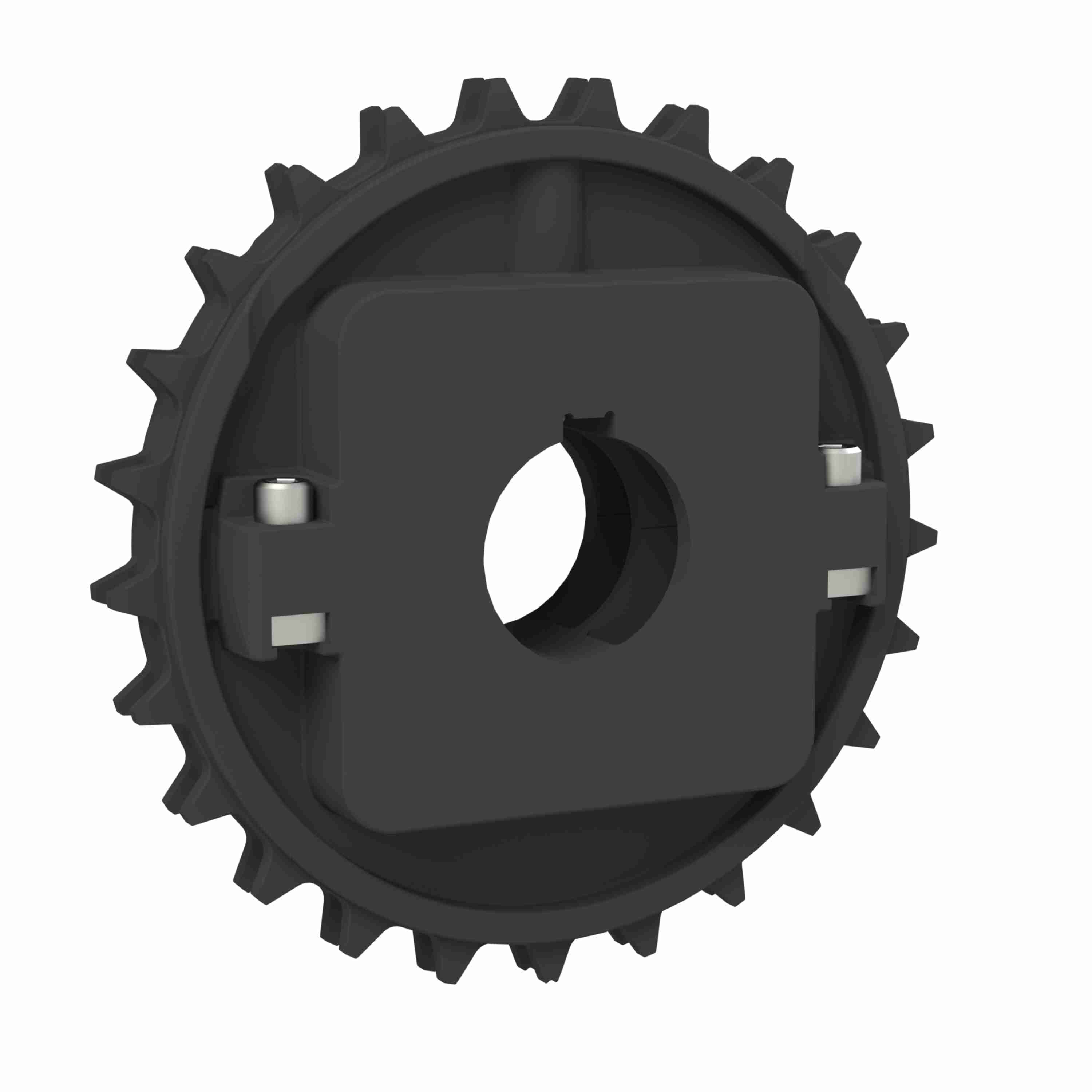

Rexnord 8500 Series Split Molded Nylon Sprocket and a 25 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-190-3
Part #:10019774
Catalog #:614-190-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Diameter (in): | 1-1/4 in | Body Style: | Block |
| Chain Number: | 8500 | Number of Teeth: | 25 |
| Bore Shape: | Round | Product Line: | Chain and Belt Sprockets |
| Sprocket Series: | 8500 | Number of Keyways: | 1 |
| Material: | Nylon | Product Group: | MatTop® |
| Pitch Diameter (in): | 5.984 | Bore Type: | Shaft-Ready |
| Number of Set Screws: | 1 Setscrew | Pitch Diameter (mm): | 151.99 |
| Sprocket Construction: | Molded Split Sprocket |
General Specifications
| UPC: | 793699262223 | Weight: | 0.90 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
