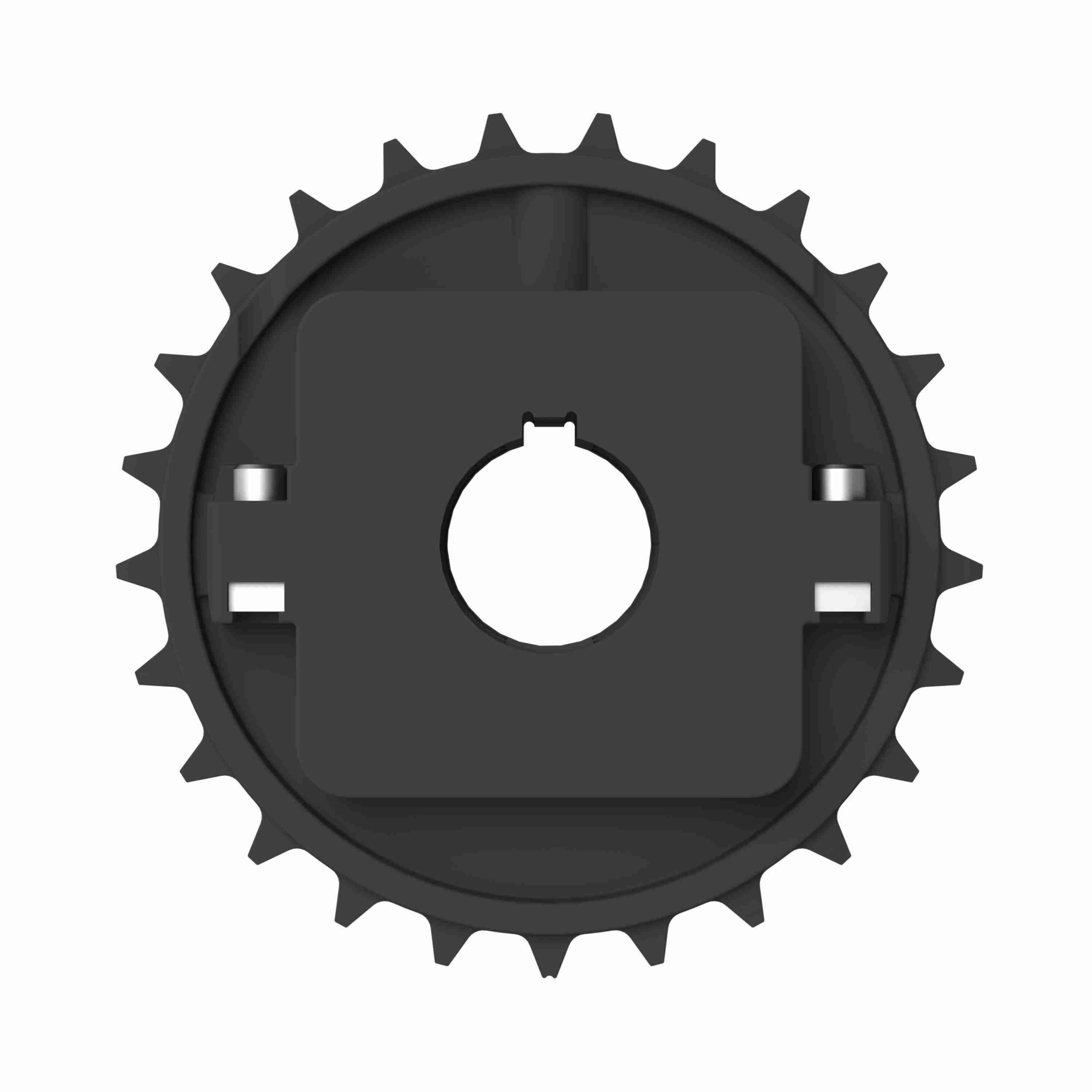

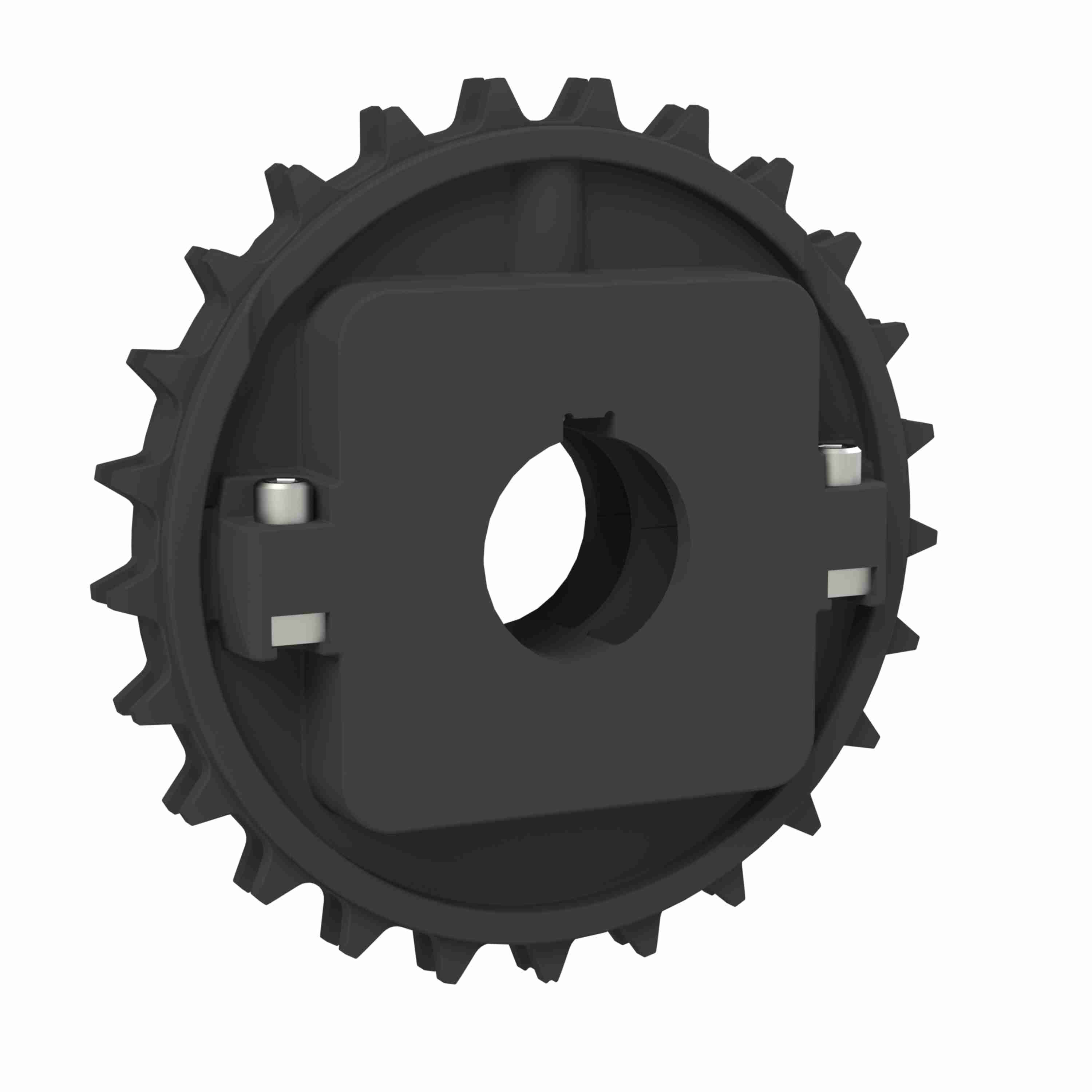

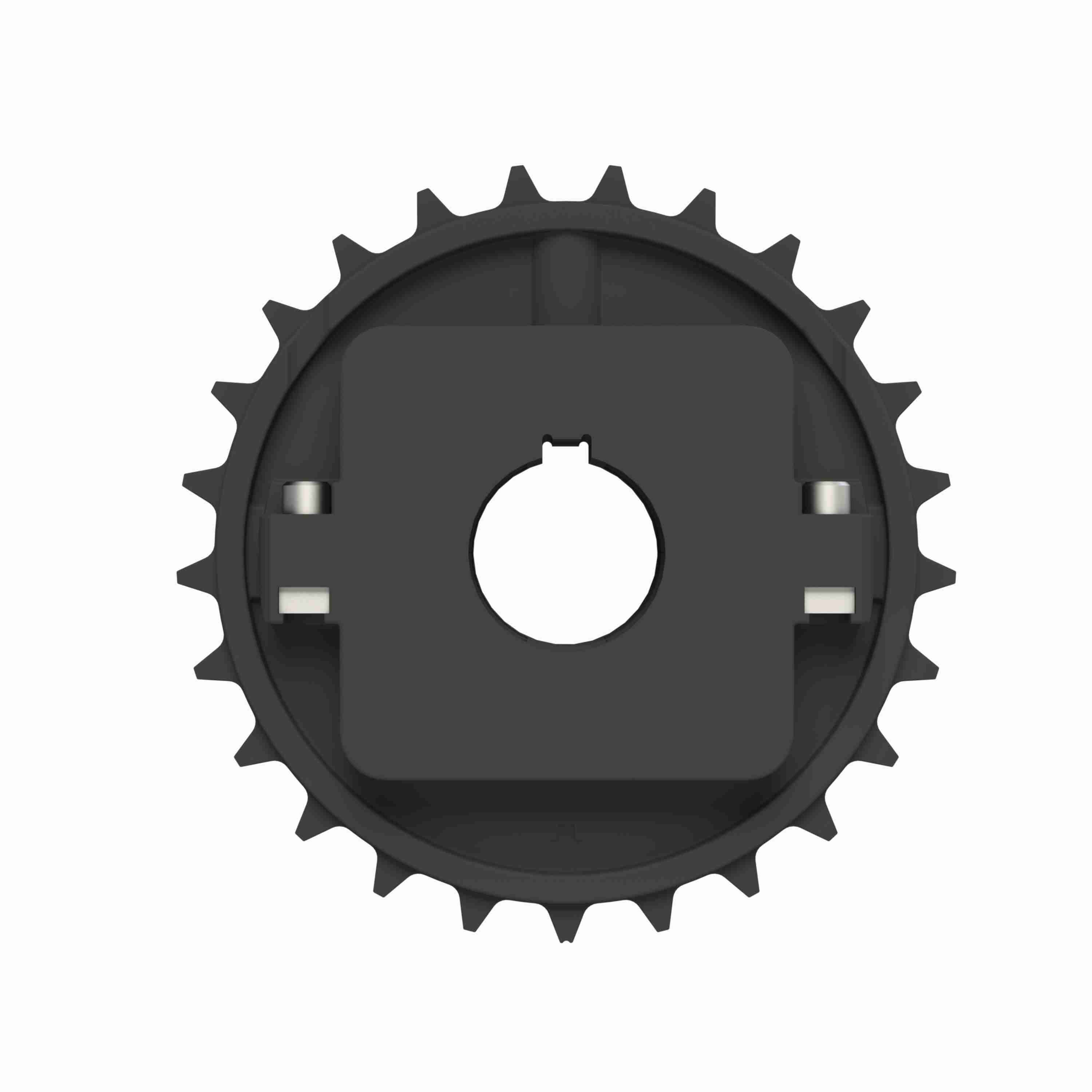

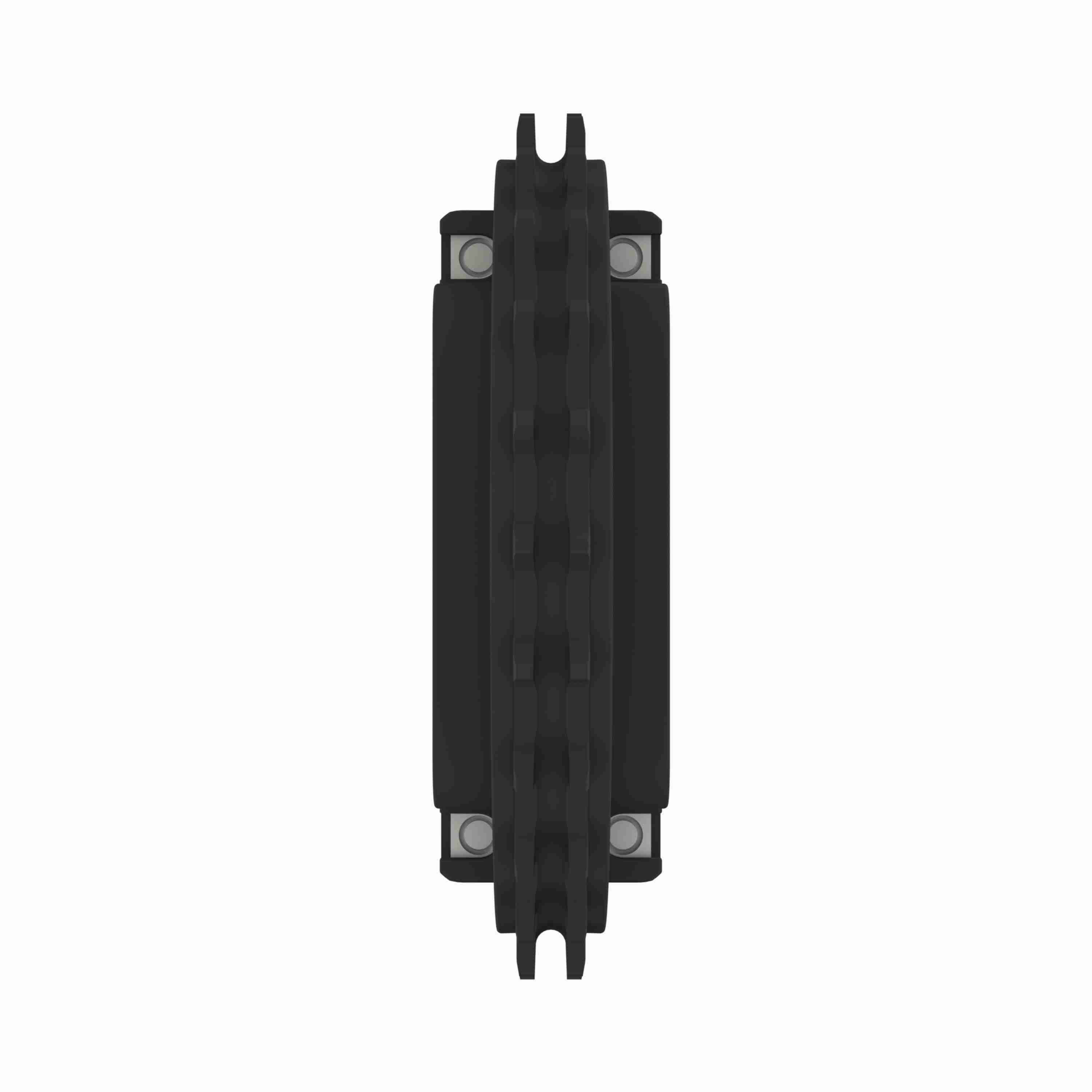

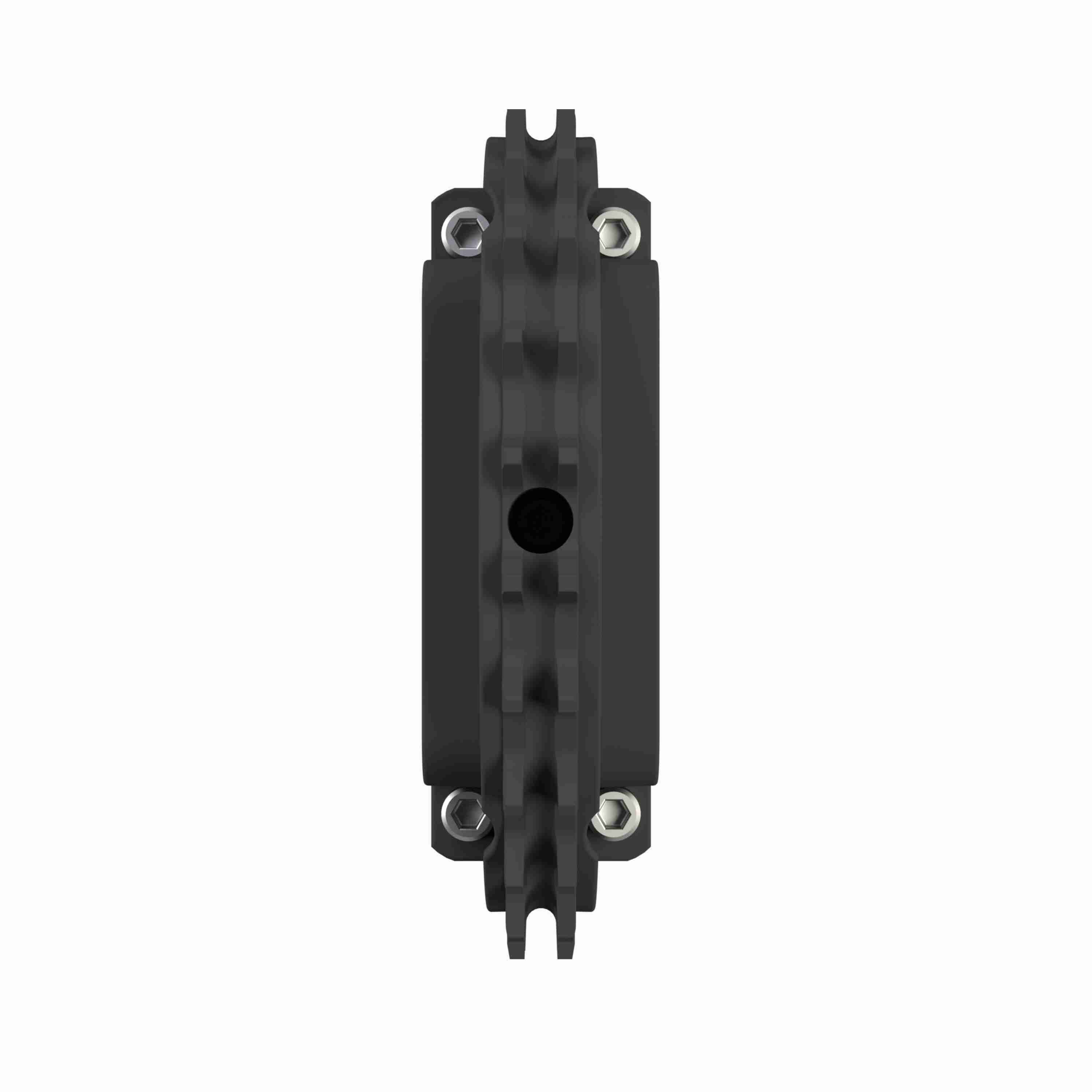

Rexnord 8500 Series Split Molded Nylon Sprocket and a 25 Teeth with 30mm Round Shaft-Ready Bore with Keyway & Setscrew - 10322782
Part #:10322782
Catalog #:10322782
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 25 | Chain Number: | 8500 |
| Pitch Diameter (mm): | 151.99 | Product Line: | Chain and Belt Sprockets |
| Bore Type: | Shaft-Ready | Product Group: | MatTop® |
| Material: | Nylon | Number of Set Screws: | 1 Setscrew |
| Bore Diameter (mm): | 30 mm | Body Style: | Block |
| Number of Keyways: | 1 | Bore Shape: | Round |
| Sprocket Series: | 8500 | Pitch Diameter (in): | 5.984 |
| Sprocket Construction: | Molded Split Sprocket |
General Specifications
| UPC: | 782934790256 | Weight: | 0.78 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
