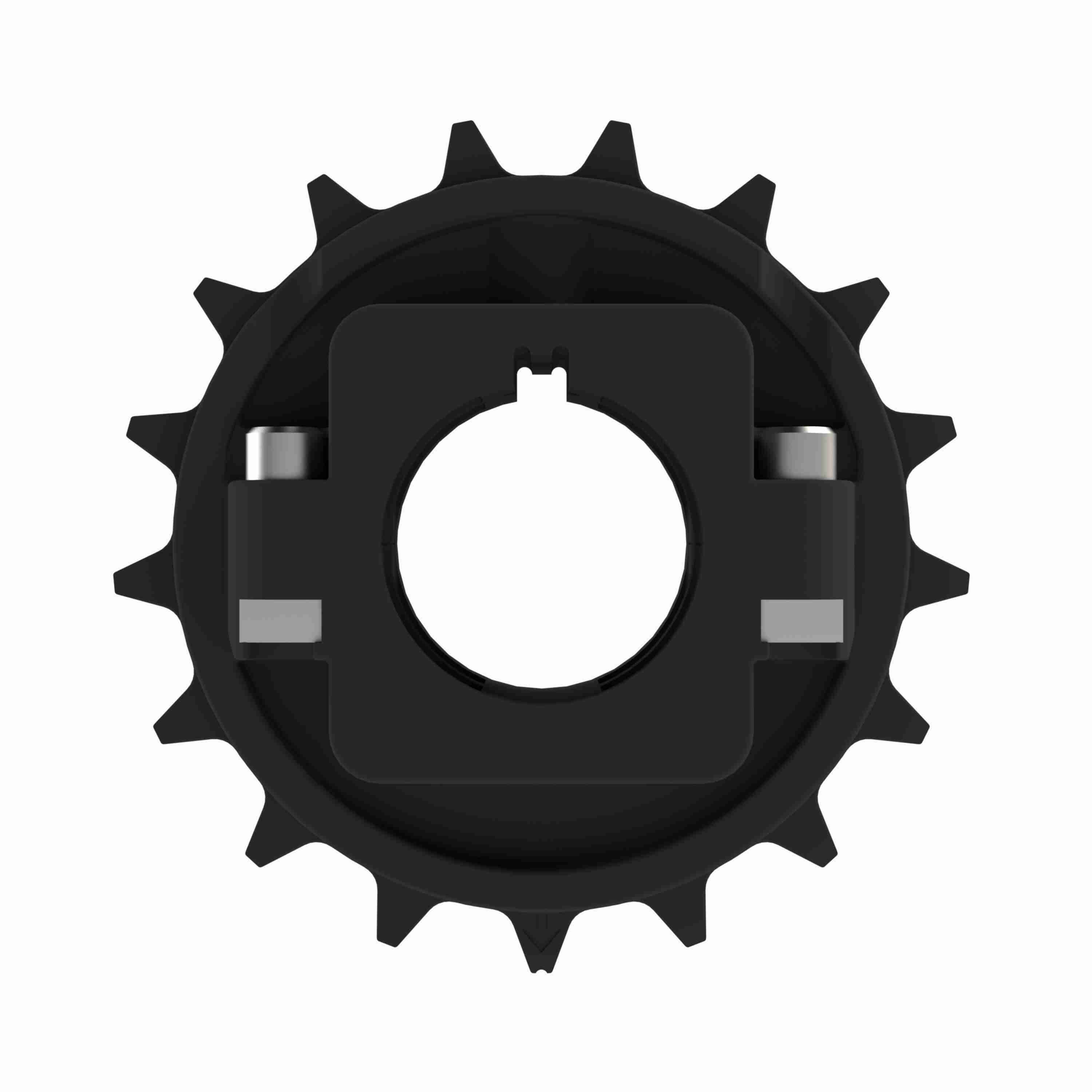

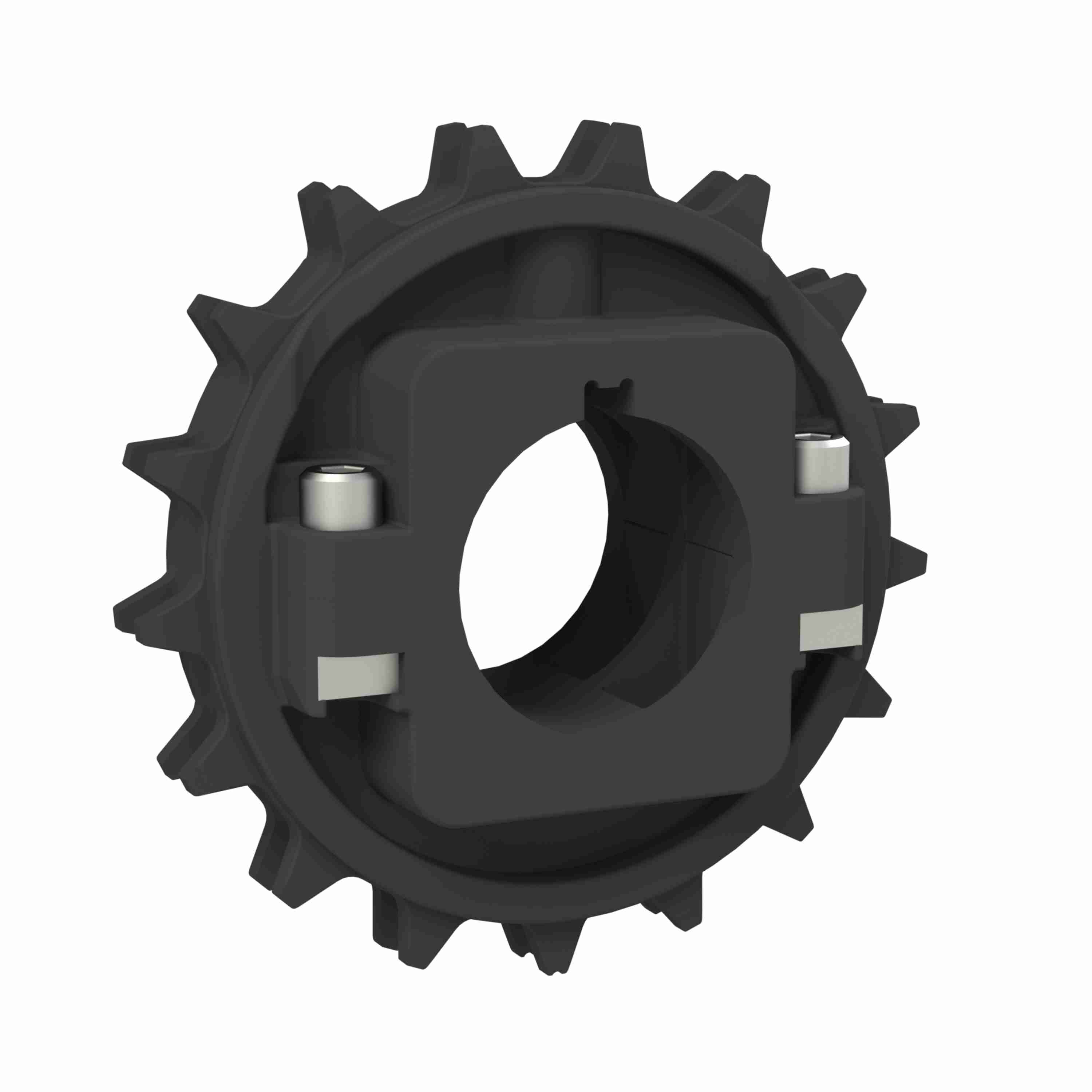

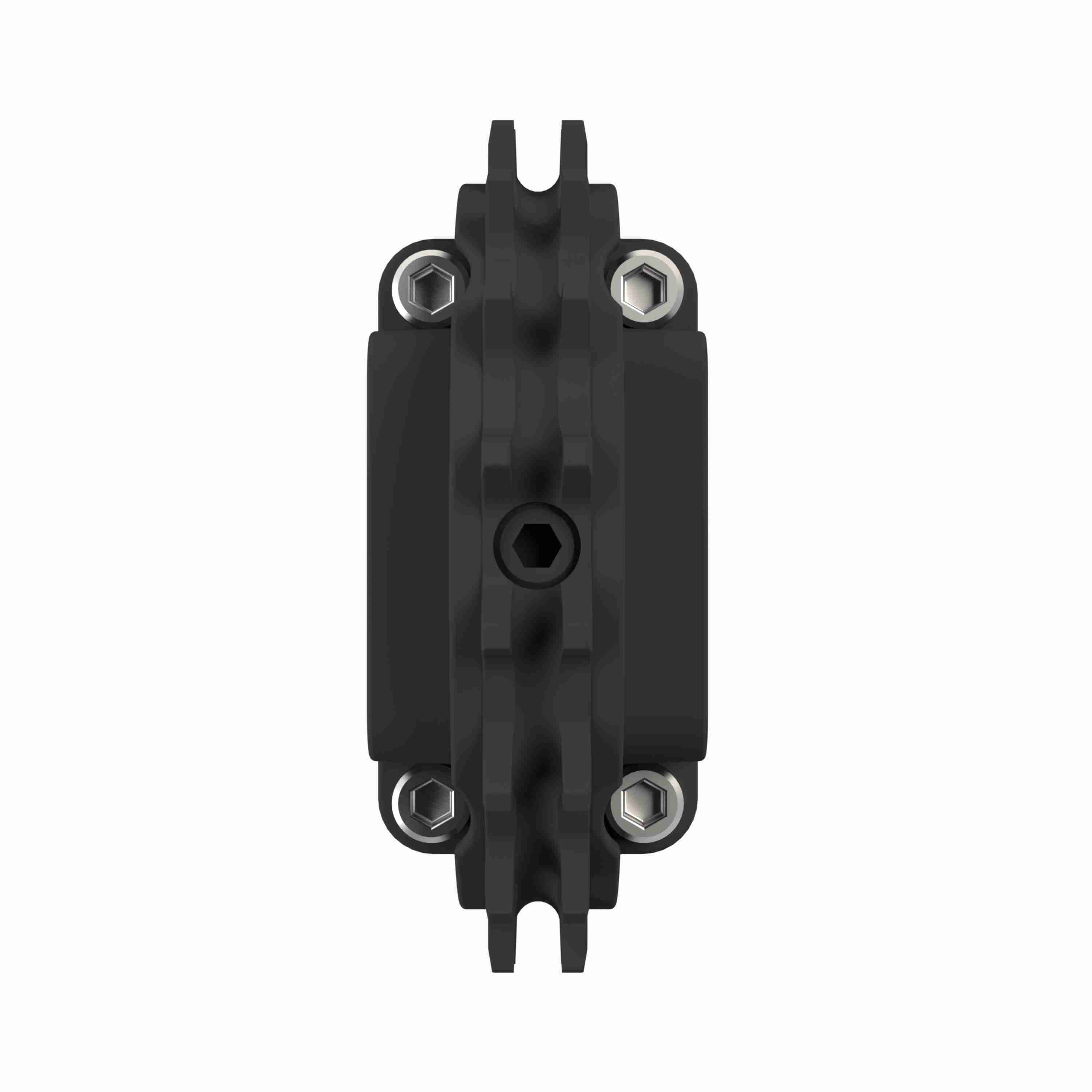

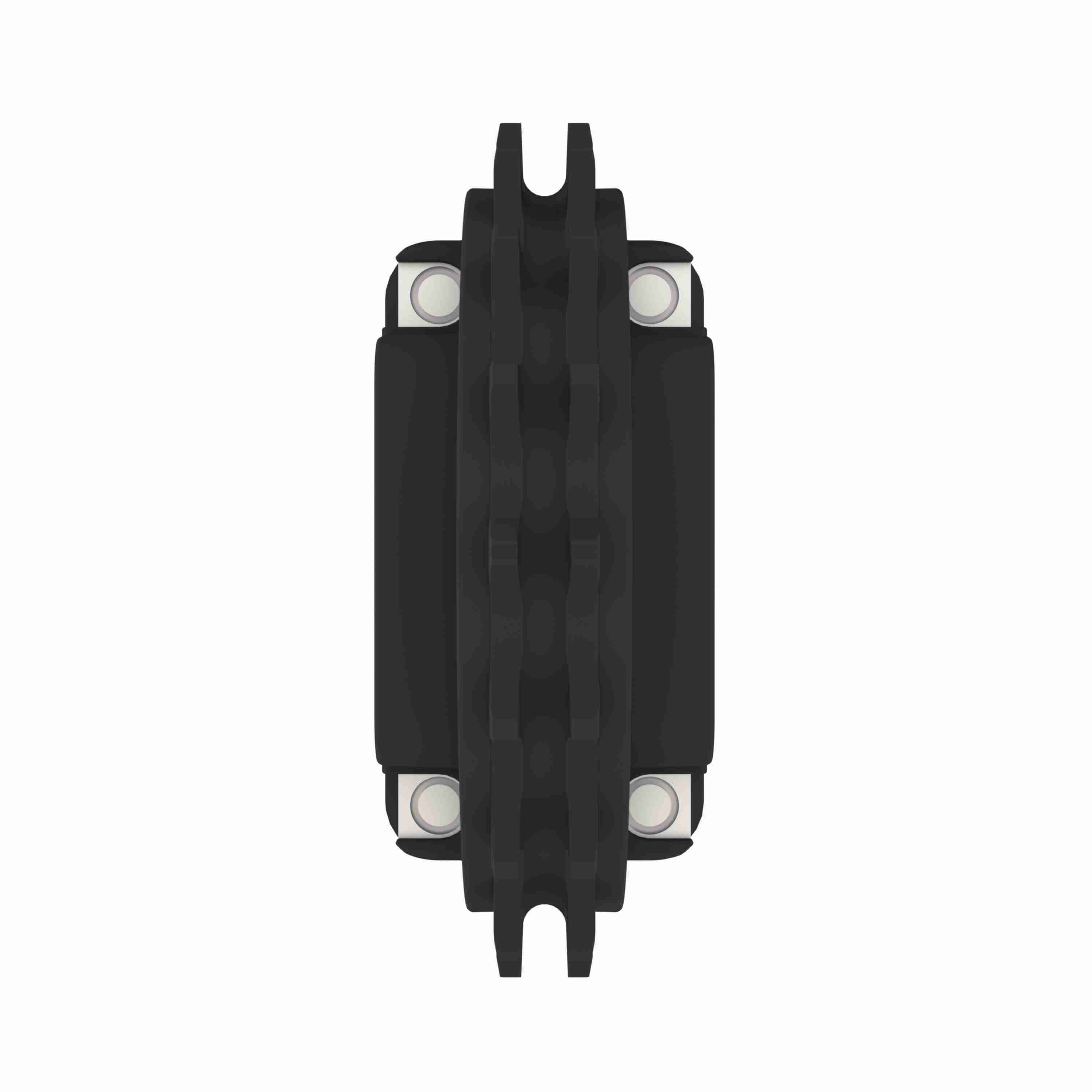

Rexnord 8500 Series Split Molded Nylon Sprocket with 17 Teeth and 25mm Round Shaft-Ready Bore with Keyway - 614-176-25
Part #:10028670
Catalog #:614-176-25
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Material: | Nylon | Sprocket Construction: | Molded Split Sprocket |
| Bore Type: | Shaft-Ready | Number of Set Screws: | None |
| Pitch Diameter (mm): | 103.67 | Number of Keyways: | 1 |
| Product Group: | MatTop® | Pitch Diameter (in): | 4.082 |
| Body Style: | Block | Bore Shape: | Round |
| Sprocket Series: | 8500 | Chain Number: | 8500 |
| Number of Teeth: | 17 | Product Line: | Chain and Belt Sprockets |
| Bore Diameter (mm): | 25 mm |
General Specifications
| UPC: | 793699409239 | Weight: | 0.48 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
