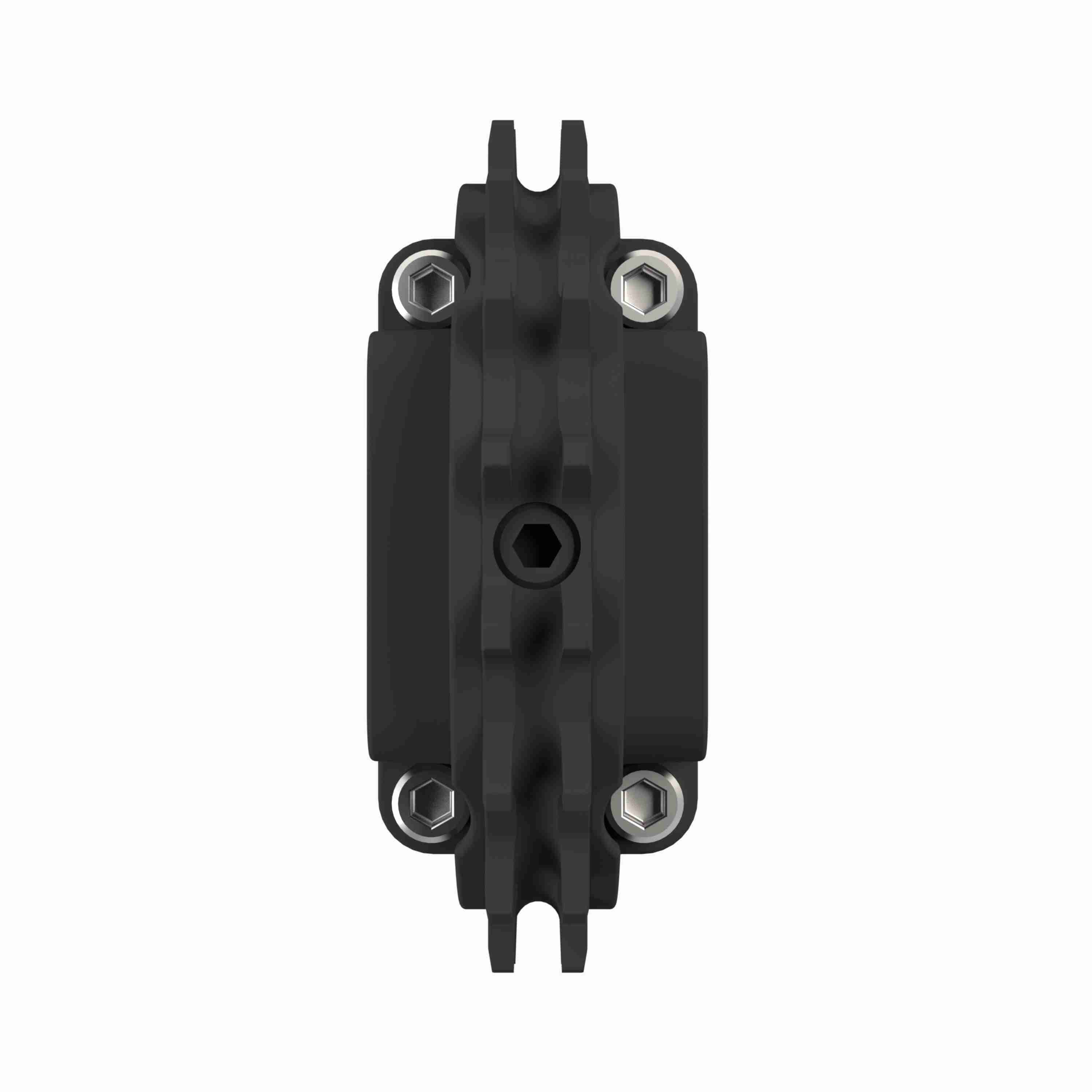

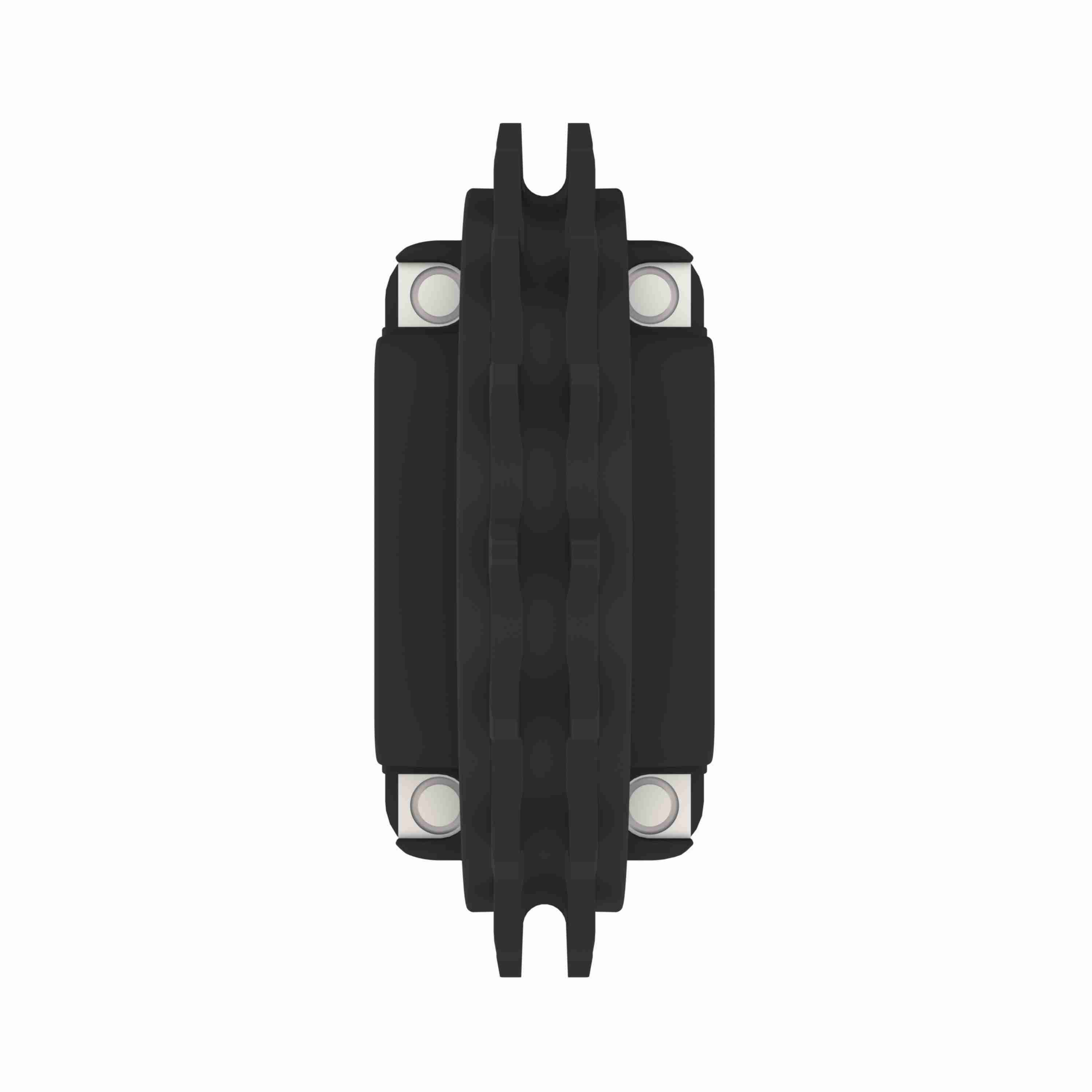

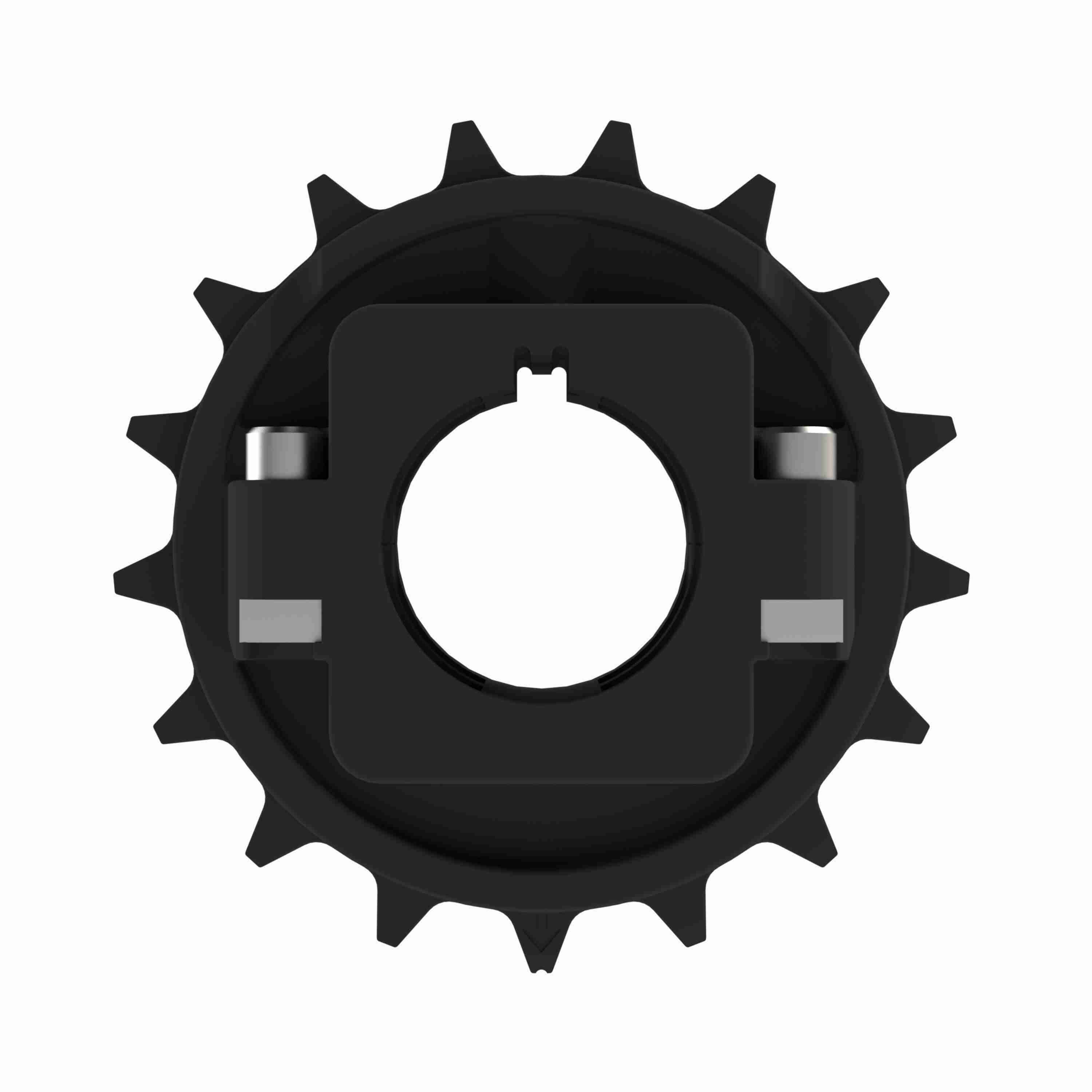

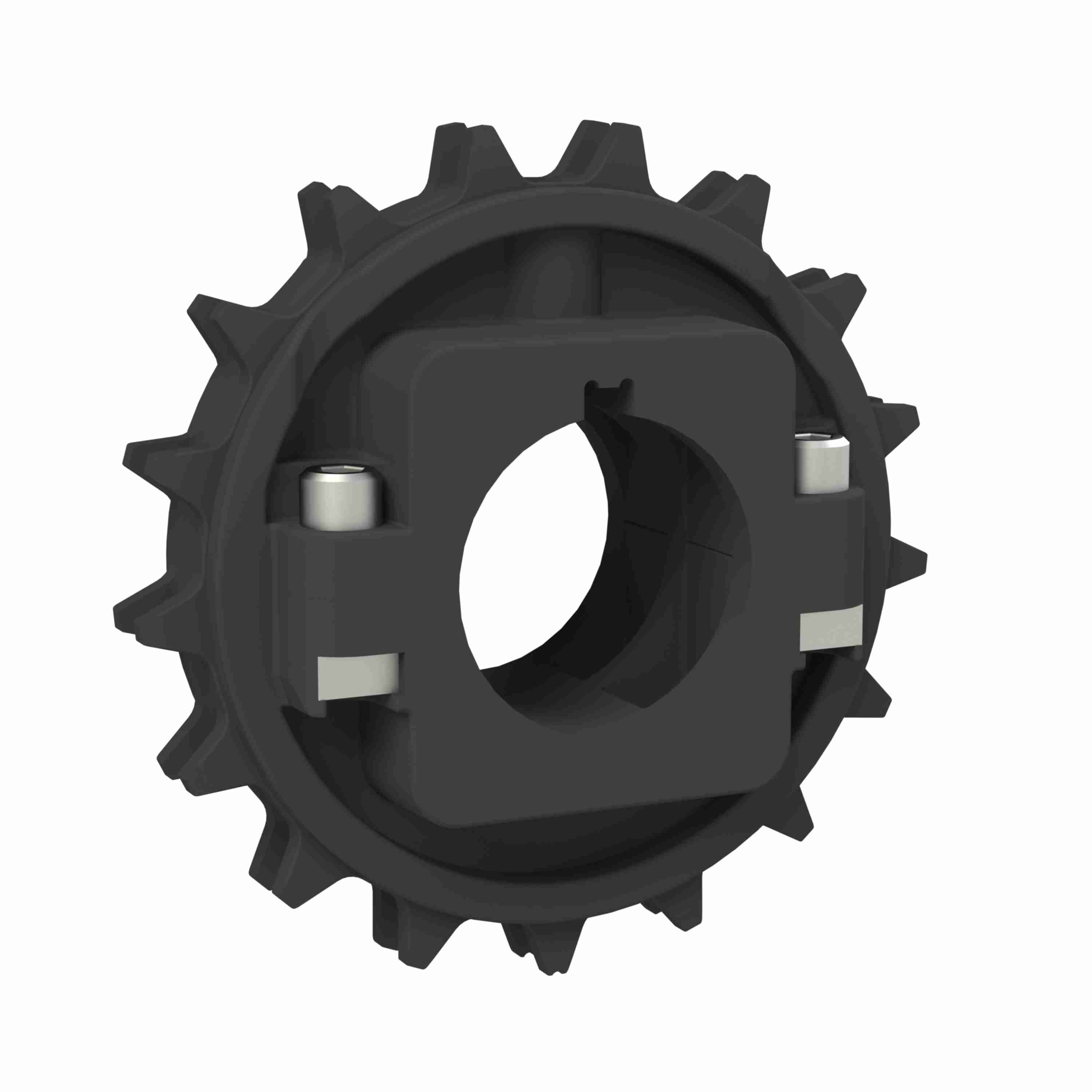

Rexnord 8500 Series Split Molded Nylon Sprocket with 17 Teeth and 30mm Round Shaft-Ready Bore with Keyway - 614-176-30
Part #:10028671
Catalog #:614-176-30
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 17 | Hub Type: | C-HUB |
| Pitch Diameter (mm): | 103.67 | Sprocket Construction: | Molded Split Sprocket |
| Material: | Nylon | Sprocket Series: | 8500 |
| Product Line: | Chain and Belt Sprockets | Body Style: | Block |
| Product Group: | MatTop® | Pitch Diameter (in): | 4.082 |
| Bore Diameter (mm): | 30 mm | Number of Keyways: | 1 |
| Number of Set Screws: | None | Bore Type: | Shaft-Ready |
| Bore Shape: | Round | Chain Number: | 8500 |
General Specifications
| UPC: | 793699262186 | Weight: | 0.48 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
