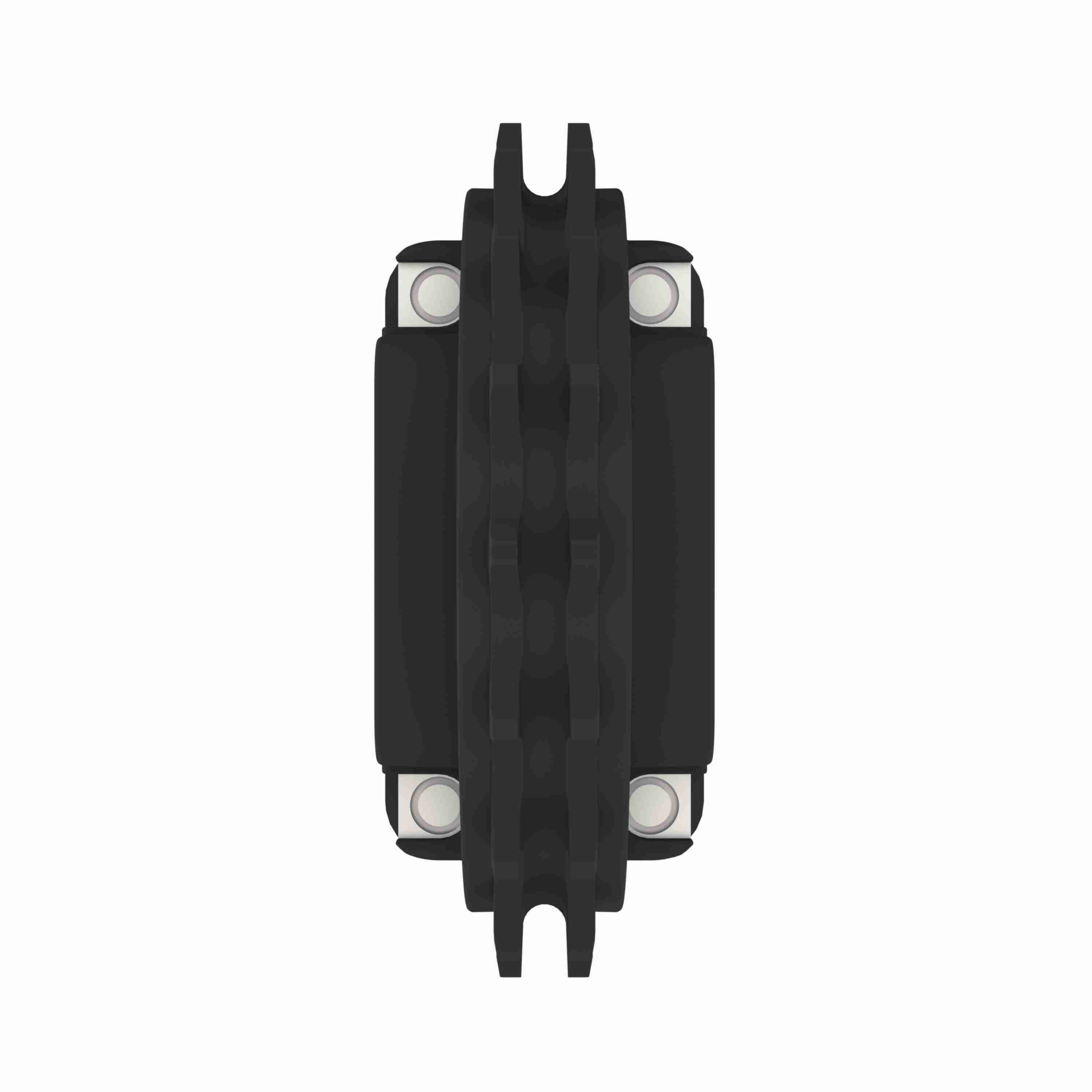

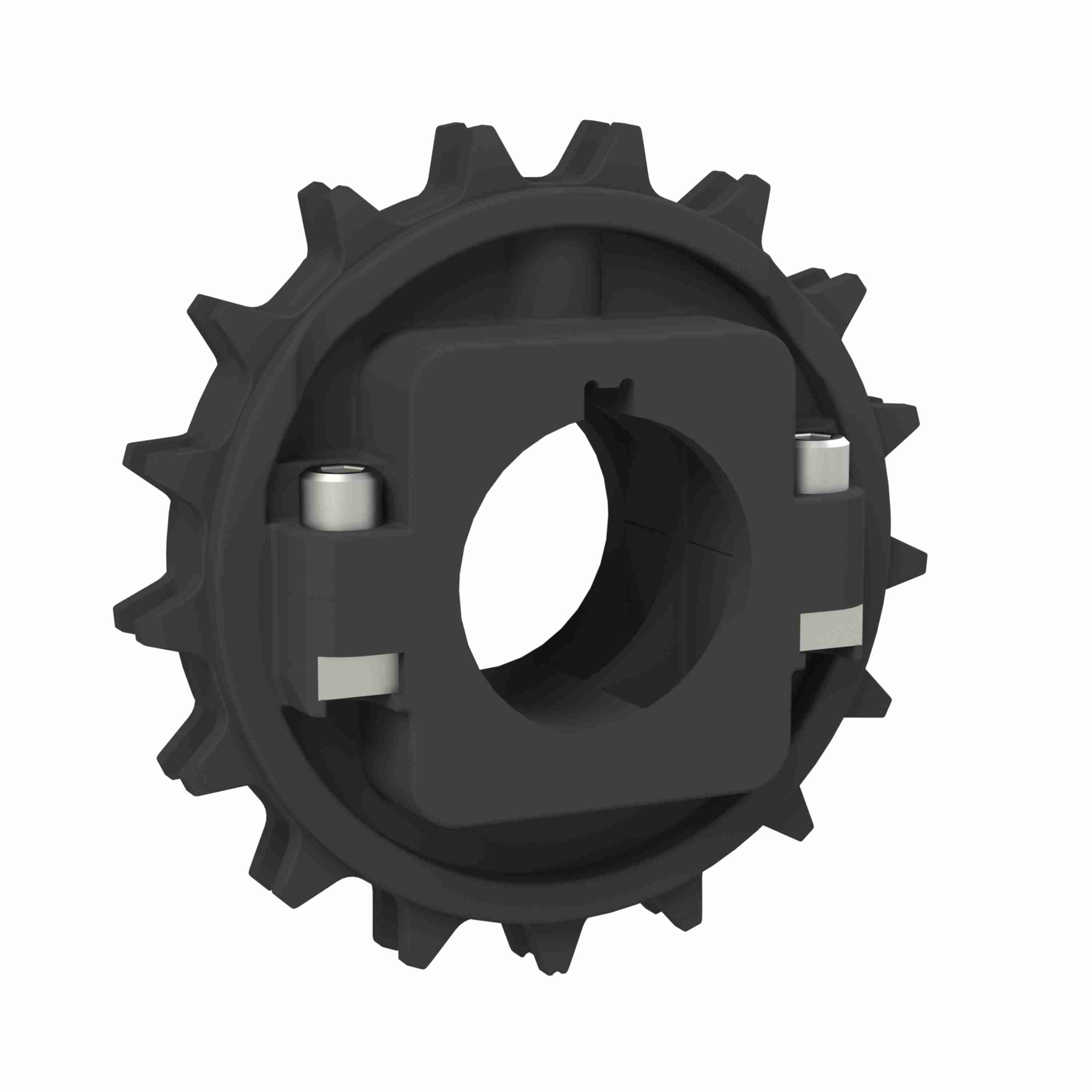

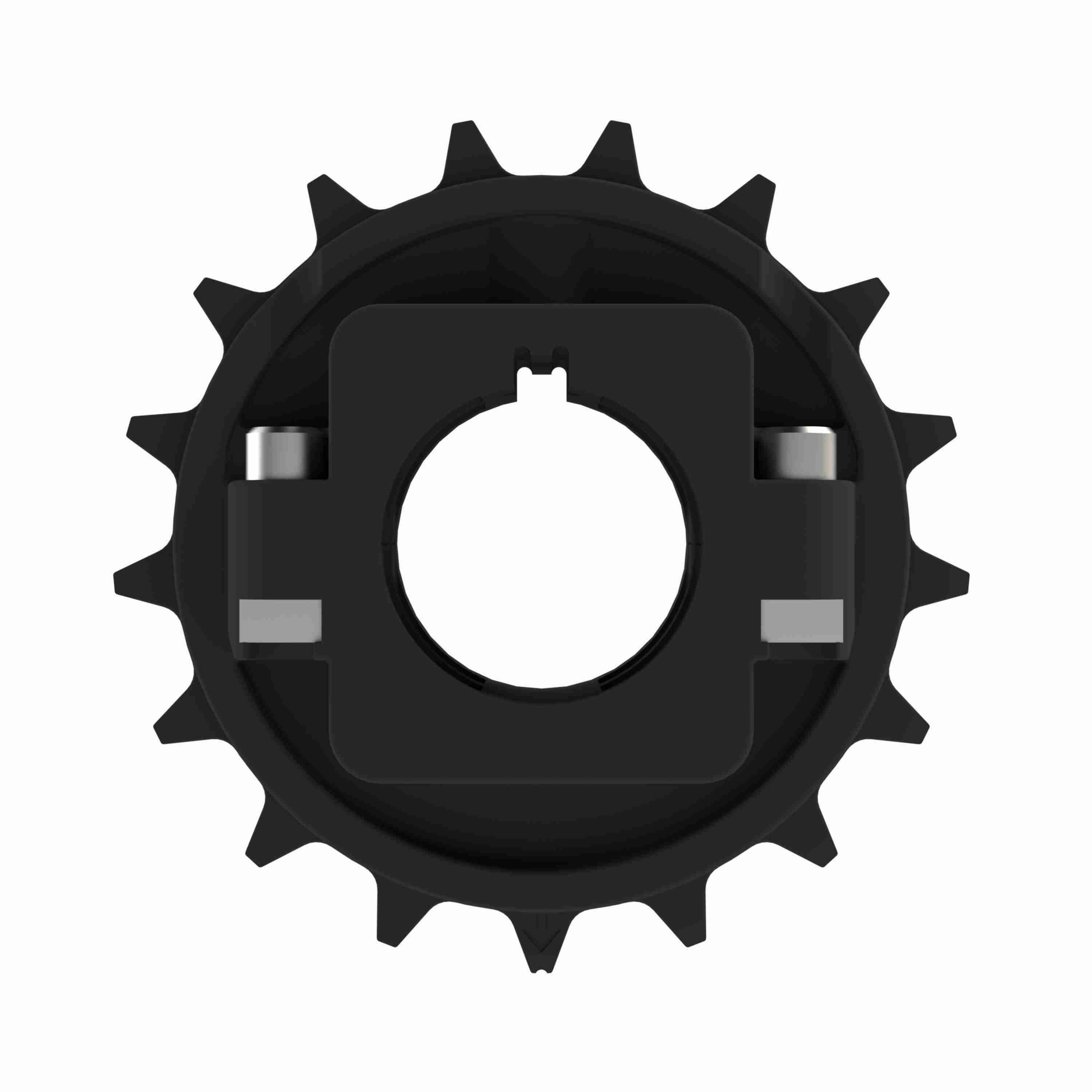

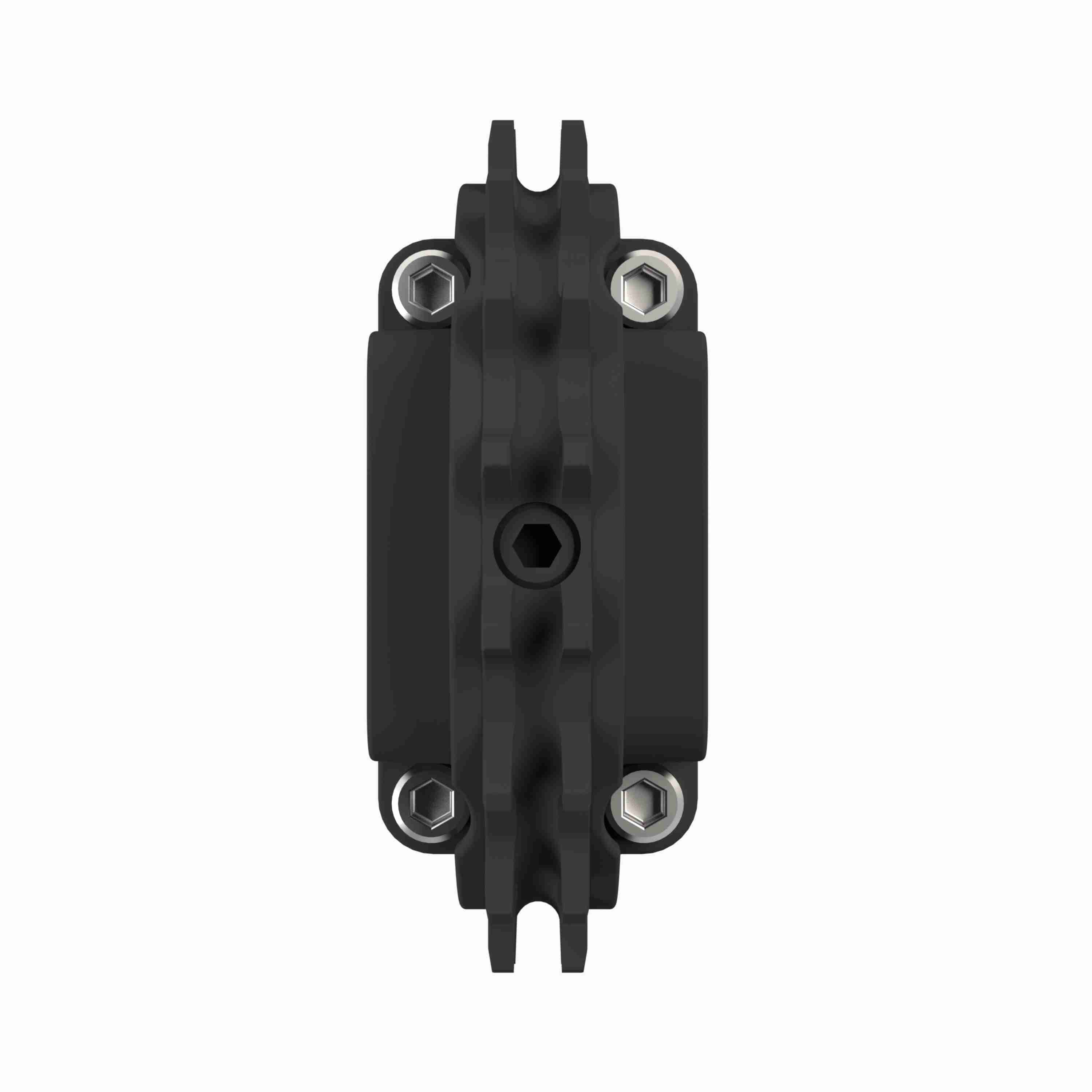

Rexnord 8500 Series Split Molded Nylon Sprocket with 17 Teeth and 35mm Round Shaft-Ready Bore with Keyway - 614-176-35
Part #:10331962
Catalog #:614-176-35
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | MatTop® | Pitch Diameter (mm): | 103.67 |
| Chain Number: | 8500 | Product Line: | Chain and Belt Sprockets |
| Body Style: | Block | Hub Type: | C-HUB |
| Pitch Diameter (in): | 4.082 | Bore Type: | Shaft-Ready |
| Material: | Nylon | Sprocket Series: | 8500 |
| Bore Shape: | Round | Sprocket Construction: | Molded Split Sprocket |
| Number of Keyways: | 1 | Number of Set Screws: | None |
| Bore Diameter (mm): | 35 mm | Number of Teeth: | 17 |
General Specifications
| UPC: | 782934921872 | Weight: | 0.22 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
