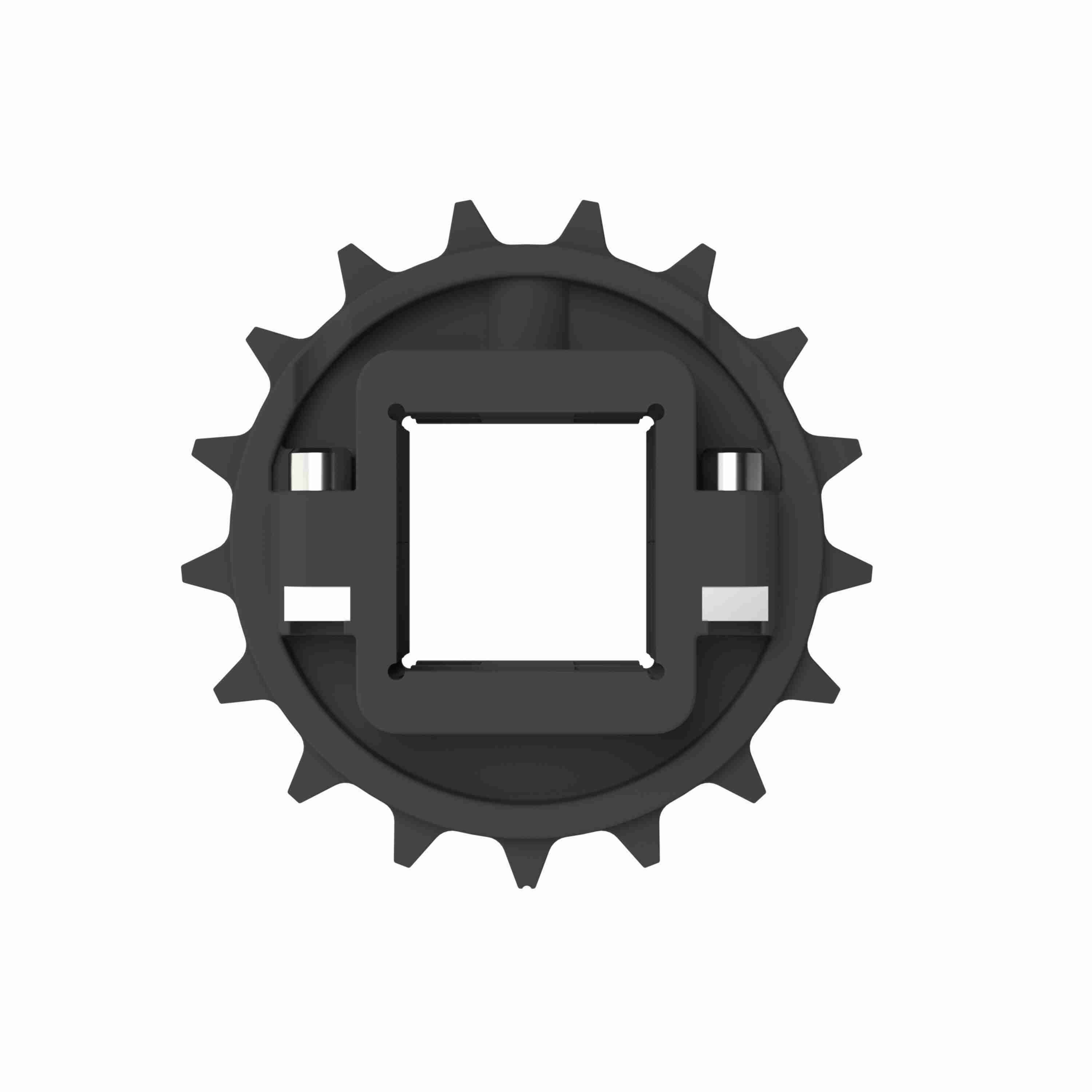

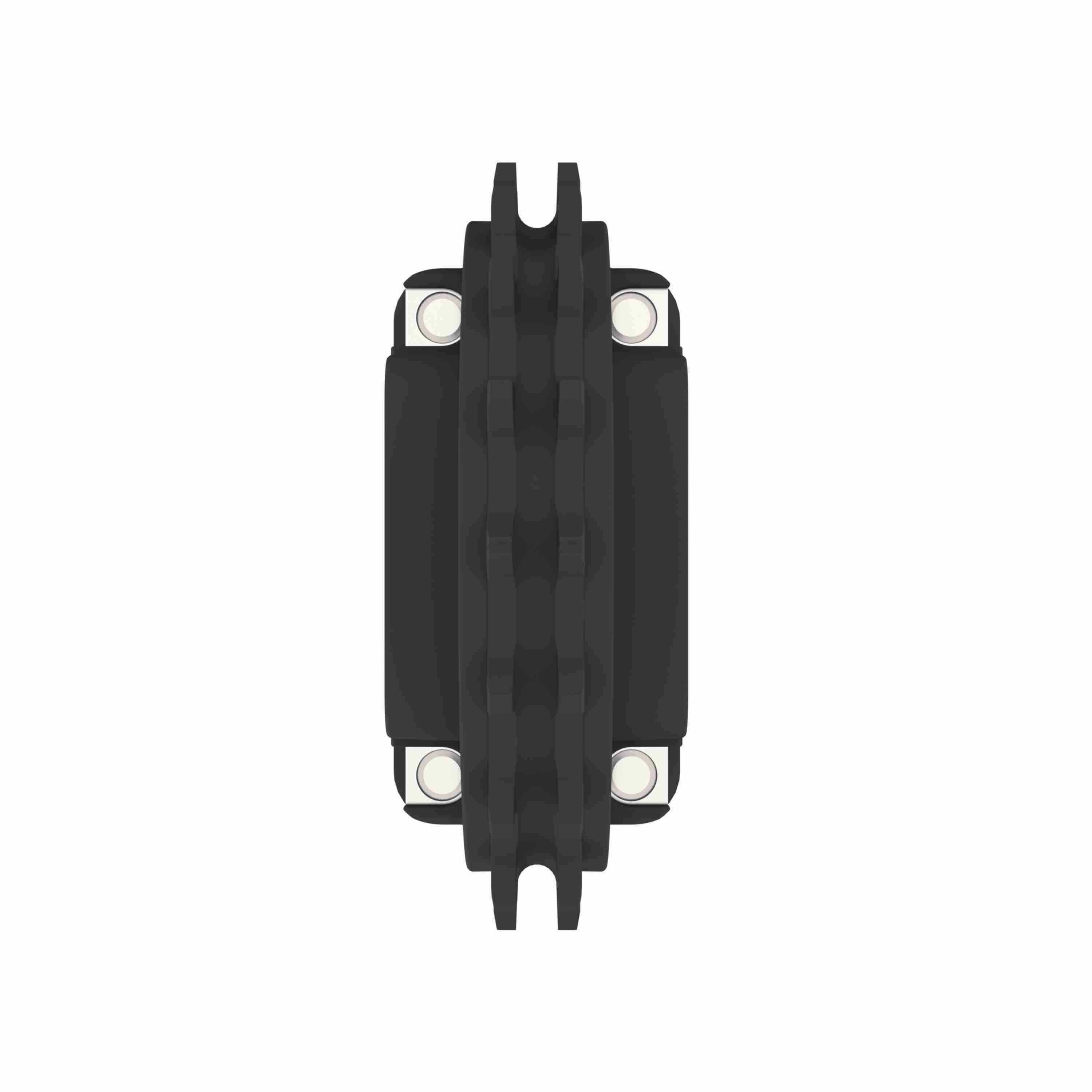

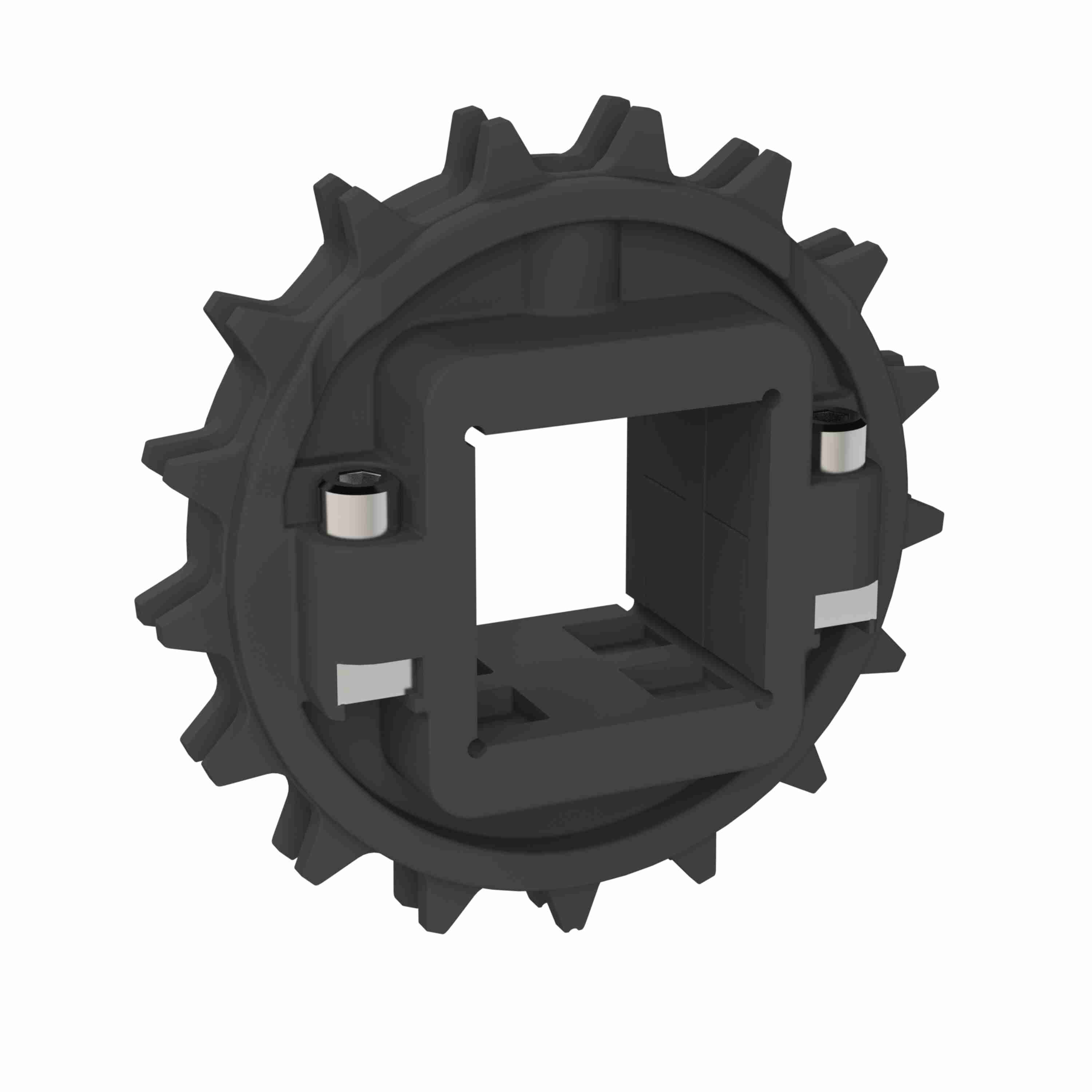

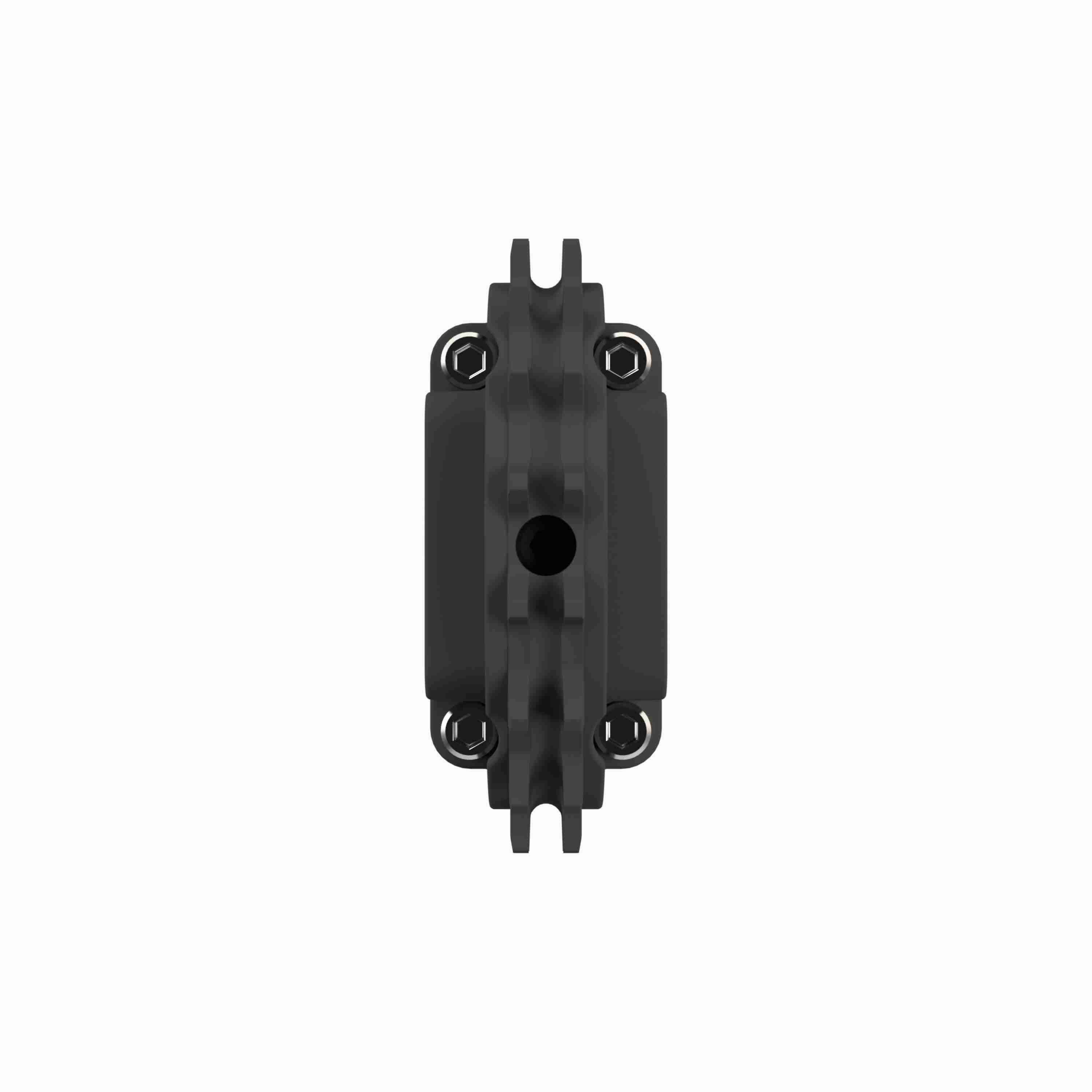

Rexnord 8500 Series Split Molded Nylon Sprocket with 17 Teeth and a 25mm Square Bore - 614-177-1
Part #:10331199
Catalog #:614-177-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Chain and Belt Sprockets | Material: | Nylon |
| Bore Diameter (mm): | 25 mm | Chain Number: | 8500 |
| Hub Type: | C-HUB | Product Group: | MatTop® |
| Pitch Diameter (in): | 4.082 | Number of Teeth: | 17 |
| Sprocket Construction: | Molded Split Sprocket | Number of Keyways: | 0 |
| Bore Type: | Shaft-Ready | Number of Set Screws: | None |
| Pitch Diameter (mm): | 103.67 | Body Style: | Block |
| Sprocket Series: | 8500 | Bore Shape: | Square |
General Specifications
| UPC: | 782934824111 | Weight: | 0.22 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
